Wagner Germany WPB-420A Fully Automatic Double-Column Bandsaw Machine

Name: Wagner Germany WPB-420A Fully Automatic Double-Column Bandsaw Machine
Brand: Liberty Metal & Machines Private Limited
Price: 115000.0 INR
Availability: InStock

Price 115000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Wagner Germany WPB-420A Fully Automatic Double-Column Bandsaw Machine Specification

Noise Level
Low

Connectivity Options
Control Panel, Emergency Stop Switch

Cooling System
Integrated Coolant System

Frame Type
Double Column

Motor Power
5 HP

Model No
WPB-420A

Lubricating System
Automatic Lubrication

Machine Type
Bandsaw

Drive
Electric

Frequency
50 Hz

Features
Automatic Material Feed, Precision Cutting, Hydraulic Vise Clamping, German Technology

Control System
PLC Controlled

Operating Temperature
Ambient

Power Rating
5 HP

Production Capacity
High

Voltage
415 V

Accuracy
High Precision

Product Type
Fully Automatic Double-Column Bandsaw Machine

Technology
German

Power Source
Electric

Operating Type
Fully Automatic

Power
Approx. 5 HP (Main Motor)

Pressure
Hydraulic

Surface Treatment
Paint Coated

Dimension (L*W*H)
About 2700 x 2200 x 1600 mm

Weight (kg)
Approx. 2100 kg

Color
Beige

Usage & Applications
Industrial Metal Cutting

Cutting Capacity Square
420 x 420 mm

Material to be Cut
Steel, Stainless Steel, and Non-Ferrous Metals

Workpiece Clamping
Hydraulic Vise

Blade Size
420 mm cutting capacity

Main Frame
Heavy Duty, Welded Construction

Hydraulic Tank Capacity
Approx. 60 Liters

Blade Speed
15-80 m/min (Adjustable)

Blade Tensioning
Hydraulic

Chip Conveyor
Automatic Chip Conveyor Included

Cutting Direction
Horizontal

Cutting Capacity Round
420 mm

Automation Grade
Fully Automatic

About Wagner Germany WPB-420A Fully Automatic Double-Column Bandsaw Machine

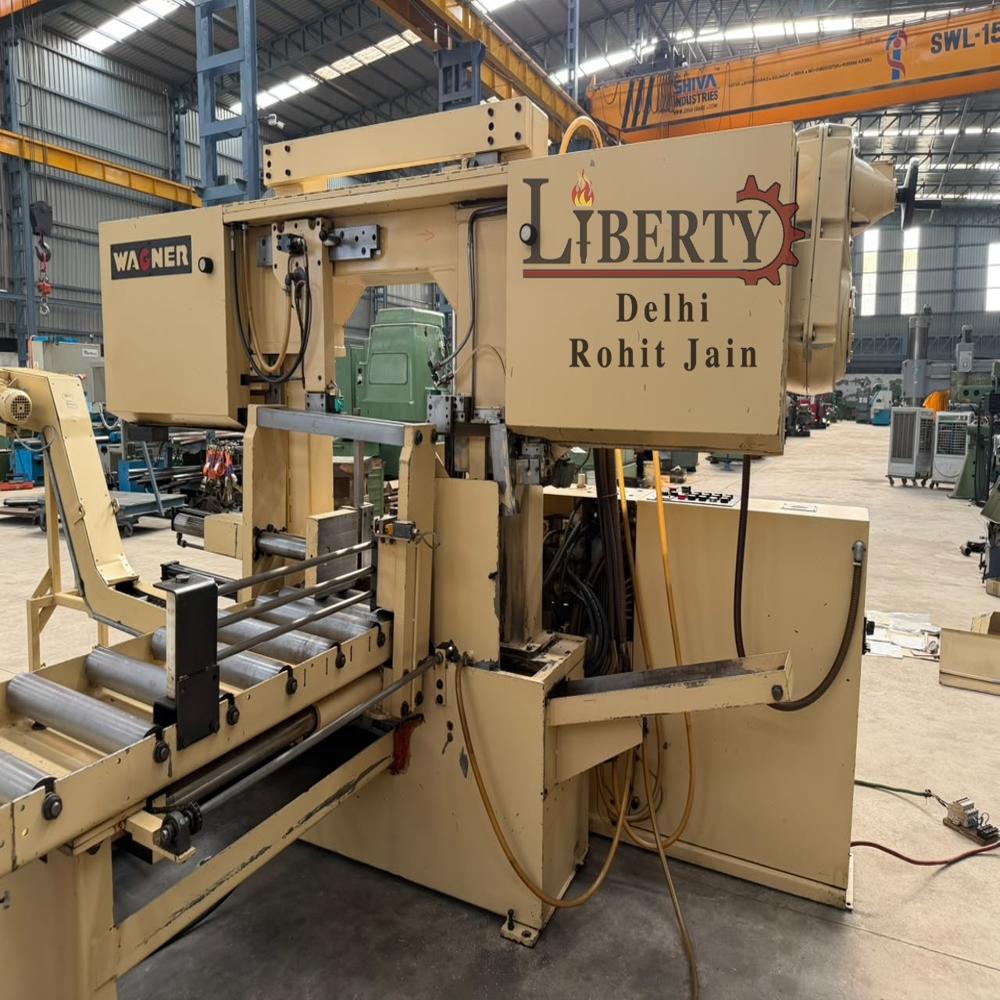

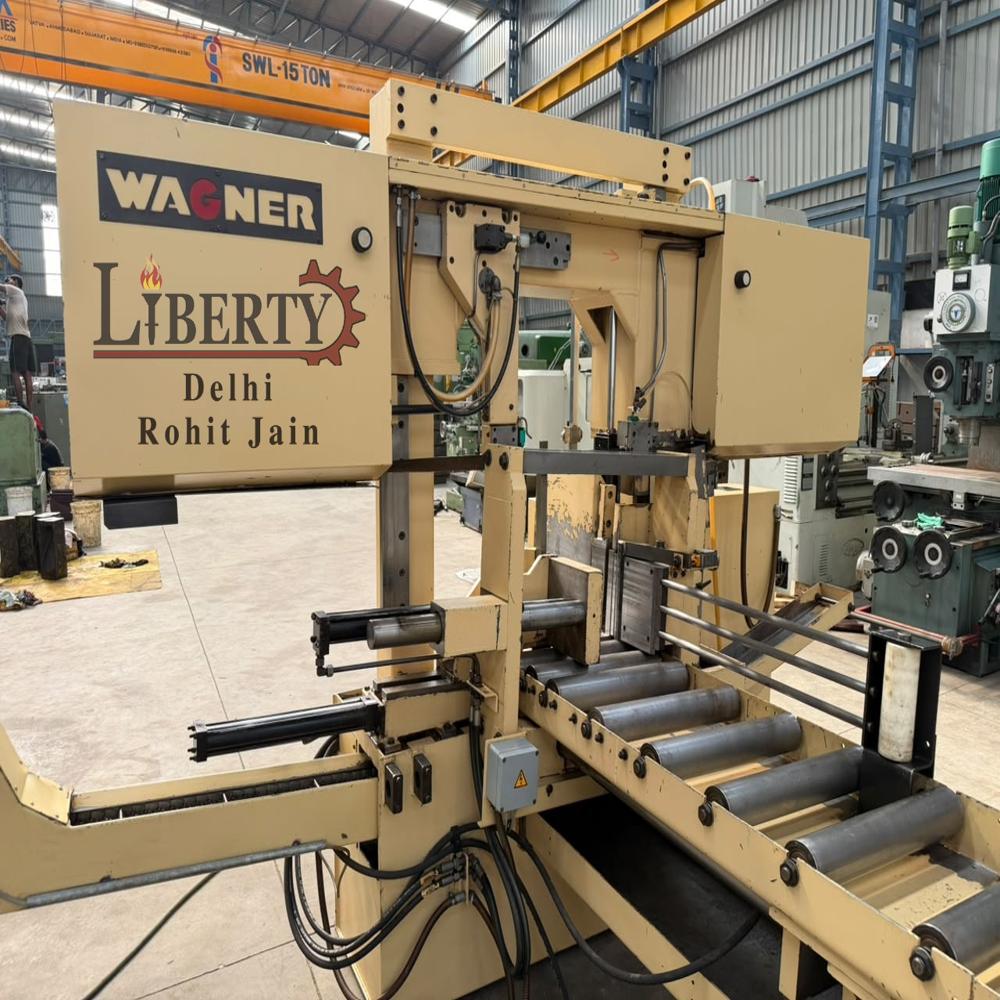

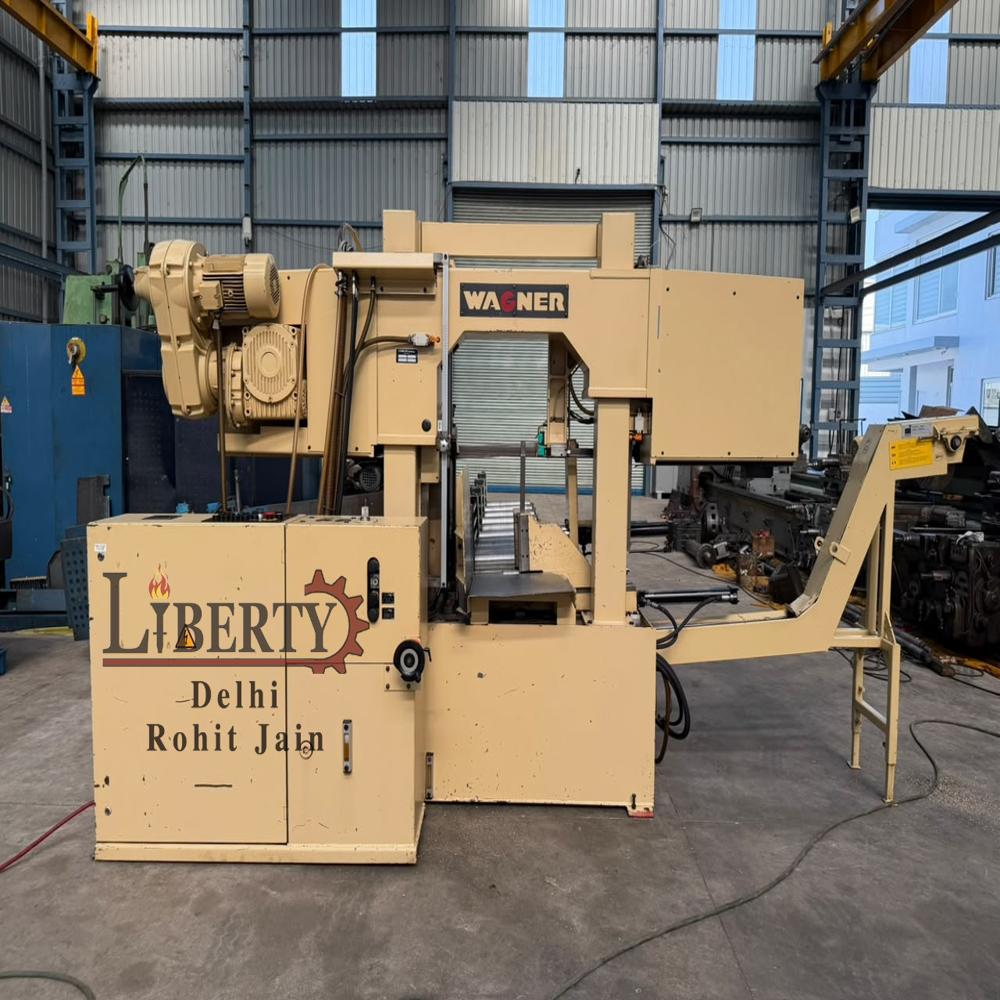

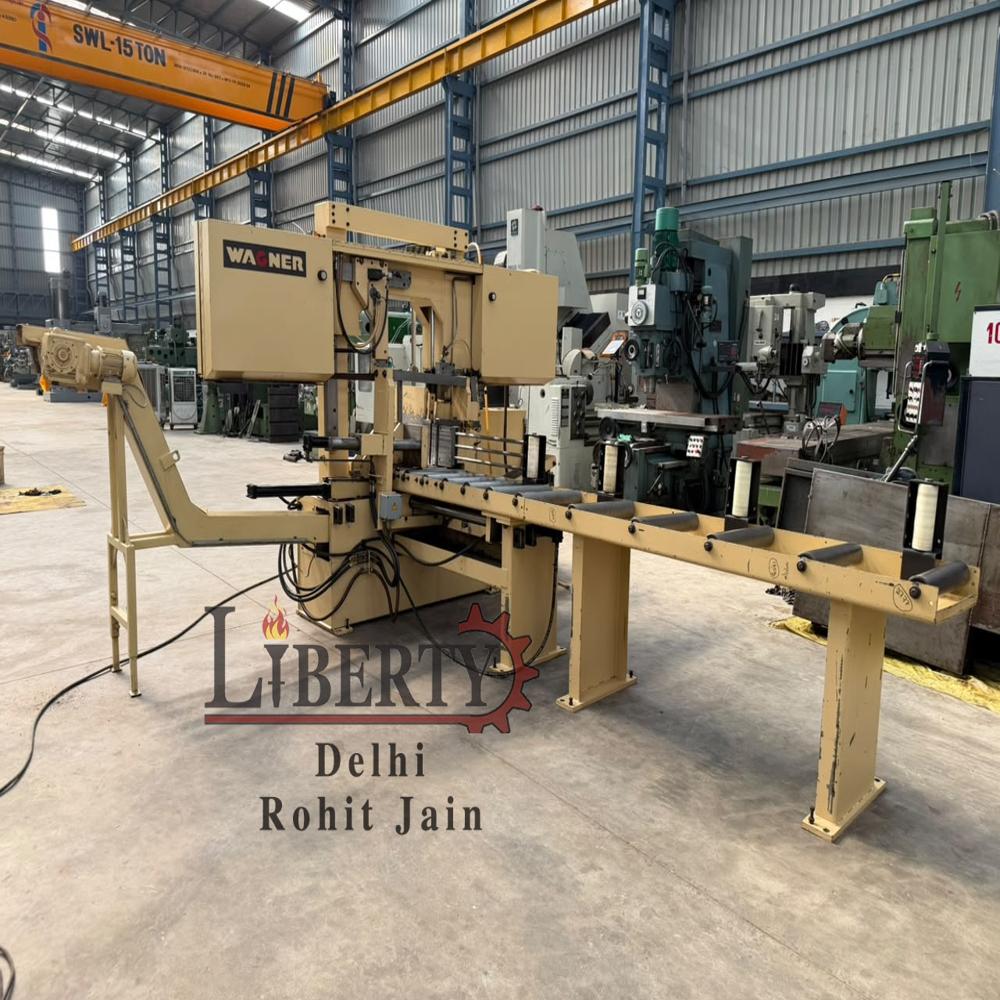

Fully Automatic Double-Column Bandsaw Machine manufactured by Wagner (Germany), Model WPB-420A, available in excellent working condition. The machine has a Cutting Capacity of 420 mm Diameter for Round Material and 420 mm 420 mm for Flat Material. It is a Heavy-Duty Bandsaw Machine complete with a Chip Conveyor, Conveyor Table, Operating Manual, Electrical Drawings, and other accessories. The technical details are as follows -

Make - Wagner (Germany)

Model - WPB-420A

Round Cutting Capacity - 420 mm Diameter

Flat Cutting Capacity - 420 mm x 420 mm

Blade Size - 6280 mm Length 38 mm Width 1.30 mm Thickness

Blade Speed Range - 16 m/min to 105 m/min

Blade Motor Power - 5.5 kW

Max. Automatic Feed Vice Stroke - 520 mm (single stroke)

Maximum Automatic Feed Strokes - 4 Times

Approx. Machine Weight - 3.06 Tons

Machine Type - Fully Automatic | Double-Column

- Complete with a Chip Conveyor, Conveyor Table, and other accessories.

- Operating Manual and Electrical Drawings are available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/b-h8XHoXztQ

Superior Cutting Performance

The WPB-420A is designed for high-precision cutting in demanding industrial environments. Its fully automatic operation, adjustable blade speed (15-80 m/min), and hydraulic systems ensure smooth, consistent production runs. Suitable for a wide range of ferrous and non-ferrous metals, it guarantees accuracy and repeatability, making it ideal for fabrication shops, metalworking plants, and large-scale manufacturing.

Advanced Automation and Safety

Equipped with a PLC-controlled system, hydraulic clamping, and automatic lubrication, this machine minimizes operator intervention while maximizing throughput. Features like an emergency stop switch and a control panel enhance operational safety. The automatic chip conveyor and integrated coolant system facilitate maintenance and ensure longer blade life, maintaining high productivity with minimal downtime.

Engineered for Durability and Ease of Use

Built with a heavy-duty, welded main frame, the WPB-420A delivers lasting reliability even under continuous industrial use. Its robust design, paint-coated surface, and intuitive controls promote both machine longevity and operator comfort. The automatic material feed enhances workflow, while the compact footprint fits seamlessly into busy manufacturing spaces.

FAQ's of Wagner Germany WPB-420A Fully Automatic Double-Column Bandsaw Machine:

Q: How does the fully automatic operation of the WPB-420A bandsaw benefit industrial users?

A: The WPB-420A's fully automatic function allows for unattended operation, reducing manual labor and increasing productivity. It automates material feeding, clamping, and cutting, which leads to consistent, high-precision outputs and faster production times in industrial settings.

Q: What types of materials can be effectively cut with this bandsaw machine?

A: This machine is designed to cut steel, stainless steel, and non-ferrous metals with precision. Its heavy-duty construction and adjustable blade speed make it suitable for a broad range of industrial metalworking applications.

Q: When should blade speed be adjusted, and how is it controlled?

A: Blade speed should be adjusted based on the material type and thickness to achieve optimal cutting results. The WPB-420A provides variable blade speed (15-80 m/min) controlled via the PLC interface, allowing easy customization for different cutting requirements.

Q: Where is the WPB-420A most commonly used?

A: The WPB-420A is typically installed in industrial environments such as fabrication shops, steel plants, and metal manufacturing industries requiring precise and efficient high-capacity cutting solutions.

Q: What is the process for clamping and securing workpieces on this machine?

A: Workpieces are securely held using a hydraulic vise, which ensures stable, vibration-free cutting. The hydraulic system activates automatically during the cutting cycle for efficient and reliable clamping every time.

Q: How does the integrated cooling and lubrication system enhance operation?

A: The built-in coolant and automatic lubrication systems help maintain optimal blade temperature and reduce wear, thereby extending blade life, ensuring cleaner cuts, and minimizing maintenance downtime.

Q: What safety features are included in the WPB-420A bandsaw?

A: Key safety features include an emergency stop switch for immediate shutdown, a PLC-controlled system to monitor operations, and a sturdy control panel that allows operators to manage the entire process safely and efficiently.
