WMW Germany 450 mm Precision Rotary Table

Name: WMW Germany 450 mm Precision Rotary Table
Brand: Liberty Metal & Machines Private Limited
Price: 150000.0 INR
Availability: InStock

Price 150000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

WMW Germany 450 mm Precision Rotary Table Specification

Operating Temperature
Ambient shop temperature

Accuracy
High accuracy, suitable for precision work

Machine Type
Rotary Table

Model No
450 mm WMW Germany Rotary Table

Noise Level
Low (Manual Operation)

Frame Type
Bench-mount rectangular frame

Control System
Manual Dial with Vernier Scale

Features
Heavy-duty, precision-ground table, with T-slots for work holding; vernier scale for fine adjustment; robust cast iron or steel body

Lubricating System
Manual greasing/oiling

Drive
Manual crank

Product Type
Precision Rotary Table

Technology
Conventional Mechanical

Power Source
Manual

Operating Type
Manual Operation

Surface Treatment
Ground & Painted

Dimension (L*W*H)
Approx. 600 x 500 x 250 mm

Weight (kg)
Approx. 130 kg

Color
Green with Metallic Surface

Usage & Applications
Used for precision machining, dividing work in milling, drilling, and other machine tool operations

Locking Mechanism
Table locking lever provided

Table Diameter
450 mm

Mounting Type
Horizontal & Vertical (universal mounting)

Graduation
360, with fine vernier adjustment

Application Areas
Tool rooms, Machine shops, Manufacturing, Engineering colleges

Number of T-Slots
6

Condition
Used, in good working condition

About WMW Germany 450 mm Precision Rotary Table

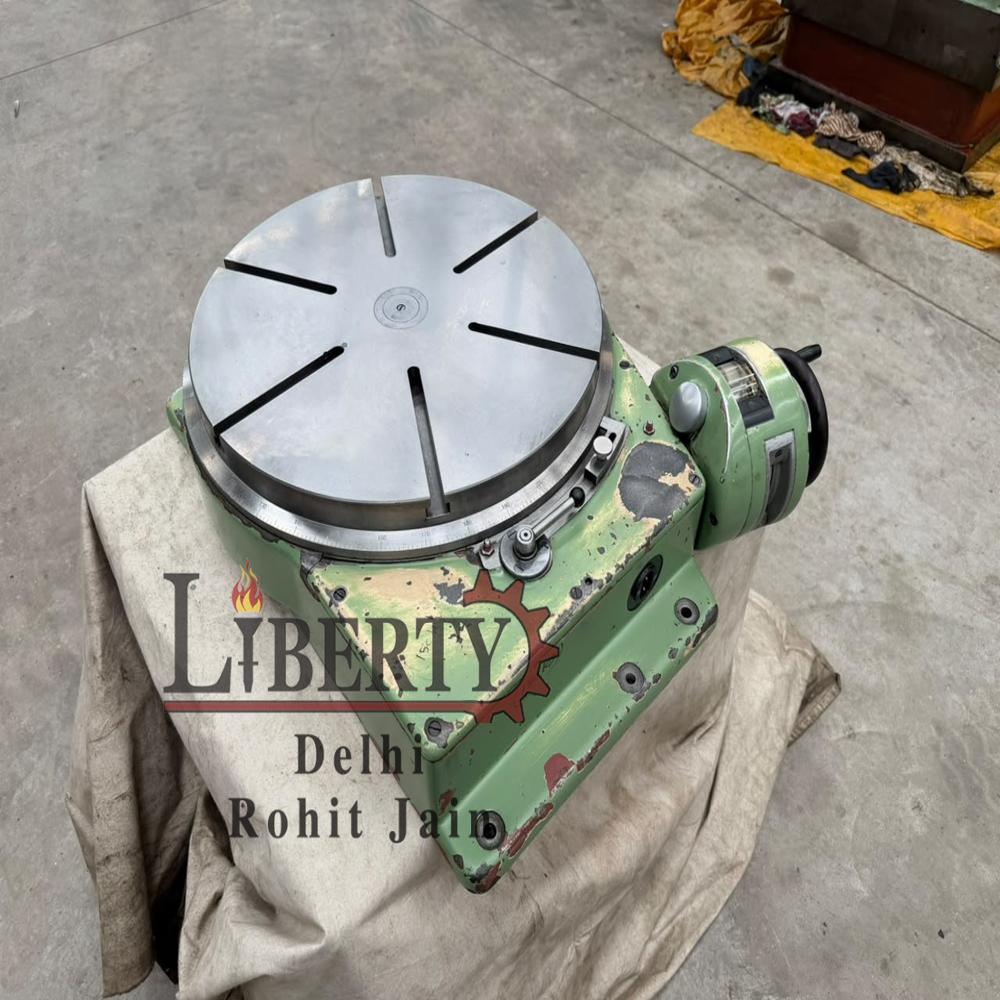

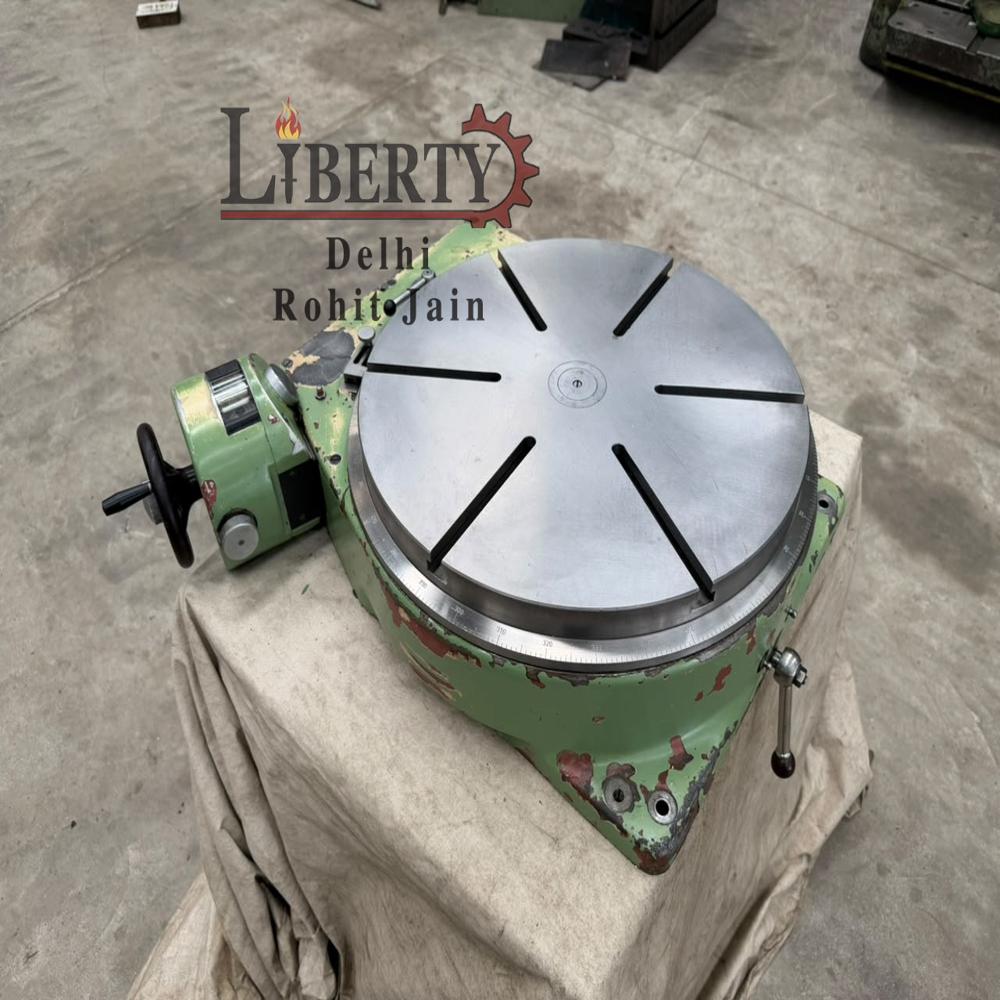

Precision Rotary Table manufactured by WMW (Germany), available in excellent working condition. It is a High-Precision Rotary Table featuring Micro-Feed Adjustment for Table Rotation, enabling highly accurate angular positioning. The table features a Vernier Graduation with a Least Count of 2 Seconds of Arc for precise setting of the Rotation Angle. It is ideally suited for precision indexing on Milling Machines, Jig Boring Machines, Drilling Machines, and other similar machine tools. The technical details are as follows -

Make - WMW (Germany)

Table Diameter - 450 mm

Total Height of Table - 160 mm

Number of T-Slots - 6 Nos.

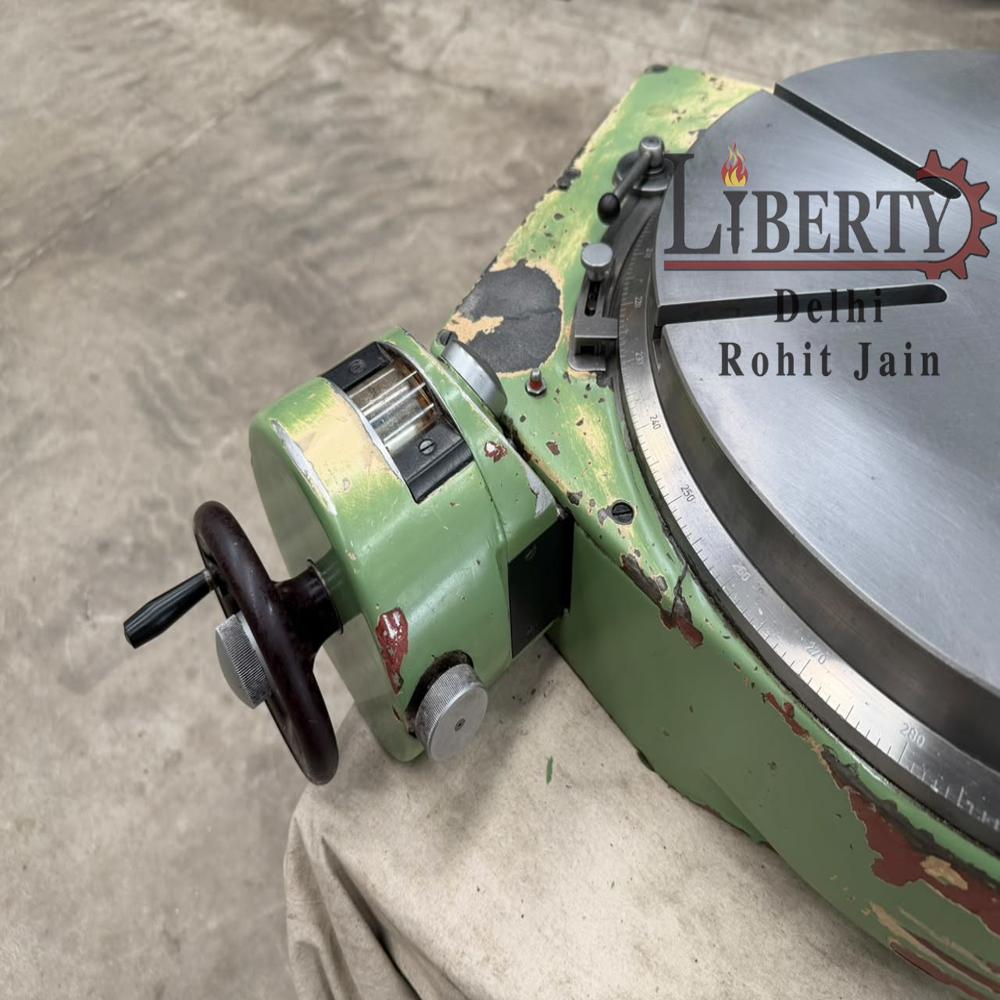

One Revolution of Handle - 2 Degrees Table Rotation

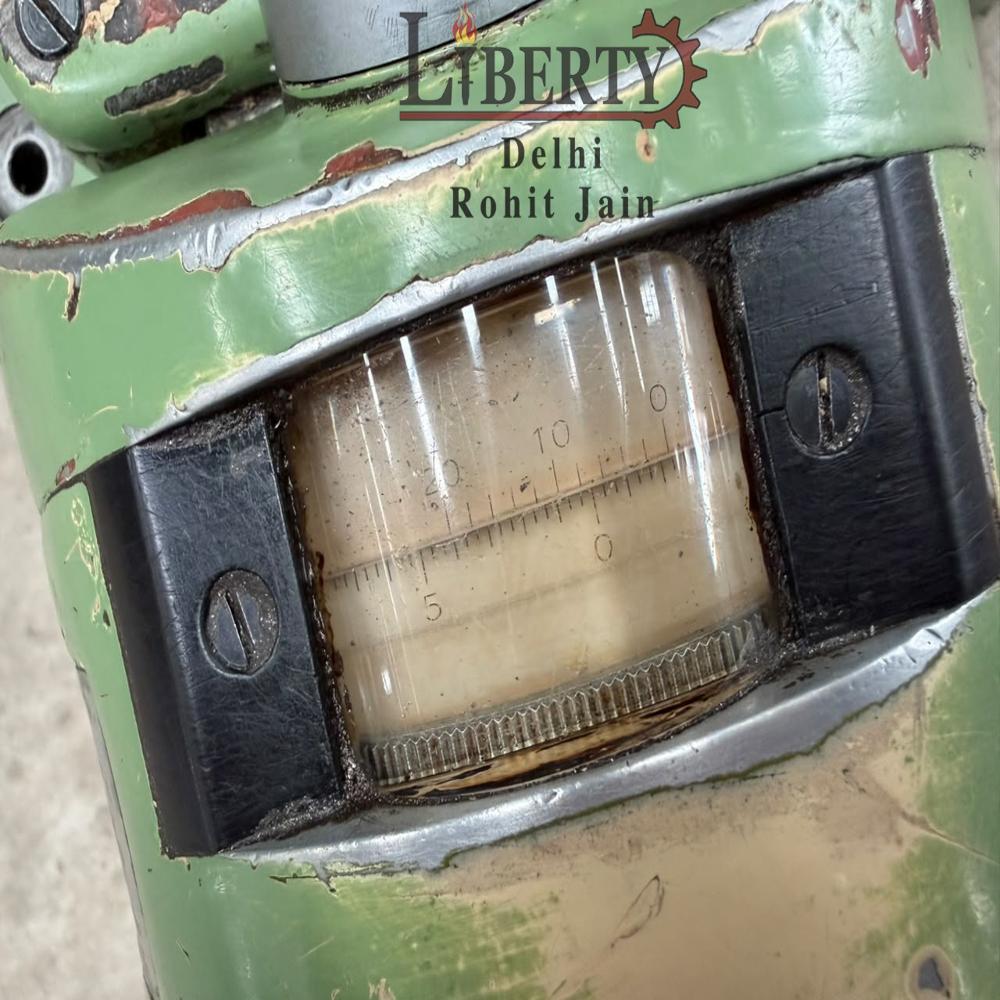

Vernier Graduation (Rotation Angle) - 2 Seconds of Arc

Approx. Table Weight - 150 kg

- Features Micro-Feed Adjustment for Table Rotation.

- Table is in excellent working condition.

Video of The Machine -

https://youtu.be/bL5K05pKmJA

Versatile Mounting for Flexible Applications

This rotary table supports both horizontal and vertical (universal) mounting, enabling users to tackle a wide variety of precision machining operations. Its adaptable design makes it equally suitable for professional tool rooms, educational engineering labs, and manufacturing shops, where flexibility and stability are critical.

Exceptional Accuracy and Fine Adjustment

Engineered for high precision, the table features a manual dial with a vernier scale, ensuring meticulous adjustments for dividing, machining, and drilling tasks. With a finely graduated scale and locking lever, users can achieve exact positioning and repeatability during complex machining processes.

Rugged Construction and User-Friendly Operation

Constructed from robust cast iron or steel with a ground and painted surface, this rotary table offers dependable durability. Manual crank operation and a straightforward locking system make it simple to use, while manual greasing and oiling ensure smooth and reliable performance throughout long periods of operation.

FAQ's of WMW Germany 450 mm Precision Rotary Table:

Q: How is the WMW Germany 450 mm Precision Rotary Table operated?

A: This rotary table is operated manually using a crank handle. Fine adjustments are made via the integrated dial and vernier scale, allowing for precise angular movements. Its manual operation also contributes to its low noise and ease of maintenance.

Q: What types of mounting does the rotary table support?

A: The rotary table features universal mounting, enabling it to be securely fixed in either a horizontal or vertical position. This versatility is beneficial for various machining applications in tool rooms, manufacturing units, and educational workshops.

Q: When is it recommended to use this rotary table?

A: This table is ideal for operations requiring precise rotational movement, such as dividing work in milling and drilling, gear cutting, and other precision machining tasks. It is especially suited for environments prioritizing accuracy and repeatability.

Q: Where can the rotary table be used effectively?

A: The WMW Germany 450 mm rotary table is widely used in tool rooms, machine shops, manufacturing facilities, and engineering colleges. Its adaptability and durable construction make it suitable for both professional and educational settings.

Q: What is the process for adjusting and locking the table in place?

A: Adjustments can be made using the manual crank and vernier dial to set the desired rotation. Once positioned, the table can be securely locked using the provided lever, ensuring stability during machining operations.

Q: Are there any benefits to its manual lubrication system?

A: Manual greasing and oiling simplify maintenance, allowing users to directly manage the condition of moving parts. This helps ensure consistent, smooth operation and prolongs the lifespan of the equipment.

Q: What advantages does the precision-ground surface and T-slot design offer?

A: The precision-ground table and six T-slots provide a stable and accurate work-holding platform. This design facilitates the secure clamping of various workpieces, which is essential for maintaining accuracy during complex machining processes.
