WMW Germany BL-5 Vertical Jig Boring Machine

Send Inquiry

Request To Call Back

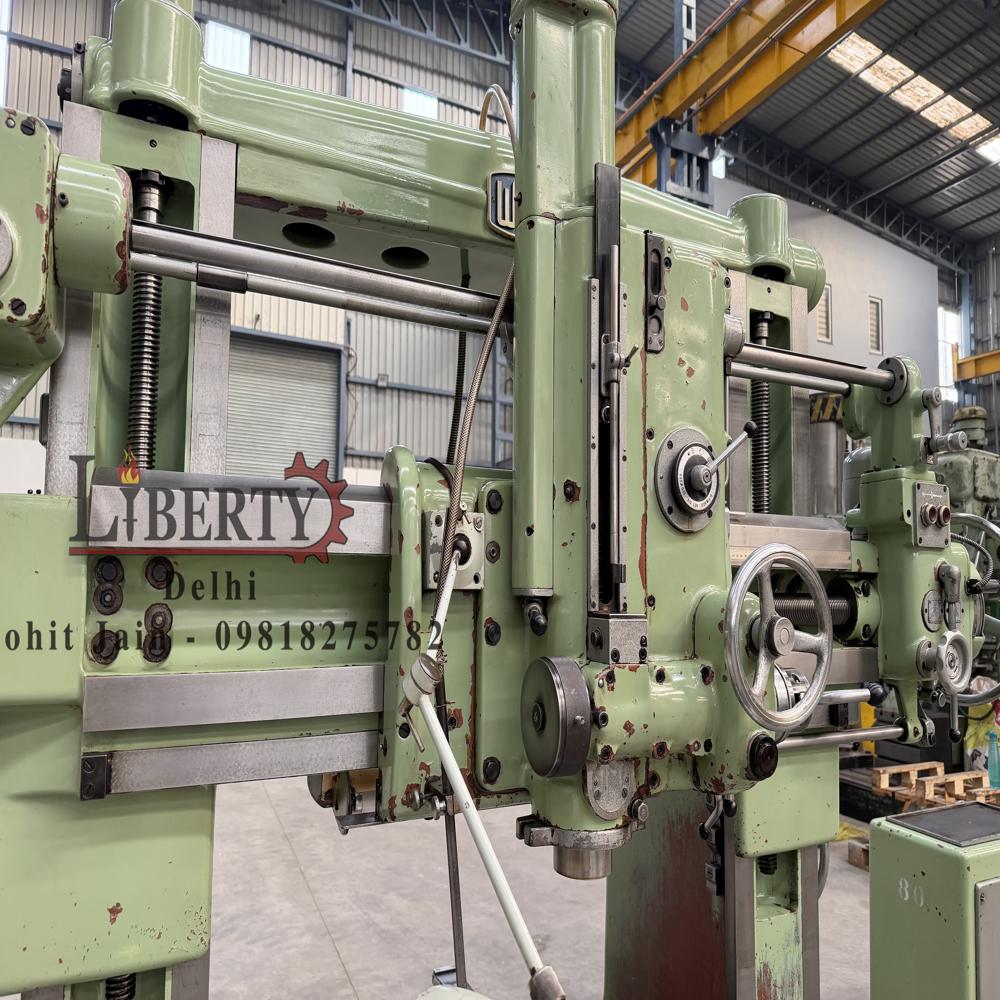

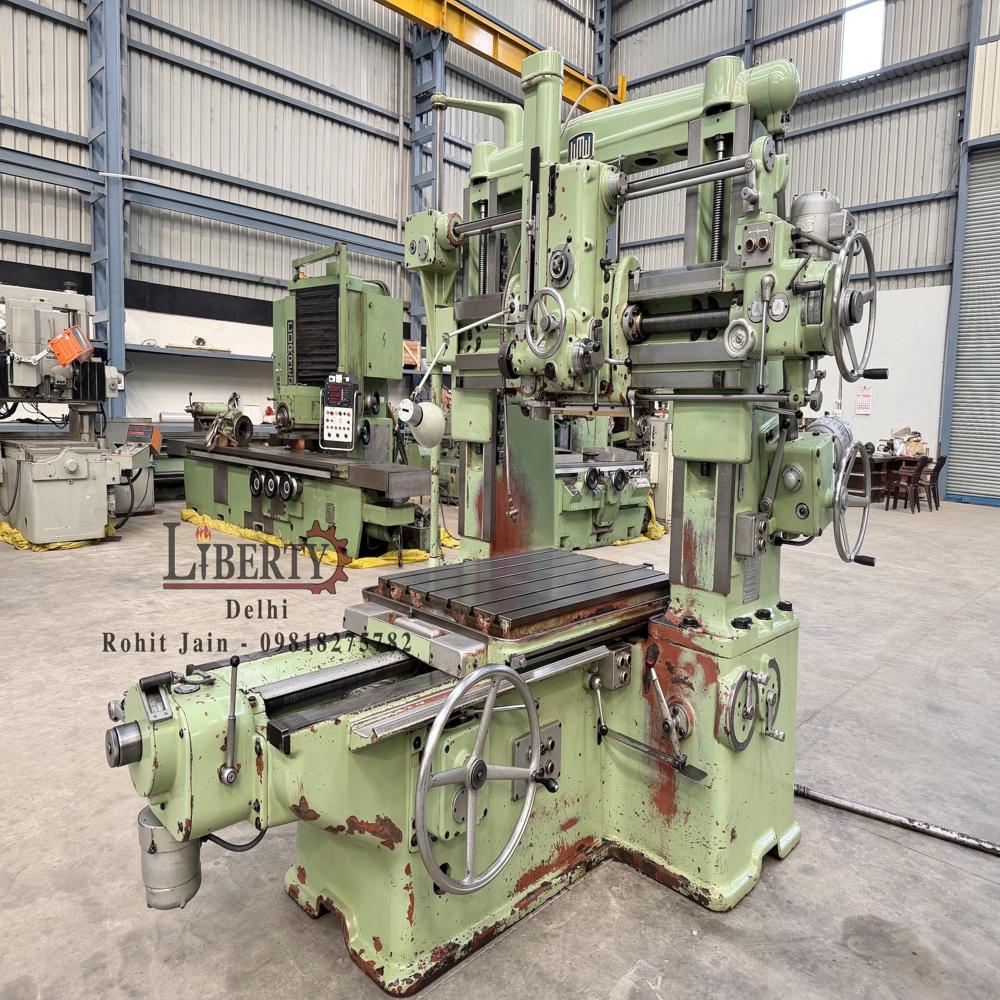

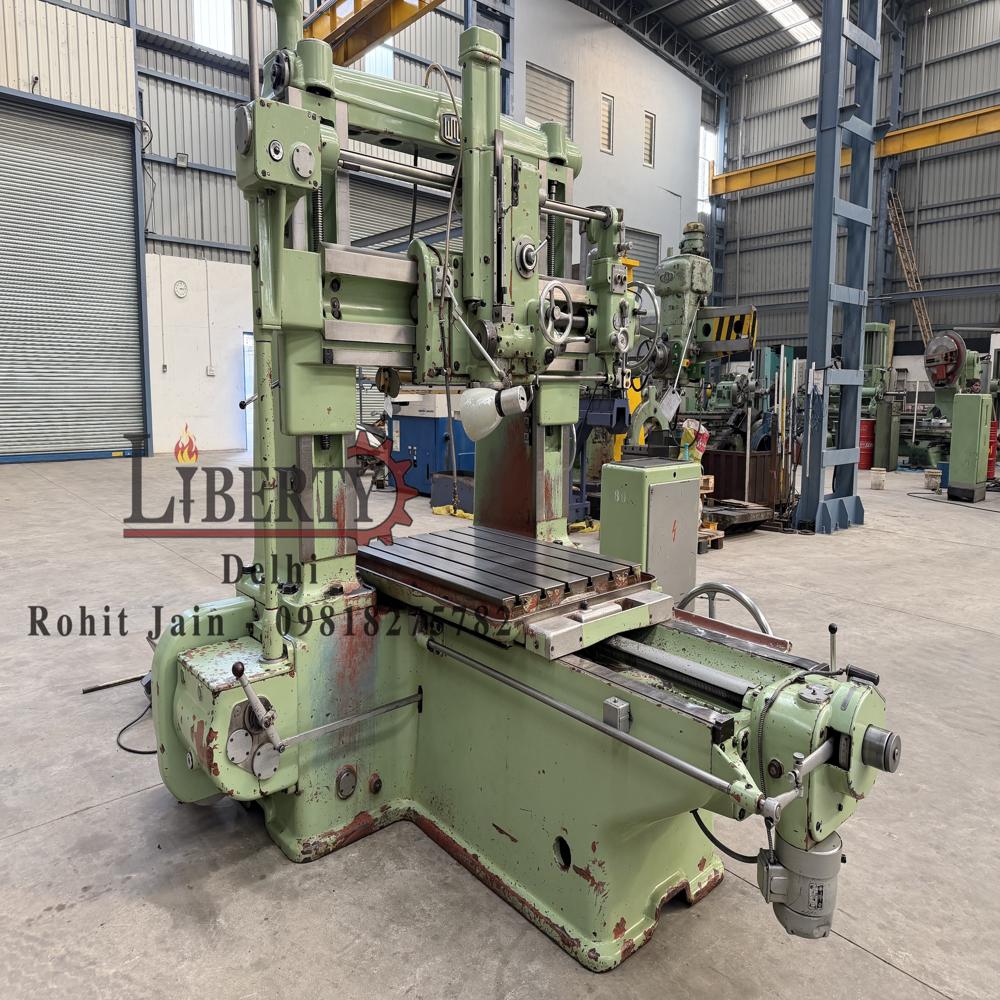

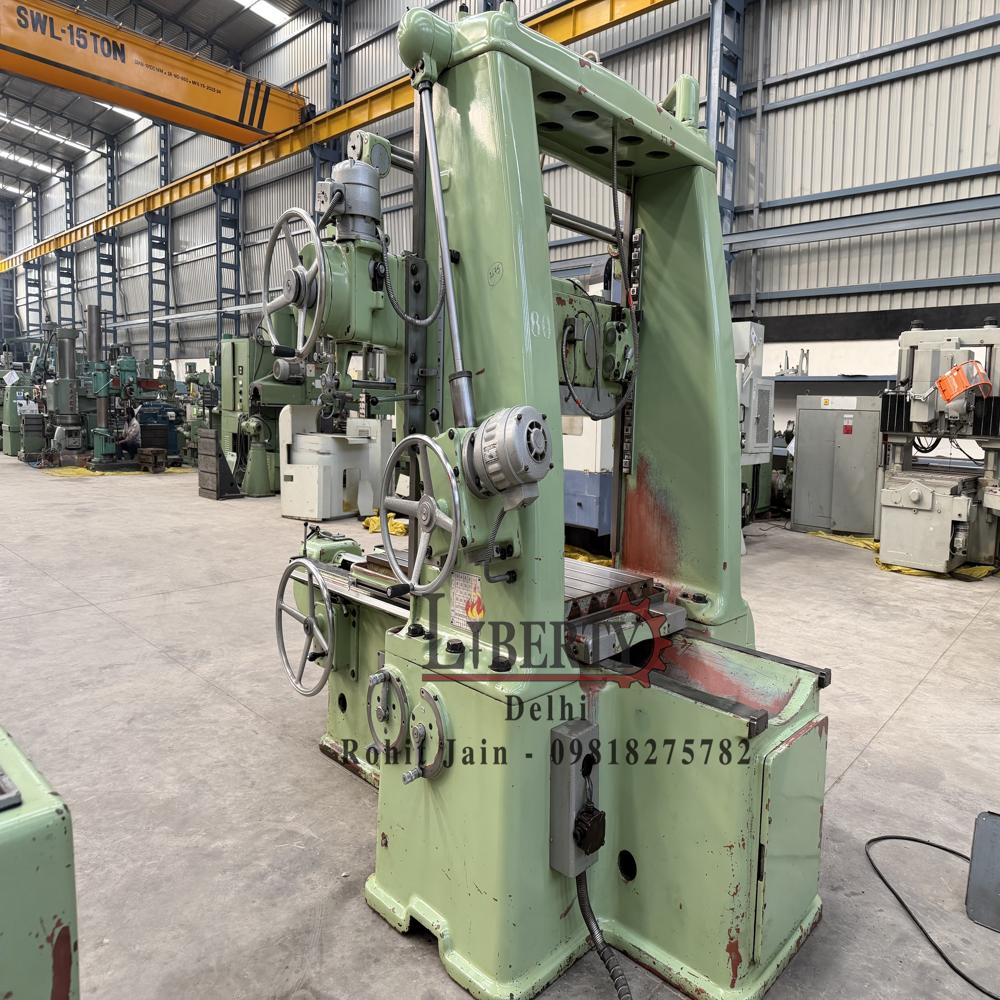

WMW Germany BL-5 Vertical Jig Boring Machine

Name: WMW Germany BL-5 Vertical Jig Boring Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

WMW Germany BL-5 Vertical Jig Boring Machine Specification

Dimension (L*W*H)
2500 x 2000 x 3000 mm

Power
7.5 kW

Capacity
Up to 2000 kg table load

Used For
Precision boring, drilling, and milling operations

Machine Type
WMW (Germany) make Vertical Jig Boring Machine in excellent working condition. It is a Double Column type High-Precision Jig Boring Machine having a Table Size of 760 mm x 1090 mm. The technical details are as follows -

Condition
Used

Weight
Approximately 5000 kg

Color
Industrial Grey

Feature
High accuracy, sturdy construction, German engineering

Output
Precision machined components

Voltage
380 V, 3 Phase

Maximum Workpiece Height
850 mm

Spindle Speeds
40 - 2000 RPM

Table Size
800 x 630 mm

Coolant System
Integrated

Spindle Taper
ISO 40

Model
BL-5

Vertical Travel (Z-axis)
600 mm

Control Type
Conventional (manual controls)

Cross Table Travel (Y-axis)
630 mm

Quill Travel
125 mm

Feed Range
5-560 mm/min

Longitudinal Table Travel (X-axis)
900 mm

About WMW Germany BL-5 Vertical Jig Boring Machine

Make - WMW (Germany)

Model - BL-5

Table Size - 760 mm x 1090 mm

Longitudinal Travel of Table - 1000 mm

Cross Travel of the Boring-Head - 700 mm

Spindle Speeds - 3 rpm to 750 rpm

Spindle Feed Travel - 250 mm

Spindle Feed Rates - 0.03 mm/rev - 0.18 mm/rev

Spindle Taper - MT-4

Spindle Diameter - 90 mm

Distance between Columns - 1020 mm

Max. Height between Table to Spindle - 900 mm

Weight of the Machine - 4.88 Tons (approximately)

- Motorised Rapid Travels on Longitudinal, Cross & Vertical Travels.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/a5d2FxuBWrg

Engineered for Superior Accuracy

With meticulous German engineering, the BL-5 delivers consistent high-precision results for demanding jig boring, drilling, and milling operations. Its double-column design enhances structural stability, suppressing vibrations and improving accuracy during extended or complex tasks. This machine is perfect for applications where tolerances are critical.

Versatile Machining Capabilities

The BL-5 supports a wide range of workpiece sizes, with a maximum table load of 2000 kg, and generous table and travel dimensions. Its spindle speeds, variable feed range, and manual controls offer exceptional versatility, accommodating a variety of materials and geometries. Precision-milled components are achievable in small batch or custom manufacturing scenarios.

Durability Backed by German Engineering

Constructed from high-quality materials, the BL-5 reflects WMW's reputation for robust and long-lasting machinery. The integrated coolant system and sturdy build guarantee reliable operations even in demanding production environments, making it suitable for continuous or heavy-duty industrial applications.

FAQ's of WMW Germany BL-5 Vertical Jig Boring Machine:

Q: How does the WMW Germany BL-5 ensure high precision in boring and milling?

A: This jig boring machine features a double-column structure and meticulously engineered guides, providing maximum stability and minimal deflection during high-precision operations. The integrated spindle, high table load capacity, and precise manual controls help maintain tight tolerances and repeatable machining accuracy.

Q: What types of operations and materials can the BL-5 handle?

A: The BL-5 is versatile and supports precision boring, drilling, and milling on a range of metals and engineering plastics. Its varied spindle speeds (40-2000 RPM) and adjustable feed rates allow it to process small to mid-sized components across automotive, aerospace, tool room, and manufacturing applications.

Q: Where is the BL-5 typically installed and operated?

A: This model is best suited for industrial machine shops, tool rooms, and precision engineering facilities, especially those focused on high-quality component production. It is currently available in India and serves exporters, manufacturers, suppliers, importers, and traders seeking reliable jig boring solutions.

Q: How is the workpiece set up and operated on this machine?

A: Workpieces, up to 2000 kg, are securely clamped onto the sturdy table, and precise adjustments are made using conventional manual controls for each axis (X, Y, and Z). The operator can fine-tune spindle speeds, feeds, and quill travel based on the specific machining requirements.

Q: What are the benefits of using a conventional (manual) control system for this machine?

A: Manual controls allow experienced machinists to directly intervene and make adjustments in real time, ensuring maximum control over precision processes. This is especially advantageous in applications that require custom setups or frequent parameter changes.

Q: When should the coolant system be used, and what advantages does it offer?

A: The integrated coolant system should be used during most machining operations, particularly with hard materials or when performing lengthy cuts. It reduces tool wear, dissipates heat, and helps maintain machining accuracy by preserving the dimensional stability of both the tool and workpiece.
