Price 100000 INR/ Piece

MOQ : 1 Piece

WMW Modul ZFWZ 800 x 10 Gear Hobbing Machine Specification

  • Power
  • Approx. 10 kW
  • Machine Type
  • Gear Hobbing Machine
  • Feature
  • Heavy duty construction, precision gear cutting, semi-automatic operation
  • Dimension (L*W*H)
  • Approx. 4150 x 2920 x 2350 mm
  • Weight
  • Approx. 11,500 kg
  • Condition
  • Used
  • Output
  • High precision gears
  • Used For
  • Gear cutting and hobbing operations
  • Voltage
  • 380 V / 50 Hz
  • Capacity
  • Max. gear diameter 800 mm, max. module 10
  • Color
  • Green
  • Application
  • Industrial gear manufacturing
  • Clamping Range
  • Up to 800 mm
  • Max. Workpiece Length
  • Approx. 1000 mm
  • Machine Structure
  • Cast iron, rigid base
  • Coolant System
  • Integrated
  • Hobbing Speed Range
  • 25-200 rpm
  • Spindle Bore
  • Approx. 80 mm
  • Max. Tangential Feed
  • Approx. 300 mm/min
  • Control
  • Conventional
  • Hob Arbor Diameter
  • 40 mm
  • Max. Table Load
  • Approx. 2500 kg
  • Table Diameter
  • Approx. 800 mm


WMW Modul ZFWZ 800 x 10 Gear Hobbing Machine Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Main Domestic Market
  • All India

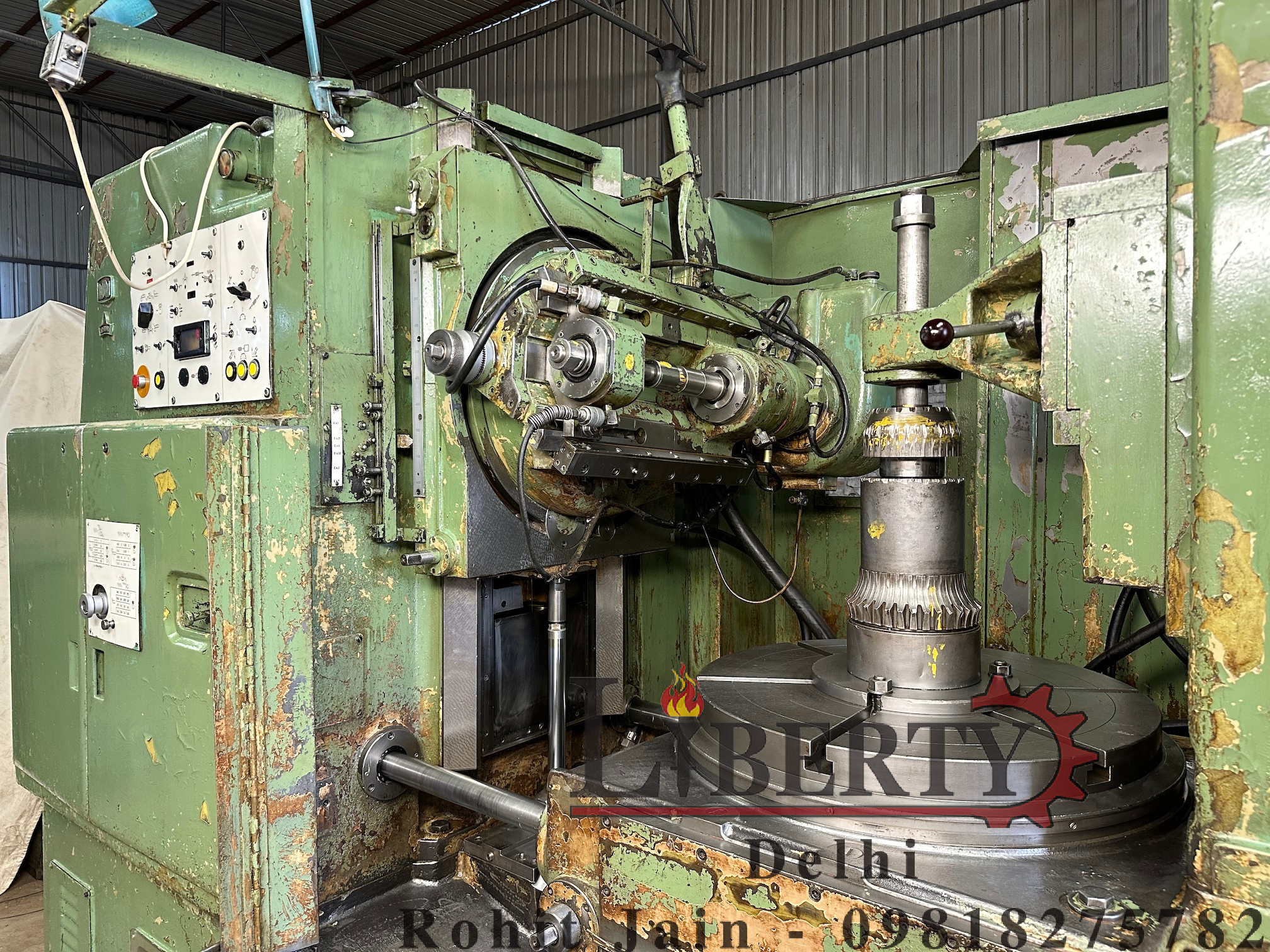

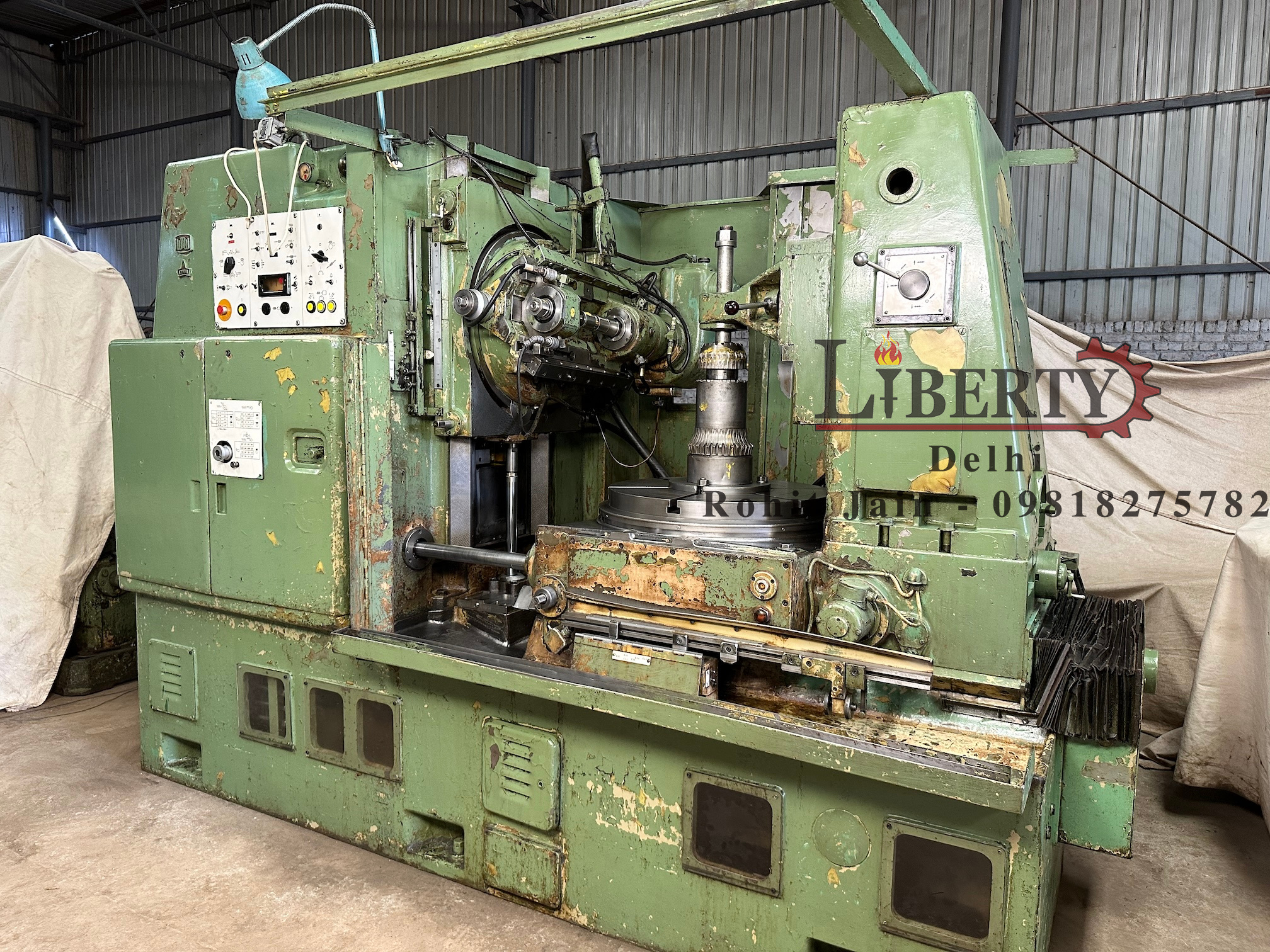

About WMW Modul ZFWZ 800 x 10 Gear Hobbing Machine

Make - WMW - Modul (Germany)

Model - ZFWZ 800 x 10 II

Max. Module - 10 Module

Max. Gear Diameter - 800 mm

Max. Vertical Travel of Hobbing Head - 410 mm

Max. Hob Cutter Diameter - 195 mm

Max. Hob Cutter Length - 220 mm

Table Diameter - 700 mm

Max. Gear Diameter (with Tail-Stock) - 500 mm

Max. Helical Angle - +45 degree to -45 degree

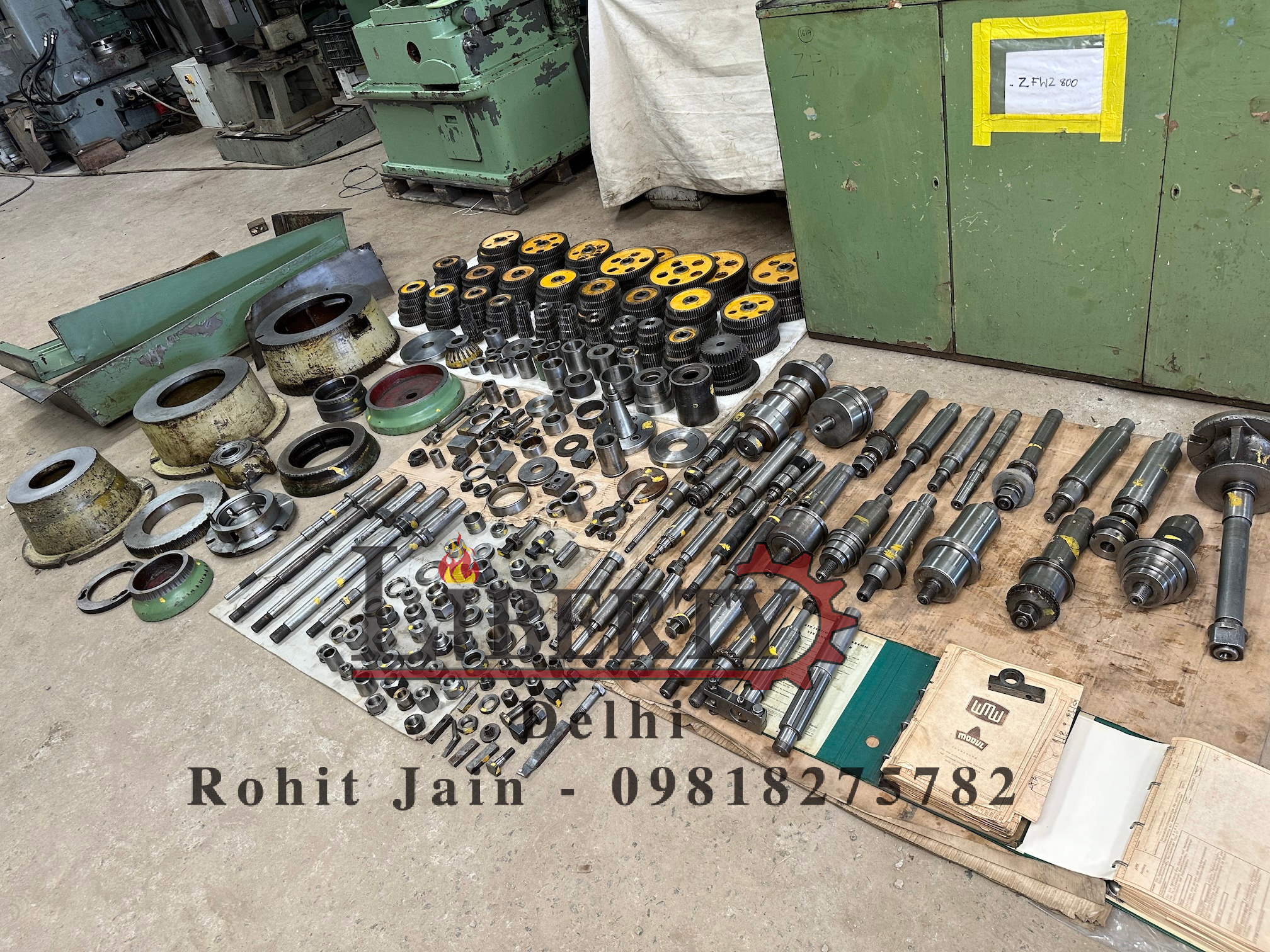

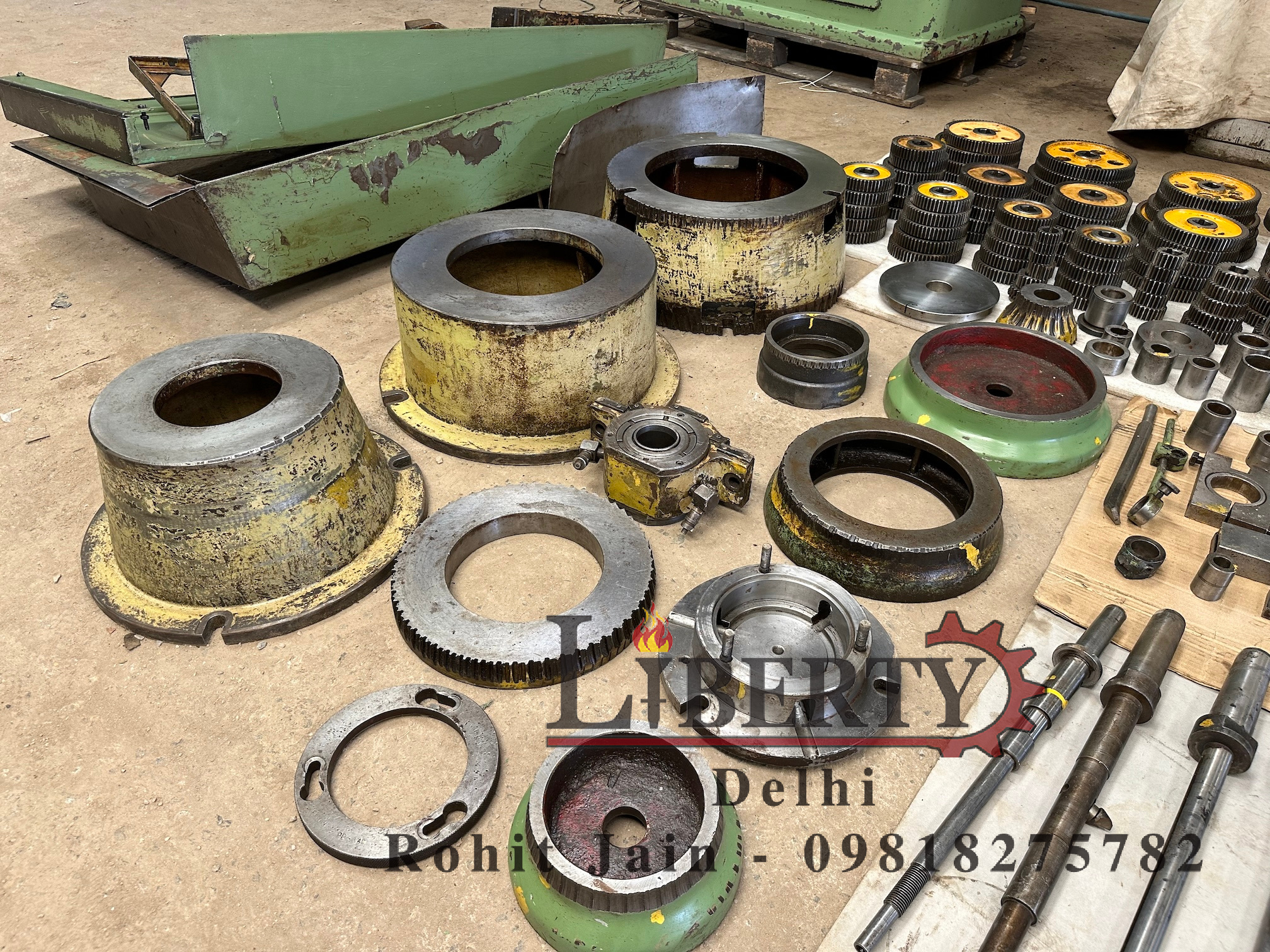

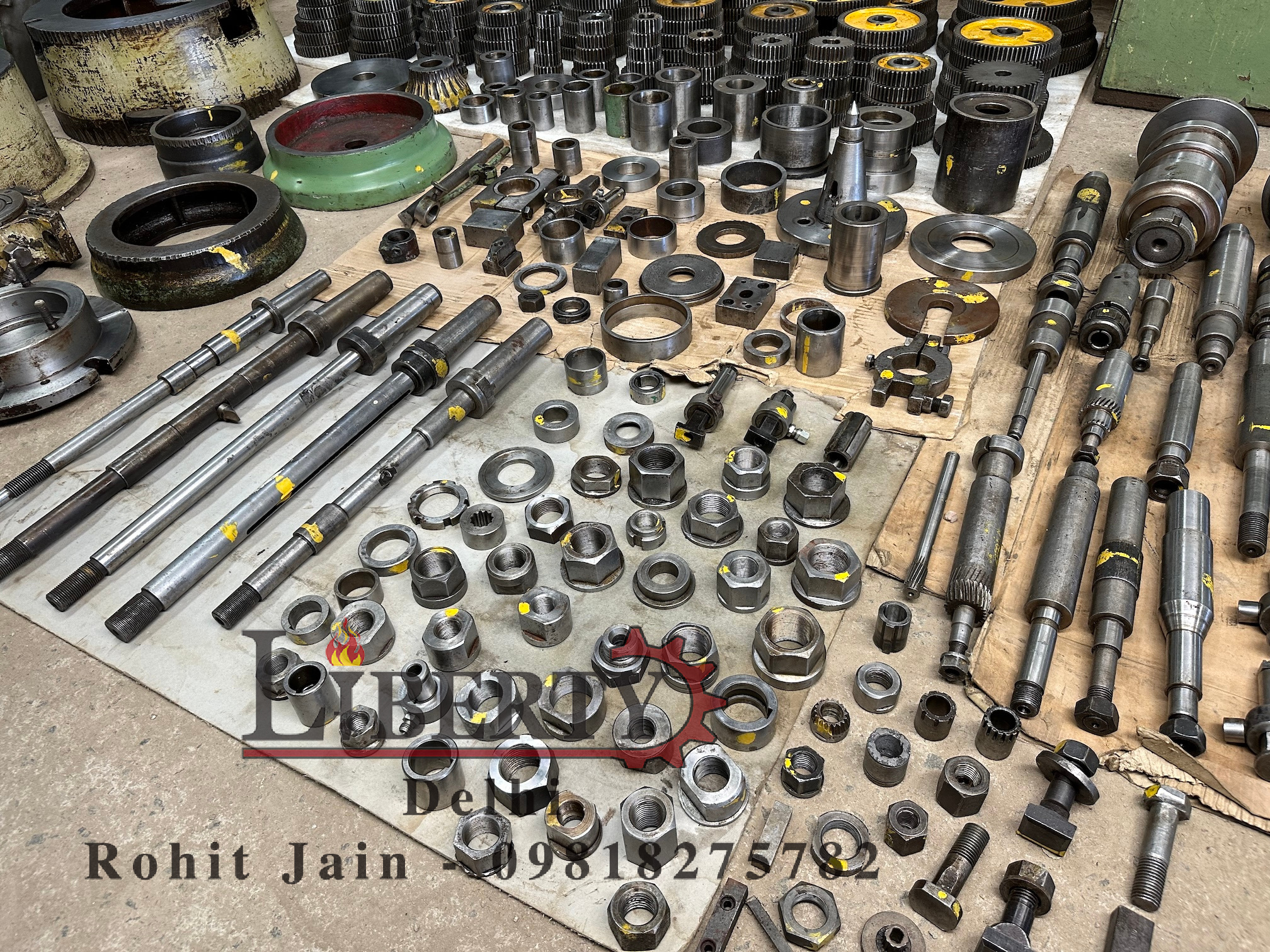

- With lots of Accessories like Arbours, Mandrels, Job Supports etc.

- Complete with Change Gears and many other accessories.

- Operating Manuals of the Machine are available.

- Machine is in excellent working condition.


Video of The Machine -

https://youtu.be/VcpEUnPYkH4



Heavy-Duty Construction, High Precision Results

Featuring a cast iron base and rigid frame, the WMW Modul ZFWZ 800 x 10 guarantees vibration-free operation even under maximum loads. This ensures stability during gear cutting, resulting in accurate, repeatable gear profiles for demanding industrial applications. The heavy-duty construction also extends the machine's lifespan, making it a reliable addition to any manufacturing floor.


Versatile Gear Manufacturing Capabilities

Designed to handle gears up to 800 mm in diameter and module 10, this hobbing machine accommodates a wide range of industrial applications. Its 1000 mm maximum workpiece length and large clamping range enable manufacturers to efficiently produce both small and large gear components with exceptional precision, perfect for exporters and machinery suppliers.


User-Friendly Operation and Integrated Features

With its conventional control system and semi-automatic workflow, operators can swiftly adapt to the machine's interface. The built-in coolant system, ergonomic controls, and robust spindle make gear hobbing straightforward and efficient. Maintenance needs are minimized by durable components and an easy-to-clean design, ensuring steady, long-term operation.

FAQ's of WMW Modul ZFWZ 800 x 10 Gear Hobbing Machine:


Q: How does the WMW Modul ZFWZ 800 x 10 Gear Hobbing Machine contribute to precision gear manufacturing?

A: The machine's robust cast iron construction ensures stability and vibration minimization during cutting. Combined with a precise spindle and semi-automatic controls, it delivers consistent, high-precision gear cutting results required for industrial-grade gears.

Q: What types of workpieces can this gear hobbing machine handle?

A: The WMW Modul ZFWZ 800 x 10 is capable of processing workpieces up to 800 mm in diameter, 1000 mm in length, and up to 2500 kg in weight. It supports a hob arbor diameter of 40 mm and accommodates various gear profiles up to module 10, making it suitable for a broad spectrum of gear manufacturing needs.

Q: When is the optimal time to use this hobbing machine in the production process?

A: This gear hobbing machine is ideal during the gear cutting phase, after initial turning and prior to final finishing processes. Its precise operation is best suited for the stages requiring detailed gear shaping and hobbing.

Q: Where can the WMW Modul ZFWZ 800 x 10 be most effectively deployed?

A: This model is optimal for industrial manufacturing floors, gear production plants, and workshops that demand robust, high-capacity gear cutting. Its heavy-duty build makes it effective for both small-batch and mass production environments.

Q: What is the operating process for this gear hobbing machine?

A: Operators mount the workpiece onto the table, set the required parameters (speed, feed, and table position) via the conventional controller, and initiate the hobbing cycle. Coolant is automatically supplied while the machine executes precision cutting, with semi-automatic features assisting in process efficiency.

Q: How does the integrated coolant system benefit gear production?

A: The built-in coolant system helps maintain optimal cutting temperatures, cools workpieces and tools, and flushes away chips, which extends tool life and ensures a smooth, precise finish on each gear.
