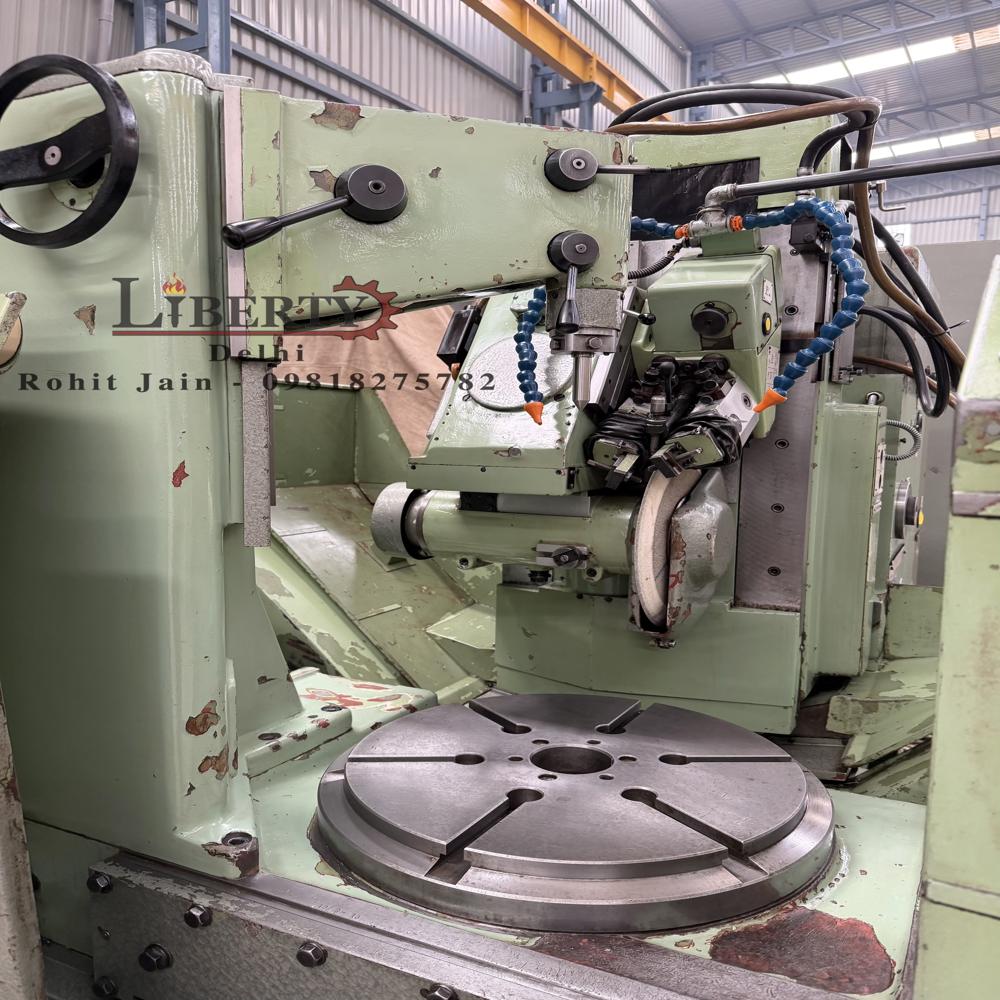

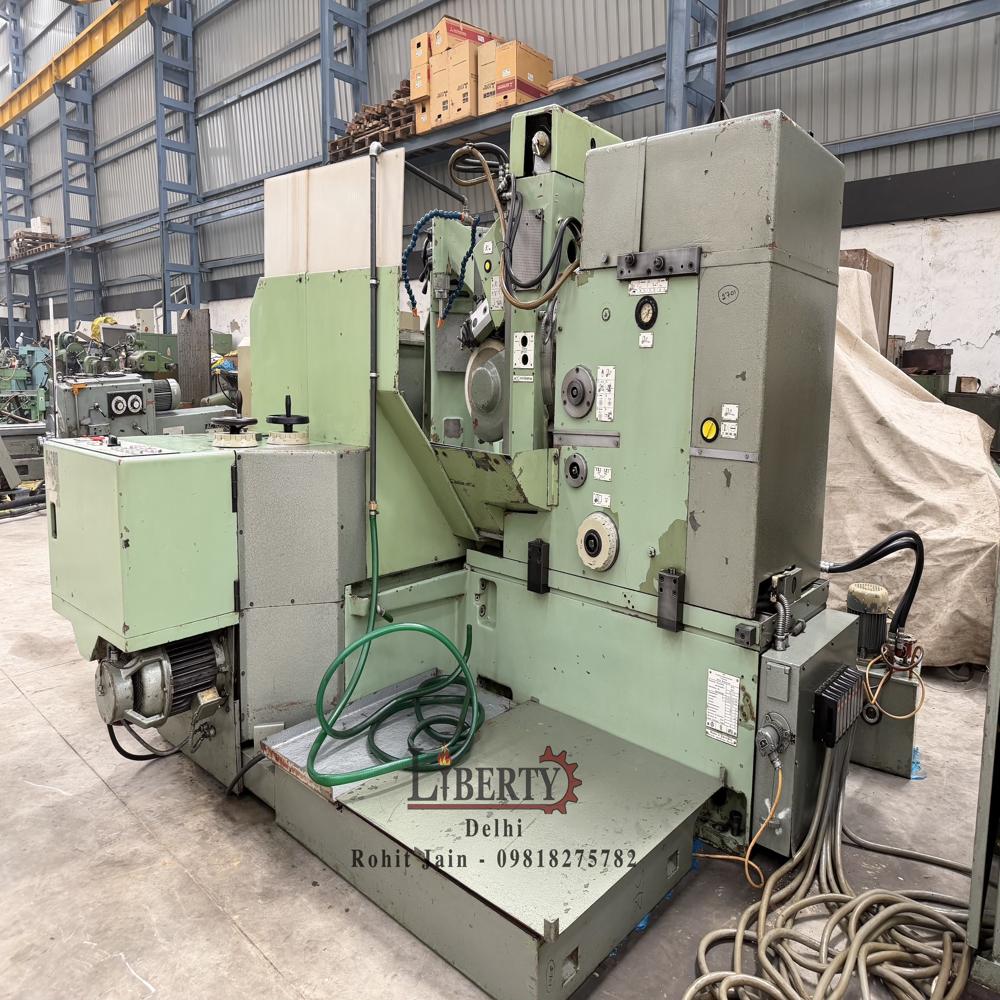

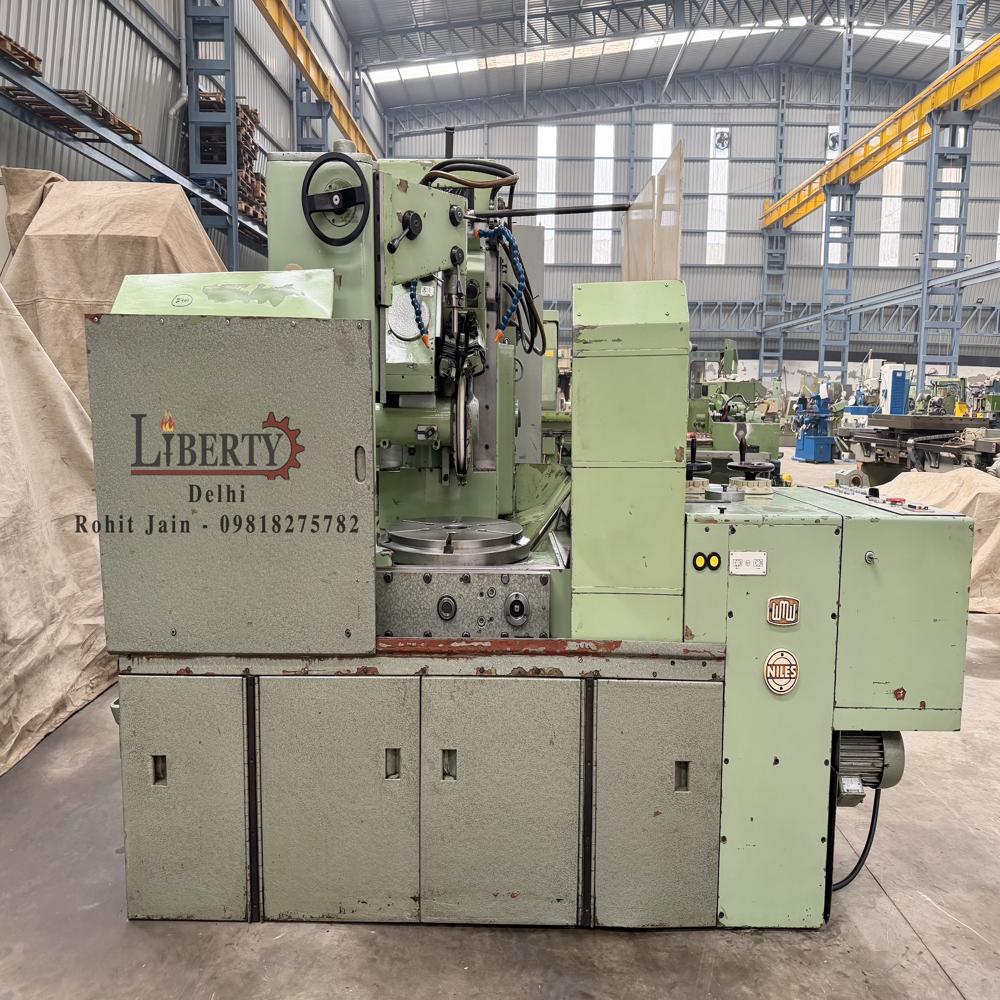

WMW Niles ZSTZ 500C Gear Grinding Machine

Name: WMW Niles ZSTZ 500C Gear Grinding Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

WMW Niles ZSTZ 500C Gear Grinding Machine Specification

Machine Type
Gear Grinding Machine made by WMW Niles (Germany) in excellent working condition. The model of this machine is ZSTZ 500C and the Maximum Gear Diameter in this machine is 500 mm and Maximum Module Capacity is 10 Modules. The machine has a feature of Hydraulic Rapid Travels of the Grinding Wheel Head. The machine is complete with Change Gears, Coolant Tank & Pump, Electrical Drawings, etc. The technical details are as follows -

Output
High-accuracy ground gears

Voltage
380V/415V, 3 Phase

Feature
High-precision; Heavy-duty gearbox design; Automated control options

Weight
Approx. 7,000 kg

Dimension (L*W*H)
Approx. 3,100 mm x 2,100 mm x 2,200 mm

Color
Industrial green

Capacity
Max gear diameter 500 mm

Used For
Precision grinding of gears (internal and external)

Condition
Used

Power
Approx. 11 kW

Automation
Semi-automatic

Max. Module
8 mm

Table Bore Diameter
Approx. 280 mm

Model
ZSTZ 500C

Coolant System
Equipped

Min. Module
1 mm

Workpiece Table Speed
Adjustable

Spindle Speed Range
Variable

Country of Import
India (by Liberty Delhi)

Max. Gear Width
180 mm

Control
Hydraulic, Manual

WMW Niles ZSTZ 500C Gear Grinding Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
7 Days

About WMW Niles ZSTZ 500C Gear Grinding Machine

Make - WMW Niles (Germany)

Model - ZSTZ 500C

Max. Gear Diameter - 500 mm

Min. and Max. Module Capacity - 2 to 10 Modules

Max. Width of Gear - 150 mm

Min. Gear Diameter - 50 mm

Min. and Max. Number of Teeth - 12 to 140

Max. Helix Angle - 45 degree

Grinding Wheel Size - Diameter 350 mm x 25 mm Width

Table Diameter - 500 mm

- Feature of Hydraulic Rapid Travels of the Grinding Wheel Head.

- Complete with Change Gears, Coolant Tank, Coolant Pump, etc.

- Electrical Drawings of the machine are available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/ct943EiIK34

Precision Engineering for Demanding Industries

Engineered for automotive, aerospace, and advanced industrial applications, the WMW Niles ZSTZ 500C offers high-accuracy grinding for both internal and external gears. Its rigid build and German precision ensure optimal performance for tasks demanding the finest tolerances.

Outstanding Capacity and Versatility

This model accommodates gears up to 500 mm in diameter and supports modules up to 10, making it versatile for a broad spectrum of gear manufacturing requirements. The large workpiece table bore and high workpiece weight rating enable processing of substantial components without compromising accuracy.

Complete, Ready-to-Operate Solution

The ZSTZ 500C arrives with crucial accessories, including change gears, coolant tank and pump, and comprehensive electrical drawings. Its integrated automatic lubrication and mechanical transmission system contribute to consistent, low-maintenance operation for manufacturers and exporters alike.

FAQ's of WMW Niles ZSTZ 500C Gear Grinding Machine:

Q: How does the WMW Niles ZSTZ 500C ensure high-precision gear grinding?

A: The ZSTZ 500C is designed with a heavy-duty gearbox, precision bearings, and a rigid construction. Its hydraulic rapid travel feature and integrated automatic lubrication system further support high-precision grinding operations-ensuring consistent quality for both internal and external gears.

Q: What types of industries is this gear grinding machine suitable for?

A: This machine is ideal for automotive, aerospace, and industrial gear manufacturing. Its capacity and precision make it an excellent choice for applications demanding accurate, high-strength gears, covering a broad range of industrial requirements.

Q: Where can the ZSTZ 500C be installed, and what are its power requirements?

A: The machine is designed for professional gear manufacturing facilities and is suitable for exporters, importers, manufacturers, and suppliers. It operates on a 380V/415V, 3-phase power supply, making it compatible with most industrial environments.

Q: What is the process for using the ZSTZ 500C gear grinding machine?

A: Operators set up the workpiece on the table, configure the conventional controls, and use the hydraulic rapid traverse to position the grinding head. The integrated coolant system and automatic lubrication maintain optimal grinding conditions. Change gears allow for flexibility in gear profiles and module sizes.

Q: How does the built-in lubrication and coolant system benefit the user?

A: The automatic lubrication system reduces the need for manual maintenance, ensuring consistent performance and longevity. The integrated coolant system preserves grinding accuracy and protects both the workpiece and grinding wheel from heat damage during operation.

Q: When is it necessary to use the hydraulic rapid traverse feature?

A: Hydraulic rapid traverse is particularly useful during setup and when repositioning the grinding head between operations. This feature speeds up the process, enhancing efficiency without sacrificing precision.

Q: What accessories come with the machine to facilitate operation?

A: The ZSTZ 500C is supplied complete with change gears for module variation, a coolant tank and pump, detailed electrical drawings, and other essential components-ensuring it is fully equipped for precision gear manufacturing from installation onward.
