Alzmetall Germany Automatic Feed Pillar Drill Machine

Name: Alzmetall Germany Automatic Feed Pillar Drill Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Alzmetall Germany Automatic Feed Pillar Drill Machine Specification

Dimension (L*W*H)
Approx. 800 x 900 x 1900 mm (model dependent)

Spindle Speed
Multiple Speeds (typically 70-2800 rpm; varies by gearbox/pulley arrangement)

Table Size
Approx. 600 mm x 500 mm (varies by model)

Machine Type
Pillar Drill Machine

Frequency
50 Hz

Noise Level
Low (industry standard for heavy machine tools)

Motor Power
1.5-2.2 kW (depending on configuration)

Features
Automatic feed, height adjustable table, heavy duty build, precision gears, easy operation, coolant provision / tap

Condition
Used / Excellent Working Condition

Diameter
Maximum Drill Diameter: 35 mm (steel, varies by exact model)

Cutting Area
Suitable for workpieces up to table size

Product Type
Automatic Feed Pillar Drilling Machine made by Alzmetall (Germany), Model AB4SV, available in excellent working condition. The machine has a Drilling Capacity of 40 mm and a Maximum Spindle Feed Travel of 170 mm. The technical details are as follows -

Material
Cast Iron / Heavy Duty Metal

Computerized
No

Automatic Grade
Automatic

CNC Or Not
Not CNC

Control System
Electrical Panel Controls

Voltage
380-415V, 3 Phase (Standard) (specific value may vary)

Power
1.5 kW to 2.2 kW (approx., depends on model)

Power Source
Electric

Weight (kg)
Approx. 500-800 kg (model dependent)

Capacity
Drilling capacity up to 35 mm in steel (model/specific variant dependent)

Color
Grey/Silver (Standard Factory Shade)

Usage & Applications
Drilling operations in metalworking and engineering workshops, batch and production drilling

Quill Travel
Approx. 120-160 mm

Table Movement
Rack and pinion for table elevation

Lubrication System
Provided for moving parts

Feed Type
Automatic Mechanical Feed

Safety
Electrical and mechanical interlocks according to European standards

Head Movement
Vertical adjustable head on column

Spindle Taper
Morse Taper MT 3 or 4 (model specific)

Column Diameter
Approx. 120-160 mm (model dependent)

Construction
Heavy Duty Body with precision finished surface

Number of Spindle Speeds
12-18 (gear stepped or belt driven, depending on model)

About Alzmetall Germany Automatic Feed Pillar Drill Machine

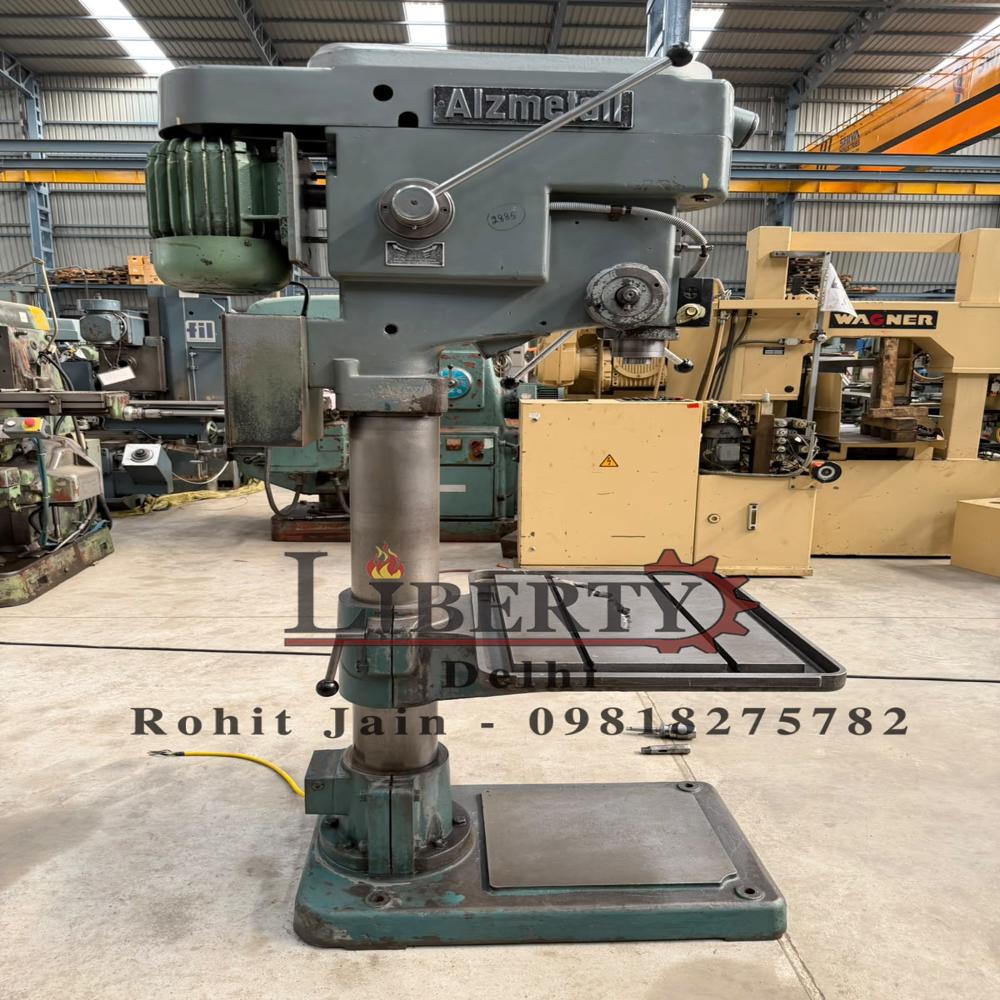

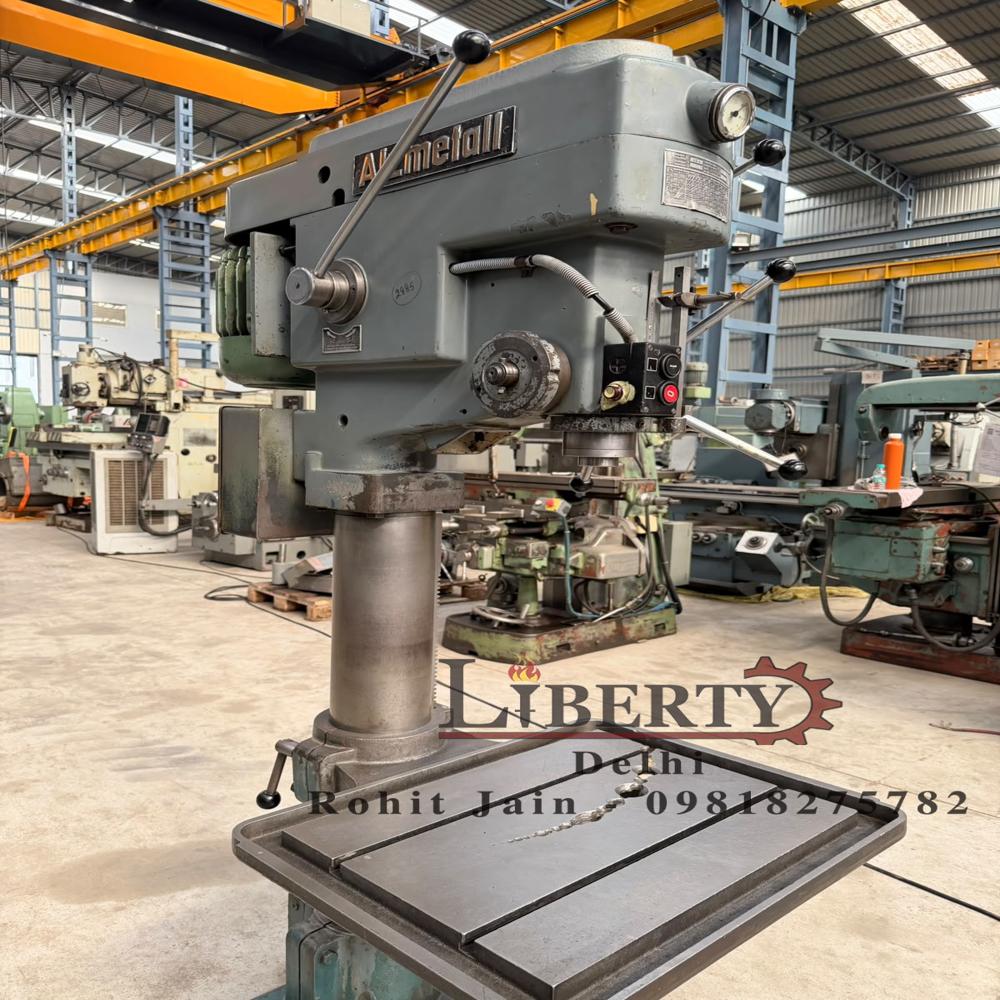

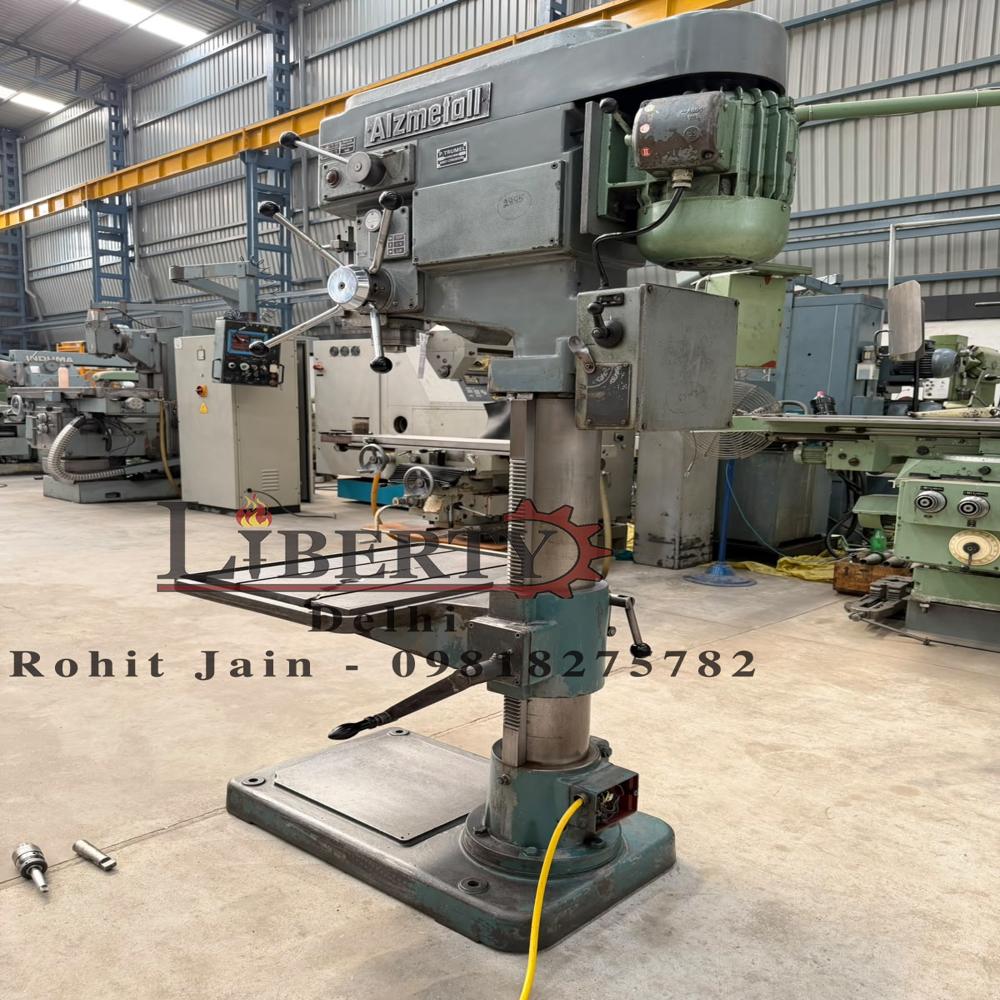

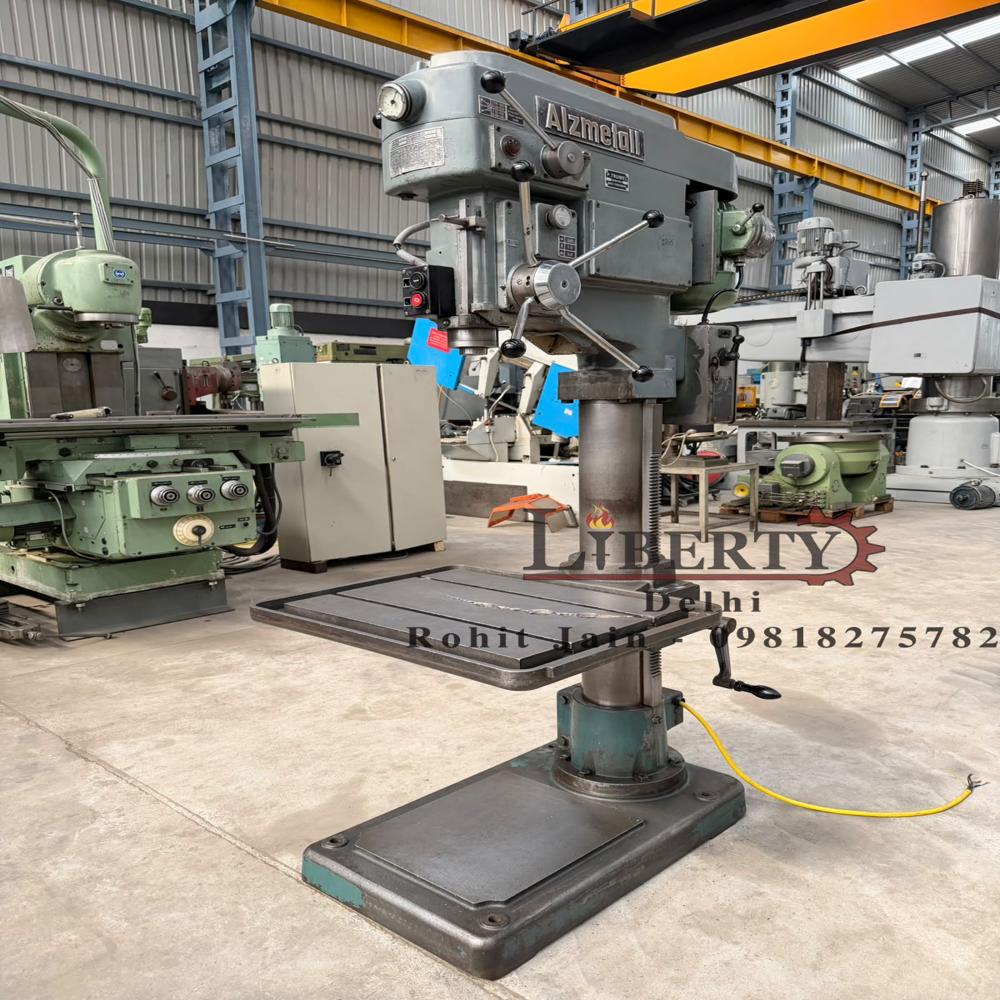

Make - Alzmetall (Germany)

Model - AB4SV

Drilling Capacity - 40 mm

Spindle Diameter - 65 mm

Spindle Taper - MT-4

Spindle Feed Travel - 170 mm

Spindle Speeds - 65 rpm to 1200 rpm (Continuously Variable)

Spindle Feed Rates - 0.09 / 0.16 / 0.25 mm/rev

Table Size - 600 mm x 450 mm

Distance between Spindle Center to Column - 345 mm

Max. Height between Spindle to Table Top - 775 mm

Column Diameter - 160 mm

- Equipped with Coolant Pump.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/s079uuvQT6A

Precision and Power Combined

Designed for demanding drilling tasks, the Alzmetall Automatic Feed Pillar Drill Machine offers heavy-duty construction with precision-finished surfaces and high-torque motor options ranging from 1.5 kW to 2.2 kW. The adjustable vertical head and multiple spindle speeds ensure both flexibility and control, catering to a wide range of production and maintenance drilling applications.

User-Friendly Operation and Safety

This pillar drill machine features straightforward electrical panel controls and an automatic feed system to maximize productivity while minimizing operator effort. Safety is paramount, with integrated electrical and mechanical interlocks built according to strict European standards. Its rack-and-pinion table mechanism enables smooth height adjustments, further enhancing ease of use.

FAQ's of Alzmetall Germany Automatic Feed Pillar Drill Machine:

Q: How does the automatic mechanical feed function enhance drilling operations?

A: The automatic mechanical feed allows consistent, controlled advancement of the drill bit into the material, promoting precise hole depths and reducing operator fatigue. This significantly increases efficiency in batch and repetitive drilling tasks.

Q: What materials and workpiece sizes can this machine handle?

A: The Alzmetall pillar drill is suited for drilling in metals such as steel, accommodating workpieces up to 600 mm x 500 mm in table size. It can bore holes up to 35 mm diameter in steel, depending on the chosen model.

Q: When is it best to use a heavy-duty automatic feed pillar drill machine?

A: This machine excels in production and engineering workshops where consistent, precise, and repetitive drilling in tough materials like metals is required-particularly for batch jobs or medium-to-heavy-duty production lines.

Q: Where can this machine be installed for optimal use?

A: It is ideal for use in metalworking factories, tool rooms, maintenance workshops, and engineering production areas with access to a 380-415V, 3-phase electrical supply and sufficient floor space for its footprint (approx. 800 x 900 x 1900 mm).

Q: What process ensures the safety of operators using this drill machine?

A: The drill is equipped with both electrical and mechanical interlocks made to European safety standards. These safeguards prevent accidental operation and secure moving parts, thereby reducing the risk of injury.

Q: How does the lubrication system benefit the machine's operation?

A: The provided lubrication system ensures that all moving parts are properly oiled, reducing wear, prolonging service life, and maintaining smoother, quieter operation during prolonged use.

Q: What are the key benefits of choosing this Alzmetall pillar drill for workshop applications?

A: It offers high drilling accuracy, robust construction for stability, multi-speed versatility, effortless height adjustments, and built-in safety. Its automatic feed and durability translate to faster workflow and minimal downtime, making it highly suitable for engineering and industrial settings.
