Arno Nomo Italy 1250 mm x 270 mm Universal Milling Machine

Name: Arno Nomo Italy 1250 mm x 270 mm Universal Milling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Arno Nomo Italy 1250 mm x 270 mm Universal Milling Machine Specification

Rotation
Horizontal & Vertical spindle rotation

Model
ARNO NOMO 1250 x 270

Product Type
Universal Milling Machine

General Use

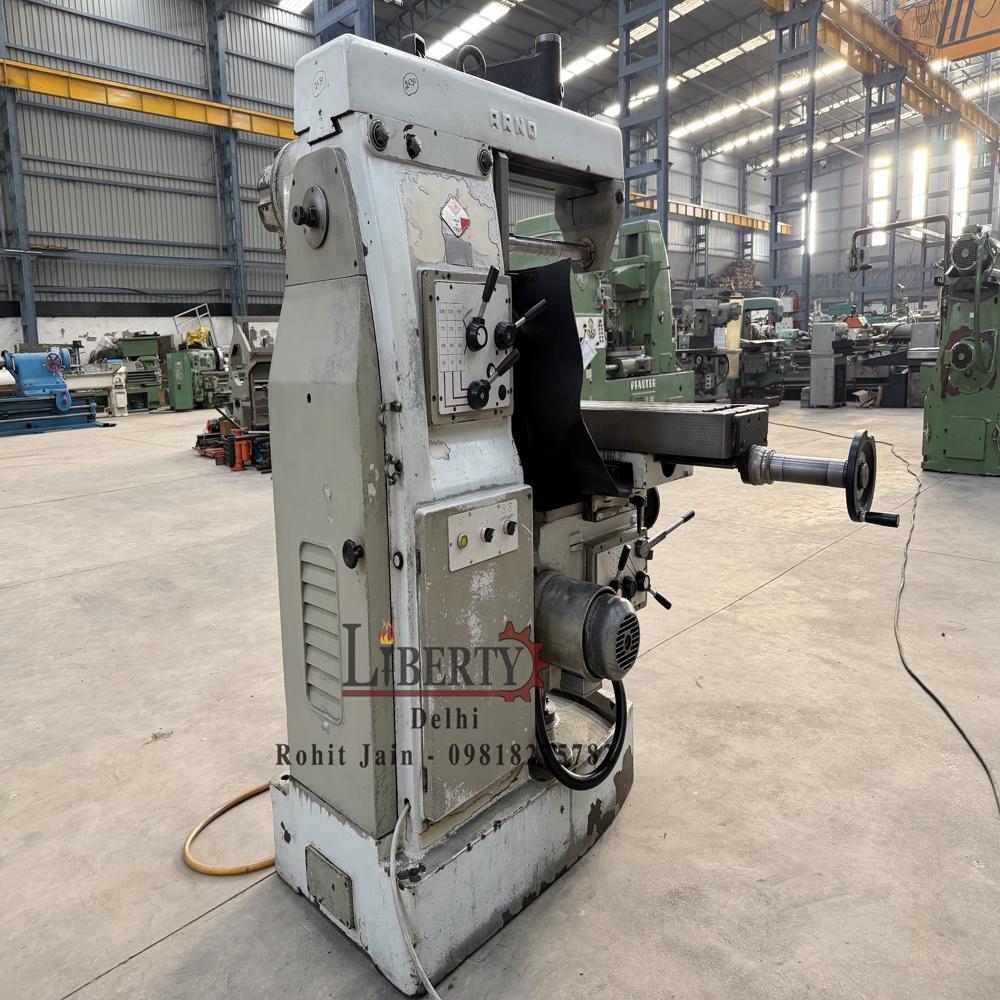

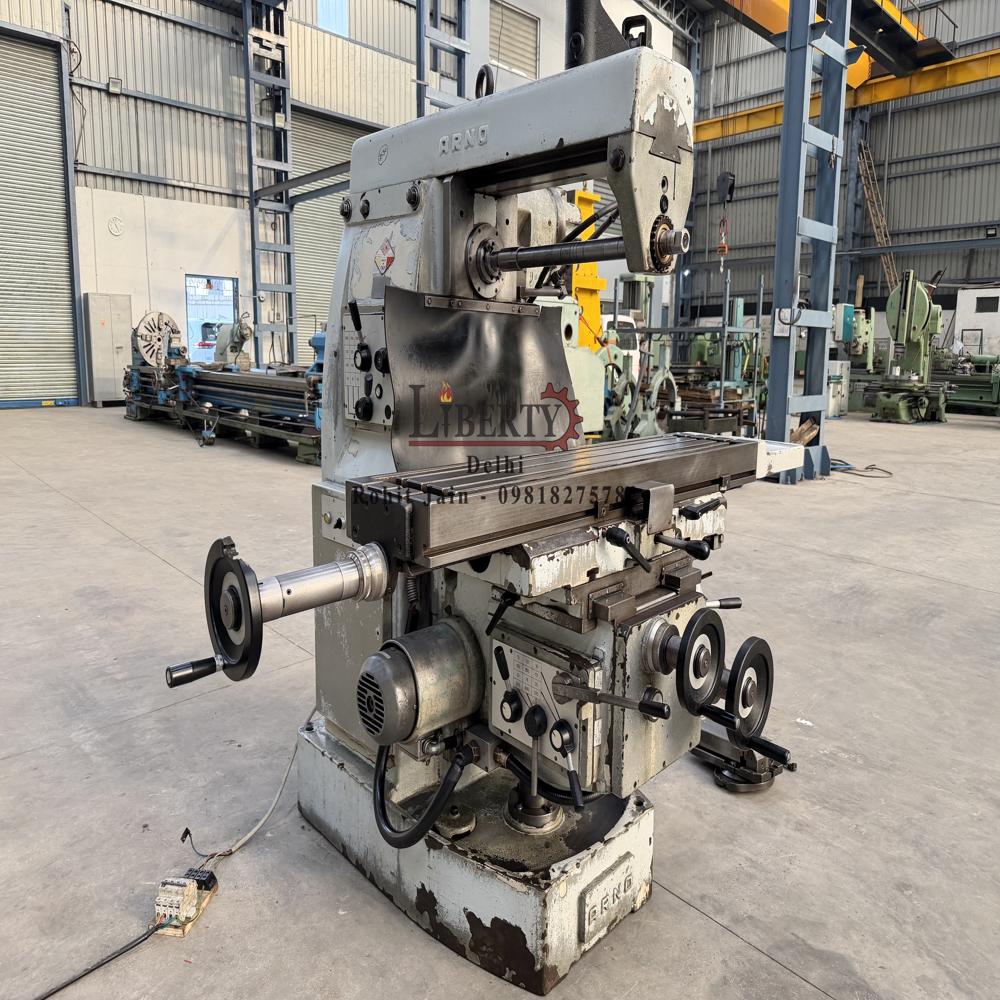

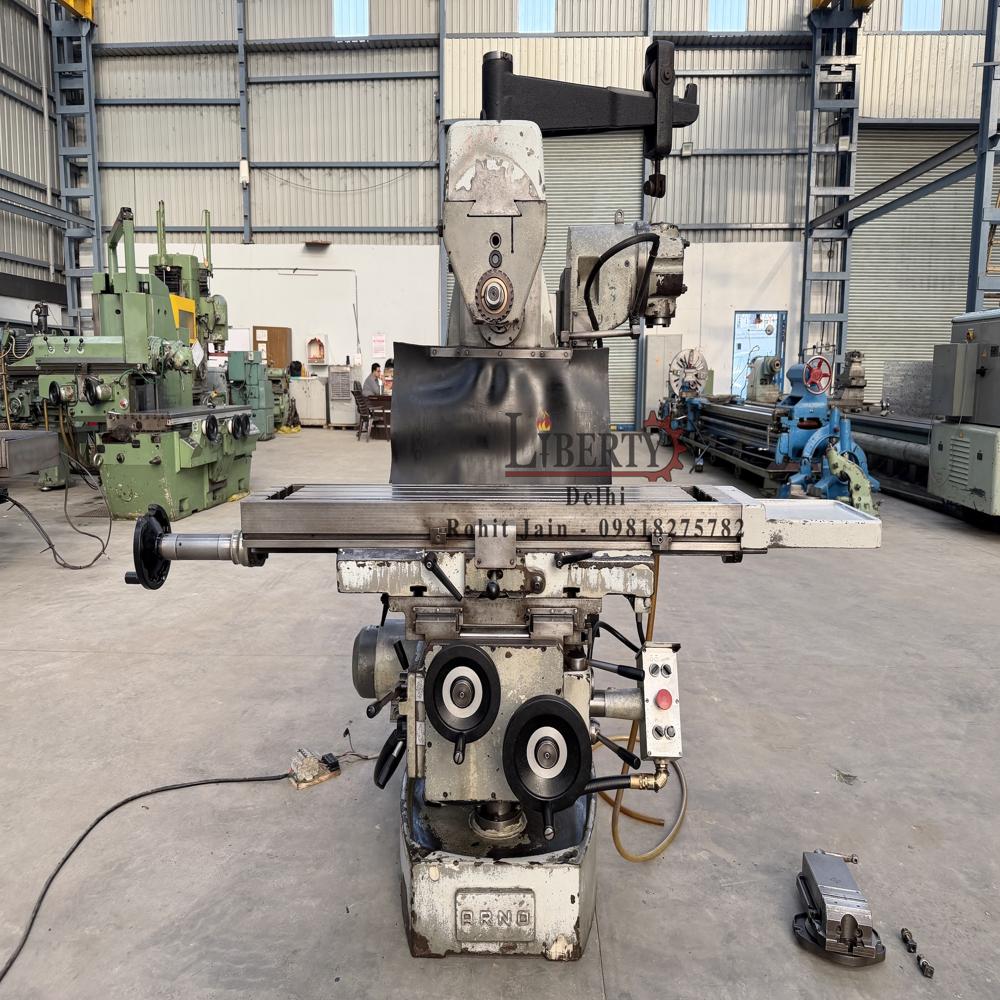

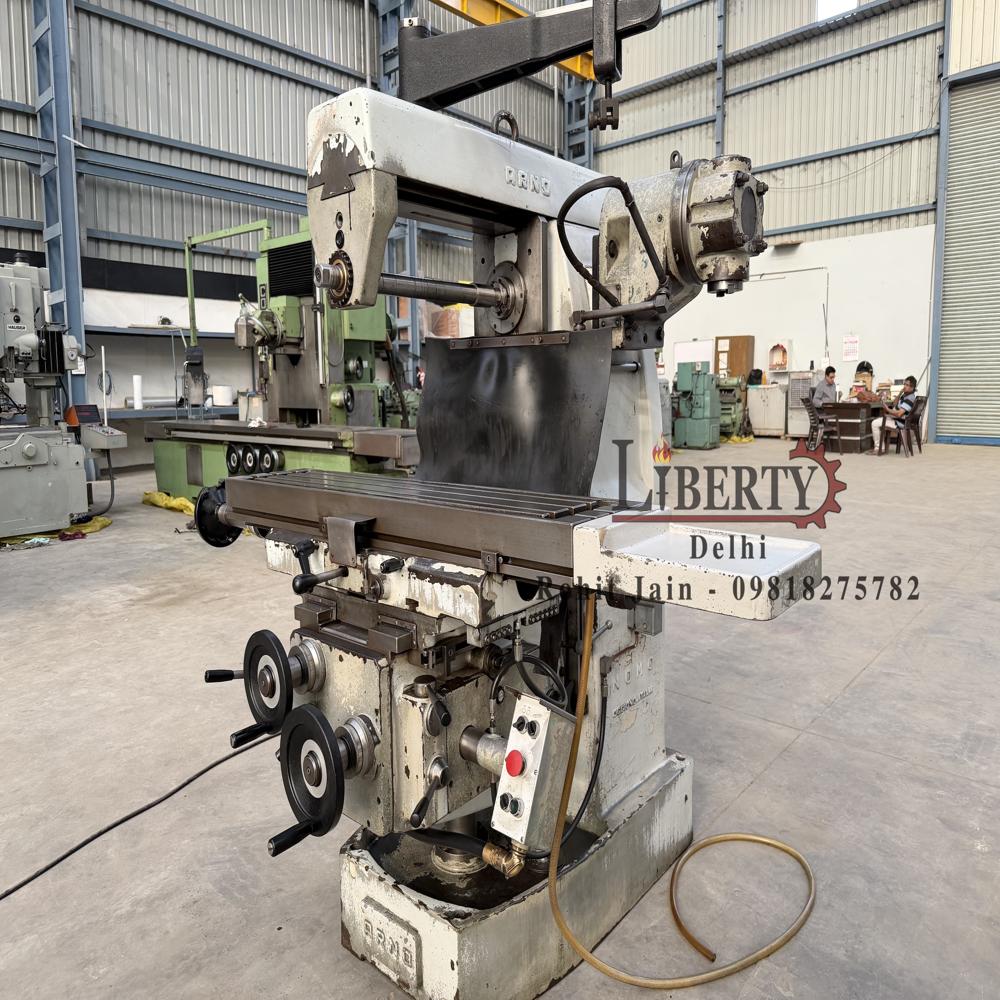

Arno Nomo (Italy) make Universal Milling Machine in excellent working condition. The Table Size of the machine is 1250 mm x 270 mm. The machine is complete with its Arbour and Bracket for Horizontal Milling Operations. It is also with a Parking-type Vertical Milling Head for Vertical Milling Operations. The technical details are as follows -

Material
Cast Iron Body, Hardened Steel Gears

Type
Horizontal + Vertical Universal Milling

Capacity
Medium Duty

Weight (kg)
Approx. 1800 - 2200 kg

Computerized
No

Automatic
No

CNC Or Not
Not CNC, Conventional

Control System
Manual

Table Size
1250 mm x 270 mm

Table Slide Way
Box type

Floor Space
Approx. 2000 mm x 1800 mm (estimated)

Spindle Speed
Approx. 40 - 1800 rpm (step variable)

Power
Approx. 3 - 5 HP main motor

Voltage
415 V, 3 Phase AC

Dimension (L*W*H)
Approx. 2000 mm x 1800 mm x 1800 mm (estimated)

Feature
Universal head swivel, box table ways, power feed

Color
White & Grey

Spindle Taper
ISO 40

Main Construction
Heavy Duty Meehanite Cast Iron Body

Maximum Vertical Travel
400 mm

Overarm Diameter
110 mm (Approx.)

Accessories Included
Manual Controls, Overarm Support, Drop Bracket

Feed Range
8-800 mm/min (Table Feed, Approx.)

Table Swivel
45

Arbor Diameter
25.4 mm (1 inch approx.)

Maximum Cross Travel
260 mm

Maximum Longitudinal Travel
1000 mm

Coolant System
Provided

Arno Nomo Italy 1250 mm x 270 mm Universal Milling Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
7 Days

About Arno Nomo Italy 1250 mm x 270 mm Universal Milling Machine

Make - Arno Nomo (Italy)

Table Size - 1250 mm x 270 mm

XYZ Travels - 850 mm x 300 mm x 400 mm

Spindle Taper - ISO-40

Spindle Speeds - 40 rpm to 1725 rpm

Table Feed Travel Rates - 10 mm/min to 840 mm/min

- Universal type Rotating Table.

- Equipped with a Parking type Vertical Milling Head.

- Complete with Arbour & Bracket for Horizontal Milling Operations.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/Vp9bKQHn8x4

Versatile Milling Operations

The Arno Nomo Universal Milling Machine offers both horizontal and vertical spindle configurations. Its universal head can swivel 45 for complex angle milling, making it suitable for a broad range of machining projects. Whether it's slotting, drilling, or face milling, this machine adapts seamlessly.

Robust Design and Construction

Crafted with a cast iron body and hardened steel gears, the machine delivers long-lasting durability and reliability. Its box-type table ways offer enhanced stability, crucial for precision milling. The machine's medium-duty capacity and weight (approx. 1800-2200 kg) support consistent operations.

Precision and Flexibility

With table travels of approximately 900-1000 mm longitudinally, 250 mm cross, and 400-450 mm vertically, this universal milling machine accommodates large or multiple workpieces. The ISO 40 spindle and 8-12 step variable speeds (40-1800 rpm) provide flexibility for different materials and cutting requirements.

FAQ's of Arno Nomo Italy 1250 mm x 270 mm Universal Milling Machine:

Q: How does the universal head swivel assist during milling operations?

A: The universal head on the Arno Nomo milling machine swivels up to 45, allowing users to perform angular milling, enabling complex cuts and increased versatility for varied machining needs.

Q: What types of materials and components is this machine best suited for?

A: With its medium-duty build, robust cast iron body, and hardened steel gears, the machine efficiently handles most general industrial materials, including metals like steel and aluminum.

Q: When should I use the horizontal versus the vertical spindle configuration?

A: Use the horizontal spindle for tasks like slotting or gear cutting that require extensive side milling. The vertical spindle, with the parking-type head, is ideal for standard surface milling, drilling, and face milling operations.

Q: Where is the machine best installed, considering its dimensions and floor space requirements?

A: The milling machine should be installed in a workspace that accommodates approximately 2000 mm x 1800 mm of floor space, ensuring access to all control panels and safe movement around the equipment.

Q: What are the advantages of the box-type table slide ways?

A: Box-type table slide ways offer greater rigidity and stability during operation, reducing vibration and enhancing machining accuracy and surface finish quality.

Q: How do I operate the manual and rapid feed systems?

A: Manual feed is suited for precise, controlled movements, while the rapid feed allows faster positioning during non-cutting travel, efficiently reducing cycle times between operations.
