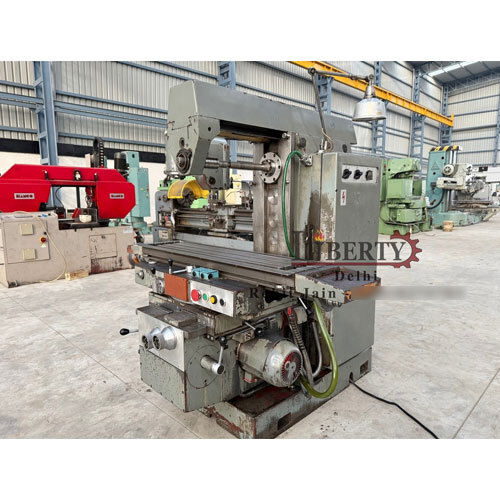

Arsenal Bulgaria FU-251 Universal Milling Machine

Name: Arsenal Bulgaria FU-251 Universal Milling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Arsenal Bulgaria FU-251 Universal Milling Machine Specification

Model
FU-251

Rotation
Horizontal & Vertical Spindle

Product Type
Universal Milling Machine

General Use
Universal Milling Operations

Material
Cast Iron

Type
Gear Head

Capacity
Standard

Weight (kg)
2000 kg

Computerized
No

Automatic
No

CNC Or Not
Not CNC

Control System
Manual

Table Size
1250 x 250 mm

Table Slide Way
Dovetail

Floor Space
2250 x 1750 mm

Spindle Speed
35 - 1400 rpm

Power
4 kW

Voltage
380 V

Dimension (L*W*H)
2250 x 1750 x 1620 mm

Feature
Universal, Heavy Duty

Color
Industrial Grey & Blue

Main Drive Motor
4 kW / 5.5 HP

Horizontal Spindle Bore
D 27 mm

Max Table Load
400 kg

Longitudinal Travel (X-Axis)
800 mm

Number of Feeds
12

Transverse Travel (Y-Axis)
255 mm

Coolant System
Fitted

Vertical Travel (Z-Axis)
400 mm

Milling Chuck Taper
ISO 40

Lubrication System
Centralized

Distance Between Spindle Nose and Table Top
30 - 430 mm

Distance from Spindle Center to Column
230 mm

Number of Speeds
12

Arsenal Bulgaria FU-251 Universal Milling Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Arsenal Bulgaria FU-251 Universal Milling Machine

Make - Arsenal (Bulgaria)

Model - FU251

Table Size - 1120 mm x 250 mm

XYZ Travel - 725 mm x 250 mm x 400 mm

Spindle Speeds - 40 rpm to 2000 rpm

Spindle Taper - ISO 40

Table Feed Travel Rate - 12.5 mm/min to 630 mm/min

- Complete with Arbour and Bracket for Horizontal Milling Operations.

- Complete with Parking-type Vertical Milling Head.

- Rotating type Universal Table.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/H4WbXtgWqIE

Universal Milling Versatility

The FU-251 can handle diverse applications thanks to its both horizontal and vertical spindle orientations. Its dovetail table slideways and robust design allow for precision machining on various materials, making it ideal for tool rooms, repair shops, and production plants that require multi-purpose milling capabilities.

Heavy-Duty Construction and Capacity

Built with quality cast iron, the machine features a 400 kg maximum table load and a substantial 2000 kg weight. The durable construction ensures stability during intensive operations, while centralized lubrication and a fitted coolant system minimize maintenance requirements, extending machine lifespan.

Precision and Control

The manual control system teamed with 12 separate speeds and feeds gives operators maximum flexibility for different workpiece demands. The ISO 40 spindle taper accommodates a wide range of milling cutters, optimizing efficiency and output for universal operations. The easily accessible controls promote safe and accurate usage.

FAQ's of Arsenal Bulgaria FU-251 Universal Milling Machine:

Q: How do I operate the Arsenal Bulgaria FU-251 for universal milling tasks?

A: Operation of the FU-251 is fully manual. Set the desired speed and feed using the 12-speed and 12-feed gears, securely clamp your workpiece on the 1250 x 250 mm table, select the appropriate spindle (horizontal or vertical), and adjust the table position using X, Y, and Z handwheels for precise machining.

Q: What types of milling processes can the FU-251 handle?

A: The FU-251 supports various milling processes such as face milling, end milling, slotting, drilling, and angular cutting, due to its universal spindle arrangement and wide travel capabilities on all axes. This versatility makes it suitable for both production and repair operations.

Q: When should I use the horizontal versus the vertical spindle on this machine?

A: Use the horizontal spindle for operations requiring greater rigidity or when working with large or heavy cutters, such as slab and side milling. Switch to the vertical spindle for precise contouring, drilling, or when using end mills and other vertical cutters.

Q: Where is the optimal placement for the FU-251 in a workshop?

A: Position the milling machine on a stable, level floor with at least 2250 x 1750 mm of free space to accommodate its footprint. Ensure sufficient clearance for table movements and operator access. Its centralized lubrication system and fitted coolant make it suitable for industrial environments.

Q: What are the main benefits of using the Arsenal Bulgaria FU-251?

A: Key benefits include universal operation (supporting both horizontal and vertical milling), robust build for heavy-duty work, flexibility from multiple speeds and feeds, and extended service life due to centralized lubrication and an integrated coolant system. These features make it dependable for demanding applications.

Q: How does the centralized lubrication and coolant system contribute to machine longevity?

A: The centralized lubrication system ensures key sliding and rotating components are consistently lubricated, reducing wear and maintenance. The fitted coolant system helps disperse heat during intensive milling, maintaining dimensional accuracy and protecting both tools and workpieces for long-term productivity.
