TOS 1600 mm x 315 mm Vertical Milling Machine

Send Inquiry

Request To Call Back

TOS 1600 mm x 315 mm Vertical Milling Machine

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS 1600 mm x 315 mm Vertical Milling Machine Specification

Rotation
Vertical spindle

Model
TOS 1600 x 315

Product Type
Vertical Milling Machine

General Use
Industrial vertical milling operations

Material
Cast Iron, Steel

Type
Milling Machine

Capacity
Heavy duty

Weight (kg)
Approx. 3950 kg

Computerized
No

Automatic
No

CNC Or Not
Not CNC

Control System
Manual

Table Size
1600 mm x 315 mm

Table Slide Way
Box type

Magnetic Chuck Size
1600 mm x 315 mm

Grinding Length
1600 mm

Floor Space
Approx. 3500 mm x 2500 mm

Spindle Speed
Variable, typically 40 1600 rpm

Power
7.5 kW

Voltage
415 V

Dimension (L*W*H)
Approx. 2850 mm x 2250 mm x 2100 mm

Feature
High rigidity, precision workmanship, large table surface

Color
Standard Industrial Green/Grey

Cross Table Travel
315 mm

Lubrication System
Centralized Automatic

Feed Speed
20 - 800 mm/min

Longitudinal Table Travel
1100 mm

Rapid Traverse
1200 mm/min

T-Slot Size
18 mm

Number of T-Slots
3

Main Motor Type
Induction Motor

Spindle Taper
ISO 50

Maximum Height from Table to Spindle Nose
530 mm

Vertical Table Travel
450 mm

Work Table Load Capacity
Up to 1200 kg

Coolant System
Provided

TOS 1600 mm x 315 mm Vertical Milling Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

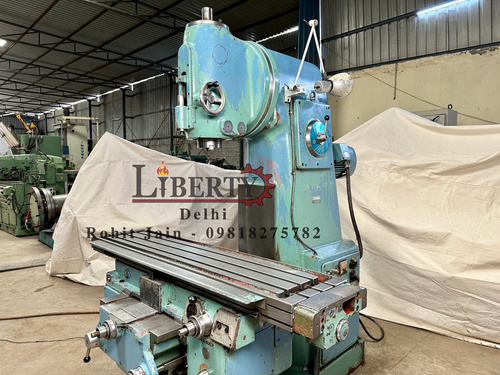

About TOS 1600 mm x 315 mm Vertical Milling Machine

Make - TOS (Czech Republic)

Model - FA 4V

Table Size - 1600 mm x 315 mm

XYZ Travel - 950 mm x 315 mm x 300 mm

Spindle Speeds - 32 rpm to 1400 rpm

Table Feed Rates - 10 mm/min to 1250 mm/min

Quill Diameter - 180 mm

Swivel angle of Milling Head - +45 Degree to -45 Degree

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/cwjUqjROMys

Precision and Versatility for Industrial Milling

The TOS 1600 mm x 315 mm Vertical Milling Machine combines high rigidity with precision workmanship. Its spacious table and robust load capacity make it suitable for a wide range of industrial operations, from heavy-duty machining to fine milling tasks. Manual controls and a straightforward design ensure operators can achieve consistent, accurate results in demanding environments.

Optimized Performance and Efficiency

With a powerful 7.5 kW induction motor and variable spindle speeds, this vertical milling machine efficiently handles diverse materials, including cast iron and steel. The machine is equipped with a centralized automatic lubrication system and a reliable coolant setup, ensuring smooth, long-lasting operations and minimized maintenance downtimes.

FAQs of TOS 1600 mm x 315 mm Vertical Milling Machine:

Q: How is the TOS 1600 mm x 315 mm Vertical Milling Machine usually used in an industrial setting?

A: This machine is primarily used for high-precision vertical milling tasks such as face milling, slotting, surface finishing, and heavy-duty material removal across large workpieces. It accommodates up to 1200 kg and suits general industrial machining operations demanding accuracy and durability.

Q: What are the benefits of the centralized automatic lubrication system included with this milling machine?

A: The centralized automatic lubrication system continuously delivers the right amount of lubricant to critical moving parts, minimizing wear and tear, reducing maintenance efforts, and enhancing the longevity and reliability of the machine.

Q: When should rapid traverse be utilized on this milling machine?

A: Rapid traverse, with a speed of 1200 mm/min, is generally used when the operator needs to quickly reposition the table without engaging in a cutting operation. This feature saves valuable time between machining passes or setup adjustments.

Q: Where can the TOS 1600 x 315 vertical milling machine be installed, considering its size and floor space requirements?

A: Given its approximate floor space requirement of 3500 mm x 2500 mm and a weight of nearly 3950 kg, this milling machine is best installed in spacious, well-ventilated factory settings equipped to handle large, heavy-duty equipment. Proper foundation and environment are essential for optimal performance.

Q: What makes the TOS 1600 mm x 315 mm suitable for heavy-duty tasks?

A: High table load capacity, a large work surface, rigid box-type table slide ways, and durable cast iron and steel construction enable the machine to handle intensive milling operations and support large workpieces with stability and accuracy.

Q: How is variable spindle speed advantageous for different machining tasks?

A: Variable spindle speeds (401600 rpm) allow the operator to adjust the rotation rate to suit various materials and cutting tools, improving surface finish quality, extending tool life, and ensuring optimal cutting performance for diverse applications.
