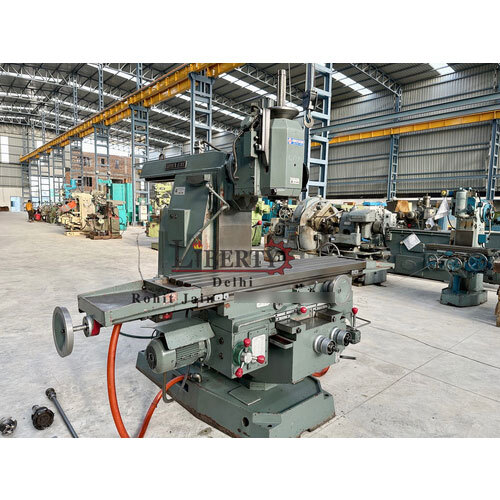

Nicolas Correa F3UE Universal Milling Machine
Nicolas Correa F3UE Universal Milling Machine

Nicolas Correa F3UE Universal Milling Machine

Price 100000 INR/ Piece

MOQ : 1 Piece

Nicolas Correa F3UE Universal Milling Machine Specification

  • Model
  • F3UE
  • Rotation
  • 360° Head Rotation
  • Product Type
  • Universal Milling Machine
  • General Use
  • Metalworking and precision milling operations
  • Material
  • Cast Iron
  • Type
  • Horizontal & Vertical
  • Capacity
  • 800 kg
  • Weight (kg)
  • 2800 kg
  • Computerized
  • No
  • Automatic
  • No
  • CNC Or Not
  • No (Manual) operation
  • Control System
  • Manual
  • Table Size
  • 1500 mm x 400 mm
  • Table Slide Way
  • Box type
  • Floor Space
  • 2500 mm x 2100 mm
  • Spindle Speed
  • 40 - 2,000 rpm
  • Power
  • 7.5 HP (5.5 kW)
  • Voltage
  • 415 V
  • Dimension (L*W*H)
  • 2500 mm x 2100 mm x 1700 mm
  • Feature
  • Universal Swivel Head
  • Color
  • Industrial Grey & Blue
  • Swivel Angle Head
  • 360°
  • Rapid Traverse Rate
  • 2500 mm/min
  • Coolant System
  • Yes
  • Vertical Table Travel
  • 450 mm
  • Spindle Taper
  • ISO 50
  • Safety Features
  • Overload protection, Emergency stop
  • Number of Feeds
  • 12
  • Cross Table Travel
  • 400 mm
  • Lubrication System
  • Centralized
  • Number of T-slots
  • 3
  • T-slot size
  • 18 mm
  • Application
  • Heavy-duty Milling, Boring, Drilling
  • Longitudinal Table Travel
  • 1100 mm
  • Quill Travel
  • 125 mm
  • Max Load on Table
  • 800 kg


Nicolas Correa F3UE Universal Milling Machine Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Main Domestic Market
  • All India


About Nicolas Correa F3UE Universal Milling Machine

Make - Nicolas Correa (Spain)

Model - F3UE

Table Size - 1400 mm x 340 mm

XYZ Travels - 1100 mm x 300 mm x 500 mm

Vertical Spindle Travel - 125 mm

Spindle Taper - ISO 50

Spindle Speeds - 28 rpm to 1400 rpm

Spindle Diameter - 175 mm

Spindle Feed Rates of Travel - 0.063 mm/rev to 0.250 mm/rev

Table Feed Rates of Travel - 11.2 mm/min to 710 mm/rev

Rotation of Vertical Milling Head - 0 degree to 360 degree

- Automatic Spindle Travel in Vertical Milling Head for Boring Operations.

- Vertical Milling Head can be removed to do Horizontal Milling Operations.

- Complete with Bracket & Arbour for Horizontal Milling Operations.

- Machine is in excellent working condition.


Video of The Machine -

https://youtu.be/pNAUuGM7fH4



High-Capacity Universal Milling Solution

Designed for both horizontal and vertical tasks, the Nicolas Correa F3UE offers exceptional flexibility with a 360 swivel angle head and a sturdy box-type table slide way. Its heavy-duty cast iron construction delivers stability and precision, making it ideal for demanding environments across industries. The extensive table travel and robust power output suit both production and prototype work.


User-Friendly Manual Control with Advanced Safety

This milling machine operates manually, providing hands-on control for skilled machinists. Safety is integral, featuring overload protection and an emergency stop for operator confidence. Maintenance is simplified by a centralized lubrication system, ensuring smooth operations and extended machine life during intensive tasks.

FAQ's of Nicolas Correa F3UE Universal Milling Machine:


Q: How can the Nicolas Correa F3UE enhance my metalworking processes?

A: The F3UE's universal swivel head, wide range of spindle speeds (40-2000 rpm), and high table load capacity make it suitable for heavy-duty milling, drilling, and boring jobs. Its manual controls foster precision and adaptability for custom or complex component fabrication in metal industries.

Q: What materials and workpiece sizes are compatible with this machine?

A: Constructed from durable cast iron and featuring a spacious 1500 mm x 400 mm table with 1100 mm longitudinal travel, the F3UE handles large workpieces up to 800 kg, ideal for various metals and materials used in industrial settings.

Q: When should the coolant and lubrication systems be maintained?

A: Routine checks are recommended before each shift to ensure the integrated coolant and centralized lubrication systems operate efficiently. Regular maintenance sustains optimal performance and extends the lifespan of the machine's vital moving parts.

Q: Where is the Nicolas Correa F3UE best utilized?

A: The machine is most effective in industrial workshops, manufacturing plants, and tool rooms requiring precision milling and versatility in handling both large and intricate metal components.

Q: What is the process for adjusting the swivel head for angled milling?

A: Operators can rotate the universal swivel head a full 360, using manual controls to set precise angles for complex milling operations. Secure the head position before commencing the machining cycle to guarantee accuracy.

Q: How does the F3UE contribute to operator safety during intensive cycles?

A: With integrated overload protection and an easily accessible emergency stop, the F3UE ensures operators can halt operations instantly if abnormal conditions arise, minimizing risk and safeguarding both user and machine.

Q: What benefits does manual control provide compared to CNC machines?

A: Manual control enables greater flexibility for bespoke or one-off jobs, allowing experienced machinists to apply their expertise. This is particularly beneficial in workshops focused on prototyping, repairs, or specialized components.
