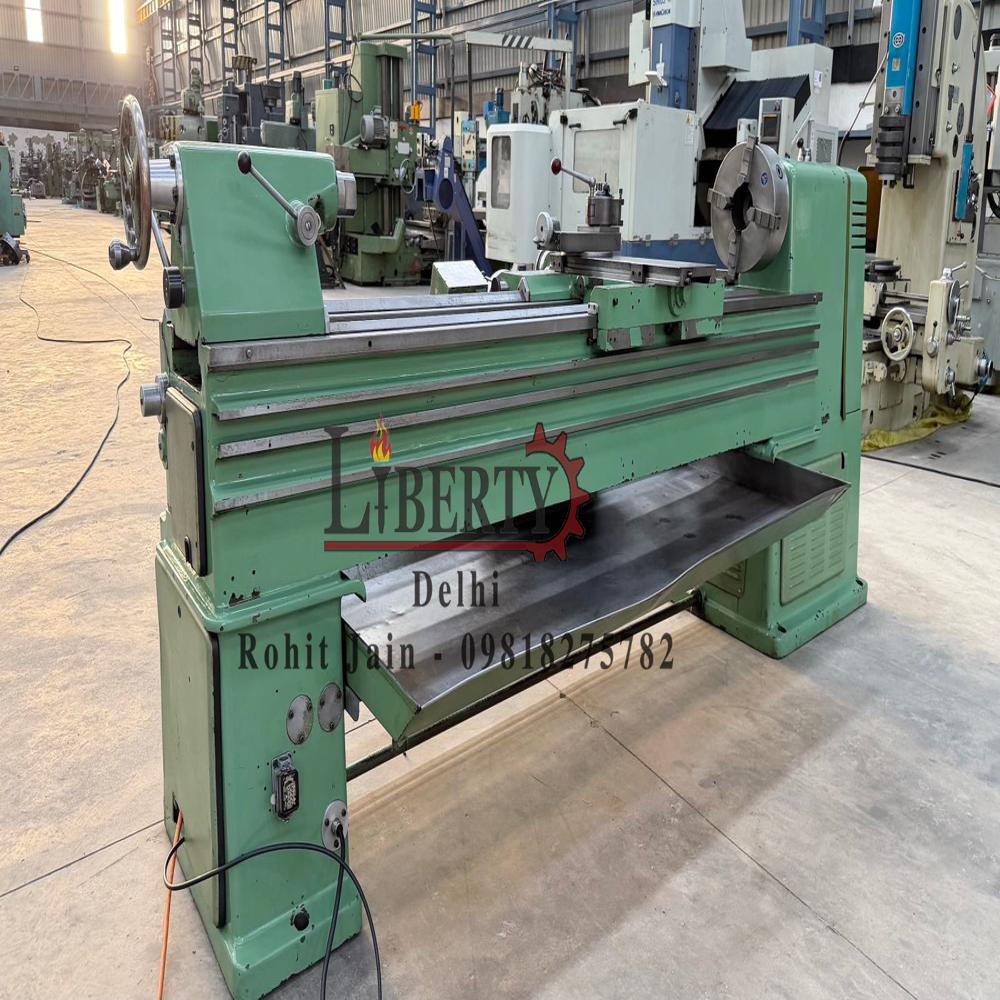

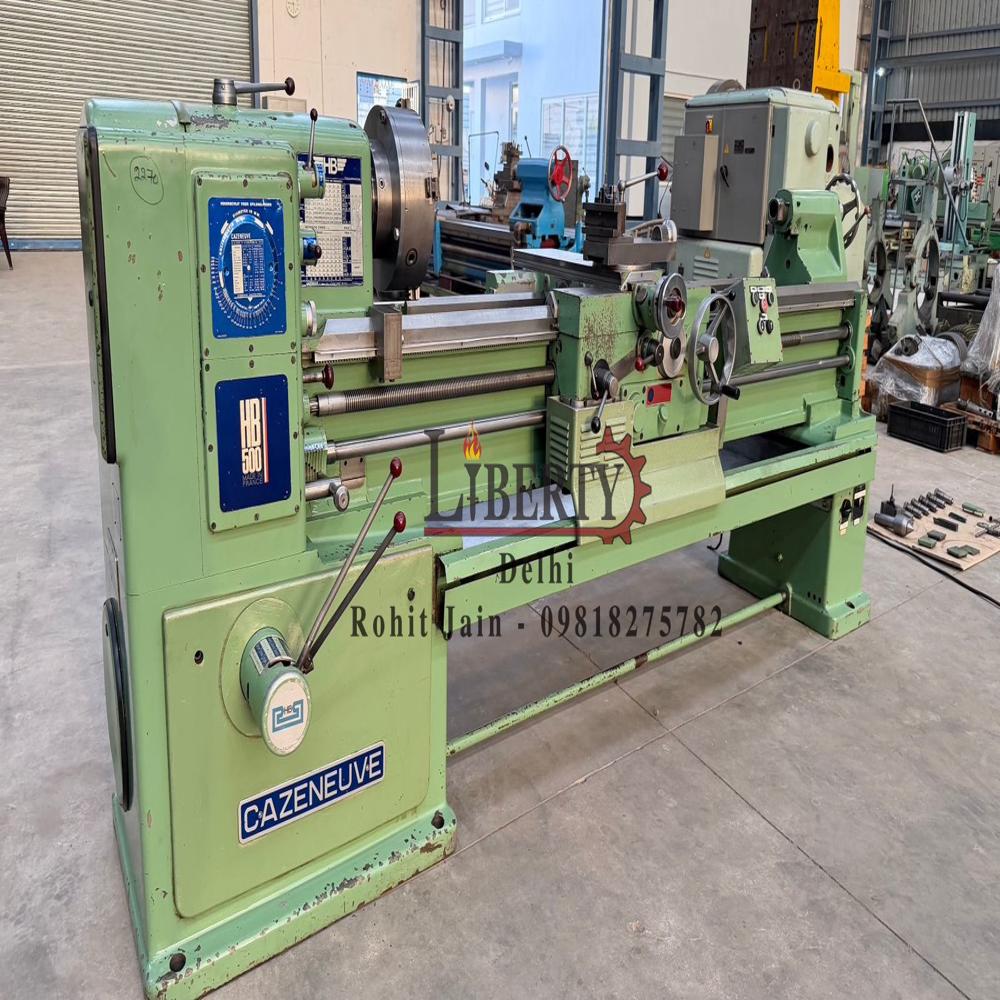

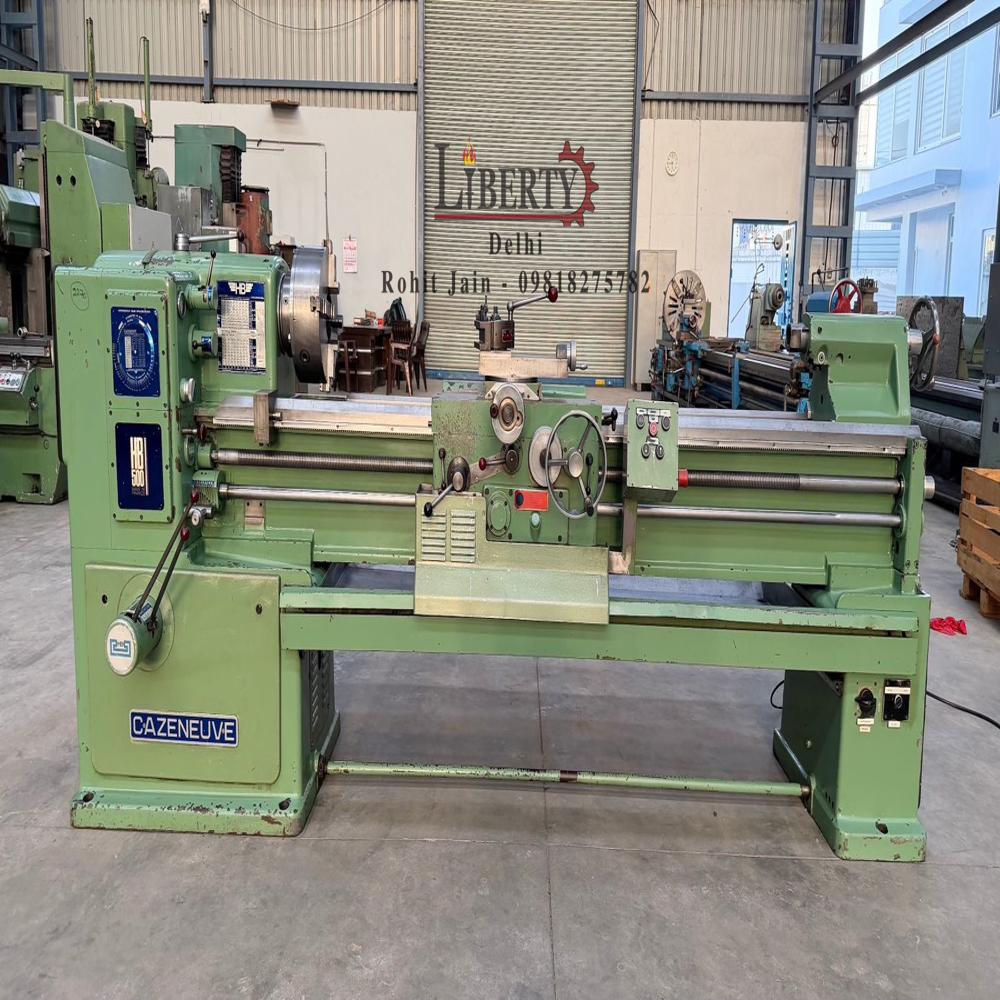

Cazeneuve France HB-500 x 2000 mm All Geared Lathe Machine

Name: Cazeneuve France HB-500 x 2000 mm All Geared Lathe Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cazeneuve France HB-500 x 2000 mm All Geared Lathe Machine Specification

Product Type
All Geared Lathe Machine

Material
Cazeneuve (France) make All-Geared Lathe Machine in excellent working condition. The machine's model is HB-500 with Maximum Job Length of 2000 mm. With a center height of 220 mm and a rigid 400 mm wide bed, this machine ensures stability, accuracy, and consistent performance. The machine includes a Job-Steady, Tool Holders, and other accessories. The technical details are as follows -

Cutting Thickness
As per tool and job

Cutting Speed
Variable, up to 2000 RPM

CNC Or Not
Conventional (Not CNC)

Automatic Grade
Semi-Automatic

Control System
Manual Geared Control

Max. Swing Diameter
500 mm

Voltage
415 V

Weight (kg)
Approx. 2500 kg

Dimension (L*W*H)
Approx. 3000 x 1200 x 1400 mm

Capacity
Heavy Duty

Feature
All Geared Head, Precision Bed, Heavy Construction

Color
Green

Tailstock Taper
MT4

Taper of Spindle Nose
MT5

Model
HB 500

Bed Type
Box Type, Hardened and Ground

Feed Range
Multiple longitudinal and cross feeds

Tailstock Quill Travel
200 mm

Thread Range
Both Metric and Inch threading, multiple leads possible

Spindle Bore
63 mm

Distance Between Centers
2000 mm

Spindle Speed Range
30 to 2000 RPM (16/18 steps)

Chuck Size
330 mm (13 inch) - 3 Jaw or 4 Jaw

Power Required
7.5 HP

Cazeneuve France HB-500 x 2000 mm All Geared Lathe Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
7 Days

About Cazeneuve France HB-500 x 2000 mm All Geared Lathe Machine

Make - Cazeneuve (France)

Model - HB-500

Center Height - 220 mm

Max. Length of Job - 2000 mm

Max. Job Diameter over Cross-Slide - 215 mm

Max. Job Diameter over Bed - 440 mm

Chuck Diameter - 315 mm

Bed Width - 400 mm

Spindle Speeds - 20 rpm to 1600 rpm

Spindle Bore - 45 mm

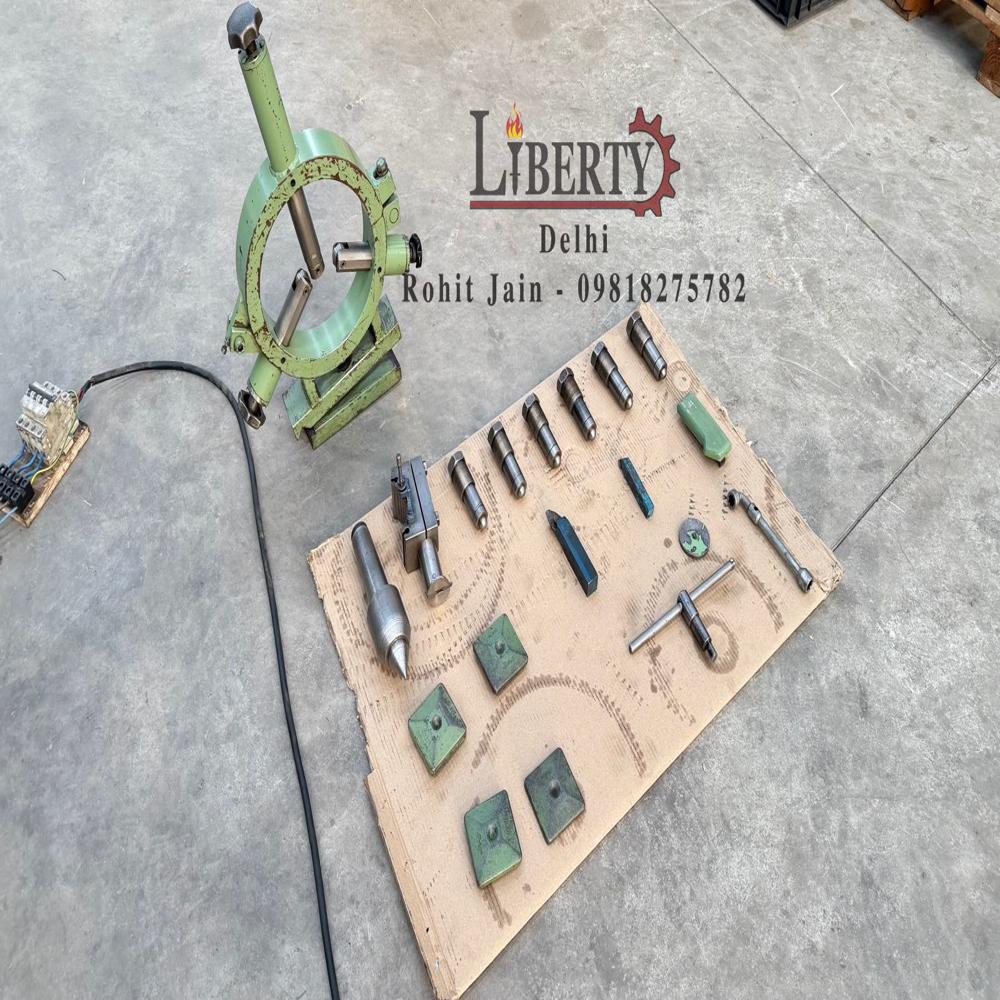

- Complete with Job Steady, Tool Holders, & other accessories.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/430-FlAoQRc

Precision and Performance

The HB-500 x 2000 mm lathe delivers unmatched accuracy with its all-geared head and heavily ribbed, wide bed design. Variable spindle speeds allow machinists to adjust cutting parameters, optimizing both efficiency and surface finish for various metals and applications. Its robust construction ensures consistent performance, even for extended production runs.

Versatility and Usability

Catering to a wide range of metal turning applications, this lathe supports operations such as facing, threading, and boring. Standard 3-jaw and 4-jaw chucks enable quick setup changes. The manual geared controls offer excellent tactile feedback, making it intuitive for machinists to operate, adjust, and maintain throughout daily use.

FAQ's of Cazeneuve France HB-500 x 2000 mm All Geared Lathe Machine:

Q: How do I change the spindle speed on the HB-500 x 2000 mm lathe?

A: The HB-500 x 2000 mm lathe features a variable-speed, geared head system. You can adjust the spindle speed simply by operating the manual geared levers on the control panel, allowing continuous adaptation of speed settings based on material and tool requirements.

Q: What types of metalwork can this lathe machine handle effectively?

A: This lathe is designed for a variety of metalworking processes including metal turning, facing, threading, drilling, and boring. Its heavy-duty capacity and precision bed make it suitable for both rough and finish machining across different metals.

Q: When is the best time to use this lathe instead of a CNC lathe?

A: The HB-500 x 2000 mm is ideal when manual control is preferred or when handling tasks that require constant operator supervision or flexibility. It excels in custom, low-volume, or repair work, where CNC programming might not be practical or time-efficient.

Q: Where can I find compatible replacement parts and accessories for this machine?

A: Replacement parts and accessories for the HB-500 x 2000 mm lathe can be sourced from Cazeneuve authorized dealers, industrial machinery suppliers, or directly from manufacturers and importers who deal in used and new metalworking machines.

Q: What is the process for setting up the machine for a new turning operation?

A: Setup involves securing the appropriate chuck (either 3-jaw or 4-jaw), mounting the workpiece between centers or in the chuck, adjusting the tool post, and setting the speed and feed according to the material and operation. Ensure all safety controls are in place before starting the lathe.

Q: How does the robust bed design benefit metalworking operations?

A: The wide, heavily ribbed bed provides exceptional rigidity, reducing vibrations and ensuring stable machining. This structural strength helps achieve precise tolerances and superior surface finishes, especially with heavy or lengthy workpieces.
