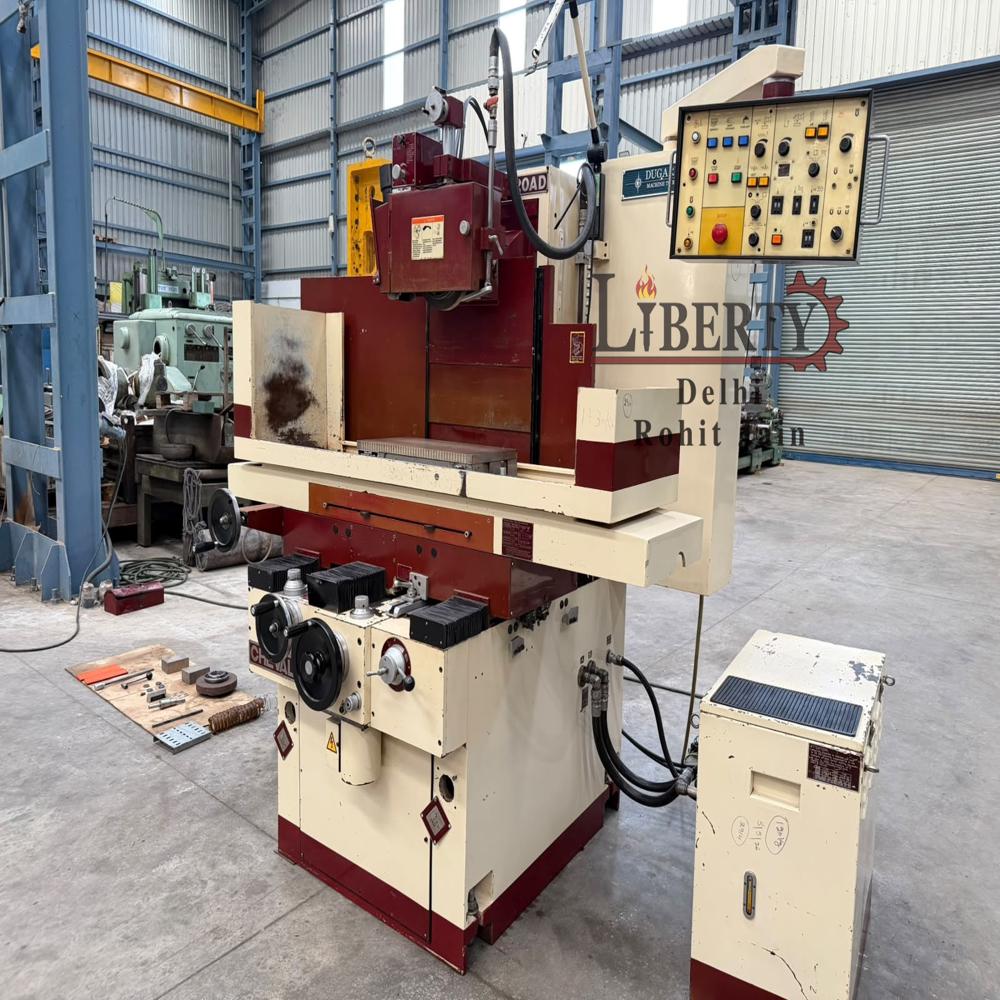

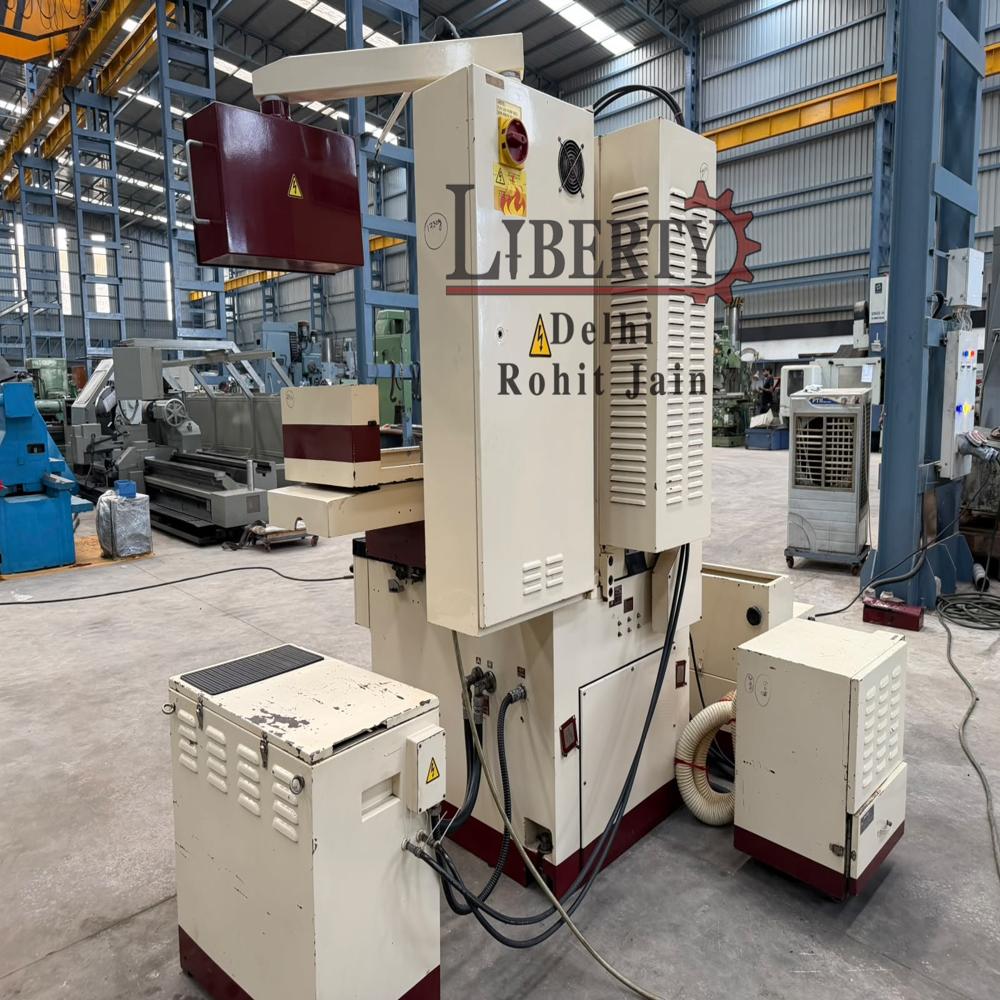

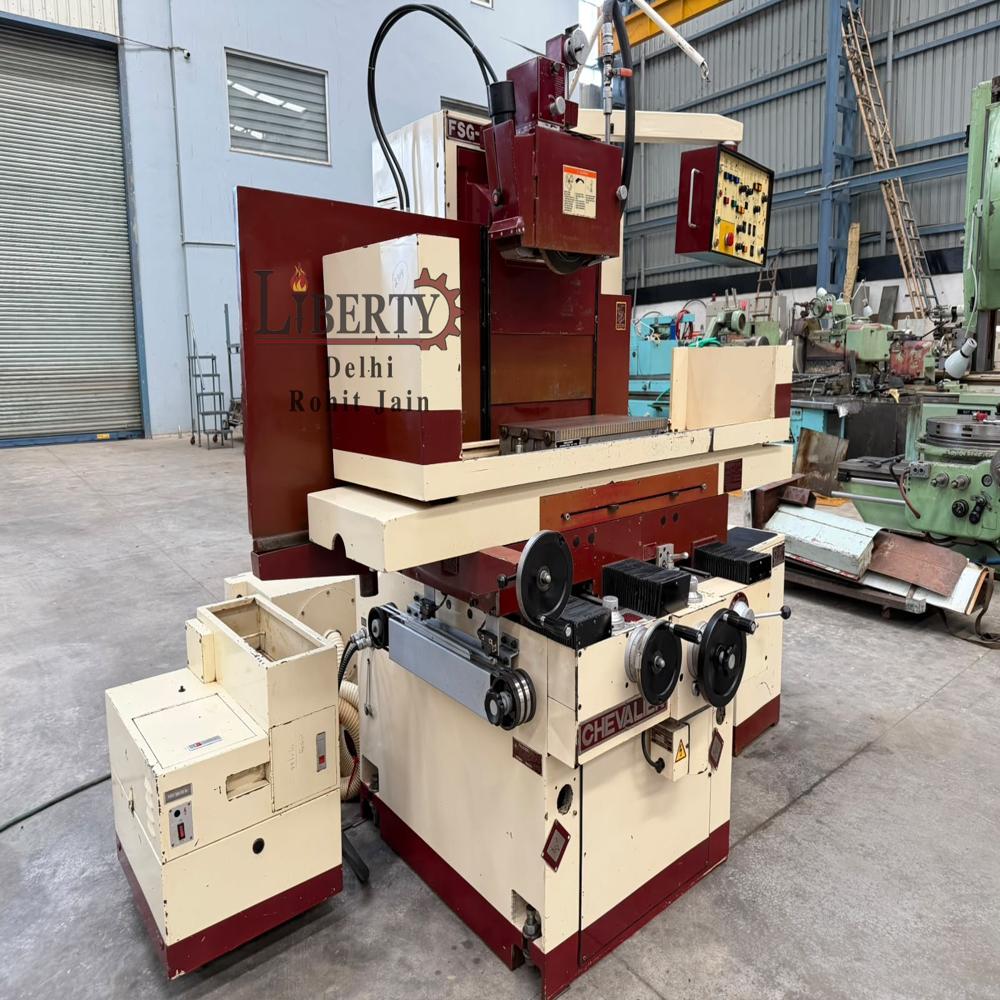

Send InquiryChevalier FSG-1020AD Automatic Surface Grinding Machine
Price 42500.0 INR/ Piece
MOQ : 1 Piece
Chevalier FSG-1020AD Automatic Surface Grinding Machine Specification
- Model
- FSG-1020AD
- Product Type
- - Micro-Feed Adjustments on both Vertical and Cross Travels. - Features Automatic Plunge Grinding and Automatic Depth Adjustment (Auto-Cut) cycles. - Equipped with a Top-Mounted Hydraulic Wheel Dresser. - Complete with Coolant Tank, Coolant Pump, and Dust Collector Unit. - Machine is in excellent working condition.
- General Use
- Automatic Surface Grinding Machine manufactured by Chevalier (Taiwan), Model FSG-1020AD, available in excellent working condition. This is a High-Precision Automatic Hydraulic Surface Grinding Machine featuring Automatic Plunge Grinding and Automatic Depth Adjustment (Auto-Cut) cycles. The machine offers High-Precision Micro-Feed Adjustments in both the Vertical and Cross Travels, with a Least Count of 1 Micron (0.001 mm) on both axes. It is equipped with a 250 mm 500 mm Magnetic Chuck and a 300 mm Diameter 32 mm Wide Grinding Wheel. The machine is complete with a Top-Mounted Hydraulic Wheel Dresser, Coolant Tank, Coolant Pump, and Dust Collector Unit. The technical details are as follows -
- Automatic
- No
- CNC Or Not
- Normal
- Control System
- Manual
- Table Size
- 250 mm 500 mm
- Magnetic Chuck Size
- 250 mm 500 mm
- Color
- Other
- Warranty
- No
About Chevalier FSG-1020AD Automatic Surface Grinding Machine
Make - Chevalier (Taiwan)
Model - FSG-1020AD
Magnetic Chuck Size - 250 mm 500 mm
Grinding Wheel Size - 300 mm Diameter 32 mm Width
Maximum Height between Magnetic Chuck and Wheel Centre - 455 mm
Longitudinal Travel - 600 mm
Cross Travel - 325 mm
Least Count of Vertical Travel - 1 Micron (0.001 mm)
Least Count of Cross Travel - 1 Micron (0.001 mm)
- Micro-Feed Adjustments on both Vertical and Cross Travels.
- Features Automatic Plunge Grinding and Automatic Depth Adjustment (Auto-Cut) cycles.
- Equipped with a Top-Mounted Hydraulic Wheel Dresser.
- Complete with Coolant Tank, Coolant Pump, and Dust Collector Unit.
- Machine is in excellent working condition.
Video of The Machine -
