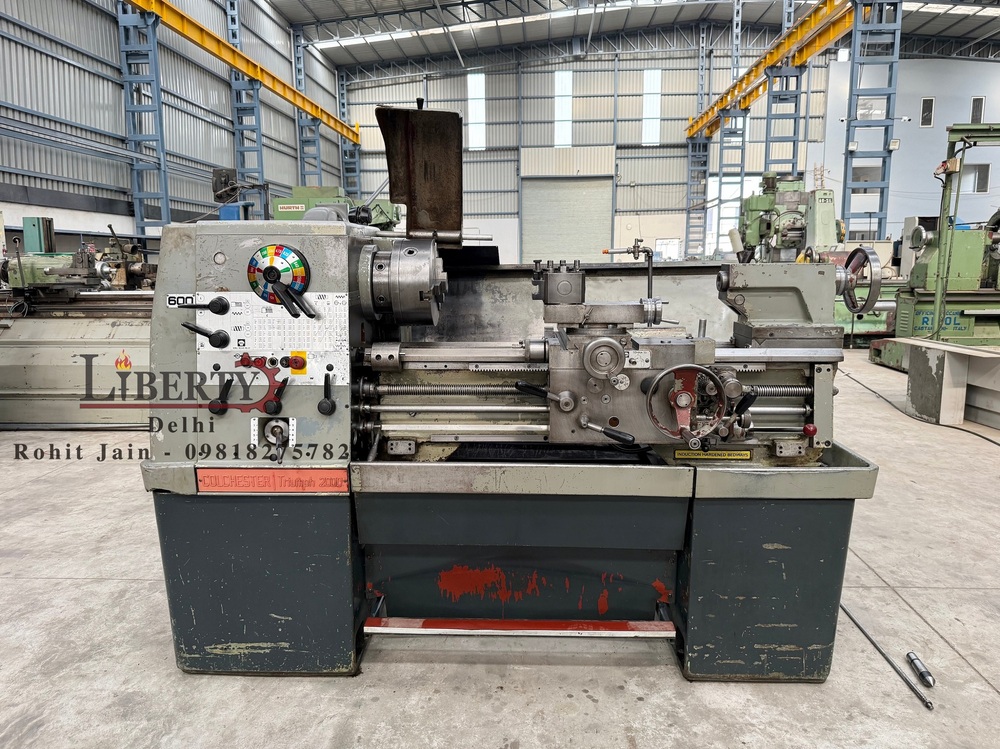

Colchester England Triumph 2000 Lathe Machine

Name: Colchester England Triumph 2000 Lathe Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Colchester England Triumph 2000 Lathe Machine Specification

Product Type
Manual Engine Lathe

Material
Cast Iron Construction

Cutting Thickness
Up to 25 mm (Depending on Material/Tool)

Cutting Speed
30 - 2,500 RPM (Variable via Gearbox)

CNC Or Not
Not CNC, Manual Operation

Automatic Grade
Semi-Automatic (Manual with Some Power Feeds)

Control System
Manual with Gearbox Feed

Max. Swing Diameter
400 mm (over bed)

Voltage
415V, 3 Phase

Weight (kg)
Approx. 1600 kg

Dimension (L*W*H)
Approx. 2200 x 1000 x 1200 mm

Capacity
Between Centers 1000 mm

Feature
Hardened & Ground Bedways, Thread Cutting, Power Cross Feed

Color
Standard Grey/Green Finish

Spindle Nose
D1-6 Camlock

Bed Width
250 mm

Tailstock Quill Travel
150 mm

Number of Spindle Speeds
12

Cross Slide Travel
250 mm

Power Consumption
5 HP Main Motor

Model Name
Colchester Triumph 2000

Top Slide Travel
125 mm

Thread Cutting Range (Metric)
0.2 to 14 mm

Chuck Size
250 mm (3-Jaw) supplied

Distance Between Centers
1000 mm

Spindle Bore
52 mm

Tailstock Taper
MT 4

Coolant System
Fitted with Separate Pump

Thread Cutting Range (Inch)
2 to 72 TPI

Floor Space Required
2400 x 1130 mm

Colchester England Triumph 2000 Lathe Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Colchester England Triumph 2000 Lathe Machine

Make - Colchester (England)

Model - Triumph 2000

Center Height - 195 mm

Length of Job - 760 mm

Max. Diameter of Job over Bed - 390 mm

Max. Diameter of Job over Cross-Slide - 230 mm

Bed Width - 280 mm

Chuck Diameter - 250 mm

Spindle Speeds - 25 rpm to 2000 rpm

Spindle Bore - 55 mm

- Equipped with an Automatic Taper Turning Attachment.

- Equipped with Foot Operated Brake.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/XcAgH0NUmOw

Precision and Performance

The Triumph 2000 is renowned for its accurate machining thanks to hardened and ground bedways. Rugged cast iron construction minimizes vibrations, ensuring precise results across a variety of materials and tasks. The lathe's power cross feed and advanced thread cutting mechanisms further optimize efficiency and reliability in demanding applications.

Versatile Capacity and Operation

Accommodating components up to 400 mm in diameter and 1000 mm between centers, the Triumph 2000 offers flexibility for a wide range of turning, facing, and threading tasks. Its 12 spindle speeds, manual control system with gearbox feed, and semi-automatic grade enable operators to achieve optimal performance in both standard and specialized machining jobs.

User-Friendly Design and Maintenance

Safety and convenience are prioritized with features such as the D1-6 camlock spindle nose, 3-jaw chuck, and easy-travel slides. The separate coolant system prolongs tool life and improves cut quality. Its floor space footprint and ergonomic finishing assure streamlined operations in both industrial and workshop environments.

FAQ's of Colchester England Triumph 2000 Lathe Machine:

Q: How can the Colchester Triumph 2000 Lathe Machine be used for thread cutting operations?

A: The Triumph 2000 features a manual control system with a gearbox feed that allows users to efficiently cut threads. It supports a thread cutting range of 0.2 to 14 mm for metric threads and 2 to 72 TPI for inch threads. Operators adjust the gear settings and feed rates to achieve precise threading results for various applications.

Q: What are the main benefits of the hardened and ground bedways in this lathe machine?

A: Hardened and ground bedways provide increased durability, minimize wear over time, and promote stable, accurate machining. This results in enhanced precision, reduced maintenance requirements, and extended machine service life, making the Triumph 2000 ideal for heavy-duty turning and finishing tasks.

Q: When should the coolant system be utilized during machining processes?

A: The separate pump-driven coolant system should be engaged whenever performing prolonged cutting tasks or working with harder materials. This helps prevent overheating, improves finish quality, and extends tool life by reducing friction and efficiently dissipating heat while machining.

Q: Where is the Colchester Triumph 2000 popularly used and installed?

A: This lathe machine is widely employed in manufacturing plants, metalworking shops, repair centers, and educational facilities across the United Kingdom and globally. Its size and versatility make it suitable for both industrial production and training environments.

Q: What is the process for adjusting the spindle speed on the Triumph 2000?

A: Operators can change spindle speeds by engaging the gearbox, which provides twelve distinct speed settings ranging from 30 to 2,500 RPM. Adjustments are made manually through the control levers, enabling users to match cutting speeds to material types and specific machining requirements.

Q: How does the separate coolant system contribute to improved cutting performance?

A: The fitted coolant system, powered by its own pump, continuously lubricates and cools the workpiece and tool during cutting operations. This reduces friction, ensures smoother cuts, prevents overheating, and prolongs the lifespan of both tools and machined surfaces.

Q: What are the advantages of the machine's cast iron construction?

A: Cast iron construction delivers robust structural stability, minimizes vibrations, and contributes to consistent accuracy during machining. Its durability ensures the lathe withstands intensive daily use, making it a reliable choice for professional workshops and manufacturing environments.
