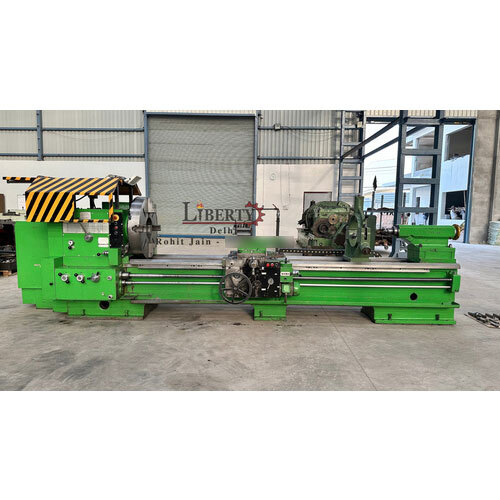

Stanko 16K40 Heavy Duty Lathe Machine

Name: Stanko 16K40 Heavy Duty Lathe Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Stanko 16K40 Heavy Duty Lathe Machine Specification

Product Type
Heavy Duty Lathe Machine

Material
Heavy Duty Cast Iron

Cutting Thickness
Up to 40 mm

Cutting Speed
10-2000 mm/min

CNC Or Not
No, Conventional Lathe

Automatic Grade
Manual

Control System
Manual

Max. Swing Diameter
800 mm

Voltage
415 V, 3 Phase

Weight (kg)
4300 kg

Dimension (L*W*H)
3700 x 1500 x 1500 mm

Capacity
High; Designed for Heavy Duty Operations

Feature
Robust Construction, Precision Ground Bedways, Hardened Gears

Color
Industrial Grey & Green

Distance Between Centers
1500 mm

Bed Length
3000 mm

Chuck Size
400 mm

Surface Finish of Bed
Hardened & Precision Ground

Lead Screw Diameter
40 mm

Spindle Bore
52 mm

Application
Metal Turning, Facing, Drilling, Threading

Spindle Speeds
Range 10 1600 rpm

Thread Cutting Range
Metric 1 - 192 mm, Inch 1 - 24 TPI

Power of Main Motor
11 kW

Tailstock Quill Travel
200 mm

Headstock Type
All-Geared

Stanko 16K40 Heavy Duty Lathe Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Stanko 16K40 Heavy Duty Lathe Machine

Make - Stanko (Russia)

Model - 16K40

Center Height - 420 mm

Max. Length of Job - 3000 mm

Max. Job Diameter over Bed - 830 mm

Max. Job Diameter over Cross-Slide - 490 mm

Chuck Diameter - 800 mm

Bed Width - 580 mm

Spindle Speeds - 6.3 rpm to 1250 rpm

Spindle Bore - 105 mm

- With Motorised Rapid Travel of the Carriage, Cross-Slide & Tool-Slide.

- Tool-Slide (Top Slide) also has automatic Feed Travels.

- Complete with Job Steady & other accessories.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/Nng0XHZDvus

Precision and Durability for Industrial Work

The Stanko 16K40 lathe is renowned for its high performance in heavy-duty settings, thanks to its robust cast iron build and all-geared headstock. The hardened and precision-ground bedways provide exceptional accuracy and durability, supporting reliable operations over years of intensive use.

Versatile Metalworking Applications

Suitable for turning, facing, drilling, and threading, the 16K40 excels in a variety of metalworking processes. Its large spindle bore and high power capacity enable the machine to efficiently work on a wide range of metals and deliver superior surface finishes.

Operator-Focused Manual Controls

Built as a conventional lathe, the Stanko 16K40 offers manual controls for optimal flexibility. The clear control system allows skilled operators to precisely set spindle speeds, feeds, and thread cutting parameters, ensuring finished products meet exact specifications.

FAQ's of Stanko 16K40 Heavy Duty Lathe Machine:

Q: How does the Stanko 16K40 lathe handle heavy-duty operations?

A: The Stanko 16K40 is constructed from heavy-duty cast iron, offering exceptional stability during large-scale metalworking tasks. Its robust design, coupled with a powerful 11 kW main motor and an all-geared headstock, ensures consistent, high-performance operation even with demanding workloads.

Q: What materials and processes can this lathe accommodate?

A: This lathe is designed for metal turning, facing, drilling, and threading on medium to large metal workpieces. It can effectively handle a wide range of ferrous and non-ferrous metals, supporting both metric and inch thread cutting within precise tolerance ranges.

Q: Where can the Stanko 16K40 lathe be installed and operated?

A: The machine is suitable for installation in manufacturing plants, metal fabrication workshops, and tool rooms where there is access to a 415 V, 3-phase power supply and sufficient space for its dimensions: 3700 x 1500 x 1500 mm.

Q: When is manual operation preferred over CNC for this lathe?

A: Manual operation is ideal when flexibility in machining, hands-on adjustments, or custom one-off parts are required. Operators can directly manage speed, feed, and cutting parameters for specialized processes and unique workpieces, which is a key benefit of the 16K40's conventional design.

Q: What is the process for threading on this machine?

A: For threading, the operator selects the desired thread pitch using the lathe's gear settings for either metric (1-192 mm) or inch (1-24 TPI) threads. The lead screw, measuring 40 mm in diameter, ensures steady movement of the carriage for precise, repeatable thread cutting.

Q: How does the machine ensure accurate and high-quality surface finishes?

A: The bed of the lathe is hardened and precision ground, which minimizes wear and enhances accuracy during operation. This, combined with hardened gears and robust construction, enables consistently smooth and accurate machining.

Q: What are the main benefits of choosing the Stanko 16K40 lathe for industrial work?

A: Key advantages include its capacity to handle high-volume, heavy-duty operations, versatility in machining processes, robust and reliable construction, high threading accuracy, and easy manual operation, making it suitable for various industrial applications.
