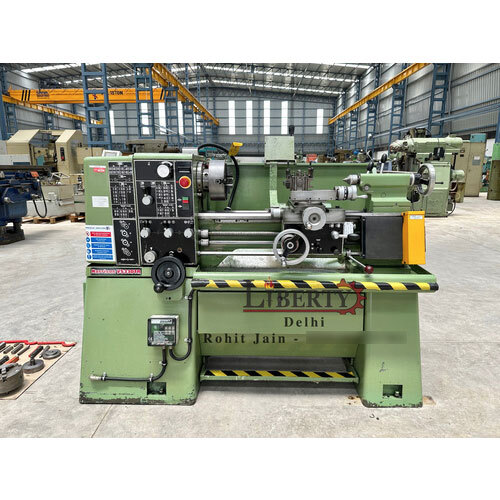

Colchester Mascot-1600 Lathe Machine

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Colchester Mascot-1600 Lathe Machine Specification

Product Type
Heavy Duty Lathe Machine

Material
Cast Iron

Cutting Thickness
Up to 20 mm

Cutting Speed
Variable, up to 1500 RPM

CNC Or Not
Manual

Automatic Grade
Semi-Automatic

Control System
Manual / Gear Operated

Max. Swing Diameter
400 mm

Voltage
415 V (Three Phase)

Weight (kg)
2000 kg

Dimension (L*W*H)
2500 mm x 1200 mm x 1400 mm

Capacity
High

Feature
Robust Build, Precise Turning, Hardened Bed

Color
Grey

Colchester Mascot-1600 Lathe Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Colchester Mascot-1600 Lathe Machine

Make - Colchester (England)

Model - Mascot 1600

Center Height - 225 mm

Max. Length of Job - 2030 mm

Max. Job Diameter over Bed - 440 mm

Max. Job Diameter over Cross-Slide - 265 mm

Chuck Diameter - 310 mm

Spindle Speeds - 20 rpm to 1600 rpm

Bed Width - 342 mm

Max. Swing Diameter in Gap - 710 mm

Spindle Bore - 78 mm

- Complete with Steady and other accessories.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/GUyM4Qjkuu4

Precision and Durability

The Colchester Mascot-1600 stands out with its robust cast iron build and hardened bed, ensuring sustained precision during demanding machining operations. The gearbox drive system and high-grade components contribute to exceptional accuracy and reduced maintenance, making it ideal for both high-volume production and custom turning tasks.

Versatile Machining Capabilities

Equipped with a 250 mm chuck and variable speeds, the Mascot-1600 lathe adapts easily to a wide variety of materials and cutting requirements. Its generous spindle bore and 1250 mm distance between centers enable seamless handling of long or large-diameter workpieces, suitable for diverse manufacturing and engineering needs.

User-Friendly Operation

Featuring manual controls and an intuitive gear-operated system, the Mascot-1600 caters equally to skilled machinists and operators seeking straightforward handling. The integrated coolant pump, efficient change gears, and semi-automatic grade maximize productivity while ensuring user safety and comfort during prolonged operation.

FAQs of Colchester Mascot-1600 Lathe Machine:

Q: How is the Colchester Mascot-1600 lathe machine typically used in a manufacturing environment?

A: The Colchester Mascot-1600 is ideal for precision turning, threading, and facing operations on a variety of metals. Its manual, gear-operated controls provide versatility for both short-run custom jobs and high-volume production, particularly in engineering, automotive, and general manufacturing sectors.

Q: What materials can be machined using the Mascot-1600 lathe?

A: Thanks to its robust cast iron frame, hardened bed, and powerful 7.5 HP motor, the Mascot-1600 effectively machines steels, alloys, cast iron, and non-ferrous metals. Its adaptable speed settings support both roughing and fine finishing across different material types.

Q: When should I consider using the integrated coolant pump during operation?

A: The integrated coolant pump is recommended when performing prolonged or heavy-duty machining tasks. It minimizes heat buildup, improves cutting efficiency, preserves tool life, and provides a smoother surface finishespecially when working with challenging materials.

Q: Where is the Colchester Mascot-1600 lathe commonly exported or supplied?

A: As a product of the United Kingdom, the Mascot-1600 is exported and supplied to industrial clients globally, including manufacturing plants, tool rooms, machine shops, and educational institutions across Europe, Asia, and other key manufacturing hubs.

Q: What is the benefit of the wide bed and hardened construction on this lathe?

A: The 305 mm wide, hardened bed increases machine stability and minimizes vibrations during turning operations. This construction ensures consistent dimensional accuracy and extends the life of critical components, resulting in better long-term performance.

Q: How does the manual control system affect the machining process?

A: The manual, gear-operated control system allows operators to finely adjust speeds and feeds, offering hands-on flexibility to adapt to diverse machining requirements. This traditional approach is favored for tasks where precision and operator judgment are paramount.
