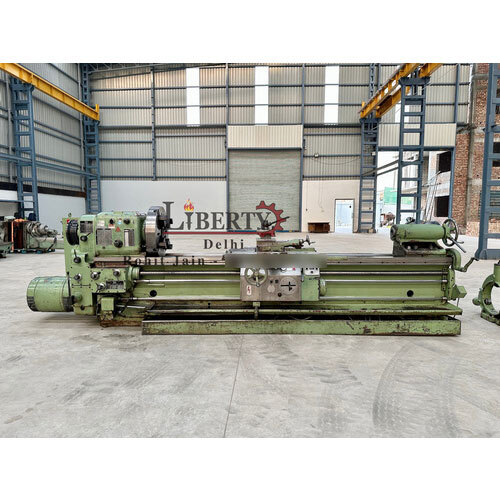

TOS SU63A 2800 mm Heavy Duty Lathe Machine
TOS SU63A 2800 mm Heavy Duty Lathe Machine

TOS SU63A 2800 mm Heavy Duty Lathe Machine

Price 100000 INR/ Piece

MOQ : 1 Piece

TOS SU63A 2800 mm Heavy Duty Lathe Machine Specification

  • Product Type
  • Heavy Duty Lathe Machine
  • Material
  • Cast Iron
  • Cutting Thickness
  • Up to 30 mm (depending on component and tool)
  • Cutting Speed
  • 7 to 1000 RPM (variable)
  • CNC Or Not
  • No (Conventional/Manual Lathe)
  • Automatic Grade
  • Manual
  • Control System
  • Manual
  • Max. Swing Diameter
  • 630 mm
  • Voltage
  • 415 V, 3 Phase
  • Weight (kg)
  • 5700 kg (approx.)
  • Dimension (L*W*H)
  • 4150 x 1370 x 1430 mm
  • Capacity
  • High duty cycle suitable for continuous operation
  • Feature
  • Robust bed design, Hardened and ground guideways, High torque spindle
  • Color
  • Industrial Grey/Green
  • Thread Cutting Range Inch
  • 2 to 60 TPI
  • Floor Space Required
  • 4600 x 1500 mm
  • Thread Cutting Range Metric
  • 1 to 120 mm
  • Coolant Pump
  • Yes
  • Swing Over Bed
  • 630 mm
  • Chuck Size
  • 400 mm (3- or 4-jaw)
  • Swing Over Cross Slide
  • 390 mm
  • Spindle Bore
  • 80 mm
  • Lubrication System
  • Centralized
  • Spindle Motor Power
  • 7.5 kW (10 HP)
  • Tailstock Quill Travel
  • 250 mm
  • Distance Between Centers
  • 2000 mm
  • Number of Spindle Speeds
  • 18
  • Feed Range
  • 0.05 to 20 mm/rev
  • Swing In Gap
  • 850 mm
  • Bed Length
  • 2800 mm
  • Spindle Nose
  • DIN 55027
  • Tailstock Quill Diameter
  • 75 mm


TOS SU63A 2800 mm Heavy Duty Lathe Machine Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Main Domestic Market
  • All India


About TOS SU63A 2800 mm Heavy Duty Lathe Machine

Make - TOS (Czech Republic)

Model - SU-63A

Center Height - 315 mm

Max. Length of Job - 2800 mm

Max. Job Diameter over Bed - 630 mm

Max. Job Diameter over Cross-Slide - 360 mm

Spindle Speeds - 8 rpm to 1180 rpm

Bed Width - 565 mm

4-Jaw Chuck Diameter - 650 mm

Spindle Bore - 60 mm

Swing Diameter near Chuck - 700 mm

3-Jaw Chuck Diameter - 400 mm

- Complete with 2 x Job Steady and a Follow Rest.

- Complete with spare 3-Jaw Chuck, and many accessories.

- Equipped with Coolant Tank, Tray & Pump.

- Operating Manual and Electrical Drawings are available.

- Machine is in excellent working condition.


Video of The Machine

https://youtu.be/SD1rNIuRsBM



Robust Construction for Industrial Reliability

The SU63A heavy duty lathe boasts a cast iron bed and frame with hardened and ground guideways, providing exceptional rigidity and accuracy. Its industrial-grade build is designed for continuous heavy-duty operation, making it suitable for workshops, factories, and production environments where both strength and precision are paramount.


Versatile Machining Capabilities

With a swing over bed of 630 mm and a swing in gap of 850 mm, this lathe handles large and complex components with ease. The wide thread cutting range supports both metric (1-120 mm) and inch (2-60 TPI) threads, and variable cutting speeds from 7 to 1000 RPM accommodate diverse materials and applications.


User-Friendly Design

The SU63A features manual controls for traditional lathe operation, supported by a centralized lubrication system and an efficient coolant pump. Operators benefit from intuitive feed and speed adjustments, robust safety mechanisms, and a large workspace, facilitating efficient and accurate machining with minimal downtime.

FAQ's of TOS SU63A 2800 mm Heavy Duty Lathe Machine:


Q: How does the SU63A 2800 mm Heavy Duty Lathe Machine support continuous high-duty cycles?

A: This lathe features a robust cast iron construction, hardened and ground guideways, and a high-torque 7.5 kW spindle motor that enable reliable operation during demanding machining tasks. Its centralized lubrication and efficient cooling system further maintain smooth function during prolonged use.

Q: What is the maximum swing diameter and component size the lathe can accommodate?

A: The machine can handle components with a maximum swing over bed of 630 mm, swing over cross slide of 390 mm, and up to 850 mm in gap. The distance between centers is 2000 mm, allowing machining of sizable workpieces.

Q: When should I choose a manual lathe over a CNC lathe for my workshop?

A: Manual lathes like the SU63A are ideal for jobs requiring operator control, customization, and frequent adjustments. They are especially effective for one-off parts, prototyping, and general fabrication where CNC automation may not be necessary.

Q: Where is the SU63A heavy duty lathe typically utilized?

A: It is widely used in manufacturing plants, metalworking workshops, and industrial production facilities. Its robust design and versatile features make it suitable for exporters, importers, manufacturers, suppliers, and traders handling heavy-duty machining operations.

Q: What is the process for changing spindle speeds and thread cutting settings?

A: The SU63A provides 18 spindle speeds selectable via manual levers, allowing operators to adjust RPMs efficiently from 7 to 1000. Thread cutting settings for metric and inch threads are managed by engaging the appropriate gear trains, as indicated on the control panel.

Q: How does the centralized lubrication system benefit machine operation?

A: The centralized lubrication ensures consistent delivery of oil to critical moving parts, reducing wear and extending service life. This system minimizes manual maintenance and guarantees smooth, reliable performance throughout intensive operation.

Q: What are the main usage benefits for operators using this lathe machine?

A: Operators benefit from the machine's high versatility, precise manual controls, robust safety features, and maintenance-friendly design. The large chuck size, variable feed range, and spacious bed contribute to accurate and efficient machining of complex and heavy workpieces.
