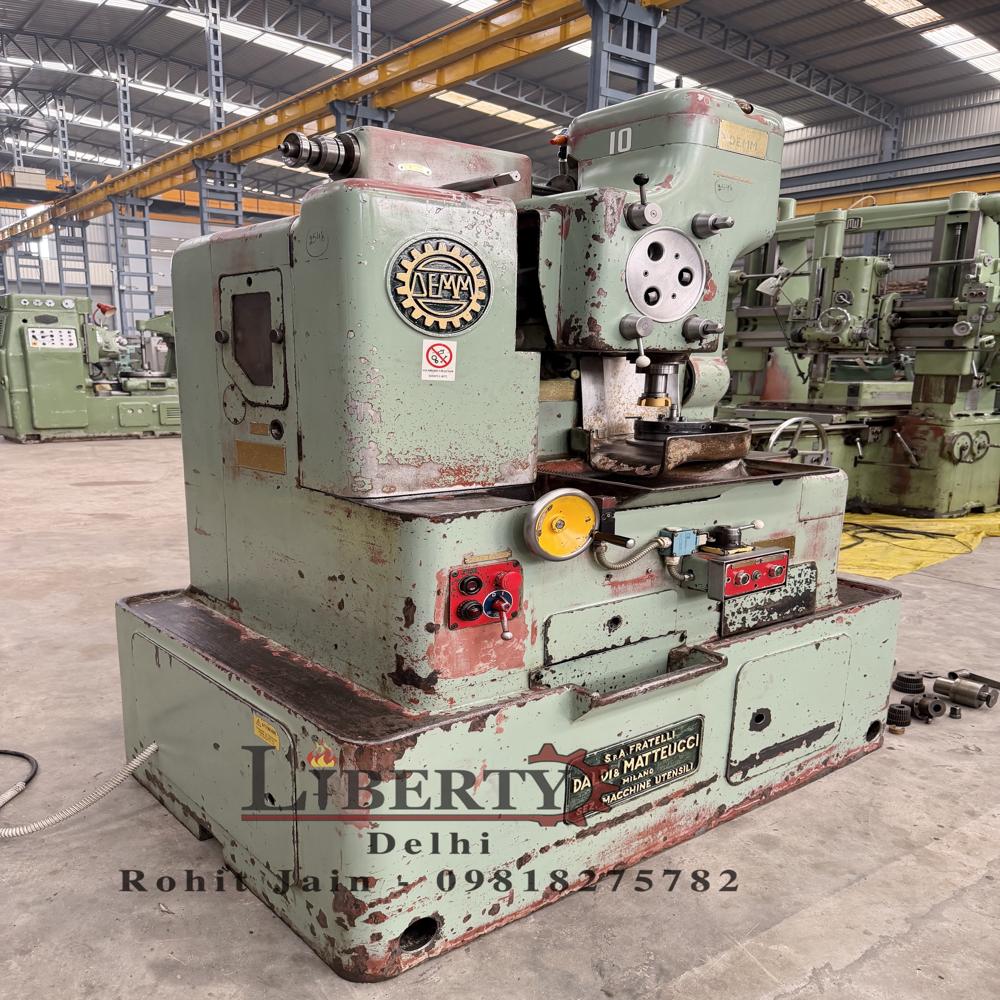

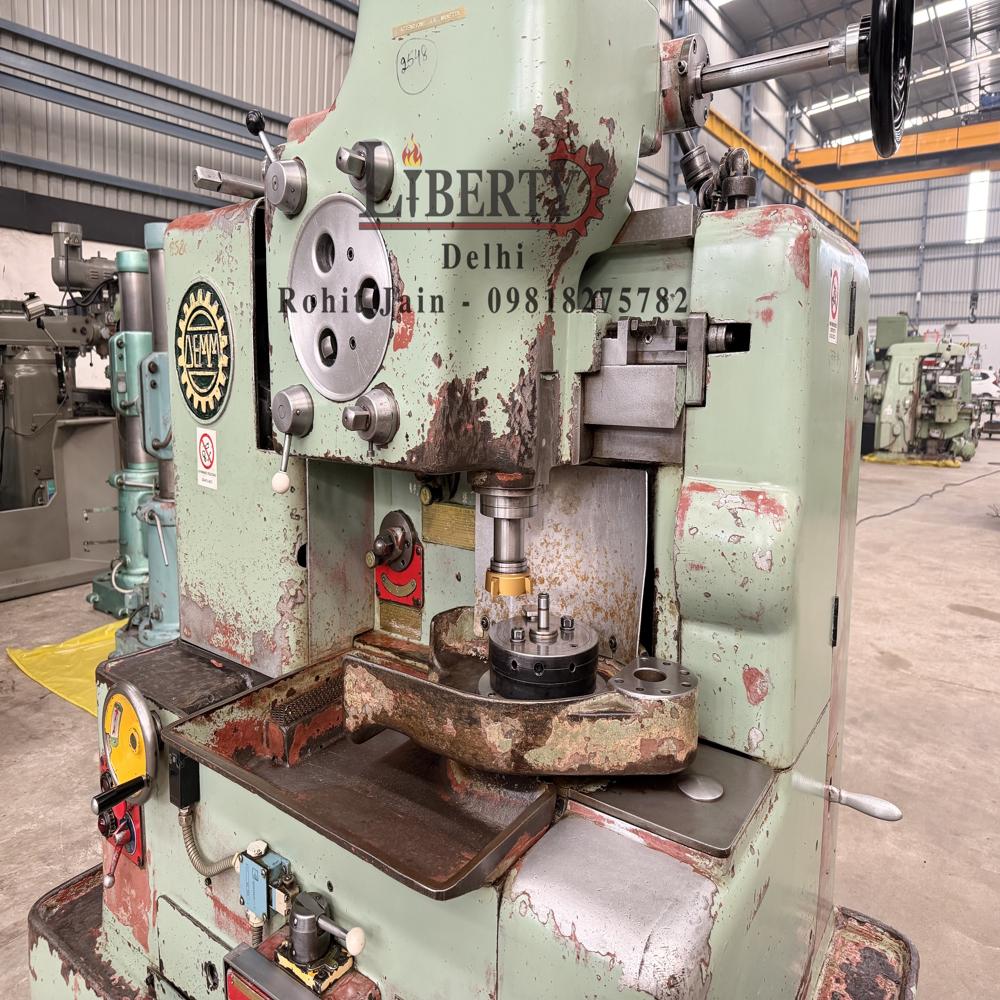

Demm Italy SRI-220 Gear Shaper Machine
Demm Italy SRI-220 Gear Shaper Machine
Demm Italy SRI-220 Gear Shaper Machine
Demm Italy SRI-220 Gear Shaper Machine
Demm Italy SRI-220 Gear Shaper Machine
Demm Italy SRI-220 Gear Shaper Machine
Demm Italy SRI-220 Gear Shaper Machine
Demm Italy SRI-220 Gear Shaper Machine

Demm Italy SRI-220 Gear Shaper Machine

Price 100000.0 INR/ Piece

MOQ : 1 Piece

Demm Italy SRI-220 Gear Shaper Machine Specification

  • Color
  • Industrial Grey
  • Capacity
  • Maximum Module Capacity: 5 Modules
  • Feature
  • Motorised Rapid Rotation of the Table; Complete with Change Gears, Operating Manual & accessories
  • Condition
  • Excellent Working Condition
  • Output
  • Gear shaping for various gear types
  • Used For
  • Precision gear shaping, production and finishing of gears
  • Machine Type
  • Demm (Italy) make Gear Shaping Machine in excellent working condition. The model of the machine is SRI-220 and the Maximum Module Capacity is 5 Modules. The machine has a Feature of Motorised Rapid Rotation of the Table and is complete with Change Gears, Operating Manual & other accessories. The technical details are as follows -
  • Safety Features
  • Integrated guards and control panel emergency stop
  • Maximum Gear Height
  • Up to 80 mm
  • Lubrication
  • Centralized lubrication system
  • Table Rotation
  • Motorised Rapid Rotation
  • Accessories Included

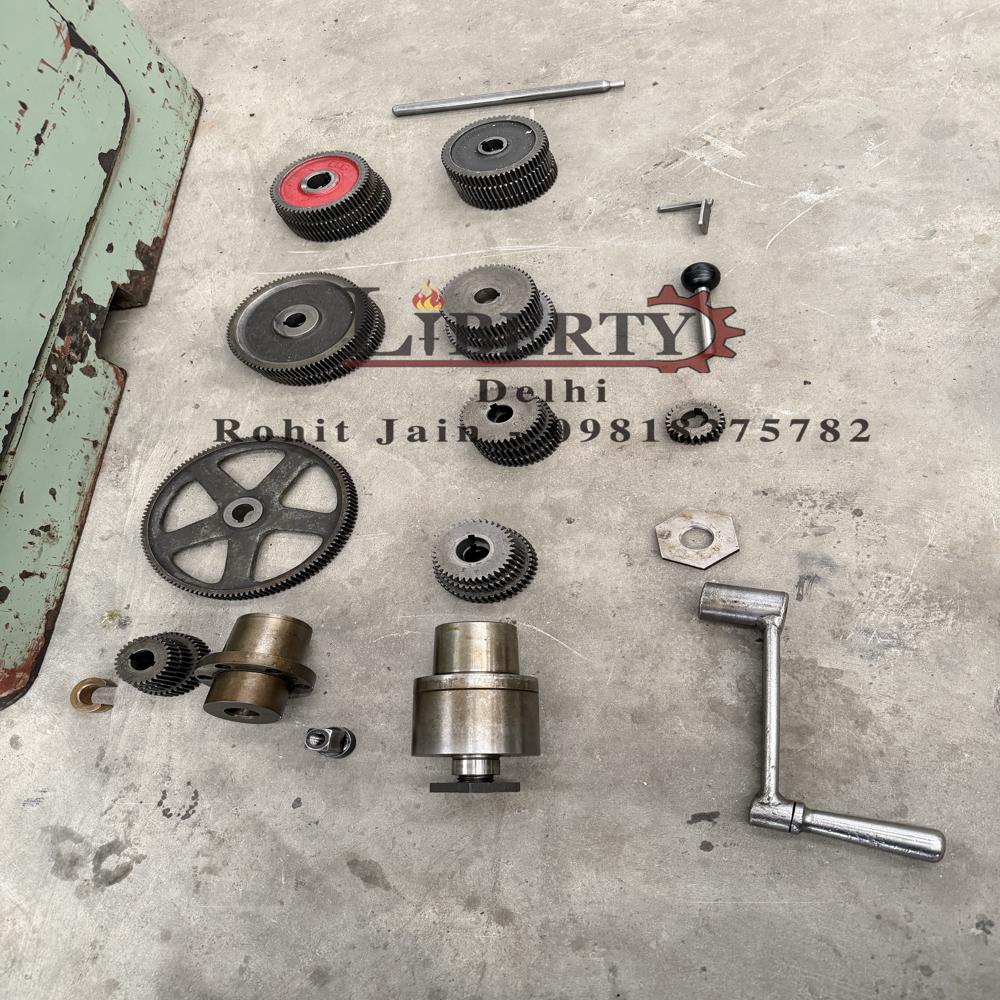

  • Change Gears, Operating Manual, Tooling
  • Shaping Cutter Mount
  • Standard Demm fitting
  • Automation Grade
  • Semi-Automatic
  • Transmission
  • High precision gear transmission
  • Model
  • SRI-220
  • Main Construction
  • Heavy-duty cast iron body
  • Stroke Length
  • Up to 120 mm
  • Table Diameter
  • 220 mm
  • Feed Range
  • Finely adjustable; Multiple rates
  • Application
  • Automotive, Power Transmission, Machine Tools



About Demm Italy SRI-220 Gear Shaper Machine

Make - Demm (Italy)
Model - SRI-220
Max. Module Capacity - 5 Modules
Max. Gear Diameter - 220 mm
Max. Stroke Length - 70 mm
Stroke Rates - 147 strokes/min to 464 strokes/min
Spindle Diameter - 85 mm
Spindle Type - Hollow
Height between Table to Spindle Body - 200 mm
Max. Swing Diameter of Job - 300 mm
- Feature of Motorised Rapid Rotation of the Table.
- Complete with Change Gears & other accessories.
- Operating Manual of the machine is available.
- Machine is in excellent working condition.

Video of the Machine -


Dependable Gear Shaping for Critical Applications

The SRI-220 Gear Shaper Machine by Demm Italy is engineered for precision and durability, making it ideal for mass production and finishing of gears in demanding automotive and industrial sectors. Equipped with a heavy-duty cast iron frame and advanced motorised table rotation, it ensures stable performance and superior gear accuracy in every operation.


Versatile and Efficient Operation

Featuring a semi-automatic workflow with adjustable feed rates and a maximum module capacity of 5 Modules, the SRI-220 accommodates a range of gear types. The machine's rapid table rotation, centralized lubrication, and included accessories maximize productivity while minimizing manual intervention for smooth and efficient gear production.


Comprehensive Safety and Support

The SRI-220 prioritises operator safety with integrated guards and an emergency stop on the control panel. Complete with all necessary change gears, operating manuals, and standard tooling, the machine is delivered in excellent working condition to support your production process from day one.

FAQ's of Demm Italy SRI-220 Gear Shaper Machine:


Q: How does the motorised rapid rotation feature benefit the gear shaping process?

A: The motorised rapid rotation of the table enables faster repositioning and precise alignment of the workpiece, significantly reducing cycle times and enhancing production efficiency. This feature ensures consistent accuracy when producing multiple gear types.

Q: What types of applications can the SRI-220 Gear Shaper Machine be used for?

A: This machine is tailored for use in automotive, power transmission, and machine tool manufacturing for both production and finishing of precision gears, thanks to its robust design and high module capacity.

Q: Where can the SRI-220 be installed and operated?

A: The SRI-220 is suitable for installation in industrial environments, such as manufacturing plants, workshops, or gear production facilities, particularly where reliable, semi-automatic gear shaping is required.

Q: What is the process for setting up the machine for different gear requirements?

A: Operators can adjust feed rates, change gears, and use the included tooling to accommodate various gear sizes and types. Detailed instructions in the operating manual guide users through setup, ensuring accuracy and efficiency in each production run.

Q: When should the centralized lubrication system be maintained?

A: Regular checks and maintenance of the centralized lubrication system are recommended as outlined in the operating manual. This ensures all moving components remain properly lubricated, extending the machine's service life and performance.

Q: How does the machine ensure the safety of its operator?

A: Safety features include integrated guards around moving parts and an emergency stop button on the control panel, which provide immediate shutdown to prevent accidents during operation.

Q: What are the primary benefits of choosing the Demm SRI-220 for gear manufacturing?

A: The SRI-220 offers high-precision gear shaping, robust construction for long-term reliability, adaptable production capabilities, and comprehensive safety mechanisms. Its user-friendly operation and complete accessory set support seamless integration into existing workflows.
