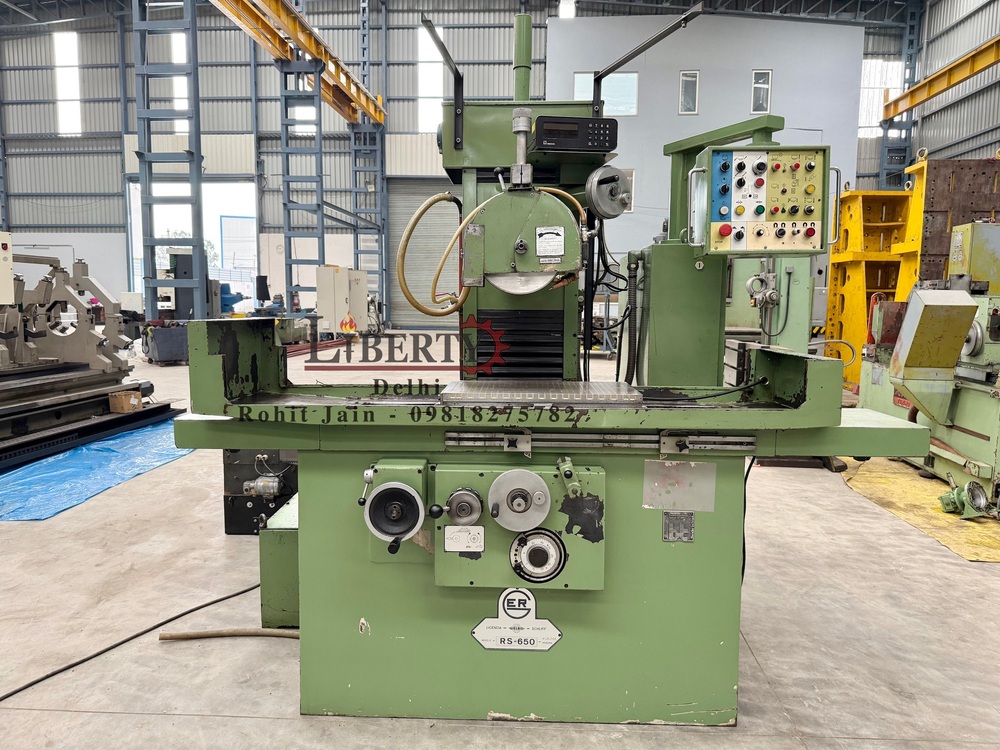

ELB Germany RS-650 Precision Surface Grinding Machine

About ELB Germany RS-650 Precision Surface Grinding Machine

Make - ELB (Germany)

Model - RS-650

Grinding Capacity - 300 mm x 650 mm

Longitudinal Travel of Table - 750 mm

Cross Travel of Table - 370 mm

Grinding Wheel Size - Diameter 300 mm x 40 mm Width

Electro-Magnet Size - 340 mm x 600 mm

Max. Height between Magnet Top to Wheel Center - 440 mm

Least Count of Vertical Travels - 2 Microns (0.002 mm)

Max. Grinding Wheel Speed - 3000 rpm (Infinitely Variable)

- Equipped with a Heidenhain make DRO of 1 Micron Resolution.

- Feature of Auto-Cut, Plunge Grinding, Spark-Out & Automatic Wheel Retraction.

- Micro-Feed Travels on both the Vertical & Cross Movements.

- Equipped with a Top Mounted Wheel Dresser.

- Complete with Coolant Filtration Unit, Coolant Tank, Pump, Splash Guards etc.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/B1h117iGIuQ
