Equiptop Taiwan 600 mm x 1500 mm Heavy Duty Automatic Surface Grinding Machine

Name: Equiptop Taiwan 600 mm x 1500 mm Heavy Duty Automatic Surface Grinding Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Equiptop Taiwan 600 mm x 1500 mm Heavy Duty Automatic Surface Grinding Machine Specification

General Use

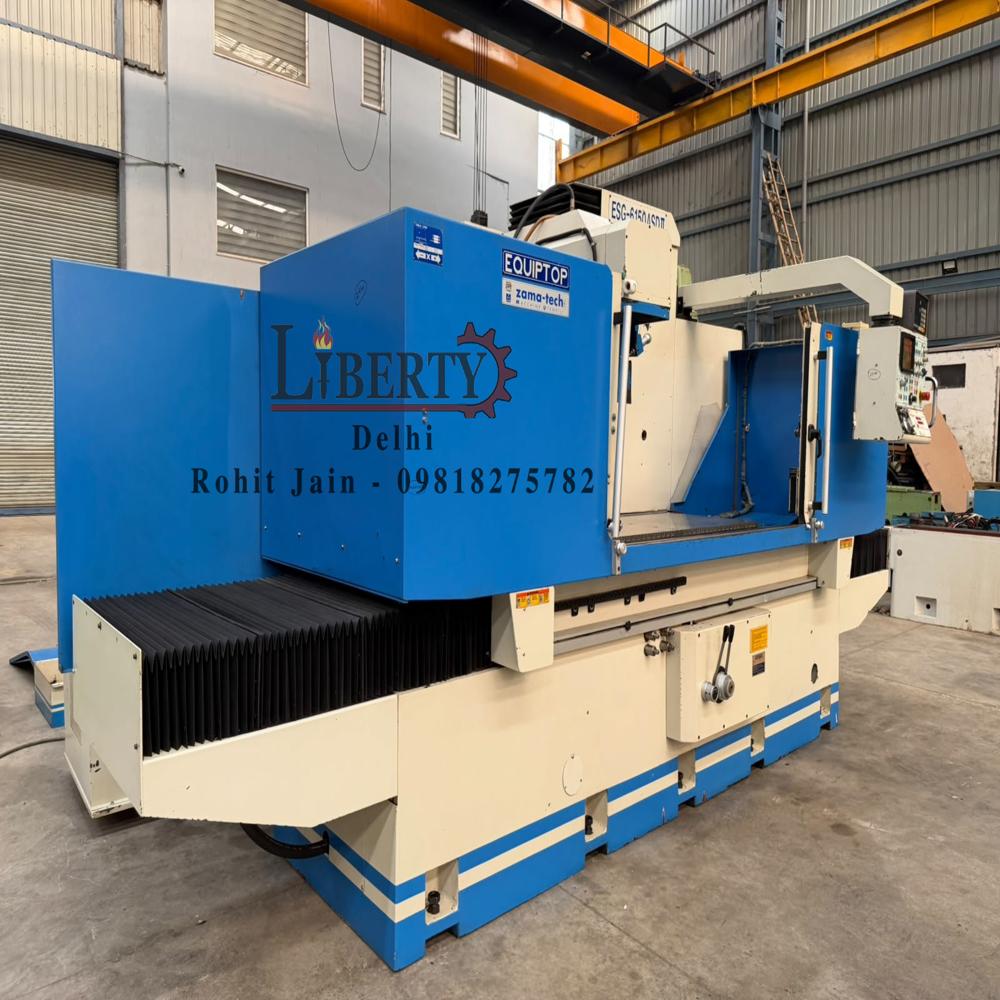

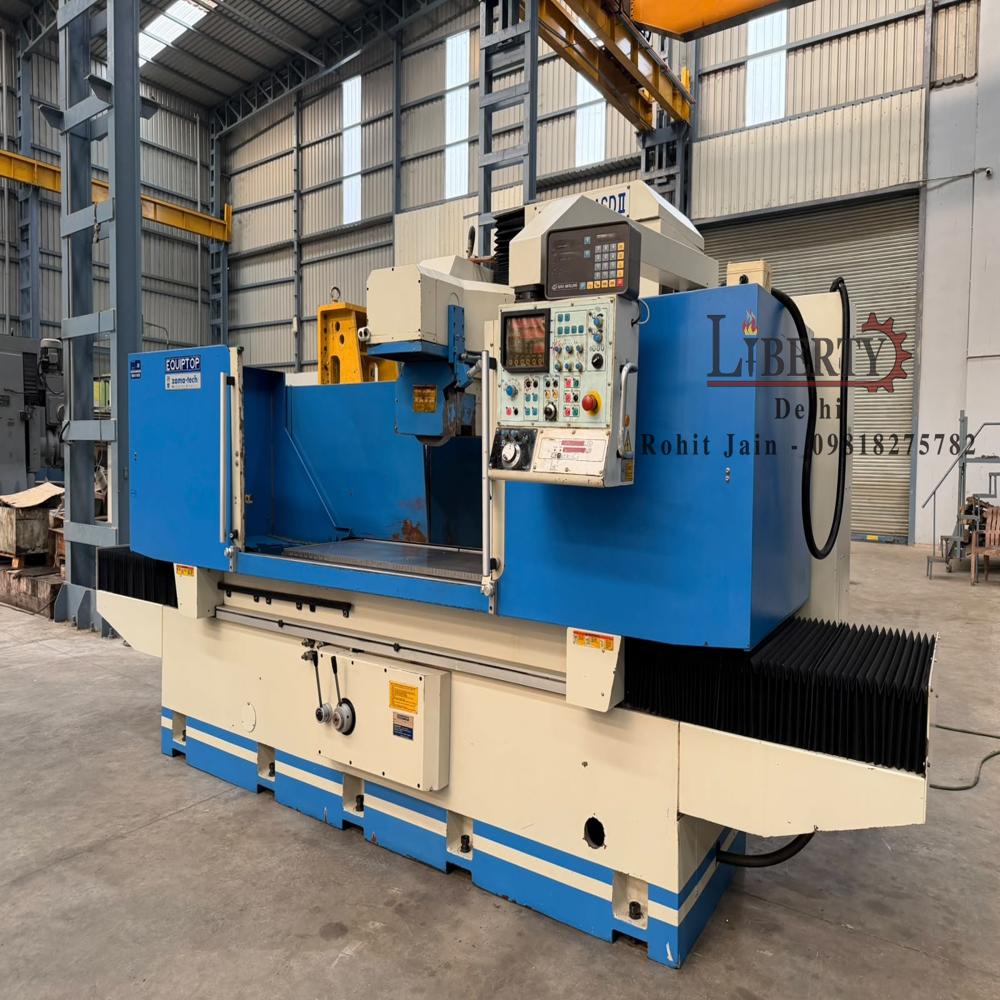

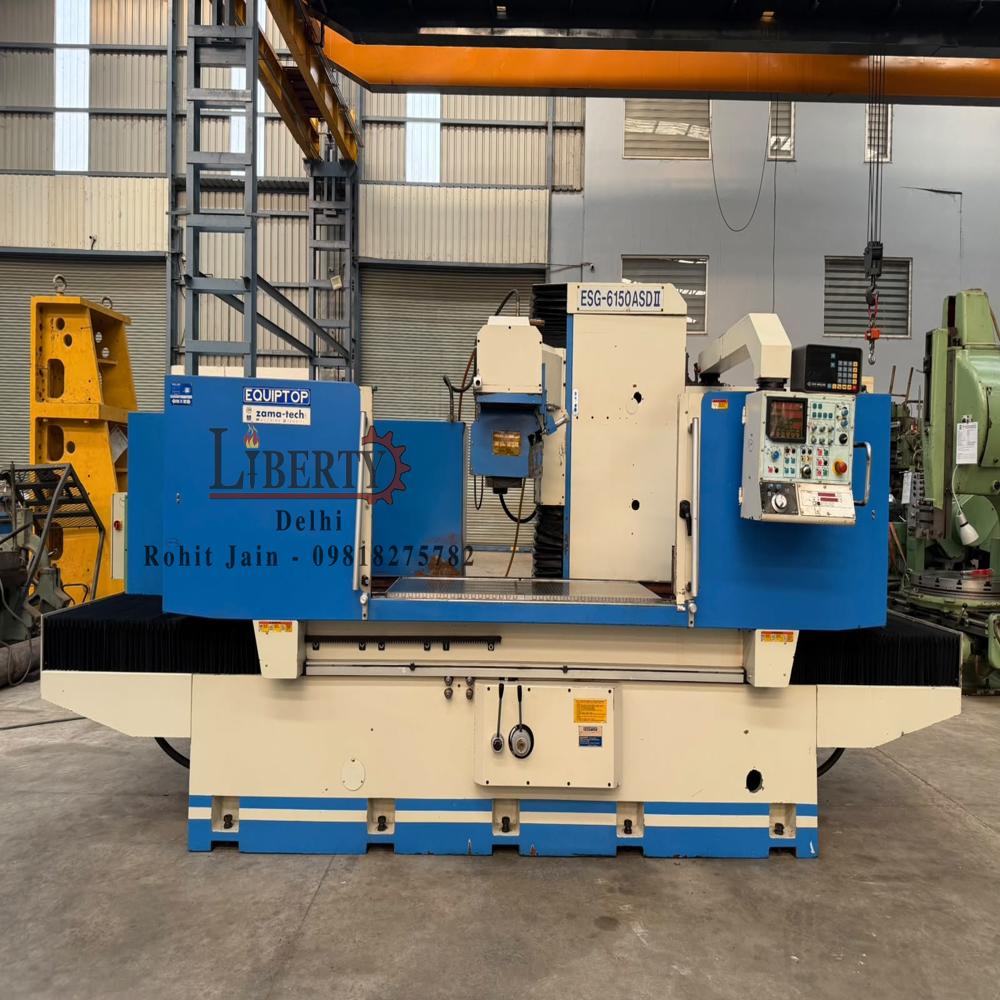

Heavy Duty Servo-Controlled Automatic Surface Grinding Machine made by Equiptop (Taiwan), Model ESG-6150ASD-II, available in excellent working condition. This is a programmable surface grinder equipped with Mitsubishi Servo Motors for the Cross (Y) and Vertical (Z) axes. The machine is fitted with a 600 mm 1500 mm Magnetic Chuck and has a maximum workpiece capacity of 1482 kg. It features Automatic Surface Grinding and Automatic Plunge Grinding cycles, Manual Pulse Generator (MPG) Handwheel for Y & Z axis movements, and Digital Position Displays for both axes, making it highly suitable for precision grinding of large components with excellent repeatability. The machine is complete with a Magnetic & Paper Band Coolant Filtration Unit and Splash Guards. The machine is suitable for precision grinding of machine bases, die plates, mould components, guideways, fixtures, and other large precision components. The technical details are as follows -

Equiptop Taiwan 600 mm x 1500 mm Heavy Duty Automatic Surface Grinding Machine About

Make - Equiptop (Taiwan)

Model - ESG-6150 ASD-II

Magnetic Chuck Size - 600 mm x 1500 mm

Grinding Wheel Size - Diameter 350 mm x 75 mm Width

Max. Height between Magnet and Wheel Centre - 800 mm

Max. Workpiece Weight - 1482 kg

Longitudinal Travel - 1600 mm

Cross Travel - 670 mm

Spindle Motor Power - 10 HP

Least Count (Y & Z Axes) - 1 Micron (0.001 mm)

Approx. Machine Weight - 11.4 Tons

Year of Make - November 2006

- Equipped with Mitsubishi Servo Motors for the Y & Z Axes.

- Programmable Automatic Grinding Cycles for Surface Grinding and Plunge Grinding.

- Equipped with MPG Handwheel for Y-Axis & Z-Axis Movements.

- Digital Position Displays for Y & Z Axes.

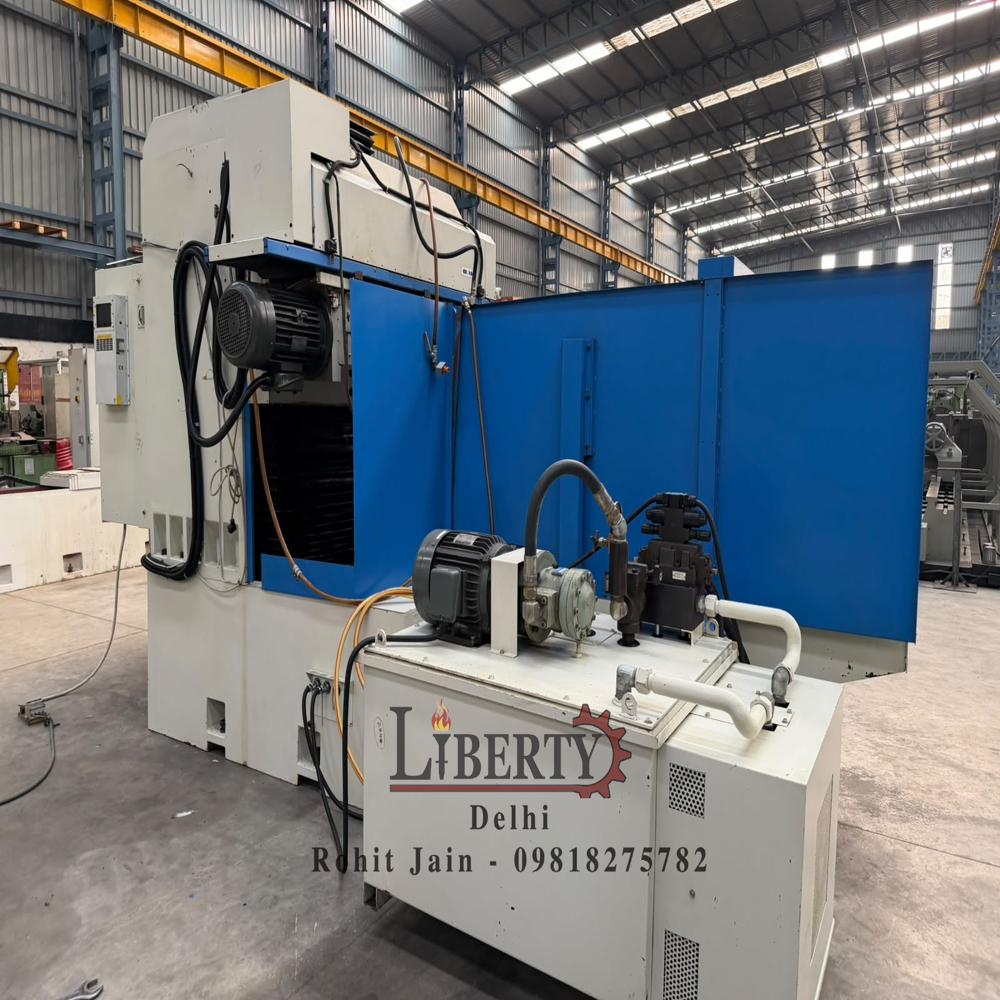

- Complete with Magnetic & Paper Band Coolant Filtration Unit and Splash Guards.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/lNnGf3_-Kx8

Heavy Duty Grinding Power

Designed for intensive applications, the ESG-6150ASD-II delivers exceptional grinding performance and reliability. Robust construction and servo-controlled automation ensure accurate and repeatable results when handling large, heavy workpieces. Its servo motors and advanced features make it ideal for both high-volume production and precision job shop settings.

Advanced Precision and Automation

With programmable automatic surface and plunge grinding cycles, this machine streamlines complex grinding tasks. The Mitsubishi Servo Motors enhance movement accuracy on both cross and vertical axes, while digital displays and the MPG handwheel provide real-time control and feedback. Operators can achieve tight tolerances on oversized components with minimal effort.

Integrated Filtration for Clean Operation

Equipped with both magnetic and paper band coolant filtration, this machine maintains cleaner coolant during long runs, reducing maintenance and prolonging machine life. Splash guards further enhance operator safety and keep the work area clean, making it suitable for high-standard, precision-focused manufacturing environments.

FAQ's of Equiptop Taiwan 600 mm x 1500 mm Heavy Duty Automatic Surface Grinding Machine:

Q: How does the Equiptop ESG-6150ASD-II surface grinding machine enhance precision in grinding large components?

A: The machine is equipped with Mitsubishi Servo Motors for the Y (cross) and Z (vertical) axes, a Manual Pulse Generator handwheel, and digital position displays for both axes. These features provide highly accurate movements and allow for fine manual adjustments, ensuring precise, repeatable grinding of large workpieces.

Q: What types of workpieces are suitable for grinding on this machine?

A: The ESG-6150ASD-II is specifically designed to accommodate large and heavy components such as machine bases, die plates, mould parts, guideways, fixtures, and other sizeable precision products requiring surface finishing and tight tolerances.

Q: When should operators use automatic surface or automatic plunge grinding cycles?

A: Automatic surface grinding cycles are ideal for flat, continuous grinding tasks, while automatic plunge grinding cycles are suited for deeper, focused material removal in a single region. Use these cycles for repetitive, high-precision work, improving efficiency and reducing user fatigue.

Q: Where can this grinding machine be best implemented in an industrial environment?

A: Due to its heavy-duty construction and precise automation, the machine is well-suited for tool rooms, large-scale manufacturing facilities, die and mold shops, and job shops specializing in large or custom components.

Q: What benefits does the coolant filtration system provide during the grinding process?

A: The combined magnetic and paper band filtration system helps to efficiently remove contaminants from the coolant, ensuring cleaner operation, protecting sensitive machine components, reducing maintenance needs, and improving the longevity and reliability of the grinding process.

Q: How does the operator control and monitor the grinding process?

A: Operators can use the digital position displays and MPG handwheel for precise manual control over Y and Z axis movements. Programmable cycles can be set up for automated processes, and all adjustments and status information are readily viewable on the machine's digital interfaces.
