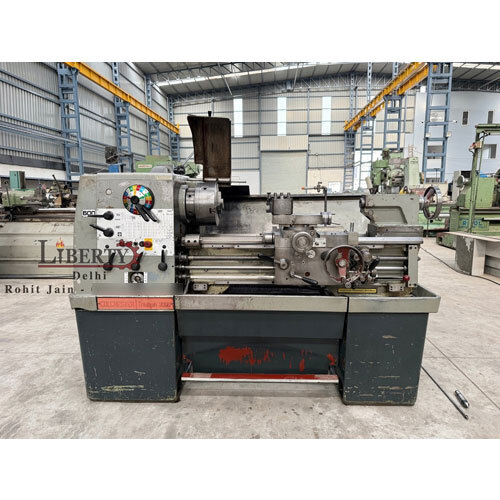

Excel England 1000 mm Lathe Machine

Name: Excel England 1000 mm Lathe Machine
Brand: Liberty Metal & Machines Private Limited
Price: 45000 INR
Availability: InStock

Price 45000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Excel England 1000 mm Lathe Machine Specification

Product Type
Lathe Machine

Material
Cast Iron

Cutting Thickness
Up to 12 mm

Cutting Speed
25 - 1000 RPM

Engraving Area
1000 mm (Bed Length)

CNC Or Not
No (Conventional Lathe)

Automatic Grade
Semi-Automatic

Control System
Manual

Max. Swing Diameter
400 mm

Voltage
415 V

Weight (kg)
850 kg

Dimension (L*W*H)
1900 mm x 800 mm x 1200 mm

Capacity
Medium Duty

Feature
Robust Structure, High Accuracy, Smooth Operation

Color
Grey & Blue

Spindle Bore
38 mm

Headstock Type
Precision Ground

Longitudinal Feed
0.05 - 0.7 mm/rev

Distance Between Centers
700 mm

Power of Main Motor
2 HP

Number of Spindle Speeds
6 to 8

Surface Finish
Coated & Grinded

Gear Box Type
All Geared

Chuck Size
200 mm (3 Jaw Chuck)

Application
Metal Turning, Facing, Threading, Drilling

Lead Screw Diameter
25 mm

Cross Slide Travel
190 mm

Tailstock Spindle Travel
120 mm

Bed Length
1000 mm

Excel England 1000 mm Lathe Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Excel England 1000 mm Lathe Machine

Make - Excel (England)

Model - XL 1640

Center Height - 215 mm

Max. Length of Job - 1000 mm

Max. Job Diameter over Bed - 430 mm

Max. Job Diameter over Cross-Slide - 240 mm

Max. Job Diameter in Gap - 550 mm

Bed Width - 330 mm

Chuck Diameter - 315 mm

Spindle Speeds - 24 rpm to 2000 rpm

Spindle Bore - 65 mm

- Equipped with 2-Axis DRO.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/D6454T_Hpbs

Versatile Applications

This lathe machine is designed for various metalworking tasks, such as turning, threading, drilling, and facing. Its manual control system enables precise material handling, making it suitable for workshops and industrial settings that require reliability and flexibility for different machining operations.

Precision and Durability

Constructed from cast iron and featuring a precision-ground headstock, the lathe provides exceptional stability and accuracy during operation. Its coated and grinded surface finish enhances longevity, offering consistent performance even under heavy usage.

Efficient Operation

With a robust 2 HP motor and all-geared gearbox, the Excel England lathe ensures powerful and smooth operation. The semi-automatic grade allows users to execute tasks efficiently while maintaining control, making this machine an asset for both experienced machinists and newcomers.

FAQs of Excel England 1000 mm Lathe Machine:

Q: How do I operate the Excel England 1000 mm Lathe Machine safely and efficiently?

A: To operate the lathe, ensure all safety measures are followed, such as securing workpieces, using appropriate cutting tools, and wearing protective gear. Use the manual control system to adjust spindle speeds and feed rates as required, and regularly maintain components for smooth and safe operation.

Q: What tasks can this lathe machine perform?

A: The machine is suitable for metal turning, facing, threading, and drilling. Its robust design and adjustable speeds allow for a wide range of machining processes on various metals, with up to 12 mm cutting thickness and a maximum engraving area of 1000 mm bed length.

Q: When is the right time to maintain or service this lathe machine?

A: Regular maintenance should be performed after consistent periods of usage, ideally at the end of each workday or after completing major projects. Lubricate moving parts, inspect gears, and check for wear to ensure optimal performance and longevity.

Q: Where can I use the Excel England 1000 mm Lathe Machine?

A: This lathe is suited for industrial workshops, manufacturing facilities, and metal fabrication shops. Its medium-duty capacity and robust construction make it ideal for businesses in need of reliable metalworking machinery in the United Kingdom or elsewhere.

Q: What is the process for changing the spindle speed on this lathe?

A: The lathe features an all-geared gearbox and offers six to eight selectable spindle speeds. To change speeds, manually adjust the gear levers on the gearbox as per the manufacturers instructions, allowing for optimal control based on material type and cutting needs.

Q: How does this lathe machine benefit my machining operations?

A: Its precision ground components, high accuracy, and smooth operation lead to consistent results. The robust structure supports medium-duty work, enabling efficient production, reduced downtime, and improved work quality for various metalworking processes.
