Ezio Pensotti SG-360 Vertical Slotting Machine

Name: Ezio Pensotti SG-360 Vertical Slotting Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Ezio Pensotti SG-360 Vertical Slotting Machine Specification

Machine Type
Vertical Slotter

Connectivity Options
None (standalone manual machine)

Control System
Manual Mechanical Feed

Drive
V-belt drive mechanism

Features
Rigid construction, adjustable stroke, rapid and automatic feeds

Motor Power
3 HP

Power Rating
3 HP

Model No
SG-360

Operating Temperature
Ambient (5C - 45C)

Noise Level
Within allowed industrial limits

Accuracy
High Precision (within industrial slotting standards)

Voltage
415 V (Three Phase)

Frame Type
Heavy-duty Cast Iron

Lubricating System
Centralized lubrication

Production Capacity
Depends on Material and Stroke

Cooling System
Water-based coolant (optional)

Frequency
50 Hz

Product Type
Vertical Slotting Machine

Technology
Conventional Mechanical

Power Source
Electric

Operating Type
Manual/Semi-Automatic

Power
3 HP

Surface Treatment
Paint Coated

Dimension (L*W*H)
Approx. 1500 x 1100 x 2000 mm

Weight (kg)
About 1600 kg

Color
Green

Usage & Applications
Slotting, cutting internal keyways, spline cutting

Installation Requirement
Solid Foundation

Application Materials
Steel, cast iron, bronze, non-ferrous metals

Max Cross Movement of Table
400 mm

Working Speed
Variable, up to 72 strokes/min

Max Table Diameter
560 mm

Optional Accessories
Vice, rotary table, various tool holders

Table Indexing Movement
Manual/Automatic

Main Spindle Speed
Variable/Stepped

Ram Stroke
25 to 360 mm (adjustable)

Safety Features
Overload protection, emergency stop

Standard Accessories
Coolant pump, electrical panel, operation manual

Max Slotting Height
360 mm

Max Longitudinal Movement of Table
560 mm

About Ezio Pensotti SG-360 Vertical Slotting Machine

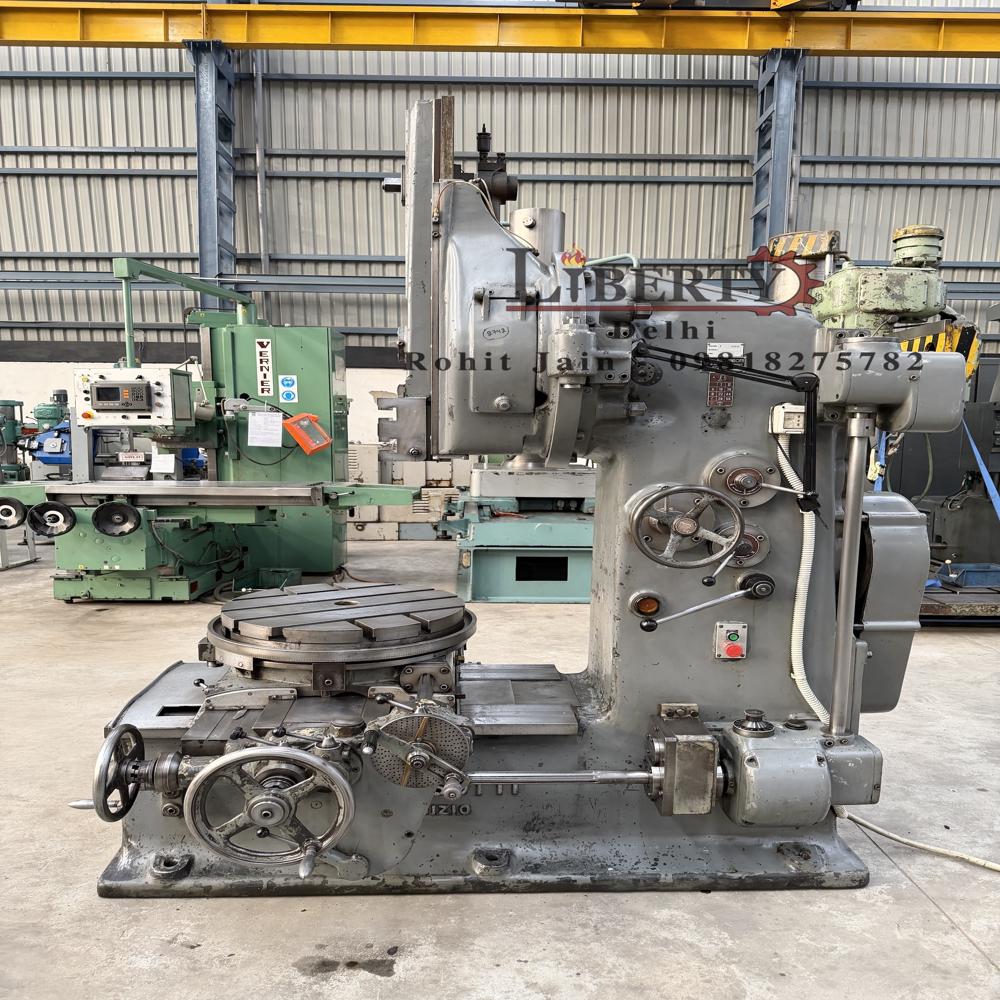

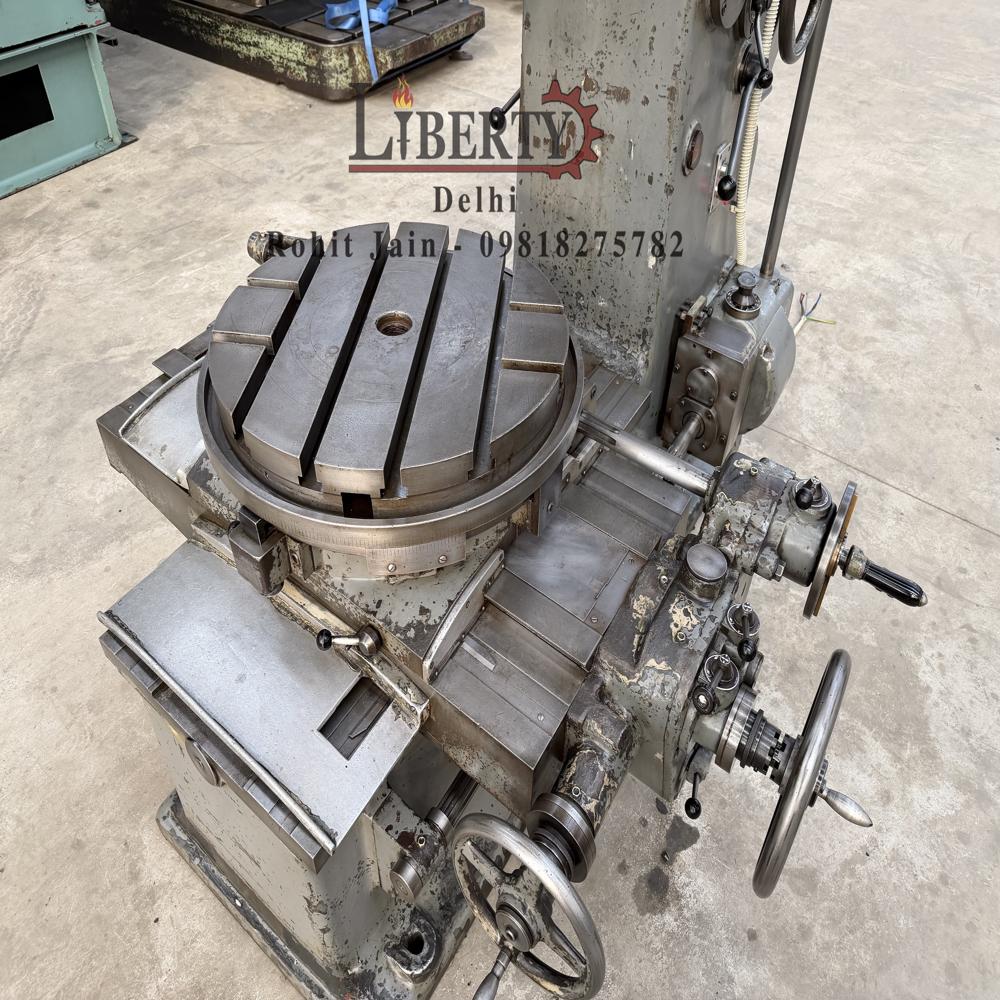

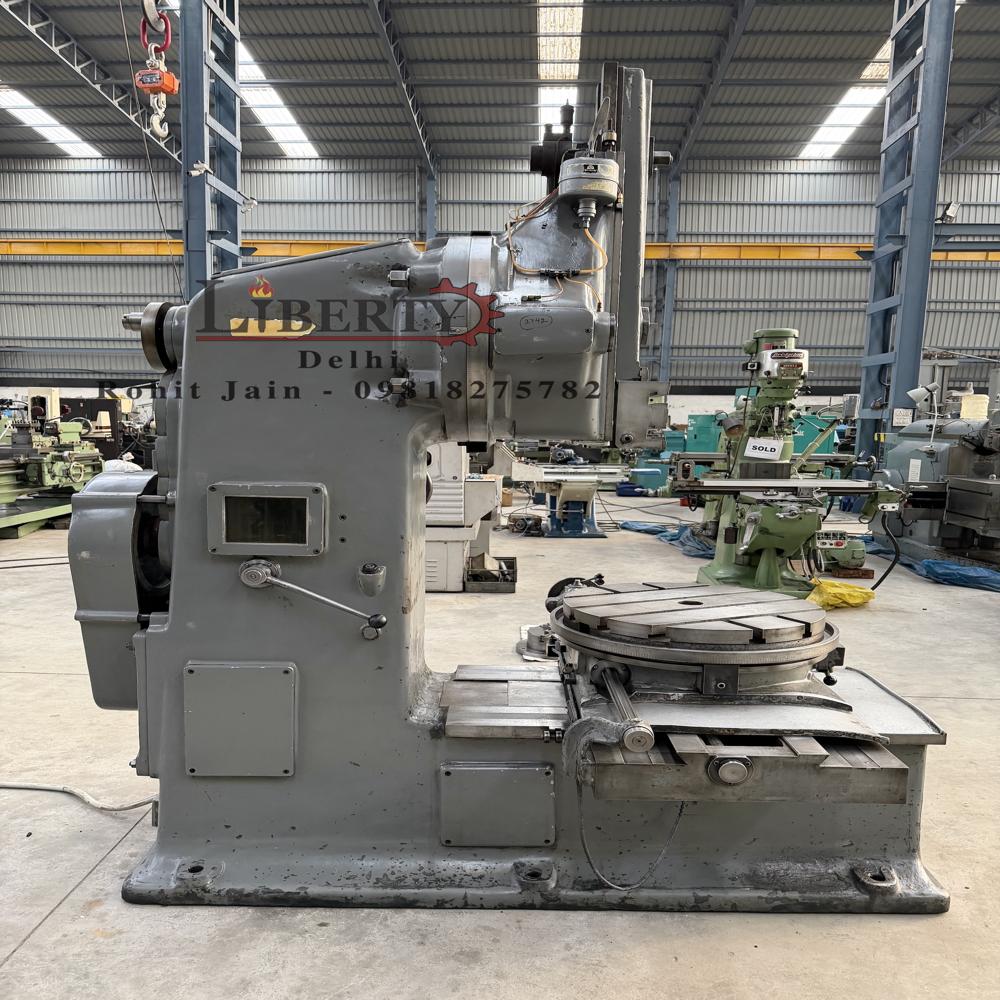

Vertical Slotting Machine made by Ezio Pensotti (Italy) in excellent working condition. The model of the machine is SG360 and the Max. Stroke Length is 360 mm and the Table Diameter is 600 mm. The machine has automatic feed travels on Longitudinal Travel, Cross Travel and on Table Rotation. The technical details are as follows -

Make - Ezio Pensotti (Italy)

Model - SG-360

Max. Stroke Length - 360 mm

Table Diameter - 600 mm

Cross Travel of Table - 500 mm

Longitudinal Travel of Table - 525 mm

Height between Table Top to Machine Body - 495 mm

Distance between Tool-head edge to Column - 560 mm

Max. Distance between Table Center to Column - 875 mm

Stroke Rate - 18 strokes/min to 56 strokes/min

Feed Rate of Travel - 0.15 mm/stroke to 1.84 mm/stroke

Rotation of Head - +45 degrees to -45 degrees

Weight of the Machine - 3.50 Tons (approximately)

- Automatic Feed Travel on Cross, Longitudinal & Rotation of Table.

- Complete with Chuck (Diameter 250 mm) & other accessories.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/ksK69L0XubU

High Precision and Versatility

The SG-360 slotting machine delivers precise results suitable for industrial applications, including slotting, internal keyways, and spline cutting. Its adjustable ram stroke and variable table movement allow it to adapt quickly to diverse component sizes and materials, such as steel or bronze. Operators enjoy exceptional flexibility in both operation and output, making the machine a smart, reliable investment for demanding fabrication processes.

Durable Construction and Easy Operation

Engineered with a rigid cast iron frame and a paint-coated finish, the Ezio Pensotti SG-360 withstands rigorous daily use in industrial settings. The machine features user-friendly controls and a manual or semi-automatic operating mode, backed by straightforward mechanical feed. The inclusion of a centralized lubrication system and easy-access panels ensures smooth maintenance and operation.

Enhanced Safety and Performance Features

Safety remains paramount on the SG-360, thanks to overload protection and an emergency stop button. The water-based coolant system (optional) protects tools from overheating, while the noise level stays within regulated limits. The machine's precision design and robust components assure both operator safety and consistent, high-quality machining with each cycle.

FAQ's of Ezio Pensotti SG-360 Vertical Slotting Machine:

Q: How is the Ezio Pensotti SG-360 Vertical Slotting Machine typically used in a workshop?

A: The SG-360 is primarily used for precision slotting, internal keyway cutting, and spline machining on materials like steel, cast iron, and non-ferrous metals. It is favored in tool rooms and manufacturing facilities where accurate, repeatable slots or profiles are essential for components.

Q: What is the process for adjusting the machine's working speed and ram stroke?

A: The SG-360 offers variable working speeds (up to 72 strokes per minute) and an adjustable ram stroke ranging from 25 to 360 mm. Operators can set these parameters easily via the machine's mechanical controls, tailoring the operation to material type and slotting requirements.

Q: When should I use the manual versus automatic table indexing on this slotter?

A: Manual table indexing is ideal for jobs that require customized positioning or one-off operations. Automatic indexing should be used during repetitive or batch production tasks, improving process efficiency and reducing operator involvement.

Q: Where should the SG-360 be installed for optimal performance?

A: For best results, the machine should be installed on a solid foundation within an environment maintaining ambient temperatures between 5C and 45C. Proper installation ensures vibration-free operation and sustained accuracy.

Q: What safety features does the SG-360 slotter include?

A: The SG-360 incorporates overload protection and an emergency stop system to prevent accidents during operation. These features help protect both the user and the equipment during prolonged or heavy-duty machining tasks.

Q: How does the SG-360 benefit production in terms of accuracy and efficiency?

A: The SG-360 provides high-precision machining, meeting industrial slotting standards. Its adjustable settings, robust construction, and various accessory options allow for rapid setup and consistent output, reducing downtime and maximizing productivity.
