TOS Czech ST-350 Vertical Slotting Machine
TOS Czech ST-350 Vertical Slotting Machine
TOS Czech ST-350 Vertical Slotting Machine
TOS Czech ST-350 Vertical Slotting Machine
TOS Czech ST-350 Vertical Slotting Machine
TOS Czech ST-350 Vertical Slotting Machine
TOS Czech ST-350 Vertical Slotting Machine
TOS Czech ST-350 Vertical Slotting Machine
TOS Czech ST-350 Vertical Slotting Machine
TOS Czech ST-350 Vertical Slotting Machine
TOS Czech ST-350 Vertical Slotting Machine
TOS Czech ST-350 Vertical Slotting Machine
TOS Czech ST-350 Vertical Slotting Machine
TOS Czech ST-350 Vertical Slotting Machine

TOS Czech ST-350 Vertical Slotting Machine

Price 100000.0 INR/ Piece

MOQ : 1 Piece

TOS Czech ST-350 Vertical Slotting Machine Specification

  • Production Capacity
  • Up to 350 mm stroke (repeated spec)
  • Cooling System
  • Coolant pump
  • Drive
  • Gear-driven
  • Control System
  • Electrical panel with manual levers
  • Features
  • Heavy duty construction, adjustable stroke, robust performance
  • Lubricating System
  • Centralised lubrication
  • Machine Type
  • Vertical Slotting (repeated spec)
  • Frame Type
  • Rigid cast iron body
  • Power Rating
  • 4 kW / 5.5 HP
  • Motor Power
  • 4 kW
  • Frequency
  • 50 Hz
  • Noise Level
  • Under 78 dB
  • Model No
  • ST-350
  • Operating Temperature
  • 5C to 45C (recommended)
  • Connectivity Options
  • Standard electrical connection
  • Accuracy
  • 0.02 mm
  • Voltage
  • 415 V
  • Product Type
  • Vertical Slotting Machine
  • Technology
  • Conventional
  • Power Source
  • Electric
  • Operating Type
  • Automatic / Semi-Automatic
  • Power
  • 4 kW
  • Pressure
  • Hydraulic / Mechanical (as applicable)
  • Surface Treatment
  • Painted & precision ground surfaces
  • Dimension (L*W*H)
  • Approx. 1800 mm x 1000 mm x 2300 mm
  • Weight (kg)
  • 2400 kg approx.
  • Color
  • Blue / Grey (as shown in image)
  • Usage & Applications
  • Slotting of keyways, internal gears, splines in various metals
  • Table Rotation
  • 360 manual
  • Table Diameter
  • 500 mm
  • Working Speed
  • 25, 35, 50, 70 strokes per minute
  • Standard Accessories
  • Coolant system, electrical controls, tool kit
  • Ram Stroke Length
  • Up to 350 mm
  • Table Longitudinal Travel
  • 500 mm
  • Installation Service
  • Available upon request
  • Safety Features
  • Emergency stop, interlock covers
  • Packing
  • Wooden case
  • Maximum Workpiece Weight
  • 500 kg
  • Spindle Speed(s)
  • Single / Multi-Speed (as per spec)
  • Ram Adjustment
  • 125 mm
  • Main Motor Speed
  • 1440 RPM
  • Optional Accessories
  • Dividing head, rotary table attachment
  • Table Cross Travel
  • 450 mm
  • Tool Size
  • Up to 25 mm
  • Number of Feeds
  • Multiple manual feed settings
  • Maximum Slotting Height Under Ram
  • 350 mm



About TOS Czech ST-350 Vertical Slotting Machine

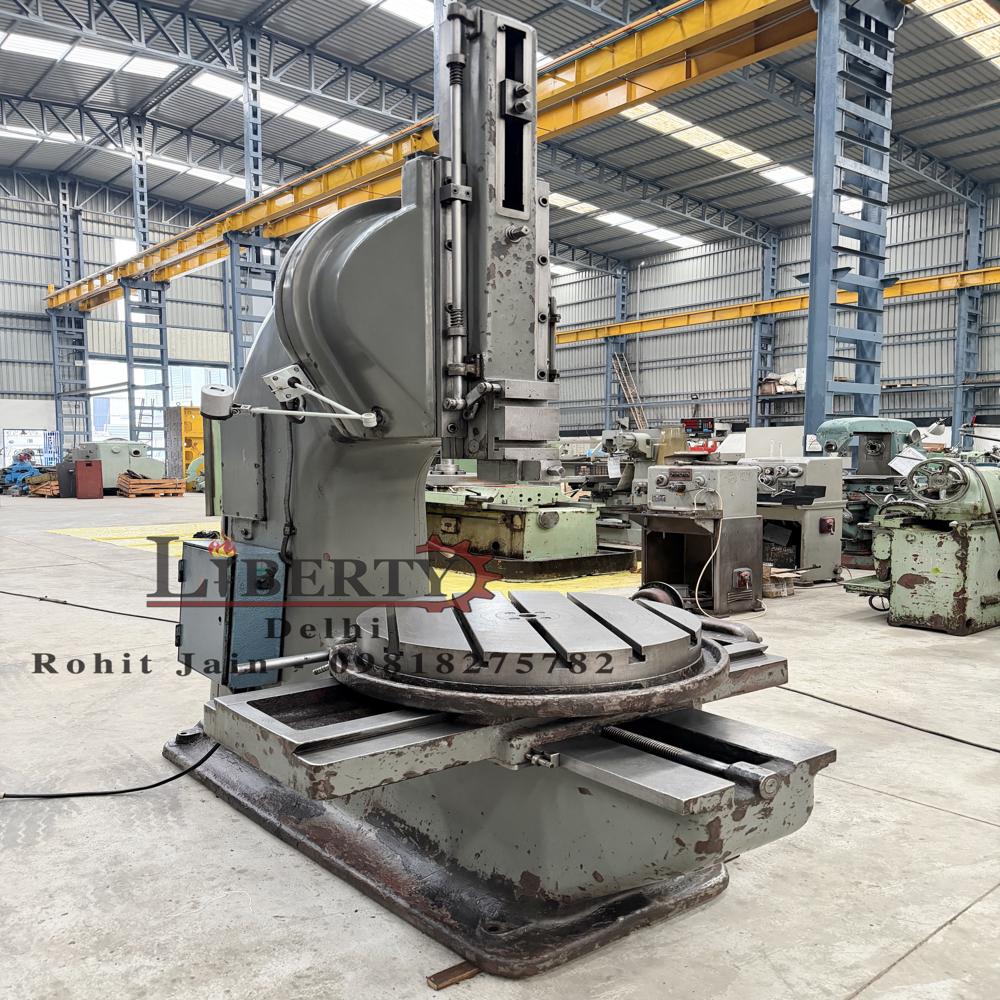

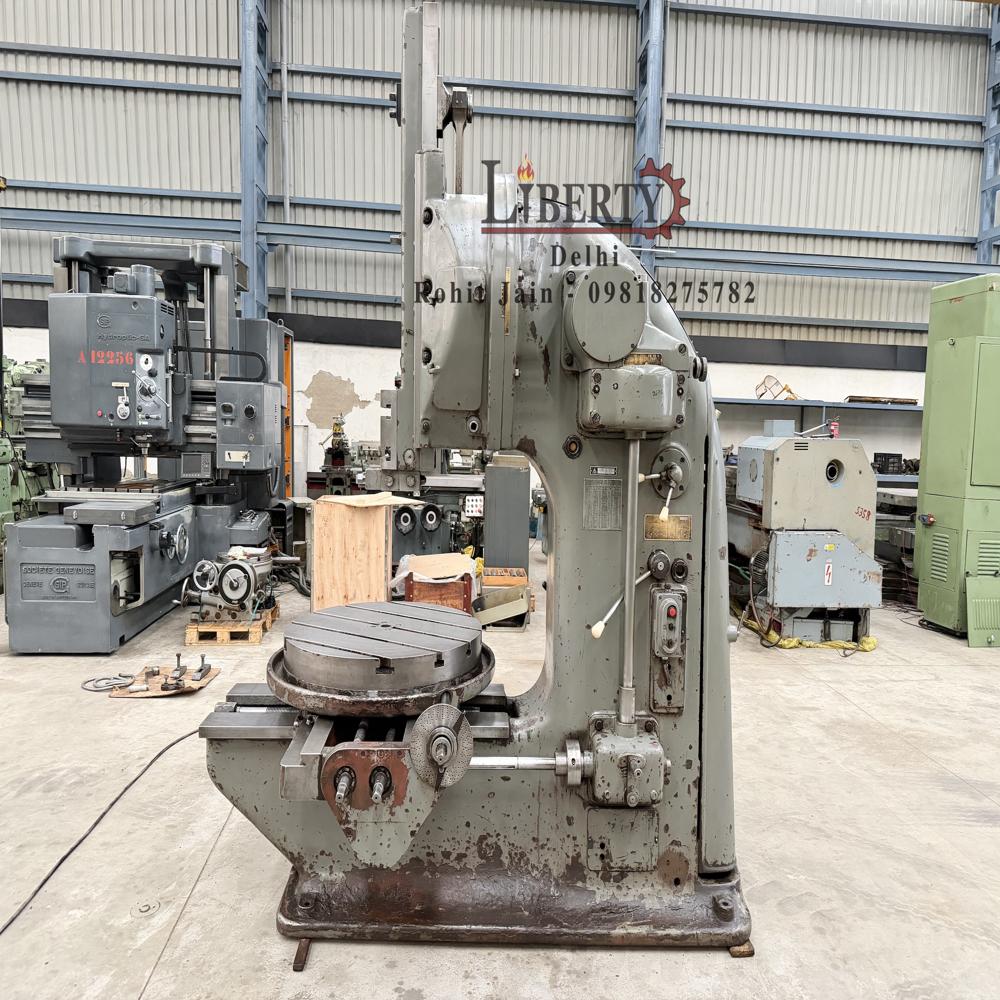

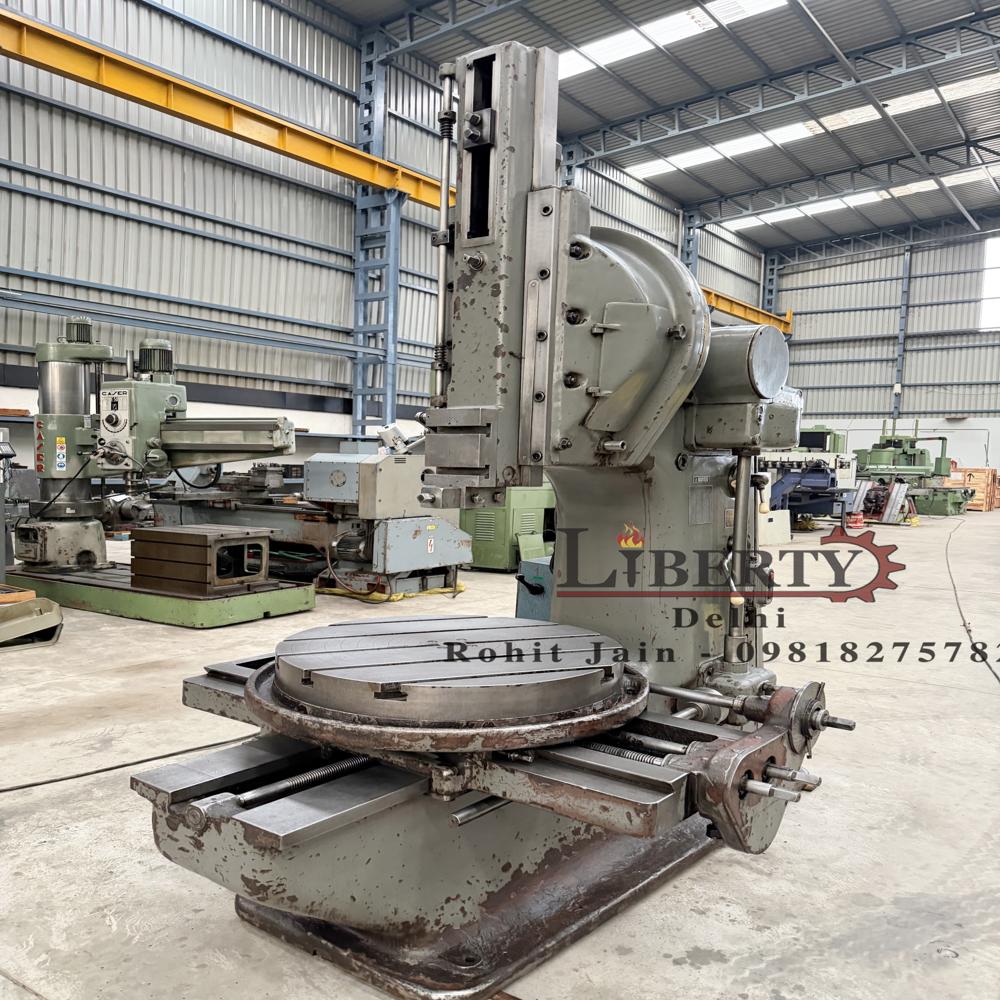

Vertical Slotting Machine made by TOS (Czech Republic) in excellent working condition. The model of the machine is ST350 and the Max. Stroke Length is 350 mm and the Table Diameter is 800 mm. The machine has automatic feed travels on Longitudinal Travel, Cross Travel and on Table Rotation. The technical details are as follows -

Make - TOS (Czech Republic)
Model - ST350
Max. Stroke Length - 350 mm

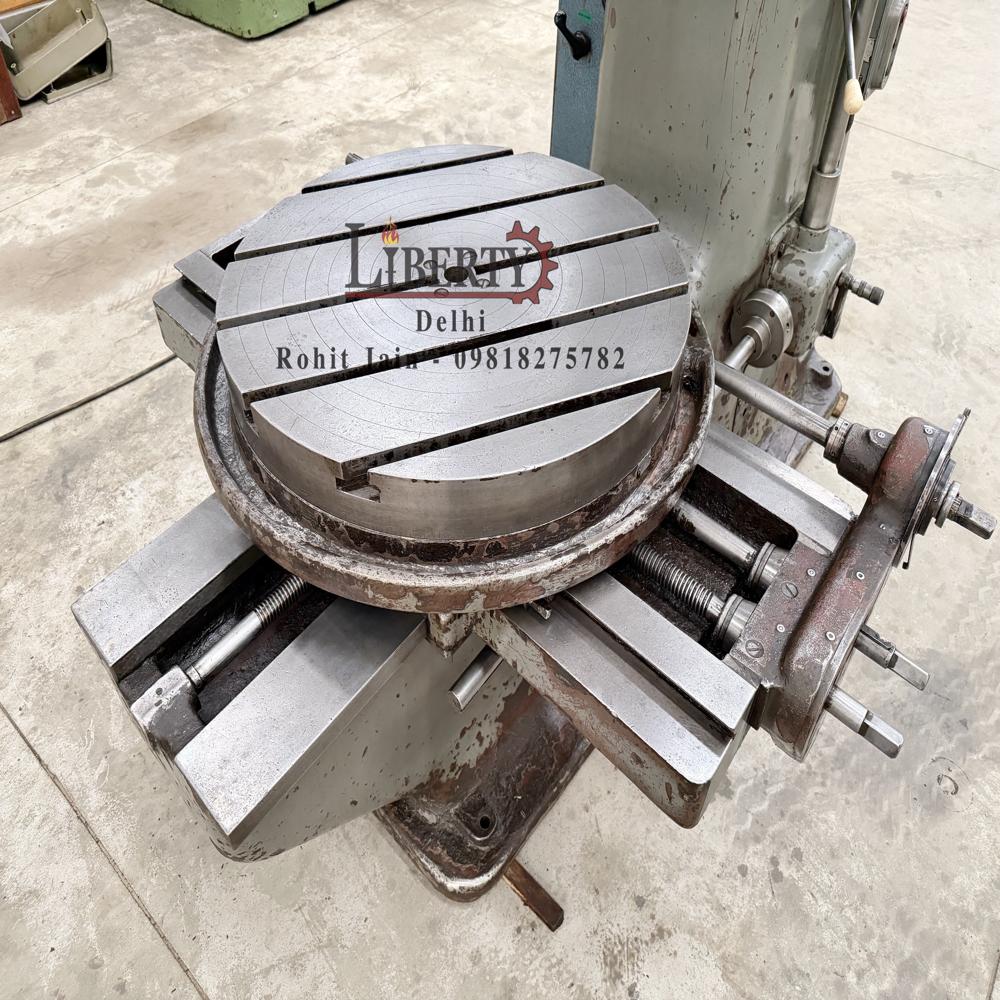

Table Diameter - 800 mm
Cross Travel of Table - 650 mm
Longitudinal Travel of Table - 650 mm
Height between Table Top to Machine Body - 550 mm
Distance between Tool-head edge to Column - 680 mm
Max. Distance between Table Center to Column - 1100 mm
Stroke Rate - 10 strokes/min to 56 strokes/min
Feed Rate of Travel - 0 mm/stroke to 2 mm/stroke
Rotation of Head - +12 degree to -12 degree
Machine Weight - 3.90 Tons (approximately)
- Automatic Feed Travel on Cross, Longitudinal & Rotation of the table.
- Machine is in excellent working condition.

Video of The Machine -


High-Precision Slotting for Diverse Applications

The TOS Czech ST-350 Vertical Slotting Machine is ideally suited for manufacturing environments requiring the slotting of keyways, gears, and splines. Its heavy-duty cast iron body ensures consistent accuracy of 0.02 mm, meeting the demands of toolrooms and workshops. Adjustable ram stroke and multiple feed options offer versatility across a range of materials and job sizes.


Customizable and User-Friendly Operation

Equipped with a robust electrical control panel and manual levers, the ST-350 offers both automatic and semi-automatic operation modes. The rotating table and optional accessories, such as the dividing head and rotary table attachment, make it adaptable for complex slotting tasks. Easy installation, centralized lubrication, and accessible adjustments enhance user convenience.

FAQ's of TOS Czech ST-350 Vertical Slotting Machine:


Q: How is the TOS Czech ST-350 Vertical Slotting Machine typically used in industrial environments?

A: This machine is utilized for precision slotting operations such as creating keyways, internal gear profiles, and splines in metal components. It's commonly found in workshops, toolrooms, and production plants requiring consistent, high-accuracy machining.

Q: What are the benefits of using the ST-350 slotter for metalworking tasks?

A: The ST-350 delivers reliable performance with robust frame construction and advanced features. Its adjustable stroke, multi-speed functionality, and centralized lubrication provide superior accuracy (0.02 mm), reduced downtime, and adaptability for a wide variety of slotting tasks.

Q: When should I consider requesting professional installation for this machine?

A: Professional installation is recommended upon initial setup or when relocating the machine to ensure correct assembly, alignment, and calibration. This service helps maximize performance and ensures safety compliance.

Q: Where can the ST-350 be installed, and what are the recommended ambient conditions?

A: It is suitable for industrial workshops and manufacturing facilities with standard electrical connections (415 V, 50 Hz). Optimal operating temperature ranges from 5C to 45C, and the area should provide enough space for the machine's dimensions (1800 x 1000 x 2300 mm) and safe operation.

Q: How does the slotting process work on the ST-350?

A: The machine's vertically moving ram, controlled by manual levers or via automatic operation, drives the tool through the workpiece. Users manually set feeds, adjust the slotting height, and secure the workpiece on the rotating table, with all surfaces lubricated and cooled during the process for precision and durability.

Q: What usage and maintenance practices ensure optimal machine longevity and performance?

A: Regular cleaning, timely lubrication via the centralized system, and checking the coolant pump maintain the machine's performance. Always use the emergency stop and interlock covers for safety. Scheduled inspections help reduce wear and prolong operational life.
