TOS Czech HOV-45 Heavy Duty Vertical Slotting Machine

Name: TOS Czech HOV-45 Heavy Duty Vertical Slotting Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS Czech HOV-45 Heavy Duty Vertical Slotting Machine Specification

Production Capacity
Suitable for regular industrial manufacturing

Drive
Mechanical

Lubricating System
Centralized Lubrication

Cooling System
Coolant System Provided

Operating Temperature
Ambient Industrial Temperature Range

Motor Power
5-7.5 HP (approx.)

Model No
HOV-45

Accuracy
High precision for industrial applications

Voltage
415V (3 Phase)

Power Rating
Approx. 5-7.5 HP

Noise Level
Standard industrial levels

Control System
Manual Controls with Mechanical Levers

Frequency
50 Hz

Frame Type
Heavy Rigid Casting

Machine Type
Slotting / Shaping

Features
Heavy Duty Construction, Rotary Table, Adjustable Stroke

Product Type
Heavy Duty Vertical Slotting Machine

Technology
Conventional Mechanical

Power Source
Electric

Operating Type
Manual/Semi-Automatic

Power
Approx. 5-7.5 HP (based on similar models)

Surface Treatment
Painted / Coated

Dimension (L*W*H)
Approx. 2200 x 1500 x 2400 mm (estimated based on machine size)

Weight (kg)
Approx. 3500-4000 kg (estimated)

Color
Green

Usage & Applications
Keyway Slotting, Internal Gear Cutting, Spline Cutting, and other vertical slotting tasks

Maintenance
Low, owing to automated lubrication

Tool Holder Type
Standard slotting tool fixtures

Table Load Capacity
Up to 2000 kg

Stroke Length
Adjustable, up to 450 mm

Installation Requirement
Level foundation

Operator Interface
Manual levers and dials

Working Speed
Infinitely variable, approx. up to 80 strokes/min

Main Spindle Speed
Variable

Minimum Cut Diameter
50 mm

Table Rotation
360 manual and automatic

Power Consumption
Approx. 3-5 kW depending on operation

Maximum Table Travel
700 mm

Table Diameter
800 mm

Main Construction Material
High-grade cast iron

Safety Features
Overload safety, integrated guards

Maximum Slotting Height
450 mm

TOS Czech HOV-45 Heavy Duty Vertical Slotting Machine Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About TOS Czech HOV-45 Heavy Duty Vertical Slotting Machine

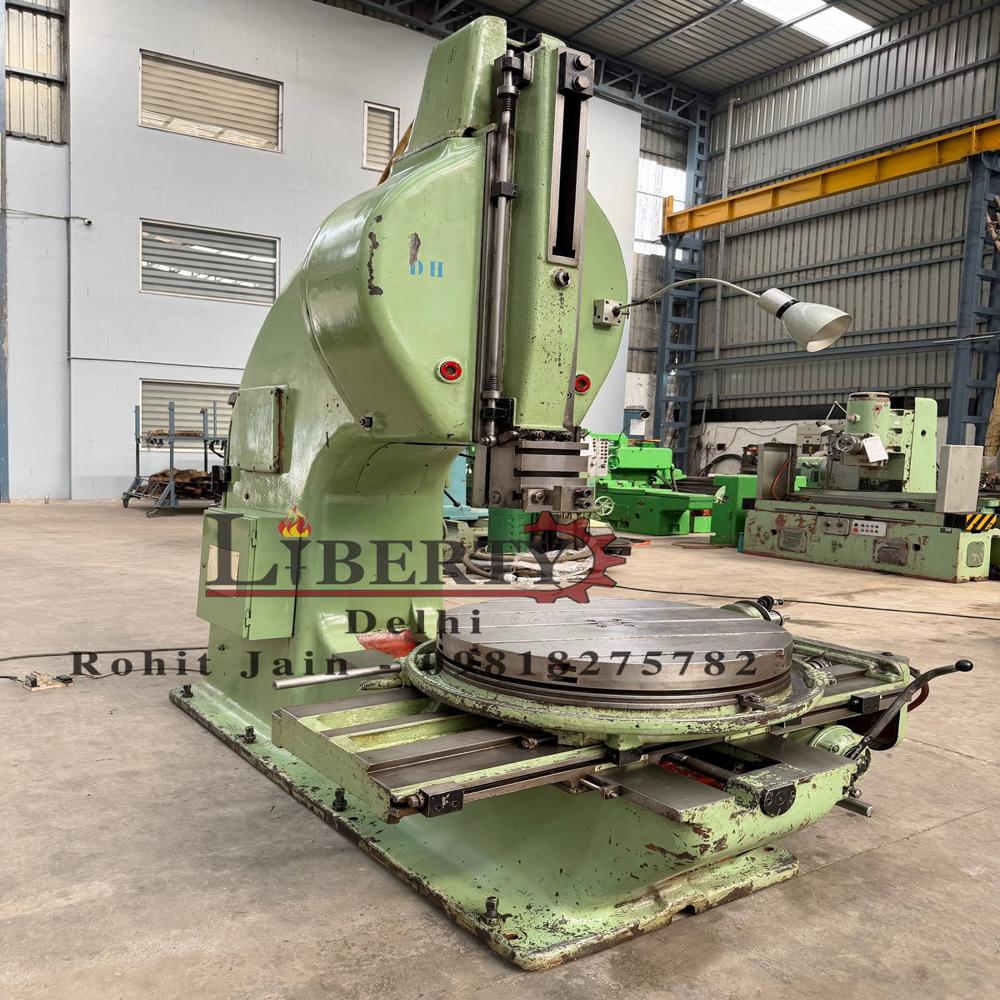

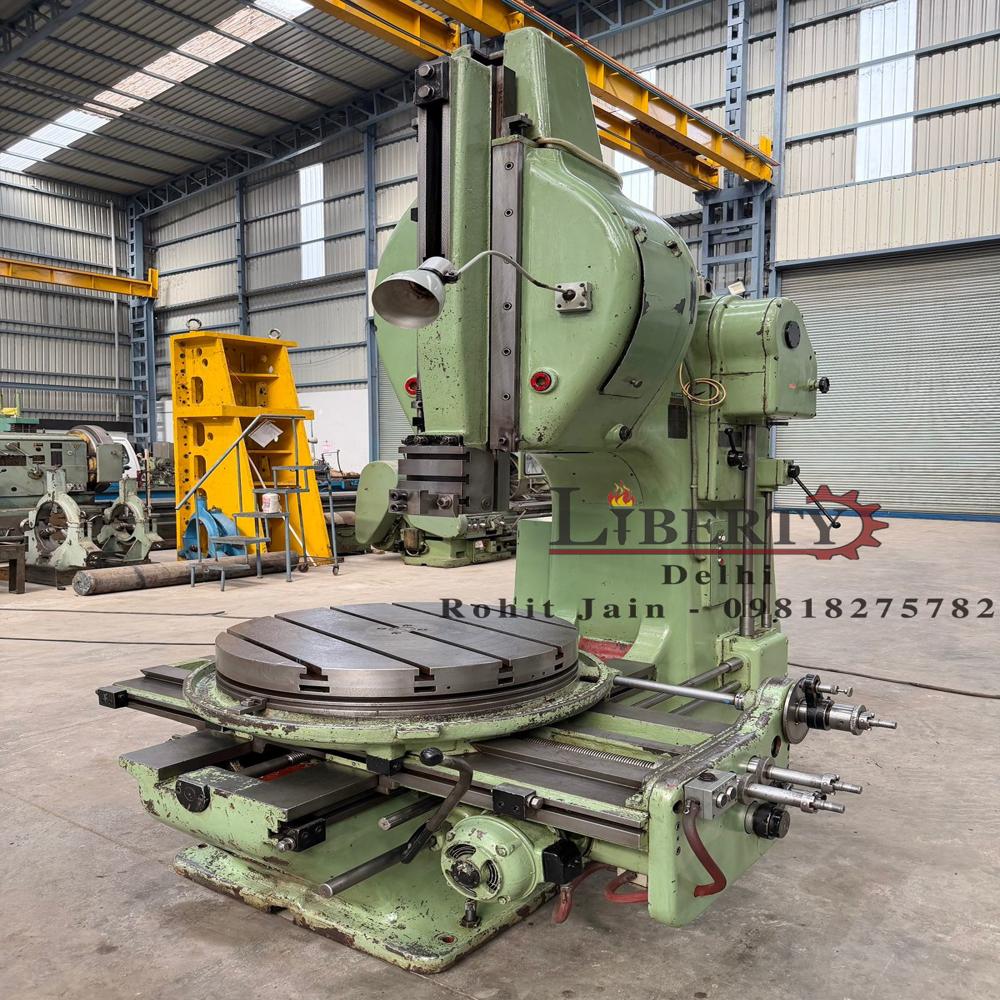

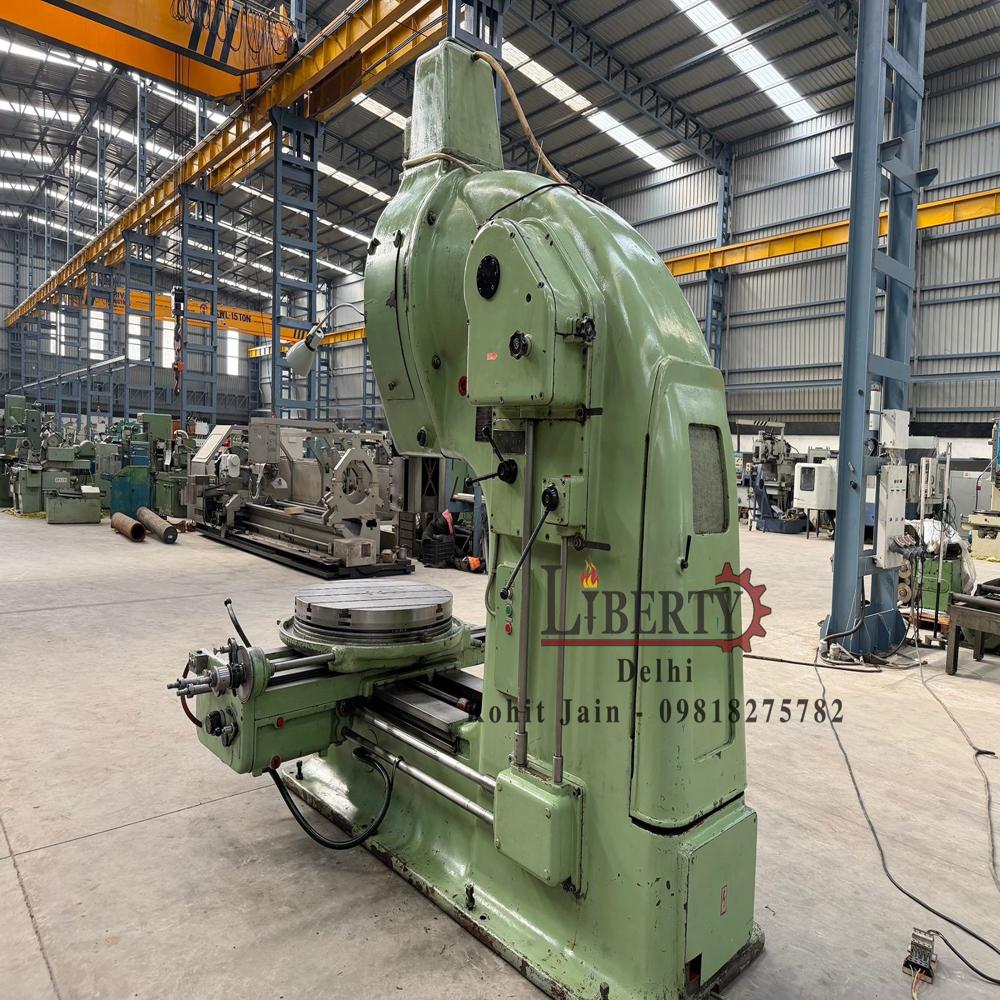

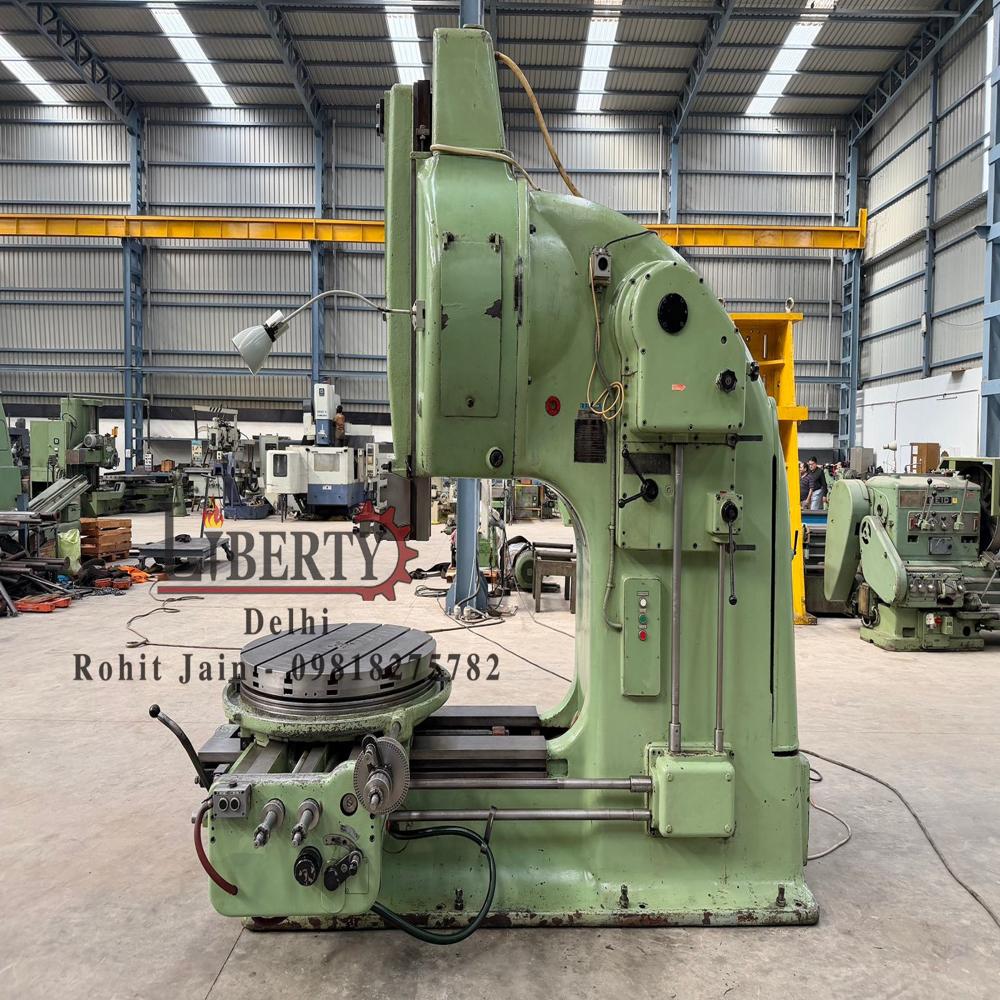

TOS (Czech Republic) make Heavy Duty Vertical Slotting Machine in excellent working condition. The model of the machine is HOV-45 and the Maximum Stroke Length is 450 mm. The machine has Rapid & Feed Travels on the Longitudinal Travel, Cross Travel and on Table Rotation. The technical details are as follows -

Make - TOS (Czech Republic)

Model - HOV-45

Max. Stroke Length - 450 mm

Table Diameter - 900 mm

Longitudinal Travel - 800 mm

Cross Travel - 700 mm

Height between Table to Machine Body - 615 mm

Distance between Toolhead edge to Column - 1000 mm

Max. Distance between Table Center to Column - 1430 mm

Stroke Rate - 10 strokes/min to 56 strokes/min

Feed Travel Rate - 0.1 mm/stroke to 2.0 mm/stroke

Head Rotation - +10 degree to -10 degree

Weight of the Machine - 7.20 Tons (Approximately)

- Feed & Rapid Travel on Table Rotation, Cross Travels & Longitudinal Travels.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/OTX0-mFxv-I

Engineered for Industrial Precision

The HOV-45 vertical slotting machine stands out for its ability to handle demanding tasks such as internal gear cutting and complex slotting processes. Its mechanical versatility and adjustable components cater to the specialized needs of manufacturing environments, delivering precision vital for industrial production.

Heavy Duty and Versatile Design

With a strong base, heavy rigid cast frame, and table supporting up to 1000 kg, the HOV-45 is built to withstand rigorous use. Operators benefit from its rotary table, adjustable ram stroke, and mechanical controls, making it an adaptable solution for a variety of slotting and shaping operations.

FAQ's of TOS Czech HOV-45 Heavy Duty Vertical Slotting Machine:

Q: How does the TOS Czech HOV-45 slotting machine achieve high precision in slotting tasks?

A: The HOV-45 achieves high precision through its robust mechanical drive, adjustable ram stroke up to 450 mm, and a rotary table that ensures accurate positioning. Its manual controls with mechanical levers allow careful adjustment, while a centralized lubrication system maintains smooth and precise operation during slotting processes.

Q: What types of industrial tasks can this slotting machine handle?

A: This machine is suitable for keyway slotting, internal gear cutting, spline cutting, and other vertical slotting tasks. Its versatility makes it valuable in machine building, automotive, and heavy engineering industries requiring intricate or repetitive slotting operations.

Q: Where is the TOS Czech HOV-45 typically used?

A: The HOV-45 slotting machine is commonly found in industrial settings such as manufacturing plants, machine shops, and engineering workshops. It is used wherever reliable and heavy-duty slotting, internal gear shaping, or spline cutting is required.

Q: What is the process for adjusting the ram stroke and table movement?

A: Operators can adjust the ram stroke up to a maximum of 450 mm using manual controls. The table allows for both longitudinal and cross movements, with maximum travels of approximately 500 mm and 450 mm, respectively. These adjustments enable the machine to handle various workpiece sizes and slotting requirements.

Q: When should I consider refurbishing or maintaining the HOV-45 slotting machine?

A: Regular maintenance should be performed according to the manufacturer's guidelines, focusing on the lubrication and coolant systems. Refurbishing may be considered if performance decreases or after prolonged use to restore accuracy and mechanical reliability, especially for used machines.

Q: What are the primary benefits of using this slotting machine in production?

A: Benefits include high precision, robust construction, adaptability to different slotting applications, and the capacity to handle heavy workpieces. The centralized lubrication and coolant systems prolong the machine's lifespan, enhancing productivity and reducing downtime.
