FIAT Italy 65 mm Capacity Heavy Duty Column Drilling Machine

Send Inquiry

Request To Call Back

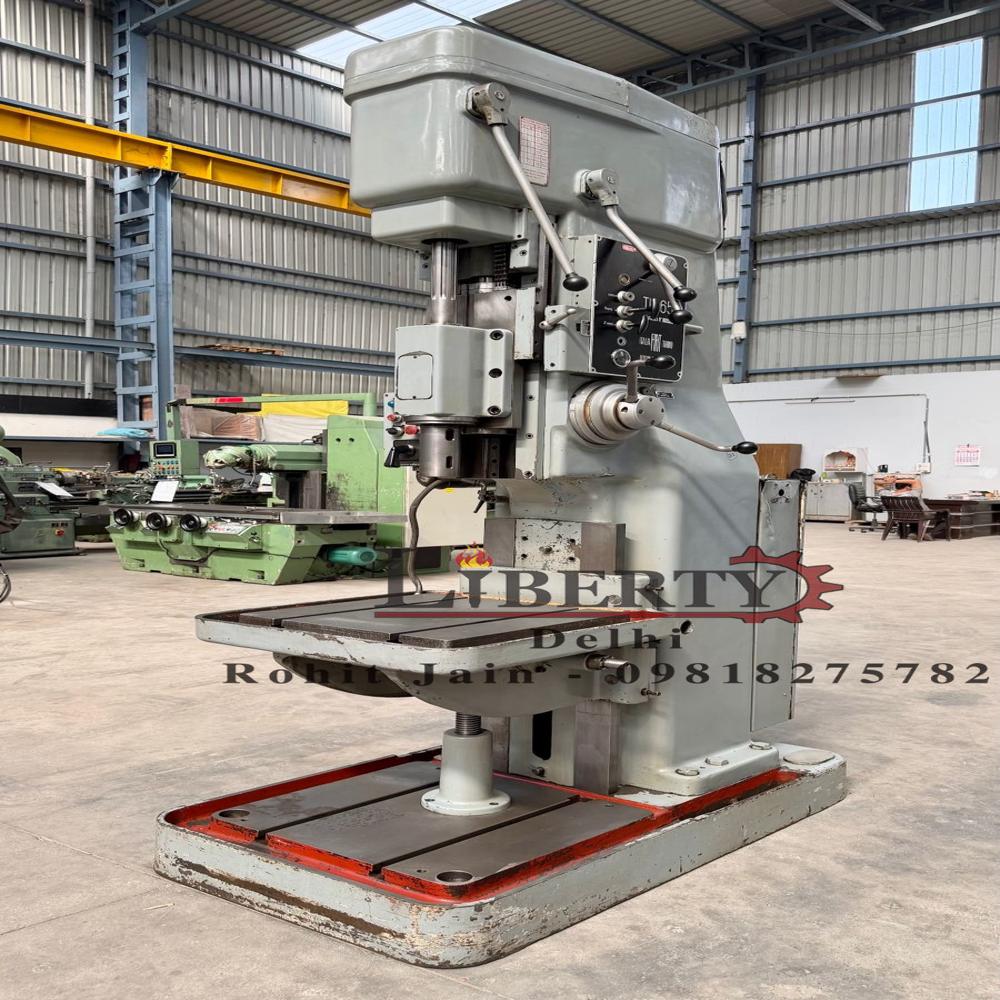

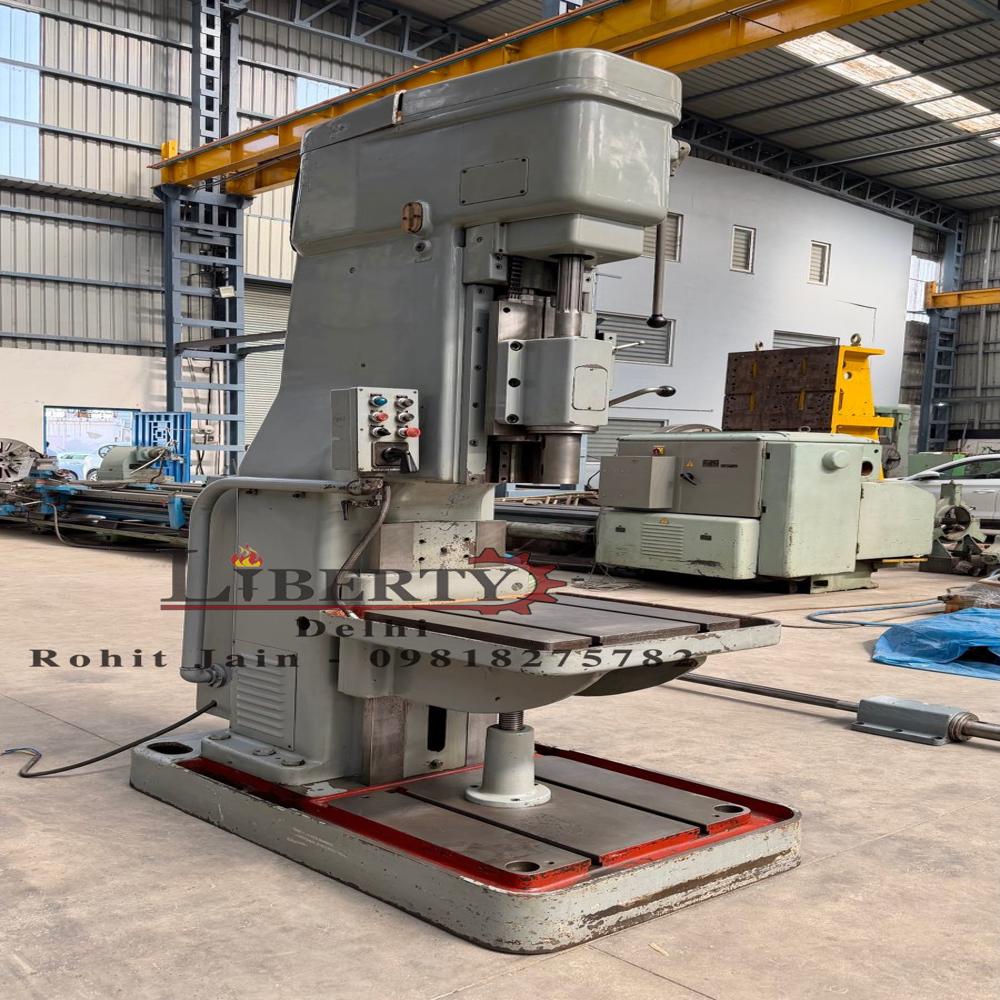

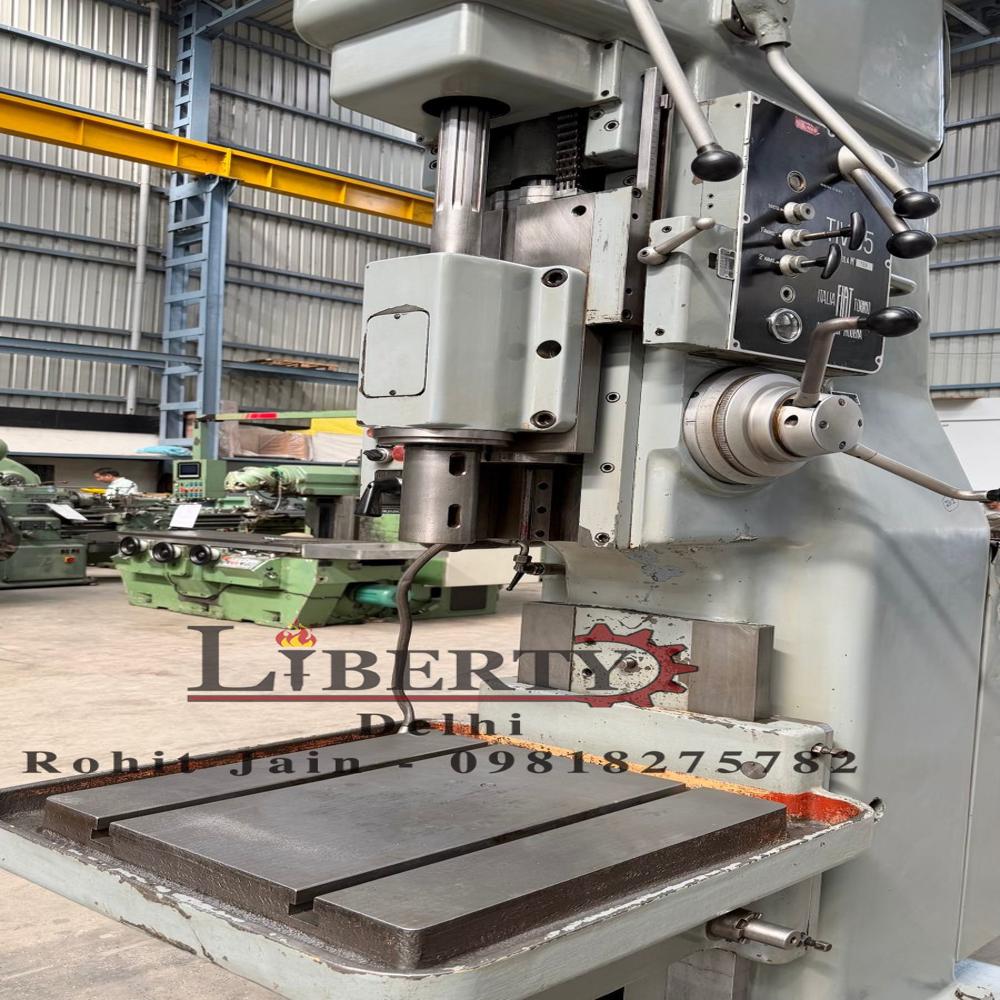

FIAT Italy 65 mm Capacity Heavy Duty Column Drilling Machine

Name: FIAT Italy 65 mm Capacity Heavy Duty Column Drilling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

FIAT Italy 65 mm Capacity Heavy Duty Column Drilling Machine Specification

Frequency
50 Hz

Dimension (L*W*H)
1300 mm x 1050 mm x 2550 mm

Table Size
600 mm x 500 mm

Noise Level
Standard Industrial

Cutting Area
Large Working Table for Big Components

Features
Heavy Duty Design, High Precision, Rigid Column

Condition
Used/Reconditioned

Diameter
65 mm Max Drilling Diameter

Spindle Speed
16 Steps, 40-2000 RPM

Machine Type
Heavy Duty Industrial Drilling

Motor Power
5 HP

Product Type
FIAT (Italy) make Heavy-Duty Column Drilling Machine in excellent working condition. The machine is Model TIV-65 with a drilling capacity of 65 mm, designed for heavy-duty and precision drilling applications. It is an all-geared machine equipped with automatic hydraulic spindle feed, along with rapid downward travel and quick retraction. The technical details are as follows -

Material
Heavy Duty Cast Iron & Steel

Computerized
No

Automatic Grade
Manual

CNC Or Not
Not CNC

Control System
Conventional Lever & Handwheel

Voltage
415V (3 Phase)

Power
5 HP

Power Source
Electric

Weight (kg)
Approx. 1800 kg

Capacity
65 mm Drilling in Steel

Color
Industrial Grey

Usage & Applications
Suitable for Drilling, Boring, Reaming & Tapping in Large Steel Workpieces

Taper in Spindle
MT 5

Quill Travel / Spindle Stroke
240 mm

Feed Type
Manual & Automatic power feed options

Maximum Distance Spindle to Base
1300 mm

Number of Spindle Speeds
Multiple (typically 8-12 steps)

Column Diameter
200 mm (approx)

Base Size
900 mm x 650 mm (approx)

Work Table Movement
Longitudinal & Cross movement

Coolant System
Provided

Maximum Distance Spindle to Table
1050 mm

FIAT Italy 65 mm Capacity Heavy Duty Column Drilling Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
7 Days

About FIAT Italy 65 mm Capacity Heavy Duty Column Drilling Machine

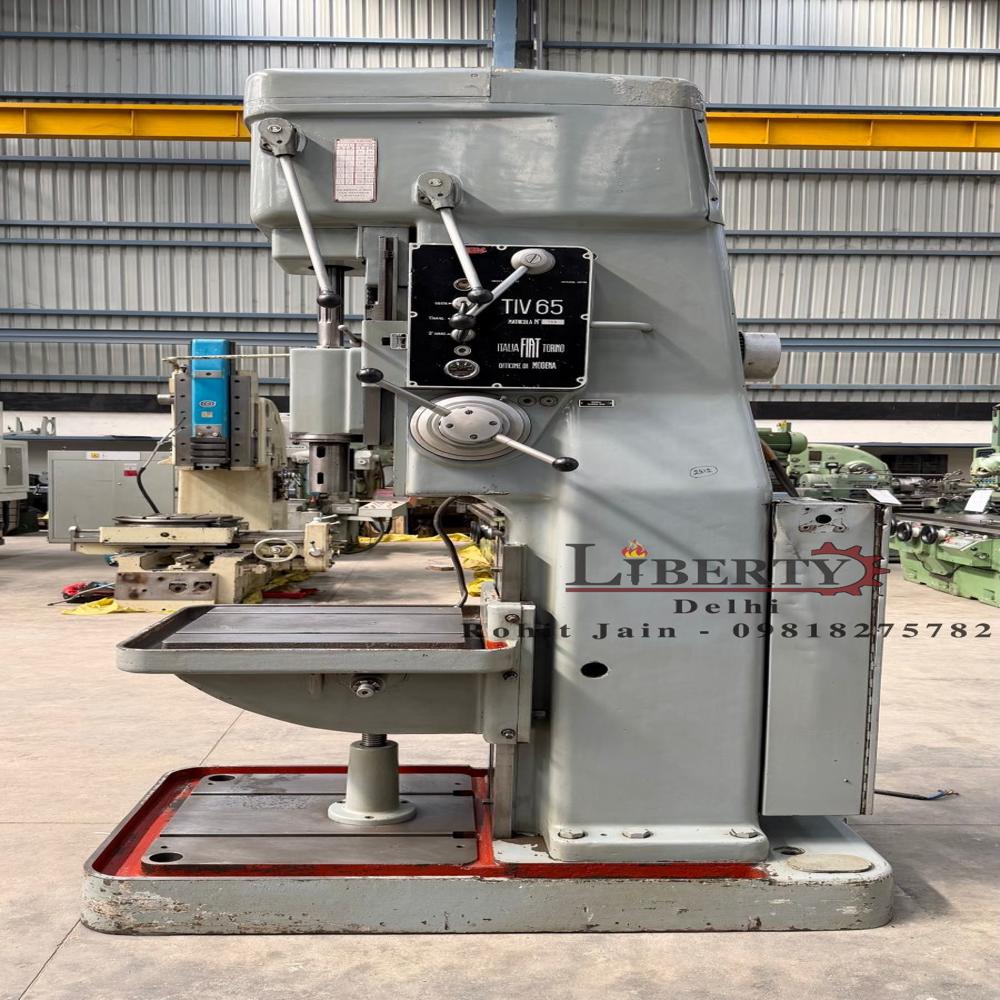

Make - FIAT (Italy)

Model - TIV-65

Capacity - 65 mm

Spindle Diameter - 80 mm

Spindle Taper - MT-5

Spindle Feed Travel - 350 mm

Spindle Speed Range - 33 rpm to 1500 rpm

Table Size - 545 mm x 545 mm

Base Clamping Size - 650 mm x 610 mm

Distance between Spindle Center to Column - 350 mm

Max. Height between Spindle to Table Top - 925 mm

Max. Height between Spindle to Base Top - 1325 mm

Machine Weight - 2650 kg Approx.

- An extra spare Spindle is available with the machine.

- All-geared head for Heavy Duty Applications.

- Hydraulic spindle feed with rapid approach and return

- Machine is in excellent working condition.

Video of the Machine -

https://youtu.be/W9gBM0BdpOY

High-Capacity Performance for Heavy Industry

Delivering a remarkable 65 mm drilling capability in steel, the FIAT Italy Heavy Duty Column Drilling Machine supports demanding machining tasks. Its robust 200 mm column and stable 1,800 kg base grant maximum rigidity and vibration damping, ensuring high precision during intensive operations.

Versatile and Convenient Operations

Equipped with a 16-step speed selection (40-2000 RPM) and both manual and power quill feeds, this machine offers flexibility for various machining processes such as drilling, tapping, boring, and reaming. The ample 600 x 500 mm working table and manual traverse allow precise adjustments to accommodate large workpieces.

Industrial Standards and Safety First

Designed with operator safety in mind, the drilling machine includes comprehensive guarding, a reliable coolant system, and conforms to standard industrial noise and safety requirements. Its durable cast iron and steel construction supports prolonged usage in harsh environments.

FAQ's of FIAT Italy 65 mm Capacity Heavy Duty Column Drilling Machine:

Q: How is the FIAT Italy 65 mm Heavy Duty Column Drilling Machine operated?

A: The machine is operated manually using conventional levers and handwheels for all main controls. The quill feed can be engaged manually or through a power feed for different drilling requirements, allowing precise control during machining.

Q: What types of materials and applications is this drilling machine suitable for?

A: This column drilling machine is ideal for working with large steel components, supporting operations such as drilling, reaming, boring, and tapping. Its heavy-duty design and large table accommodate sizeable and heavy workpieces in industrial settings.

Q: When should I choose this machine over a CNC alternative?

A: Choose this manual column drilling machine when your operations demand high stability, heavy-duty performance, and versatility without the need for CNC automation. It is especially beneficial when machining large, standardized parts or when manual adjustments are frequently required.

Q: Where can the FIAT Italy 65 mm Drilling Machine be installed?

A: This machine is designed for installation in industrial workshops, manufacturing plants, or heavy engineering facilities equipped with a 415V (3 phase) power source and sufficient floor space to accommodate its size and weight.

Q: What is the process for adjusting spindle speeds on this machine?

A: The spindle speed can be set in 16 different steps between 40 and 2000 RPM by selecting gears on the geared head. This adjustment enables optimal cutting speeds for various materials and tool types, enhancing machining efficiency and tool life.

Q: How does this machine benefit industrial operations?

A: The drilling machine provides reliability, high capacity, and precision, leading to improved productivity for tasks like drilling and tapping in large components. Its heavy-duty build and easy table adjustments contribute significantly to process efficiency and product quality.
