GSP France 50 mm x 1300 mm Arm Radial Drilling Machine

Name: GSP France 50 mm x 1300 mm Arm Radial Drilling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

GSP France 50 mm x 1300 mm Arm Radial Drilling Machine Specification

Spindle Speed
16 Steps, 40-2040 RPM

Cutting Area
Large, suitable for big workpieces

Motor Power
4 HP Main Motor

Noise Level
Low

Features
Long Arm Length, Sturdy Construction, Adjustable Speed, Tilting Table

Dimension (L*W*H)
Approx 2500 x 1200 x 2400 mm

Diameter
Maximum drilling diameter of 50 mm

Table Size
Approx 800 x 800 mm

Condition
Used / Second Hand

Machine Type
Heavy Duty Radial Arm Drilling

Frequency
50 Hz

Product Type

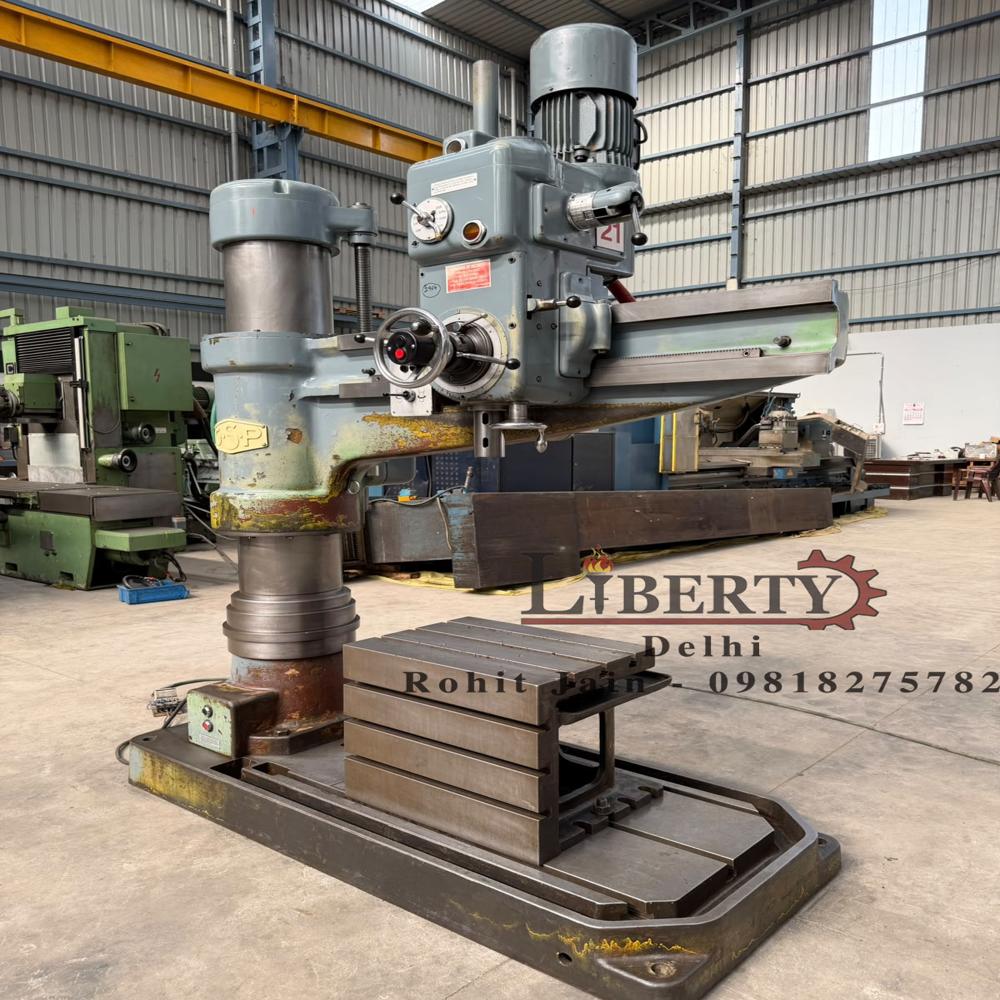

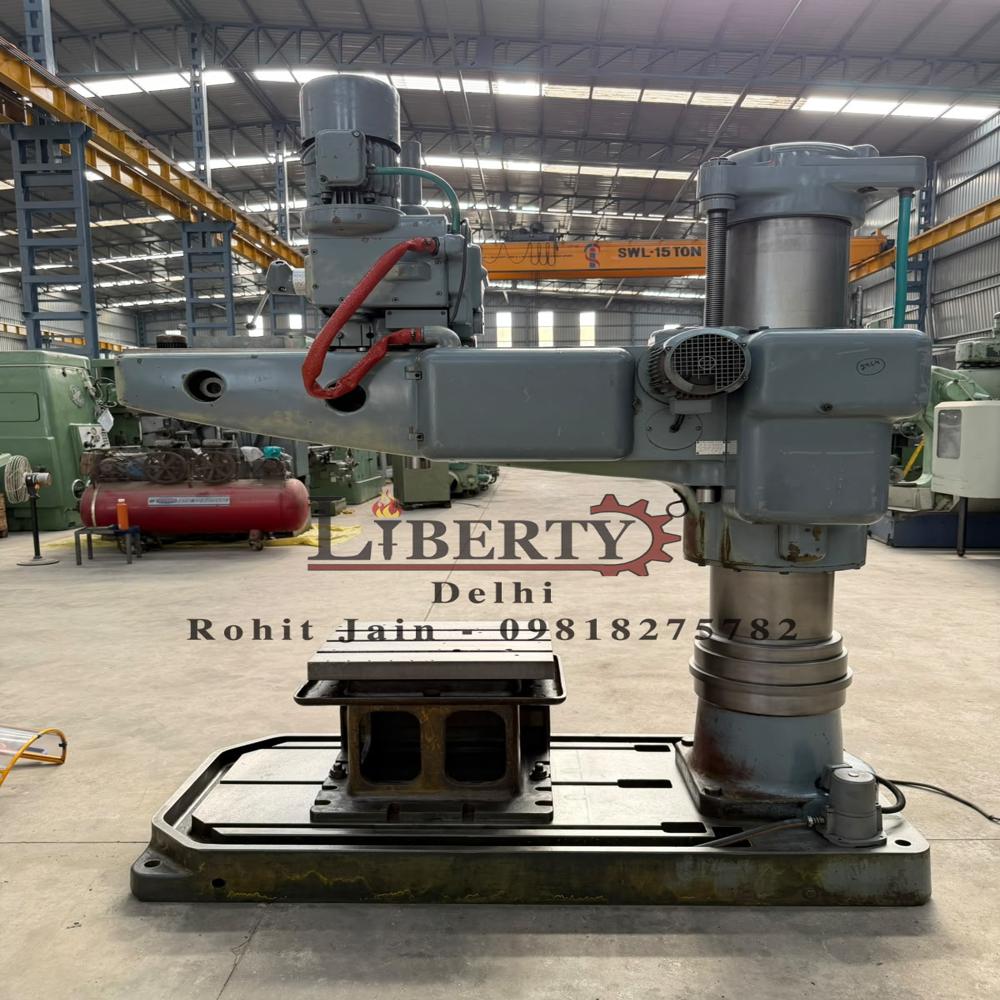

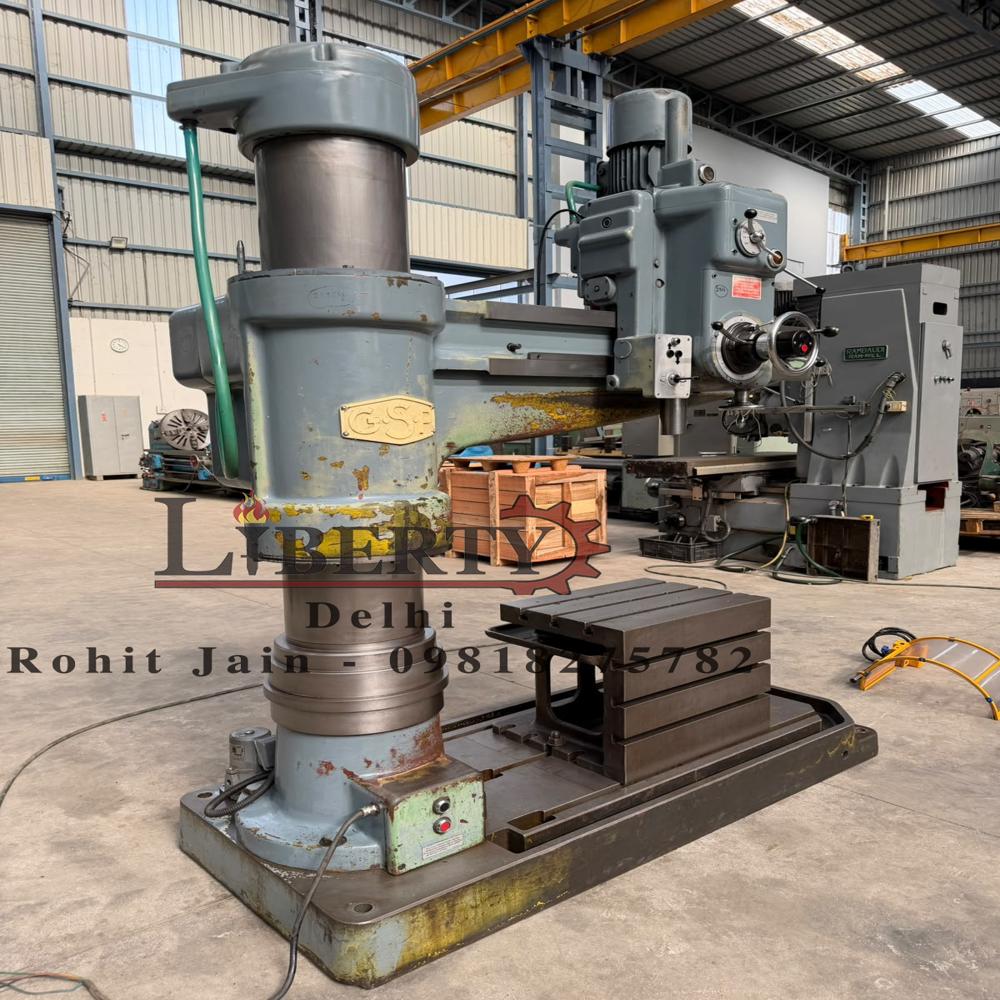

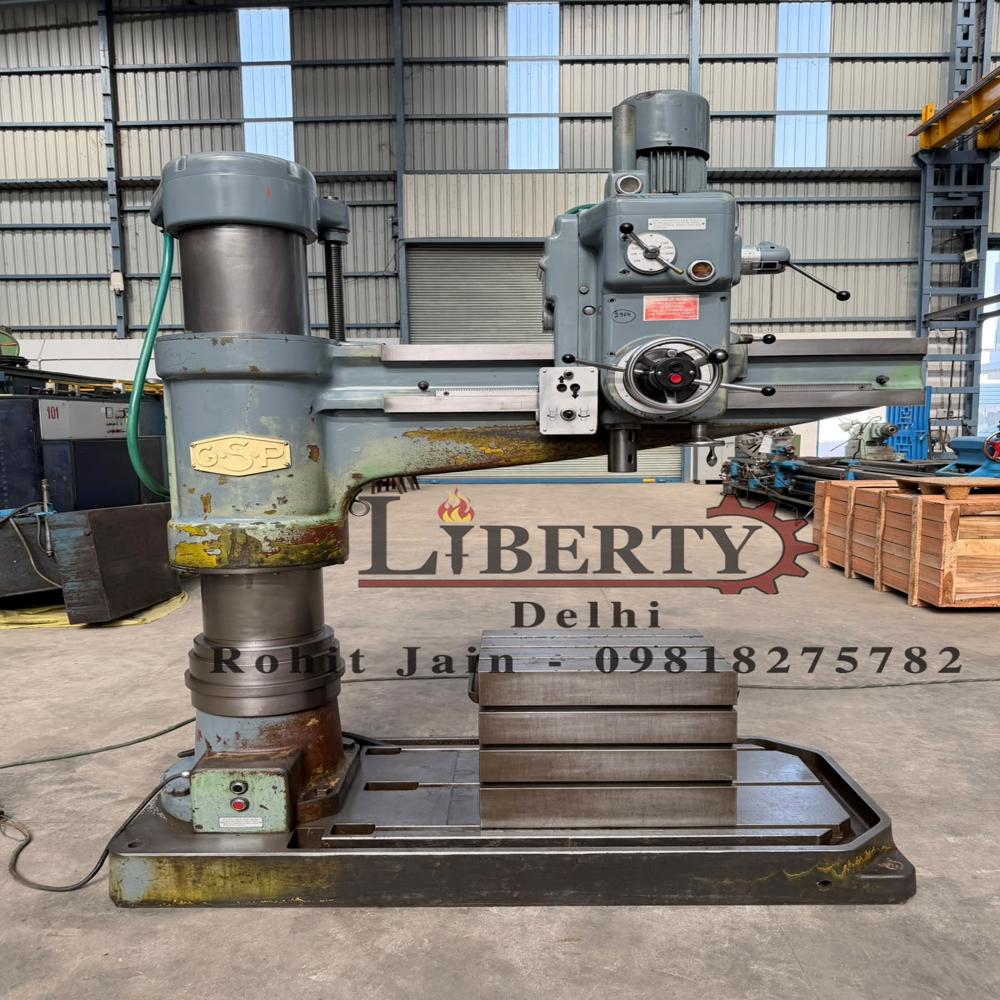

GSP (France) Radial Drilling Machine, Model 405, available in excellent working condition. This Radial Drilling Machine has a drilling capacity of 50 mm and a radial arm length of 1300 mm, making it suitable for Drilling, Tapping, and Boring applications. The machine is equipped with Hydraulic Automatic Clamping for both the radial arm and the drilling head, ensuring quick positioning, rigid locking, and improved operational efficiency. The technical details are as follows -

Material
Cast Iron & High-Strength Steel

Computerized
No

Automatic Grade
Semi-Automatic

CNC Or Not
Not CNC

Control System
Manual Controls

Voltage
415V (Three Phase)

Power
4 kW approx

Power Source
Electric

Weight (kg)
Approx 3500-4000 kg

Capacity
50 mm drilling capacity in steel

Color
Grey & Green

Usage & Applications
Industrial Metal Drilling, Heavy Engineering, Machine Shops

Drilling Arm Length
1300 mm

Max Distance Spindle to Column
1300 mm

Max Distance Spindle to Base
1200 mm

Arm Elevation
Motorized

Min Distance Spindle to Column
350 mm

Number of Spindle Feeds
8 Steps

Spindle Feed Range
0.04-3 mm/rev

Spindle Taper
MT4

Clamping Type
Hydraulic / Manual

Min Distance Spindle to Base
350 mm

Coolant System
Provided

Quill Travel
315 mm

Base Plate Size
Approx 1500 x 900 mm

About GSP France 50 mm x 1300 mm Arm Radial Drilling Machine

Make - GSP (France)

Model - 405

Drilling Capacity - 50 mm

Spindle Diameter - 95 mm

Arm Length - 1300 mm

Spindle Speeds - 40 rpm to 1800 rpm

Spindle Taper - MT-4

Spindle Feed Travel - 325 mm

Spindle Feed Rates - 0.045 mm/rev to 0.50 mm/rev

Vertical Travel of Arm - 510 mm

Max. Height between Spindle & Top of Base - 1425 mm

Cube Table Size - 600 mm x 450 mm

Clamping Type - Automatic ; Hydraulic

Machine Weight - 2.53 Tons (Approx.)

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/Ihwi6iFcrig

Engineered for Precision and Versatility

With a maximum drilling diameter of 50 mm and a long 1300 mm arm, this radial drilling machine is crafted for large, challenging workpieces. Eight-step spindle feed and sixteen spindle speed settings (ranging from 40 to 2040 RPM) offer precision adjustment for various materials and drilling requirements. The motorized arm elevation and sizable working area make it adaptable to diverse industrial needs.

Robust Construction for Heavy-Duty Operations

Manufactured from cast iron and high-strength steel, the GSP France machine provides stability and durability, ensuring it can withstand intensive, prolonged usage in demanding environments. The hydraulic or manual clamping system secures the workpiece, while the powerful 4 kW main motor delivers reliable performance.

Simplified User Experience and Maintenance

This semi-automatic radial drilling machine features manual controls for straightforward, intuitive operation, making it accessible for a variety of operators. Its built-in coolant system maintains optimal drilling conditions, while low noise levels support a safer and more comfortable workspace. Used/second-hand units undergo thorough checks to ensure quality.

FAQ's of GSP France 50 mm x 1300 mm Arm Radial Drilling Machine:

Q: How does the motorized arm elevation improve the drilling process?

A: The motorized arm elevation allows operators to adjust the drilling arm's height effortlessly and with precision, accommodating various workpiece sizes. This feature enhances versatility and reduces manual effort, ensuring smoother and more efficient drilling operations.

Q: What is the maximum and minimum distance from the spindle to the base and column?

A: The spindle can be positioned between 350 mm and 1200 mm from the machine base, and between 350 mm and 1300 mm from the column. These adjustable distances allow for flexible drilling of both small and large components.

Q: When is this radial drilling machine most beneficial to use?

A: This machine is most advantageous in heavy engineering, industrial metal drilling, and machine shop environments where large or bulky workpieces need precise, powerful drilling. Its sturdy construction and large capacity make it ideal for demanding tasks.

Q: Where can the GSP France 50 mm x 1300 mm radial drilling machine be installed?

A: Suitable for installation in industrial workshops, manufacturing facilities, and maintenance shops, the machine requires a substantial floor area due to its dimensions (approx. 2500 x 1200 x 2400 mm) and three-phase 415V electrical power supply.

Q: What is the process for changing spindle speeds and feeds?

A: Spindle speed and feed adjustments are performed manually via designated levers and controls. Operators can select from 16 spindle speeds (40-2040 RPM) and 8 feed rates (0.04-3 mm/rev) to match the machining requirements for different materials.

Q: How does the coolant system benefit the operator and machine?

A: The built-in coolant system helps dissipate heat generated during drilling, preserving tool integrity, extending component lifespan, and ensuring a cleaner, safer working environment for the operator.

Q: What advantages does a used/second-hand GSP France radial drilling machine offer?

A: Purchasing a used or second-hand machine provides cost savings while maintaining industrial-grade capability. All units are thoroughly inspected to ensure operational reliability, making them a practical choice for businesses seeking value and performance.
