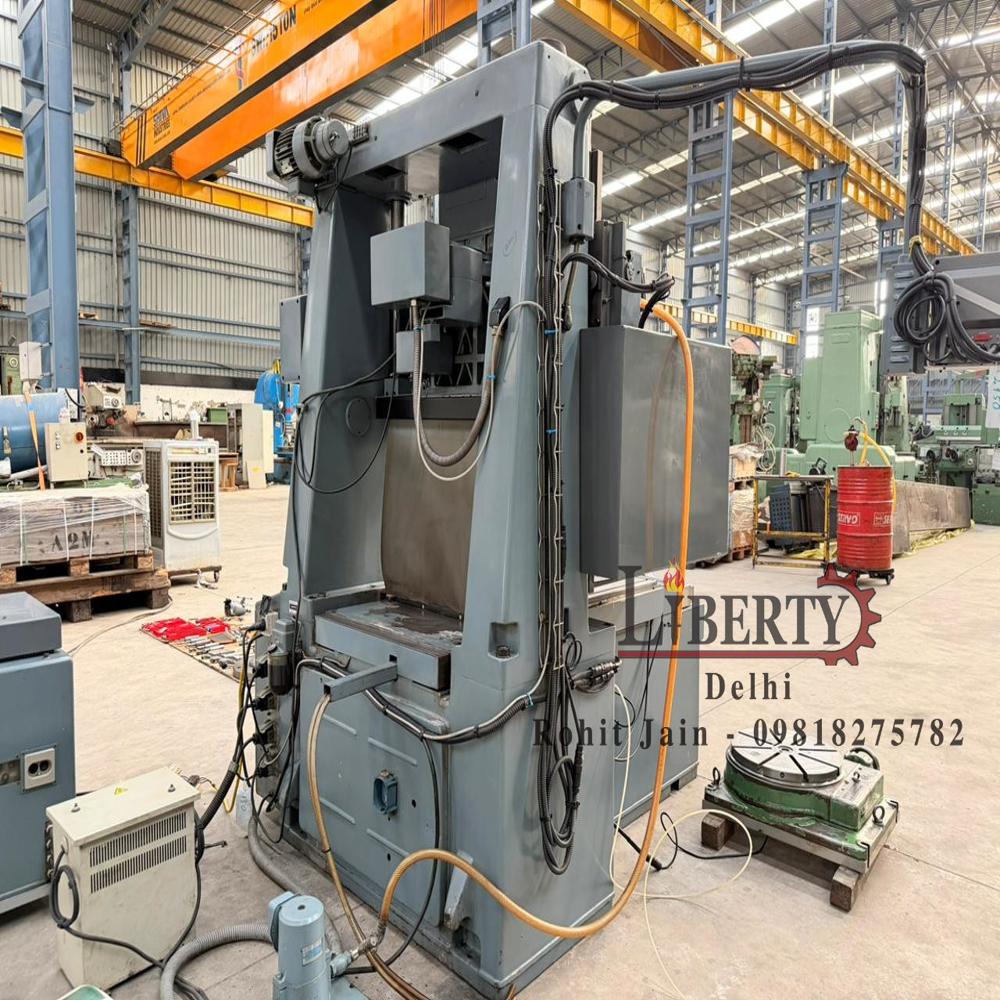

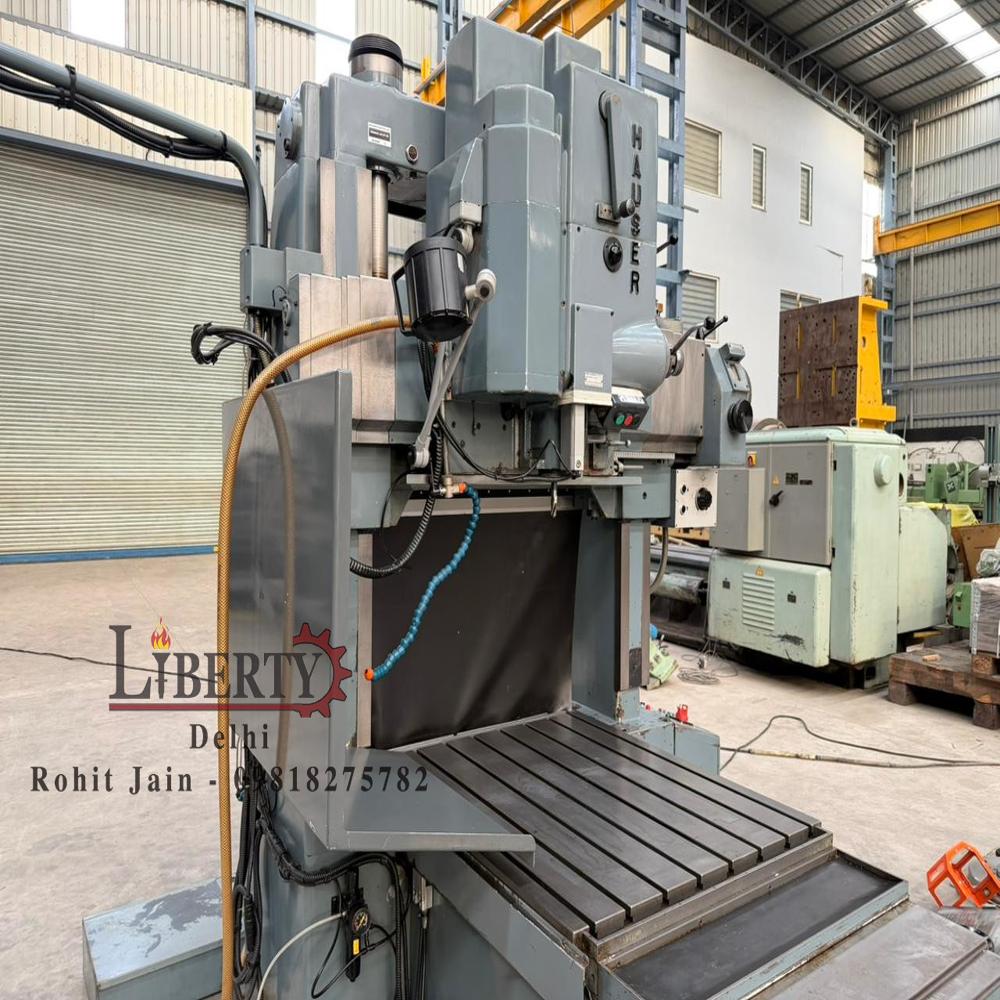

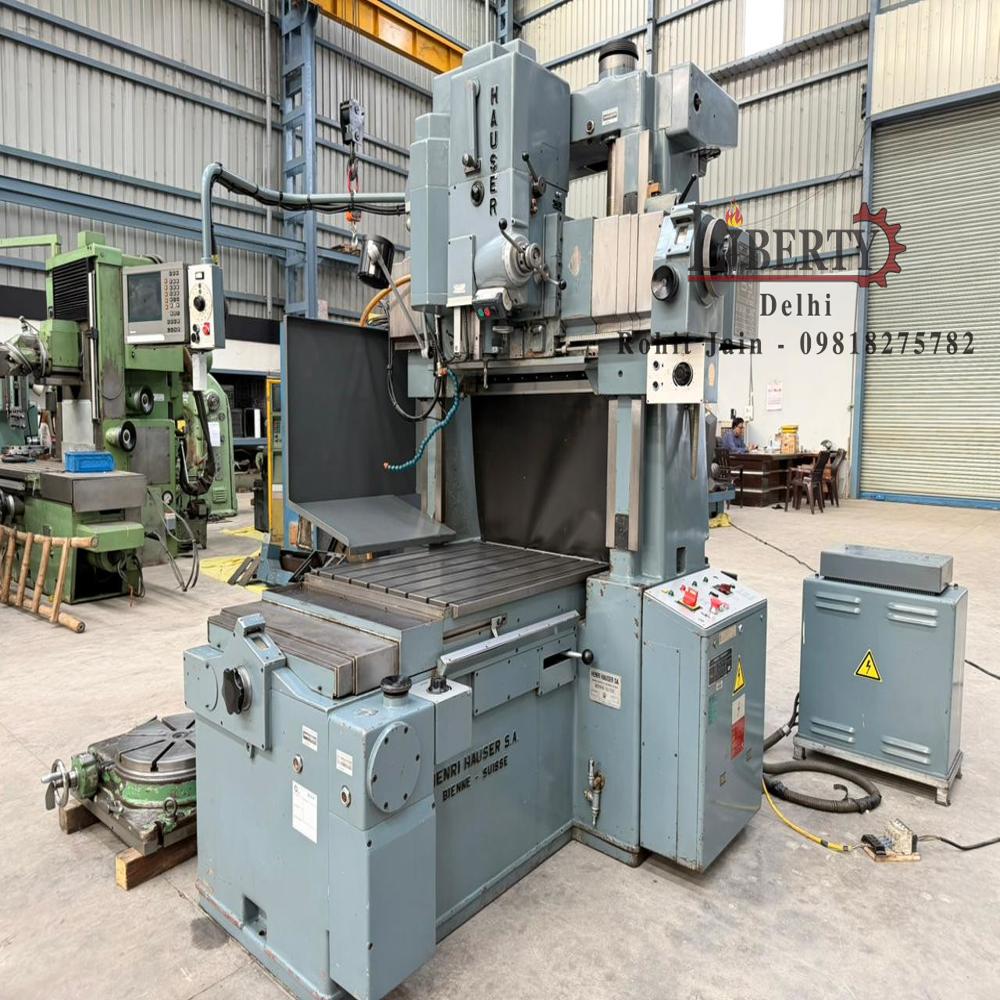

Hauser Switzerland M5 Jig Boring Machine

Name: Hauser Switzerland M5 Jig Boring Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Hauser Switzerland M5 Jig Boring Machine Specification

Machine Type
High-precision Jig Boring Machine made by Hauser (Switzerland), Model M5, available in excellent working condition. Hauser Jig Boring Machines are widely known for their high precision and accuracy, making them suitable for tool rooms, die & mould work, precision hole location, and coordinate boring applications. This machine is supplied as a complete, well-equipped package, including a SIP PD-4 Rotary Table (Diameter 450 mm), 4-Axis Heidenhain DRO system, Multiple micro-boring heads, Assorted tools, drills, and many other accessories. The technical details are as follows -

About Hauser Switzerland M5 Jig Boring Machine

Make - Hauser (Switzerland)

Model - M5

Table Size - 900 mm x 770 mm

Longitudinal Travels - 700 mm

Transversal Travels - 500 mm

Distance Between Columns - 900 mm

Max. Height between Spindle & Table - 800 mm

Spindle Feed Travel - 170 mm

Spindle Speeds - 10 to 2000 rpm

Spindle Taper - Morse No. 4

Spindle Feed Rate - 0.02 mm/rev to 0.20 mm/rev

Spindle Diameter - 90 mm

- Equipped with 4-Axis Heidenhain DRO.

- Complete with SIP PD-4 Rotary Table (Diameter 450 mm).

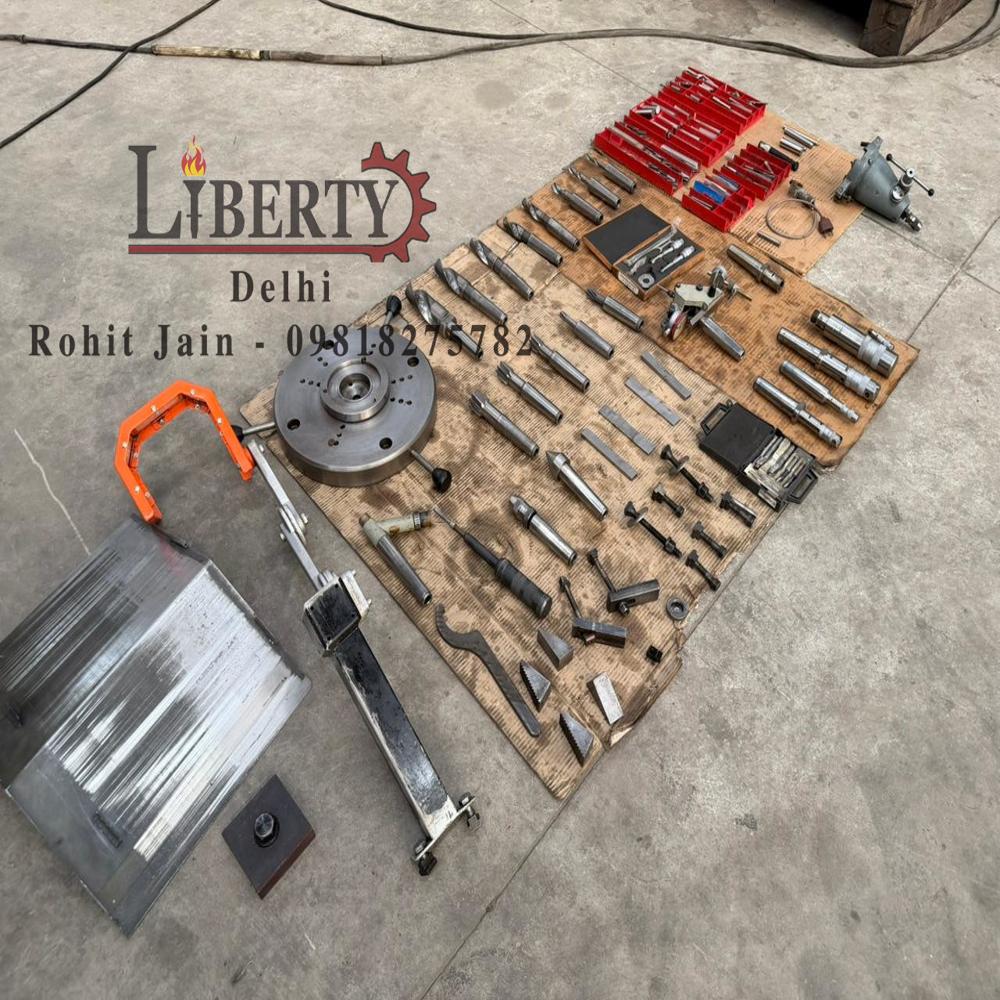

- Complete with multiple micro-boring heads, assorted tools, drills & accessories.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/EpXJmkL8PX8

Exceptional Precision and Versatility

The Hauser M5 is renowned for its exceptional accuracy and robust build, essential in sectors requiring exacting tolerances. Its advanced features, including the SIP PD-4 Rotary Table and Heidenhain DRO system, make it suitable for advanced tool making, molds, and fine mechanical work.

Comprehensive Equipment Package

Supplied with a wide array of tools and accessories such as micro-boring heads and a full set of drills, the machine is ready for immediate use in demanding environments. This well-equipped setup reduces downtime and streamlines the machining process from setup to completion.

FAQ's of Hauser Switzerland M5 Jig Boring Machine:

Q: How does the Hauser M5 Jig Boring Machine achieve high precision in machining tasks?

A: The Hauser M5 is engineered with tight manufacturing tolerances and integrates a Heidenhain 4-Axis DRO system, enabling precise control over machining coordinates. Its robust construction and high-quality spindle design further contribute to accurate, repeatable results required for tool rooms and die & mould work.

Q: What types of operations can I perform with the included SIP PD-4 Rotary Table and accessory package?

A: The SIP PD-4 Rotary Table (450 mm diameter) allows for versatile multi-axis machining, facilitating circular and angular operations. Coupled with micro-boring heads and assorted tools, you can execute precision boring, coordinate drilling, and complex hole-location tasks efficiently.

Q: When is this jig boring machine best utilized in a manufacturing process?

A: The Hauser M5 is most advantageous when exacting hole locations, fine finishing, or coordinate boring are needed-typically in tool making, mould building, and tasks requiring micron-level accuracy. It's ideal for final operations after rough machining to ensure precise dimensions and alignment.

Q: Where can the Hauser M5 be installed for optimal use?

A: The Hauser M5 is suitable for tool rooms, precision machining shops, and industrial environments dedicated to mold and die production. It requires a stable, controlled workspace with adequate space for its footprint and rotary table accessories.

Q: What is the process for setting up and operating this jig boring machine?

A: Setup involves securing the machine in a level location, connecting the DRO system, and configuring the SIP PD-4 Rotary Table. Tools and micro-boring heads are selected and mounted as needed for the application. The intuitive Heidenhain DRO aids in precise positioning throughout the operation.

Q: How does using the Hauser M5 benefit precision engineering and manufacturing projects?

A: Its superior accuracy reduces material wastage and rework by consistently producing parts within tight tolerances. The comprehensive equipment package offers enhanced flexibility and efficiency for a variety of complex machining tasks, supporting quality improvements in finished products.
