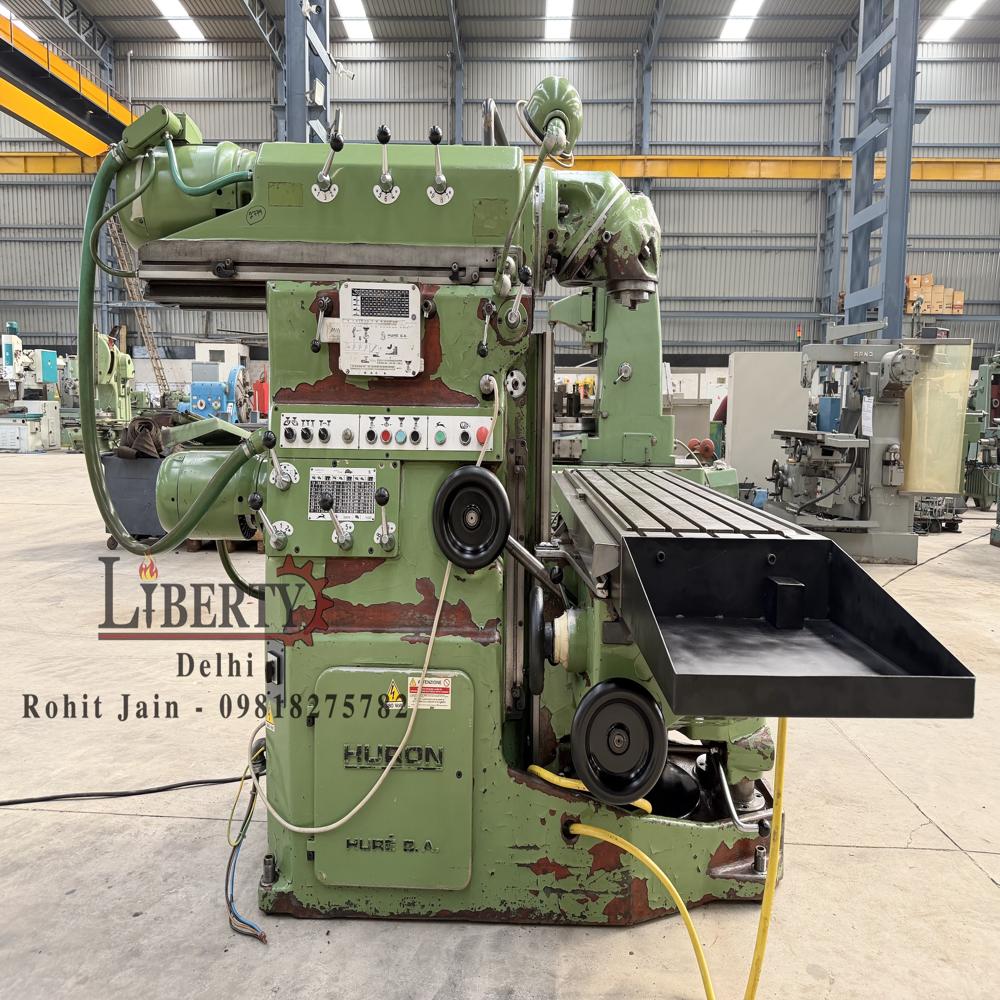

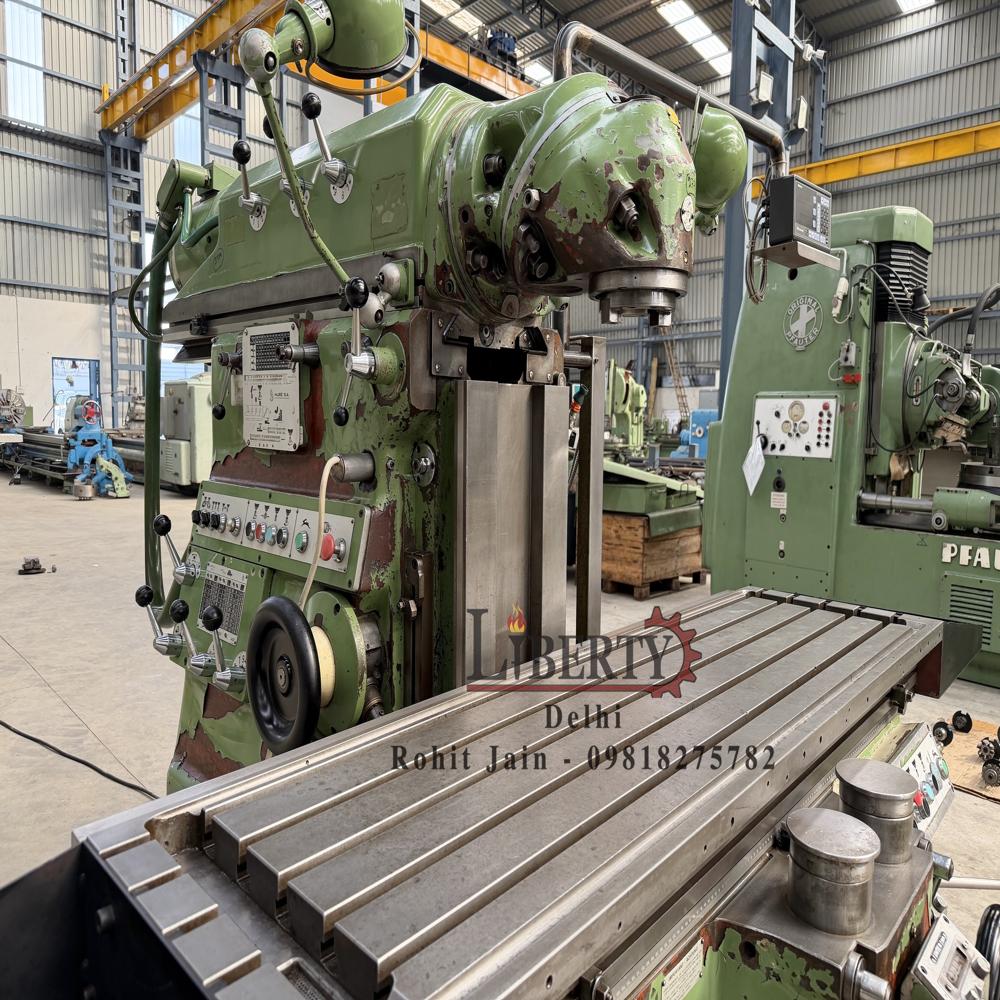

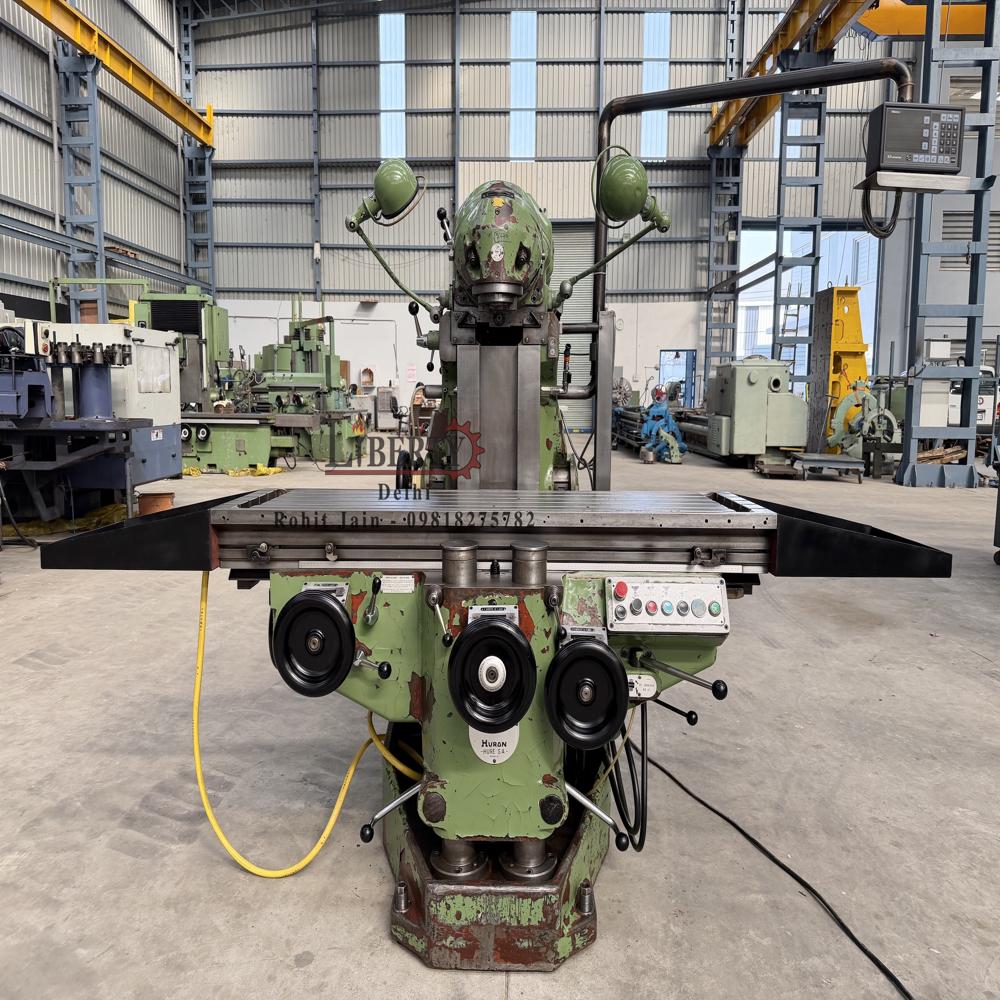

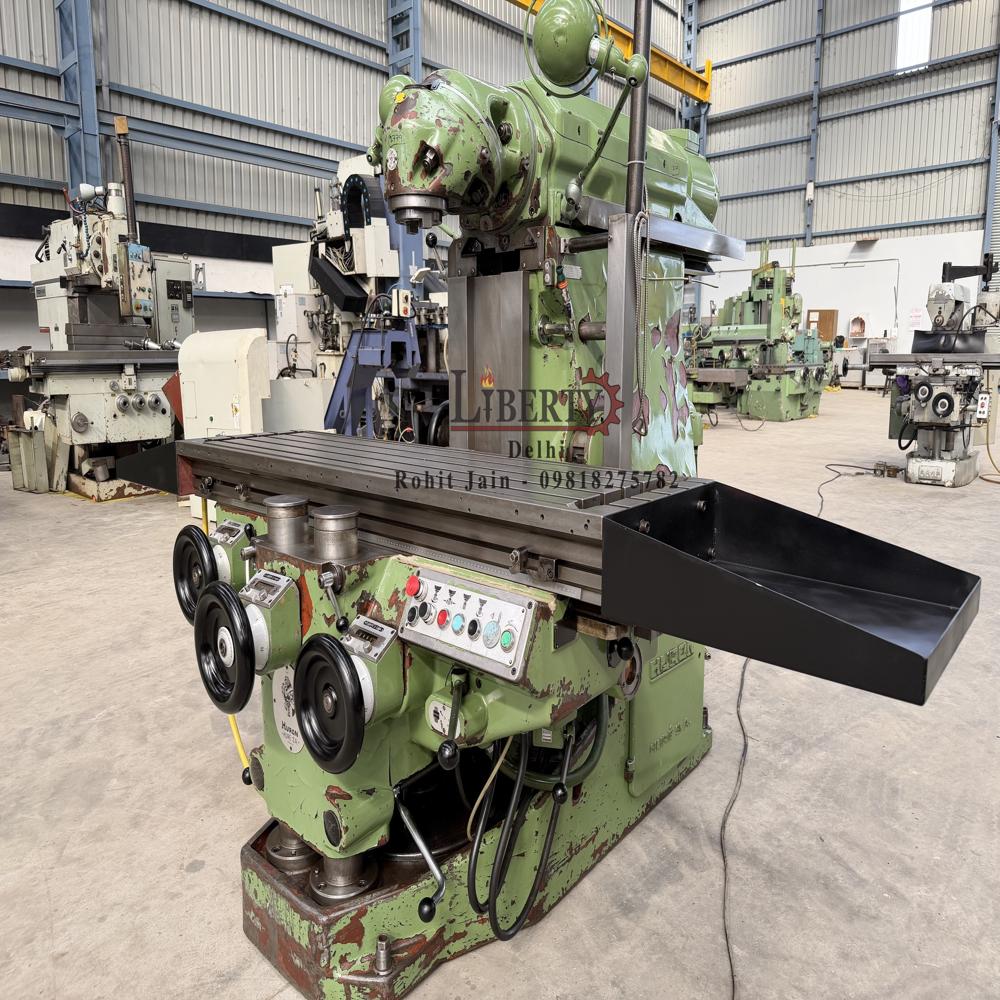

Huron France MU-5 Universal Milling Machine

Name: Huron France MU-5 Universal Milling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Huron France MU-5 Universal Milling Machine Specification

General Use
Universal Milling Machine made by Huron (France) in excellent working condition. The model of the machine is MU-5 and the Table Size is 1635 mm x 460 mm. The machine has a double-swivel universal milling head, allowing for vertical, horizontal, & angular milling operations. The machine is complete with Micro Boring Head, many Tool Holders, Face Mill Cutters, Universal Tilting Angular Table, and is also equipped with a 3-Axis DRO. The technical details are as follows -

About Huron France MU-5 Universal Milling Machine

Make - Huron (France)

Model - MU-5

Table Size - 1635 mm x 460 mm

XYZ Travel - 1300 mm x 700 mm x 550 mm

Spindle Speeds - 30 rpm to 2066 rpm

Spindle Taper - ISO 50

Feed Rates - 1.6 mm/min to 820 mm/min

- Equipped with a 3-Axis DRO.

- Double Swivel type Universal Milling Head.

- Suitable for Vertical, Horizontal & Angular Milling operations.

- Complete with Micro Boring Head, Face Mill Cutters, Tool Holders etc.

- Complete with a Universal Tilting Angular Table.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/dc3rqCoQrF8

Advanced Universal Milling Capabilities

The Huron MU-5 is engineered for versatility, capable of complex milling operations in vertical, horizontal, and angular orientations. Its double-swivel universal milling head greatly expands machining flexibility, supporting intricate production processes for diverse applications.

Equipped for Precision and Productivity

This machine comes fully equipped with a Micro Boring Head, numerous tool holders, and face mill cutters. Combined with the universal tilting angular table and advanced 3-axis DRO system, users benefit from streamlined processes and precise results in every project.

FAQ's of Huron France MU-5 Universal Milling Machine:

Q: How does the double-swivel universal milling head improve machining operations?

A: The double-swivel universal milling head allows the operator to perform vertical, horizontal, and angular milling without needing to reposition the workpiece, saving time and enabling more complex geometries to be produced with accuracy.

Q: What technical specifications make the Huron MU-5 suitable for large workpieces?

A: Its spacious table size of 1635 mm x 460 mm allows machining of larger components, while the robust build supports demanding industrial tasks with high precision and stability.

Q: When is the best application for using the Micro Boring Head included with the machine?

A: The Micro Boring Head is ideal when fine-tuning bore dimensions is required, such as in high-precision engineering tasks where tight tolerances are crucial, ensuring smooth and accurate holes.

Q: Where can the Huron MU-5 Universal Milling Machine be used effectively?

A: This machine fits well in engineering workshops, manufacturing plants, and tool rooms across various industries such as automotive, aerospace, and general fabrication, particularly where versatile milling solutions are needed.

Q: What benefits does the 3-Axis Digital Readout (DRO) provide?

A: The 3-Axis DRO enables precise monitoring of table movement in all axes, minimizing human error, enhancing accuracy, and improving overall efficiency during milling operations.

Q: How easy is it to change between different milling operations on this machine?

A: Thanks to its universal milling head and included toolholders, switching between vertical, horizontal, and angular operations is straightforward, making it easy to adapt to diverse machining requirements.
