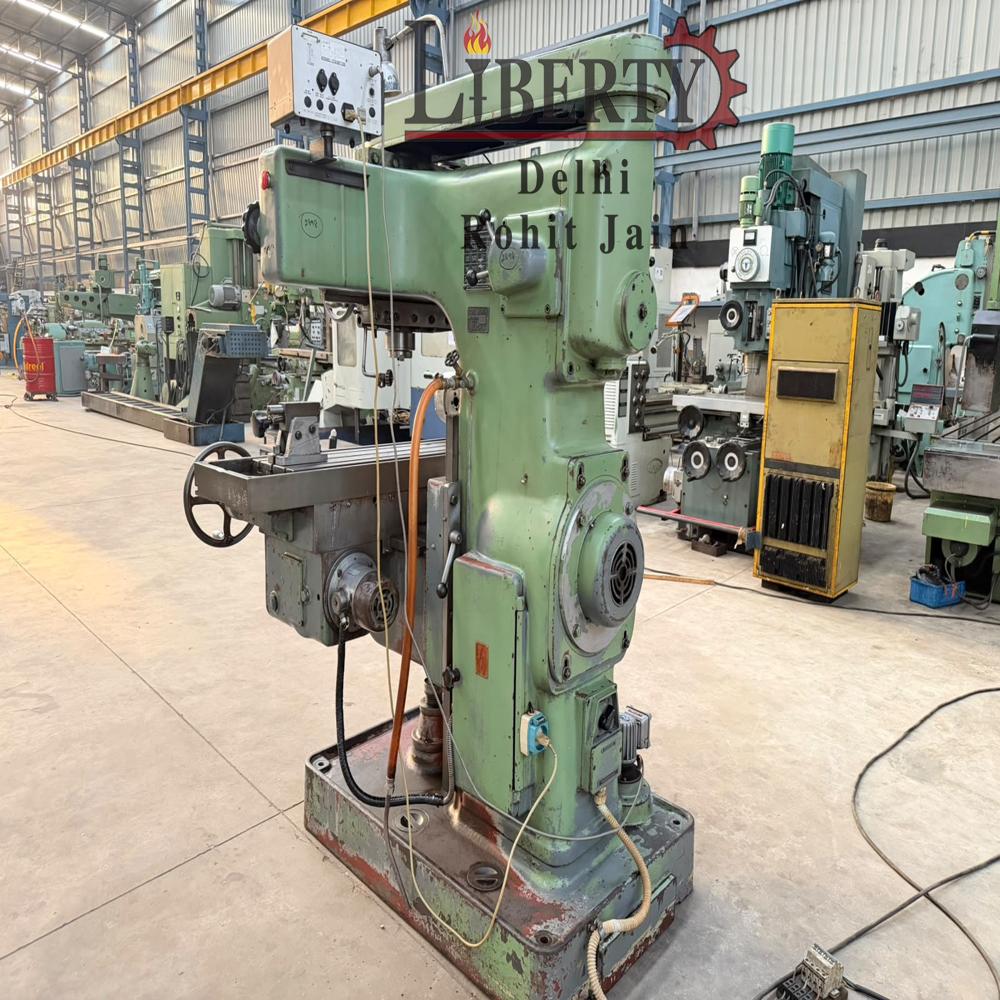

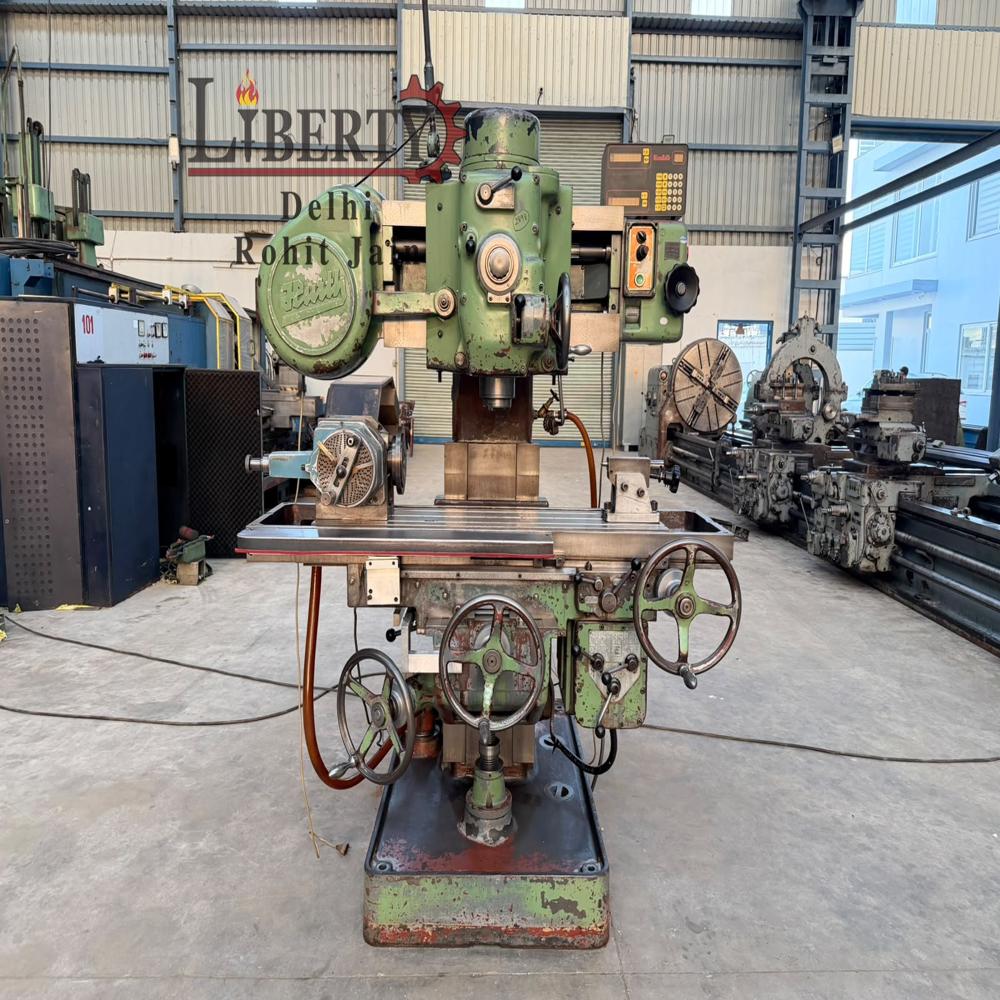

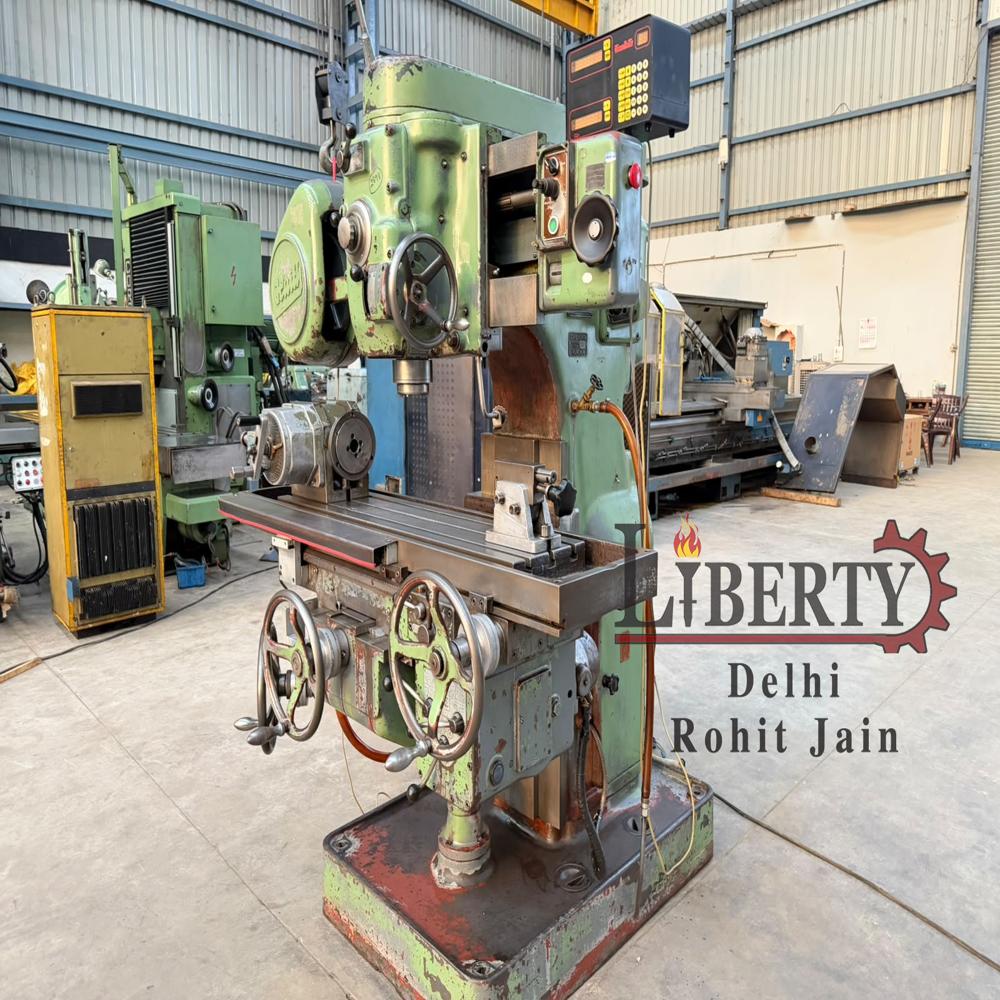

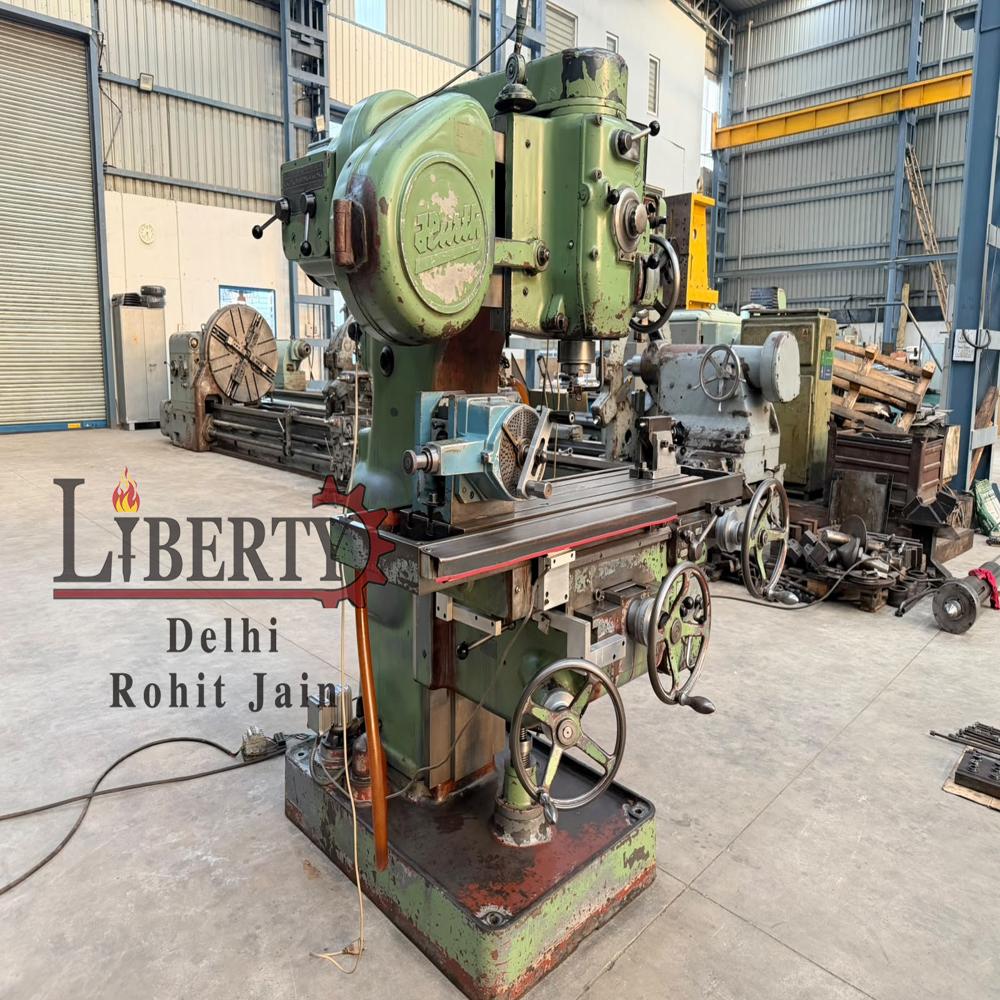

Hurth Germany LFV-3 Vertical Automatic Slot Milling Machine
Hurth Germany LFV-3 Vertical Automatic Slot Milling Machine
Hurth Germany LFV-3 Vertical Automatic Slot Milling Machine
Hurth Germany LFV-3 Vertical Automatic Slot Milling Machine
Hurth Germany LFV-3 Vertical Automatic Slot Milling Machine
Hurth Germany LFV-3 Vertical Automatic Slot Milling Machine
Hurth Germany LFV-3 Vertical Automatic Slot Milling Machine
Hurth Germany LFV-3 Vertical Automatic Slot Milling Machine

Hurth Germany LFV-3 Vertical Automatic Slot Milling Machine

Price 55000.0 INR/ Piece

MOQ : 1 Piece

Hurth Germany LFV-3 Vertical Automatic Slot Milling Machine Specification

  • Model
  • LFV-3
  • Rotation
  • Vertical Automatic Slot Milling Machine
  • Product Type
  • - High-Production Automatic Operation with Automatic Depth Feed. - Suitable for machining Keyways, Splines, Slots, Notches, Grooves, and similar profiles. - Equipped with DRO for Longitudinal Table Travel. - Complete with Tool Holder, Collet Holder, Collets, and other accessories. - Machine is in excellent working condition.
  • General Use
  • Automatic Vertical Slot Milling Machine manufactured by Hurth (Germany), Model LFV-3, available in excellent working condition. This is a High-Production Automatic Milling Machine designed for machining keyways, splines, slots, notches, grooves, and similar profiles. The machine features Automatic Depth Feed through the spindle, enabling efficient, accurate, and repeatable machining operations. It also features Automatic Longitudinal Feed of the Table, allowing the machining of longer slots and profiles. The machine has a Maximum Slot Width of 50 mm and a Maximum Slot Length of 240 mm + Tool Diameter using the reciprocating motion of the Milling Head alone, and up to 790 mm + Tool Diameter when the Table Travel is also utilised. The technical details are as follows -
  • Computerized
  • No
  • Automatic
  • Yes
  • CNC Or Not
  • Normal
  • Table Size
  • 1240 mm x 350 mm
  • Feature
  • High Performance
  • Warranty
  • no



About Hurth Germany LFV-3 Vertical Automatic Slot Milling Machine

Make - Hurth (Germany)
Model - LFV-3
Max. Slot Width - 50 mm
Max. Slot Length - 240 mm + Tool Diameter
Max. Slot Length using Table Travel - 790 mm + Tool Diameter
Max. Slot Depth - 110 mm
Table Size - 1240 mm x 350 mm
Centre Height of the Dividing Head - 130 mm
Distance between Centers - 550 mm
Longitudinal Feed Travel of Table (Automatic) - 550 mm
Cross Travel of Table (Manual) - 250 mm
Spindle Speed Range - 90 to 1000 RPM
Spindle Taper - ISO-40
Milling Head Stroke Rate - 1.4 to 22.4 strokes/min
Automatic Depth Feed Rate - 0.05 to 0.50 mm/stroke
- High-Production Automatic Operation with Automatic Depth Feed.
- Suitable for machining Keyways, Splines, Slots, Notches, Grooves, and similar profiles.
- Equipped with DRO for Longitudinal Table Travel.
- Complete with Tool Holder, Collet Holder, Collets, and other accessories.
- Machine is in excellent working condition.

Video of The Machine -
