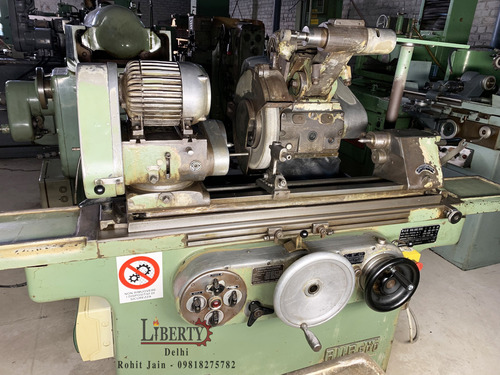

Karstens Precision Cylindrical Grinder

Price 17000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Karstens Precision Cylindrical Grinder Specification

Product Type
Cylindrical Grinder

General Use
Precision Grinding of Internal and External Cylindrical Surfaces

Material
Cast Iron, Alloy Steel

Type
Manual

Capacity
300 mm (Between Centers)

Weight (kg)
2200

Computerized
No

Automatic
No

Control System
Hand Operated

Drive Type
Belt Driven

Grinding Diameter
200 mm

Grinding Length
500 mm

Spindle Speed
1660 rpm

Grinding Wheel Size
350 x 50 x 127 mm

Voltage
415 V

Dimension (L*W*H)
2050 x 1350 x 1600 mm

Feature
High Accuracy, Robust Construction, Smooth Operation

Color
Light Grey

Coolant System
Provided

Internal Grinding Attachment
Optional

Workhead Spindle Taper
MT4

Max Workpiece Weight
60 kg

Table Swivel Range
+7° to -3°

Lubrication System
Centralized

Wheel Head Traverse
250 mm

About Karstens Precision Cylindrical Grinder

Make - Karstens (Germany)

Center Height - 150 mm

Max. Diameter of Job - 300 mm

Max. Length of Job - 400 mm

Max. Grinding Wheel Diameter - 400 mm

Max. Grinding Wheel Width - 100 mm

Work-Head Speeds - 30 rpm to 450 rpm (Continuously Variable)

Least Count - 1 Micron (0.001 mm)

- Equipped with Internal Grinding Attachment.

- Complete with Wheel Dresser, spare Grinding Wheels.

- Complete with Coolant Tank & Pump.

- Machine is in excellent working condition.

Video link - https://youtu.be/C4i7P9EA2eM

High Precision Grinding Performance

With a maximum grinding diameter of 200 mm and a grinding length of 500 mm, this manual cylindrical grinder ensures exceptional accuracy for both internal and external surfaces. The machines robust build and smooth wheel head traverse of 250 mm allow steady, reliable operation over prolonged periods, making it suitable for intricate as well as standard grinding jobs.

Versatile Table and Workhead Design

The tables swivel range of +7 to -3 in conjunction with an MT4 workhead spindle taper enables flexible setup for different angular grinding requirements. This adaptability is further enhanced with an optional internal grinding attachment, broadening the machines utility in machining workshops handling various component geometries.

Operator-Friendly and Durable

Hand operation combined with centralized lubrication guarantees ease of maintenance and long-term durability. The integrated coolant system efficiently manages heat, ensuring smooth surface finishes and extending grinding wheel life. With high-capacity handling and sturdy construction, the grinder suits industrial needs for reliability and precision.

FAQs of Karstens Precision Cylindrical Grinder:

Q: How does the Karstens Cylindrical Grinder accommodate different workpiece shapes?

A: The grinder features a table swivel range from +7 to -3, allowing the operator to adjust the grinding angle. Combined with the MT4 spindle taper and an optional internal grinding attachment, this design offers versatility for both standard and intricate cylindrical surfaces.

Q: What materials can be processed using this grinder?

A: This machine is built to handle components made of cast iron and alloy steel, offering high accuracy and robustness. Its design makes it especially suitable for industries requiring precision surface finishing on sturdy materials.

Q: When should maintenance be performed on the lubrication and coolant systems?

A: Routine maintenance should be scheduled based on usage intensity. The centralized lubrication system simplifies oiling procedures, and the coolant system should be checked regularly to ensure optimal heat dissipation and machine longevity.

Q: Where is this precision cylindrical grinder typically used?

A: It is commonly deployed in tool rooms, manufacturing workshops, and production lines where precise external and internal grinding of cylindrical parts is essential. Its reliability makes it a staple in both small-scale and larger industrial settings.

Q: What process steps are involved in operating the grinder?

A: The workpiece is mounted between centers, necessary adjustments are made using the hand-operated controls, and the grinding wheel is set to the desired traverse. The built-in coolant and lubrication systems are engaged to maintain optimal operating conditions during grinding.

Q: How does the centralized lubrication system benefit the user?

A: The centralized system ensures all critical machine components are consistently and efficiently lubricated, reducing wear, minimizing maintenance time, and promoting longer service life. Operators can easily oversee and maintain the lubrication process.

Q: What are the main advantages of choosing this manual cylindrical grinder?

A: Key benefits include its high level of accuracy, robust construction, and smooth operation. Additionally, manual control allows experienced machinists to achieve fine-tuned results, while features like the coolant and lubrication systems further enhance part quality and machine durability.
