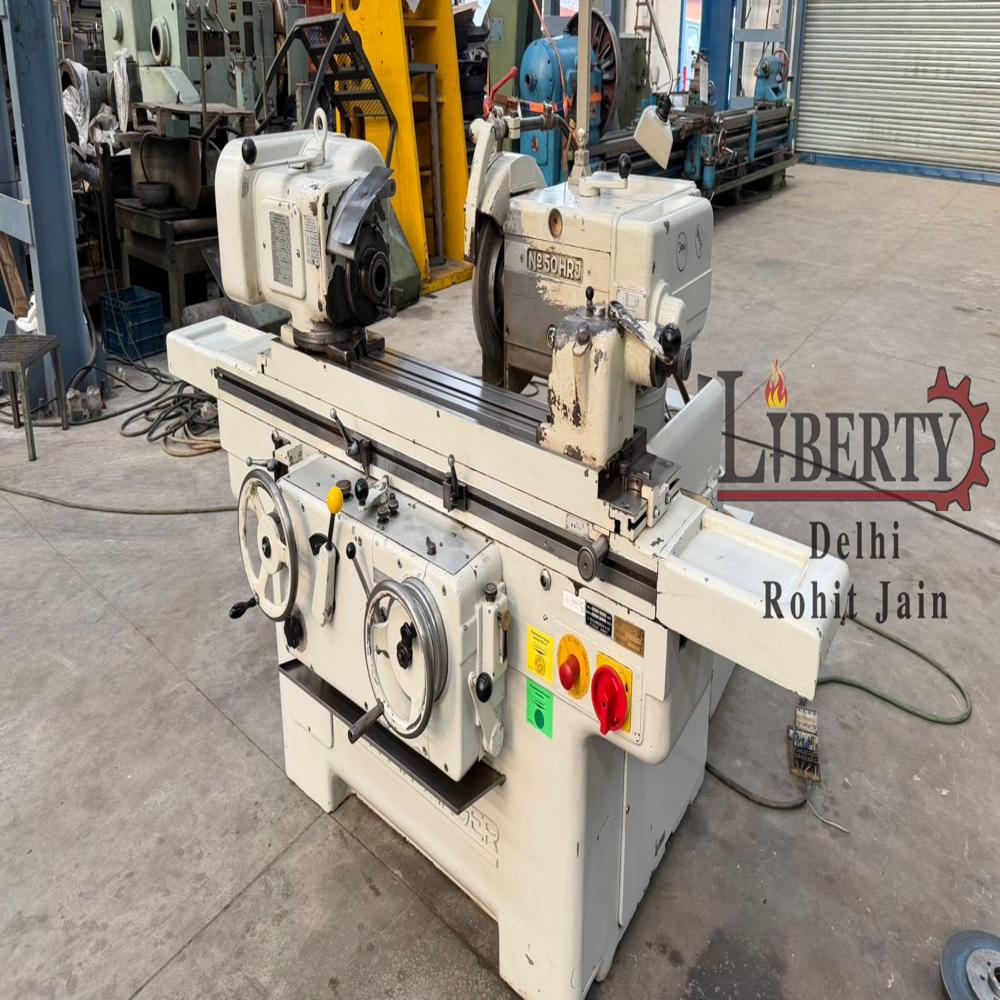

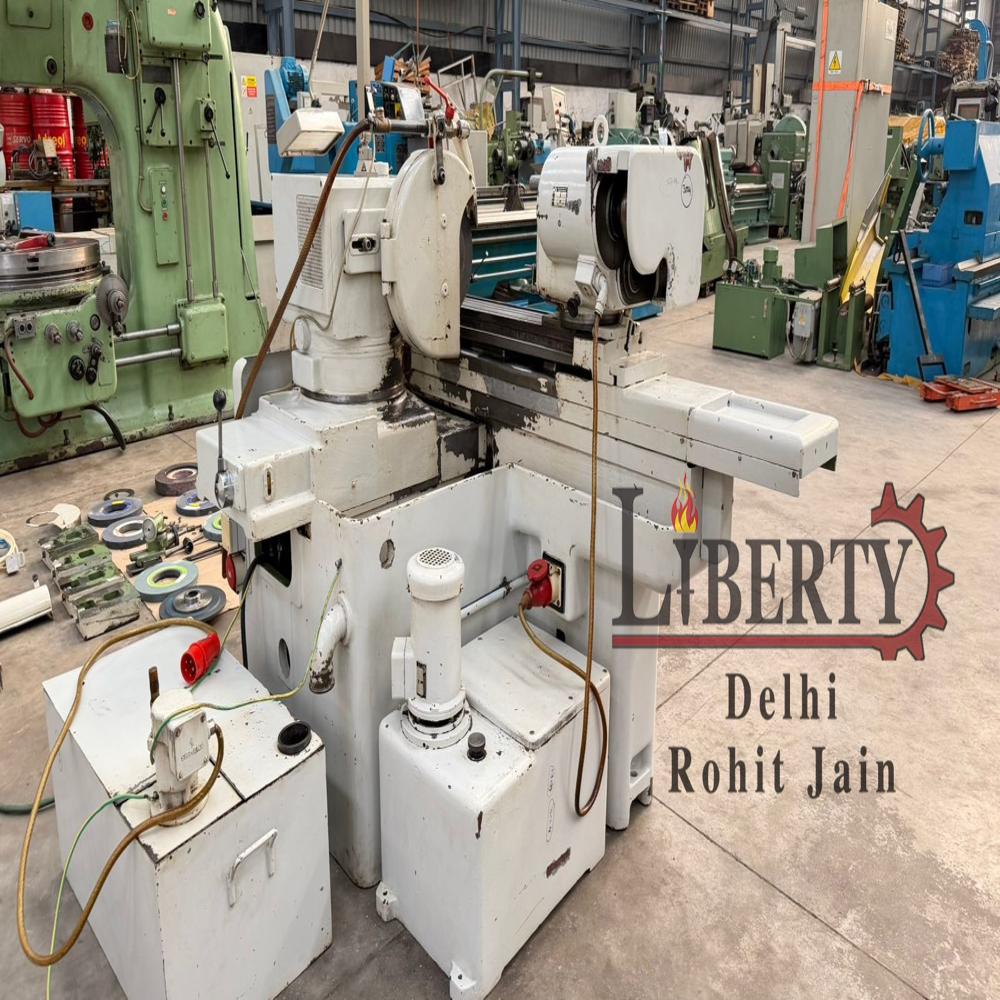

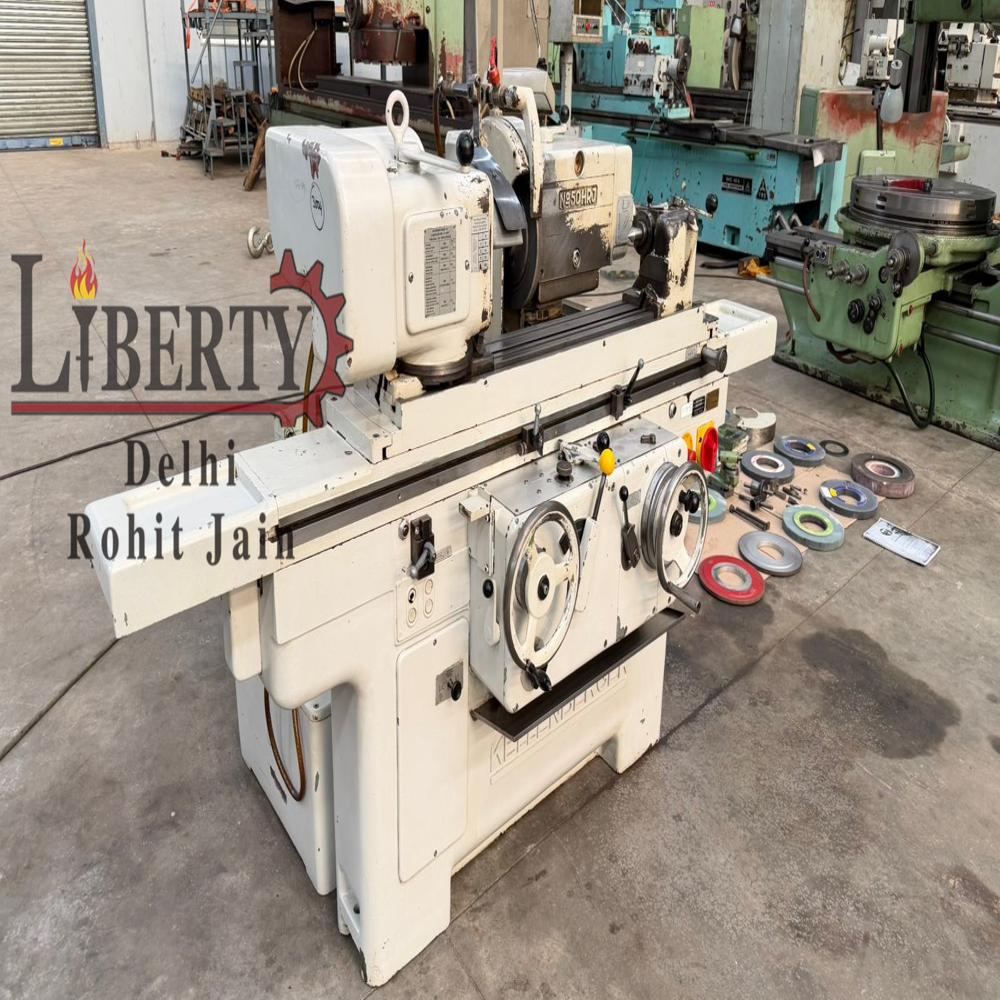

Kellenberger Switzerland 50-HRJ Cylindrical Grinding Machine

Name: Kellenberger Switzerland 50-HRJ Cylindrical Grinding Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Kellenberger Switzerland 50-HRJ Cylindrical Grinding Machine Specification

Product Type
Cylindrical Grinding Machine manufactured by Kellenberger (Switzerland), Model 50-HRJ, available in excellent working condition. The machine has a Maximum Grinding Capacity of 250 mm Diameter x 600 mm Job Length and features a Table Swivel Angle of +10 to -10 . It is equipped with Hydraulic Table Movement, Automatic Depth Adjustment (Auto-Cut), Table Delay (Dwell), and two different manual travel speeds for both the Table and Wheelhead. The machine is complete with Spare Diamond Grinding Wheels, Wheel Flange, Grinding Wheels, Coolant Tank, Coolant Pump, Angular Wheel Dresser, Operating Manual, Electrical Drawings, and various other accessories. The technical details are as follows -

About Kellenberger Switzerland 50-HRJ Cylindrical Grinding Machine

Make - Kellenberger (Switzerland)

Model - 50-HRJ

Centre Height - 125 mm

Max. Job Length - 600 mm

Max. Job Diameter - 250 mm

Grinding Wheel Size - Diameter 350 mm 40 mm Width

Workhead Speed Range - 50 to 400 RPM

Table Swivel Angle - +10 degree to -10 degree

Type - Hydraulic Table Movement; Mechanical Wheelhead Travel

- Features Automatic Depth Adjustment (Auto-Cut) and Table Delay Feature.

- Features two different manual travel speeds for the Table and two separate manual travel speeds for the Wheelhead.

- Complete with Spare Diamond Grinding Wheels, Wheel Flange, and Grinding Wheels.

- Complete with Coolant Tank, Coolant Pump, Angular Wheel Dresser, and other accessories.

- Operating Manual and Electrical Drawings are available.

- Machine is in excellent working condition.

Video of the Machine -

https://youtu.be/1x8mR_fsZQk

Robust Heavy-Duty Lathe Features

The TOS SU-63A lathe stands out with its wide 565 mm bed and high 315 mm centre height, allowing for stable and precise machining. Its 3500 mm maximum turning length supports processing of lengthy and heavy workpieces, making it suitable for challenging industrial applications.

Precision Machining & Versatility

Equipped with a 650 mm 4-jaw independent chuck and an automatic taper turning attachment, the lathe excels in performing a wide range of operations, including turning, facing, threading, boring, and taper turning. This enables users to achieve accurate results in both simple and complex machining tasks.

Complete Package with Accessories

The machine comes fully equipped with a steady rest, follow rest, coolant tank and pump, operating manual, and detailed electrical drawings. This comprehensive package ensures smooth setup and operation, minimizing downtime and maximizing productivity for users.

FAQ's of Kellenberger Switzerland 50-HRJ Cylindrical Grinding Machine:

Q: How does the TOS SU-63A Heavy-Duty Lathe enhance machining accuracy?

A: With its rigid 565 mm wide bed and 315 mm centre height, plus an automatic taper turning attachment, the TOS SU-63A provides excellent stability and precision, ensuring consistent results during complex or long taper machining operations.

Q: What types of operations are possible with this heavy-duty lathe?

A: The lathe is engineered for heavy-duty turning, facing, boring, threading, and precision taper turning. Its robust design and versatile attachments make it suitable for a variety of demanding industrial machining requirements.

Q: When is it ideal to use this machine setup?

A: This machine is ideal for environments requiring the machining of large, heavy, or long components, such as manufacturing and repair shops in the metalworking industry. Its excellent working condition and comprehensive features support both high-volume and precision work.

Q: Where can the SU-63A lathe be installed and operated efficiently?

A: It can be set up in industrial workshops, manufacturing plants, and export-import facilities equipped for heavy engineering tasks. Its size and design make it well-suited for spaces that handle large-scale machining projects.

Q: What is the process for setting up and maintaining this lathe?

A: Installation involves securing the machine on a level floor, connecting the coolant system, and following the operating manual for calibration. Routine maintenance includes lubrication, cleaning the coolant system, and checking accessories such as the steady and follow rests to ensure optimal performance.

Q: How does the automatic taper turning attachment benefit users?

A: The automatic taper turning attachment enables precise machining of long tapers without manual intervention. This enhances accuracy and repeatability, reducing human error and increasing overall efficiency for complex turning operations.

Q: What accessories are included and how do they improve machine usage?

A: Included accessories are a steady rest, follow rest, coolant tank, coolant pump, operating manual, and electrical drawings. These components support a smooth machining process, enhance stability for large workpieces, and provide users with all necessary resources for effective setup and operation.
