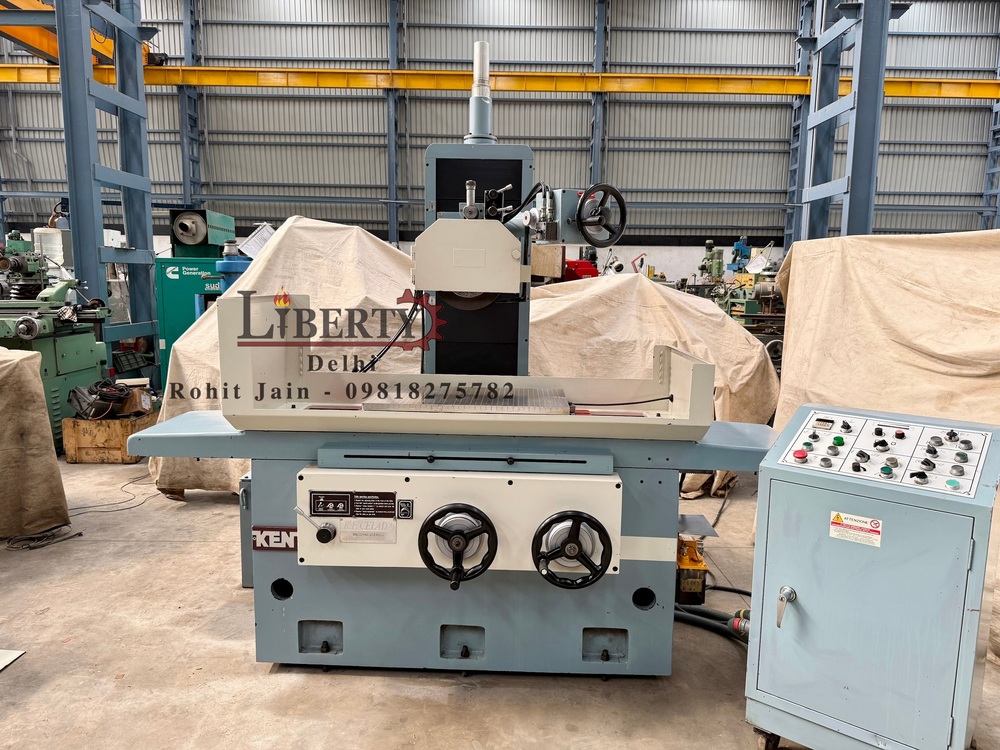

Kent KGS-407 400 mm x 700 mm Surface Grinding Machine

Name: Kent KGS-407 400 mm x 700 mm Surface Grinding Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Kent KGS-407 400 mm x 700 mm Surface Grinding Machine Specification

Rotation
Left & Right (table reciprocation)

Model
KGS-407

Product Type
Surface Grinding Machine

General Use
Precision surface grinding for industrial applications

Material
Cast Iron Body

Type
Horizontal Spindle Surface Grinder

Capacity
700 mm (Max. grinding length)

Weight (kg)
Approx. 2500

Computerized
No

Automatic
No

CNC Or Not
Not CNC

Control System
Manual

Table Size
400 mm x 700 mm

Table Slide Way
Double V and flat

Magnetic Chuck Size
400 mm x 700 mm

Grinding Wheel Size
355 mm x 38 mm x 127 mm

Grinding Wheel Speed
1450 rpm

Grinding Length
700 mm

Floor Space
2300 mm x 2100 mm

Fuel Tank Capacity
60 liters

Spindle Speed
1450 rpm

Power
5 HP (3.7 kW)

Voltage
415 V, 3-Phase

Dimension (L*W*H)
2300 mm x 2100 mm x 1980 mm

Feature
High precision, rugged construction, easy operation

Color
White & Grey

Cross Feed Travel
430 mm

Lubrication System
Automatic central lubrication

Coolant Tank Capacity
80 liters

Standard Accessories
Magnetic chuck, grinding wheel, balancing stand, wheel flange, toolkit

Working Speed
5-25 m/min (table speed)

Table Load Capacity
~380 kg

Vertical Feed Graduation
0.002 mm

Max Distance from Table Surface to Spindle Center
575 mm

Packing Dimension
2500 mm x 2250 mm x 2200 mm

Hydraulic Oil Capacity
60 liters

Drive Type
Belt Driven

Min Increment in Vertical Feed
0.005 mm

Table Longitudinal Travel
780 mm

Kent KGS-407 400 mm x 700 mm Surface Grinding Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Kent KGS-407 400 mm x 700 mm Surface Grinding Machine

Make - Kent (Taiwan)

Model - KGS-407 AHD

Magnet Size - 400 mm x 700 mm

Longitudinal Travels - 770 mm

Cross Travels - 440 mm

Grinding Wheel Size - Diameter 300 mm x 40 mm Width

Max. Height between Magnet Top to Wheel Center - 495 mm

Least Count of Vertical Travel - 2 Microns (0.002 mm)

- Cross Travels is through the movement of complete Column.

- Equipped with a Hydraulic Top Mounted Wheel Dresser.

- Features of Automatic Depth Adjustment, Automatic Plunge Grinding, etc.

- Fitted with new DELTA make PLC.

- Electrical Drawings, PLC Programs etc. of the machine are available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/6l03GmZuKbo

Precision Engineering and Rugged Construction

The Kent KGS-407 surface grinder is engineered for accuracy, stability, and long service life. Its cast iron body and double V & flat slideways provide outstanding rigidity, helping maintain precision across long runs. With a max grinding length of 700 mm and a robust manual control system, the machine guarantees exceptional results for challenging industrial applications.

Optimized for User-Friendly Operation

Equipped with an extensive array of standard accessories-such as a magnetic chuck, wheel flange, and balancing stand-the KGS-407 makes setup straightforward and safe. The intuitive manual controls, automatic central lubrication, and precise feed graduations ensure easy and efficient operation, even for demanding production environments.

FAQ's of Kent KGS-407 400 mm x 700 mm Surface Grinding Machine:

Q: How do I operate the Kent KGS-407 surface grinding machine for best performance?

A: Ensure the magnetic chuck is clean and properly set, secure your workpiece, and adjust table, cross, and vertical feeds using the manual controls. Use the appropriate grinding wheel and set spindle speed at 1450 rpm. Regularly monitor oil and coolant levels, and activate the automatic central lubrication before operation for smooth performance.

Q: What are the key benefits of using this surface grinder in industrial settings?

A: The KGS-407 offers high precision, a rugged cast iron body, and generous table capacity, making it ideal for industrial precision grinding tasks. Its automatic lubrication and easy-to-operate manual controls minimize maintenance and training time, while maximizing reliability and output quality.

Q: When should the hydraulic oil and coolant be checked or replaced?

A: Check the hydraulic oil and coolant levels daily before starting the machine. Replace them according to usage intensity-typically every 6 months for the hydraulic oil, and every 3-6 months for coolant, or sooner if contaminants are observed. Always follow manufacturer recommendations for best results.

Q: Where is the Kent KGS-407 typically used?

A: This machine is commonly used in factories, workshops, and manufacturing plants that require precise surface finishing on metal parts. It is suitable for application in the automotive, machinery, toolmaking, and export sectors, where accuracy and repeatability are essential.

Q: What materials can be processed on the KGS-407?

A: The Kent KGS-407 excels at grinding ferrous and non-ferrous metals, particularly for flat or parallel surfaces. It's suitable for steel, cast iron, and other tough industrial metals typically found in parts manufacturing.

Q: How does the double V and flat table slideway design enhance grinding accuracy?

A: The double V and flat slideways provide superior stability and smooth movement, reducing vibration and ensuring consistent contact between the workpiece and grinding wheel. This results in higher accuracy and a finer surface finish during the grinding process.

Q: What is the process for routine maintenance on this surface grinder?

A: Routine maintenance includes cleaning the working area, checking oil and coolant levels, inspecting the grinding wheel for wear, and ensuring the lubrication system functions properly. Regularly tighten bolts, check the drive belt tension, and keep slideways free of debris to maintain optimal performance.
