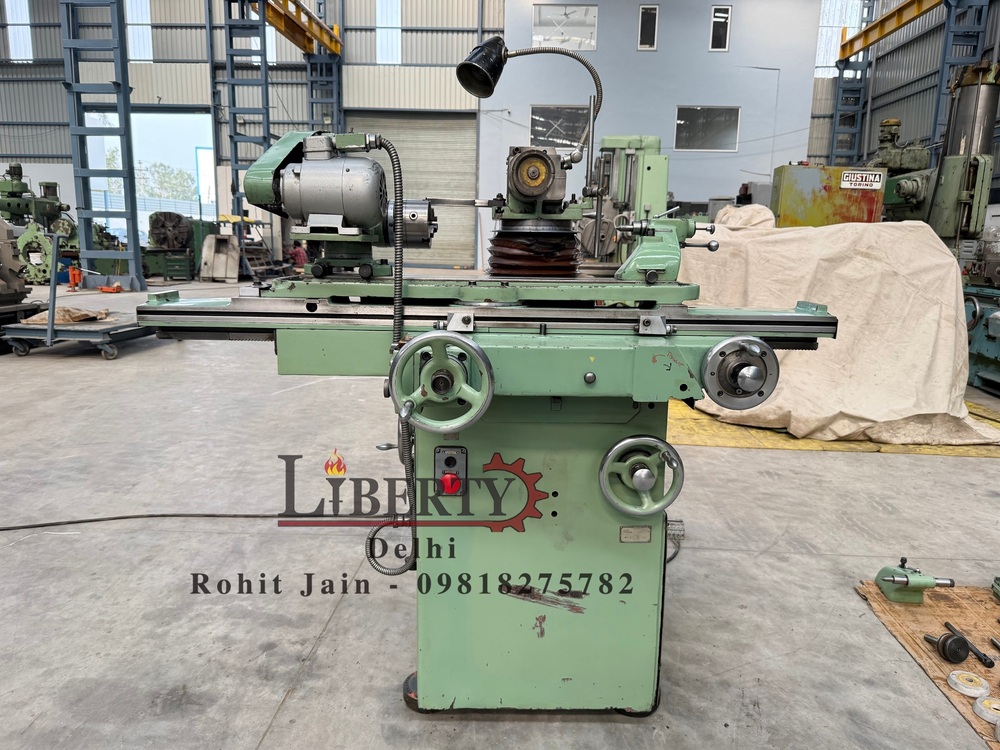

Lizzini Italy Auto-Indexing Universal Tool Cutter Grinder

Name: Lizzini Italy Auto-Indexing Universal Tool Cutter Grinder
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Lizzini Italy Auto-Indexing Universal Tool Cutter Grinder Specification

Brooches Type
Auto-Indexing

Drill Bits Types
Universal (Various Tools & Cutters)

Length
Supported Tool Length: Up to 300 mm

Hardness
Supports HSS, Carbide, and Alloy Tools

Features
Auto-indexing head, multi-angle grinding, universal work head

Shape
Rectangular Base with Movable Headstock

Machine Type
Auto-Indexing Universal Tool Cutter Grinder

Cutting Accuracy
Up to 0.005 mm (5 microns)

Tool Type
Indexable and Non-Indexable Tools

Cutting Capacity
Max Tool Diameter: 200 mm (Approx.)

Cutter Type
Multi-Tool Support: Drills, Endmills, Reamers, Taps, Milling Cutters

Coating Type
Not Applicable (For Tool Grinding)

Cutting Speed
Spindle 2800 RPM

Operation Type
Universal Tool and Cutter Grinding

Coating
Not Applicable - Machine Tool Body is Painted

Cutting Force
12-15 kN (for select cutters)

Operate Method
Manual with Power Feed for Table

Material
Cast Iron Base, Hardened Steel Components

Diameter
Supported Tool Diameter: 3 mm - 200 mm

Maximum Torque
Customizable on Grinding Spindle (Standard 1.5 kW Motor)

Processing Type
Semi-Automatic/Manual

Blade Size
Versatile - Dependent on Tool Mounted

Grinding Wheel Size
Up to 200 mm

Applications
Regrinding of HSS, Carbide, and Special Tools; Production and Resharpening

Degrees of Indexing
High Precision Auto-Indexing with Fineness Up to 1°

Coolant System
Integrated Recirculating Pump

Headstock Motor Power
1.5 kW

Table Size
Approx. 750 mm x 150 mm

Net Weight
Approx. 700 kg

Workhead Swivel Range
360 Degrees

Lizzini Italy Auto-Indexing Universal Tool Cutter Grinder Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Lizzini Italy Auto-Indexing Universal Tool Cutter Grinder

Make - Lizzini (Italy)

Model - No. 3

Table Size - 1275 mm x 140 mm

Center Height - 190 mm

Max. Distance between Centers - 775 mm

Max. Job Diameter - 380 mm

Longitudinal Travel of Table - 800 mm

Cross Travel - 225 mm

Vertical Travel of Wheel-Head - 400 mm

Max. Distance between Table to Wheel Center - 500 mm

Wheel-Head Rotation on Horizontal Axis - 360 degree

Wheel-Head Rotation on Vertical Axis - 360 degree

- Equipped with Automatic Indexing Head.

- Automatic Hydraulic Movement of the Longitudinal Table Travel.

- Operating Manual and Electrical Drawings are available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/BMulE4eXpfE

Exceptional Versatility for Tool Regrinding and Production

Designed for a comprehensive range of applications, the Lizzini Auto-Indexing Universal Tool Cutter Grinder handles HSS, carbide, and alloy tools with ease. It accommodates various tool types-including drills, endmills, reamers, and milling cutters-ensuring reliable results for both resharpening and production settings.

High Precision and Flexible Operation

Achieve outstanding accuracy, up to 0.005 mm, thanks to the advanced auto-indexing head and a universal workhead capable of 360-degree swivel. The combination of manual operation with table power feed enhances both control and efficiency, making it suitable for small batches or frequent tool changes.

Durable Build and Integrated Coolant System

Constructed with a cast iron base and hardened steel components, this grinder offers robust durability. The integrated recirculating coolant pump ensures longer tool life and consistent grinding results, safeguarding tool performance and reducing maintenance intervals for demanding industrial use.

FAQ's of Lizzini Italy Auto-Indexing Universal Tool Cutter Grinder:

Q: How does the auto-indexing feature enhance tool grinding precision?

A: The auto-indexing head offers high-precision angular adjustments with fineness up to 1, allowing for consistent and repeatable grinding on indexable and non-indexable tools. This ensures accurate results, especially important when resharpening complex or multi-fluted cutters.

Q: What types of tools can be processed by this cutter grinder?

A: The Lizzini cutter grinder is capable of regrinding and producing a variety of tools, including drills, endmills, reamers, taps, and milling cutters. It supports both HSS and carbide materials, making it suitable for universal tool and cutter grinding applications.

Q: When should the integrated coolant system be used during operation?

A: The integrated recirculating pump should be used during all grinding operations. It keeps the tool and grinding wheel cool, minimizes thermal deformation, and extends tool life, especially when working with high-speed steel or carbide tools.

Q: Where is this machine most beneficially employed?

A: This cutter grinder is ideal for use in tool rooms, manufacturing facilities, and workshops specializing in tool regrinding and production. Its versatility and durability make it a preferred choice for exporters, importers, manufacturers, and suppliers within the machining industry.

Q: What is the typical grinding process on this machine?

A: The typical workflow involves mounting the selected tool, adjusting settings as per tool type, securing the workpiece on the 360 swivel workhead, and selecting appropriate grinding angles. The operator then engages the manual operation and table power feed, with the coolant system running, to perform precise and uniform grinding.

Q: How does the grinder accommodate different tool diameters and lengths?

A: The machine supports tool diameters ranging from 3 mm to 200 mm and tool lengths up to 300 mm. The adjustable workhead and flexible table allow secure clamping and optimal positioning for diverse tool sizes, ensuring accurate results across a wide processing range.

Q: What are the main benefits of using the Lizzini Auto-Indexing Universal Tool Cutter Grinder?

A: Key benefits include high cutting accuracy (up to 0.005 mm), versatility for many tool types and materials, robust construction for reliable industrial use, and integrated features like auto-indexing and recirculating coolant-resulting in enhanced productivity and longer tool life.
