MAS Czech BPV300/1 Vertical Surface Grinding Machine

Send Inquiry

Request To Call Back

MAS Czech BPV300/1 Vertical Surface Grinding Machine

Name: MAS Czech BPV300/1 Vertical Surface Grinding Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MAS Czech BPV300/1 Vertical Surface Grinding Machine Specification

Rotation
Grinding Spindle Horizontal

Model
BPV300/1

Product Type
Vertical Surface Grinding Machine

General Use

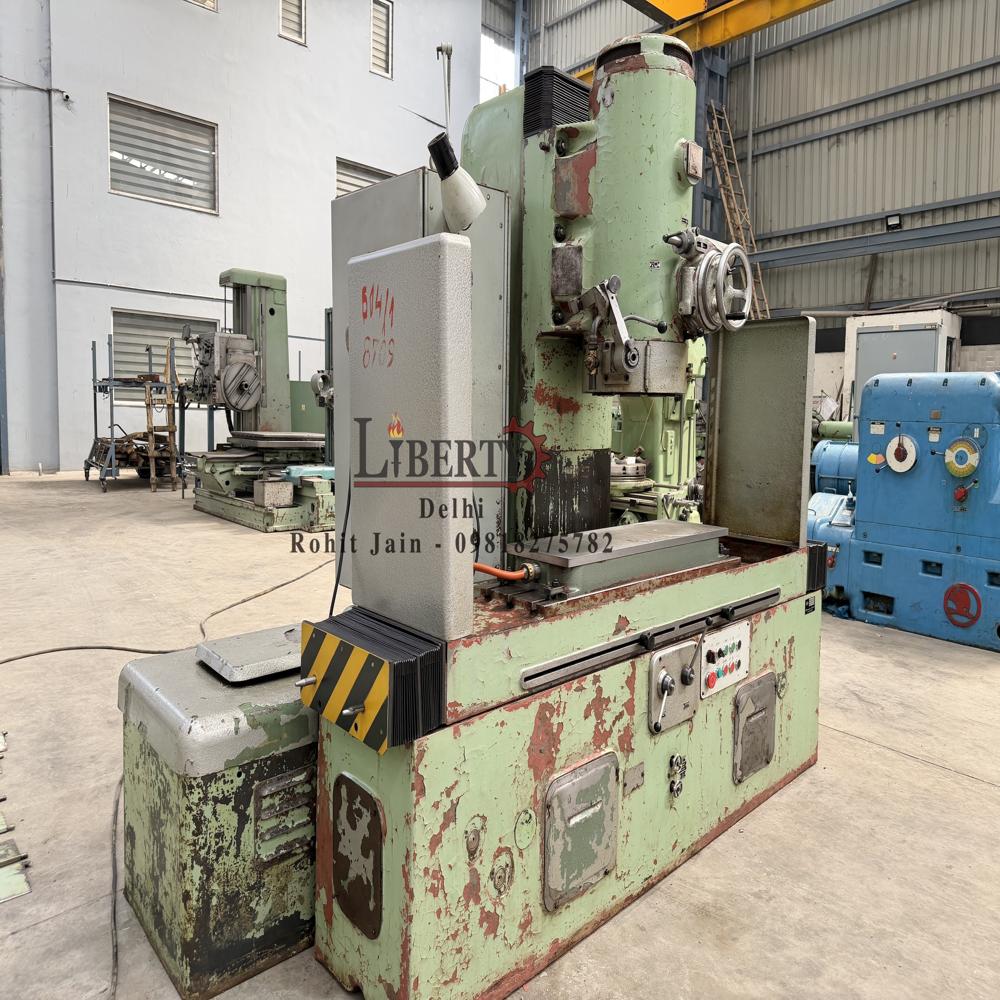

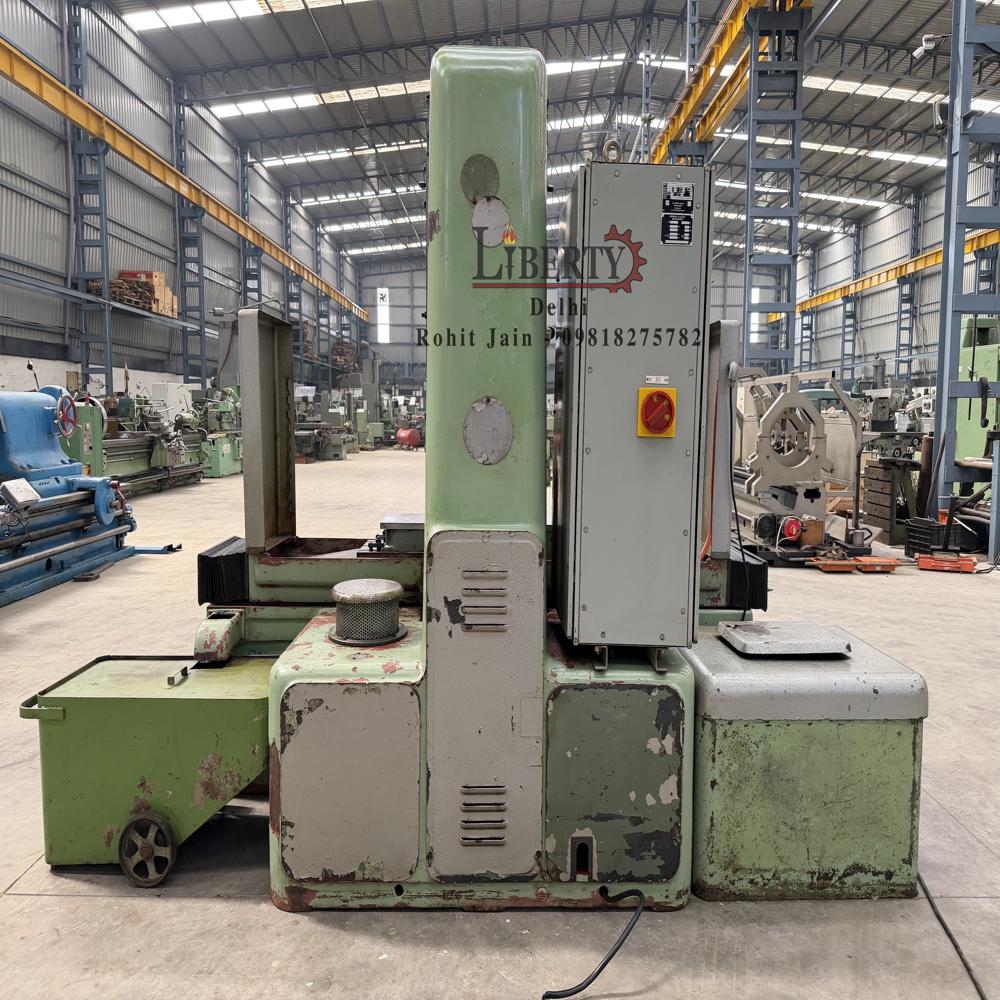

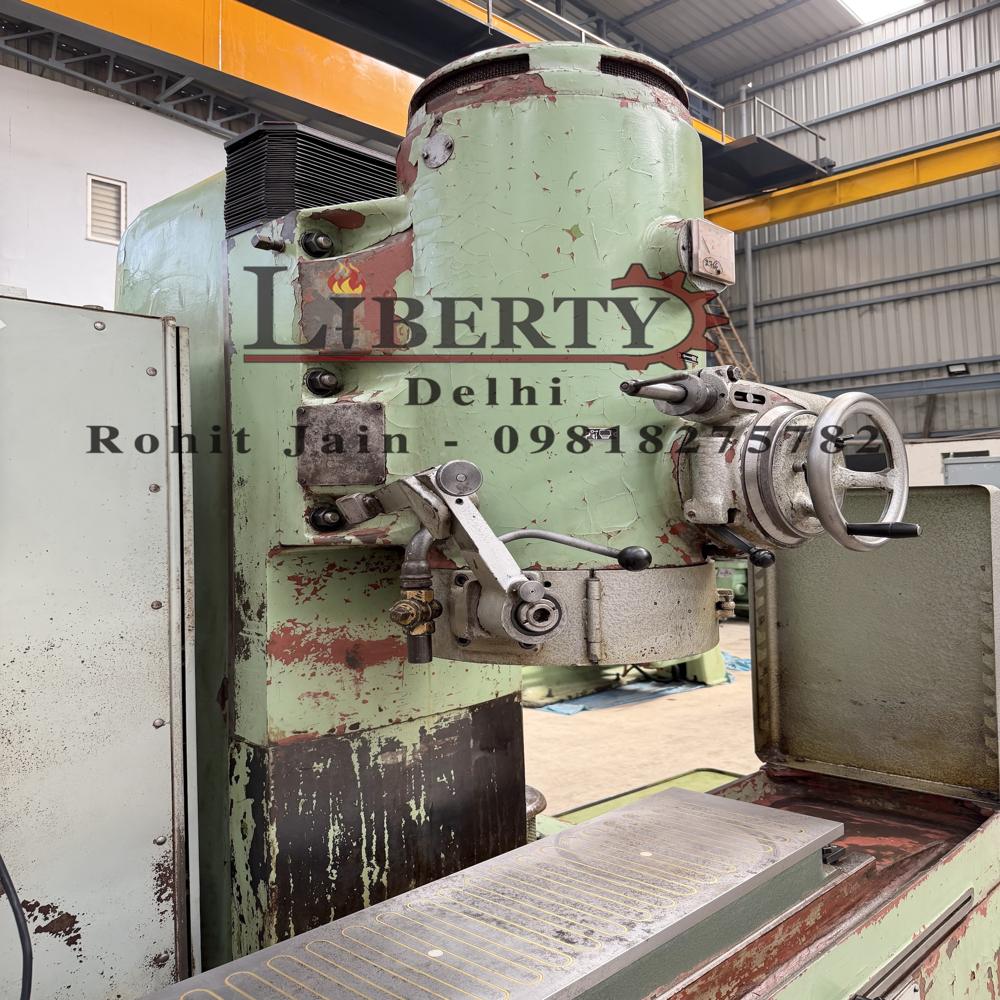

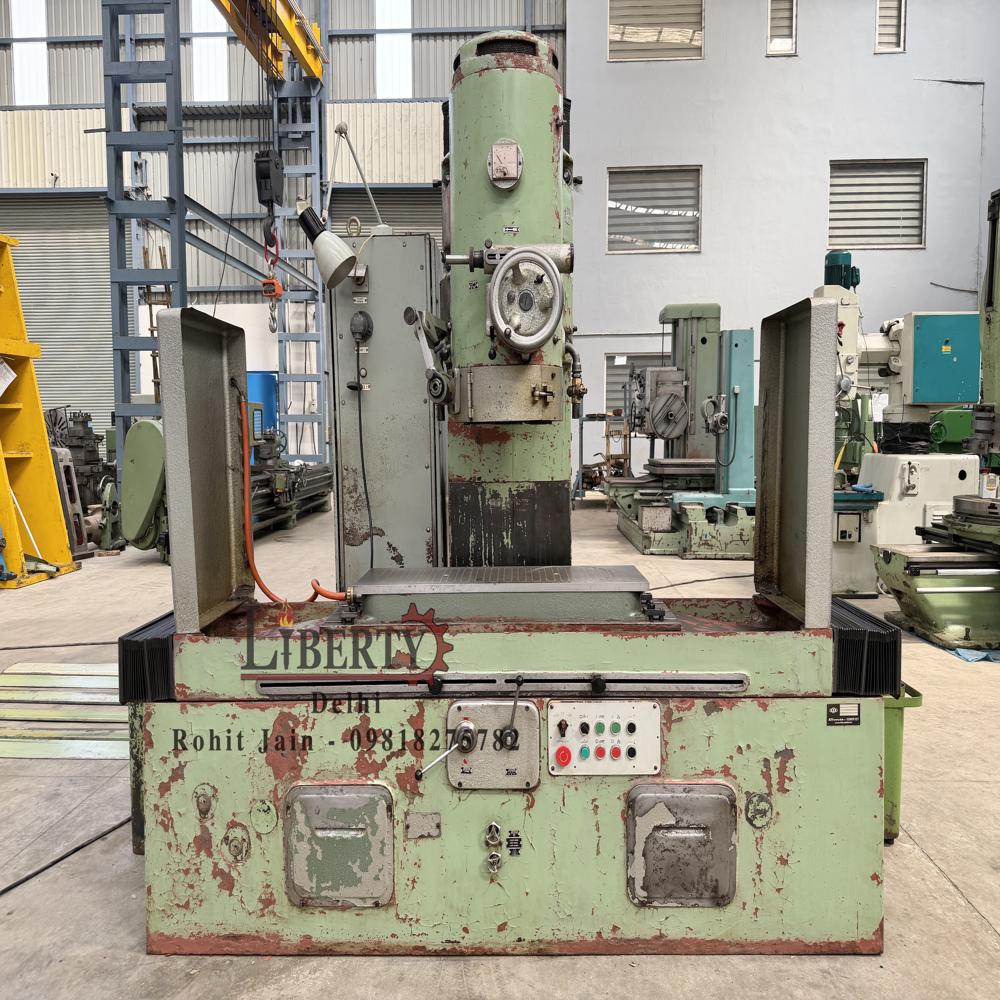

MAS (Czech Republic) make Vertical Surface Grinding Machine in excellent working condition. The model of the machine is BPV-300/1 and the Magnet Size is 300 mm x 1000 mm. The machine is complete with its Coolant Tank, Pump, Splash Guards, etc. The technical details are as follows -

Material
High Grade Cast Iron with Meehanite Construction

Type
Vertical

Capacity
0.05 to 0.1 mm accuracy

Weight (kg)
Approx. 3000 kg

Computerized
No

Automatic
Semi-Automatic

CNC Or Not
Conventional (Not CNC)

Control System
Manual

Table Size
300 mm x 600 mm

Table Slide Way
V & Flat Guideways

Magnetic Chuck Size
300 mm

Grinding Wheel Size
300 mm

Grinding Wheel Speed
1400 RPM

Grinding Length
600 mm

Floor Space
Approx. 2.0 m x 2.2 m

Fuel Tank Capacity
40 Litres (Hydraulic Oil Tank)

Spindle Speed
1400 RPM

Power
7.5 HP

Voltage
415 V

Dimension (L*W*H)
2000 mm x 2200 mm x 2200 mm

Feature
Precision Surface Grinding, Magnetic Chuck, Robust Construction

Color
Green/Grey

Main Application
Precision vertical surface finishing and grinding

Motor Make
Standard induction motor

Chuck Type
Electromagnetic

Vertical Travel
400 mm

Coolant System
Provided

Condition
Pre-owned / Used

Lubrication System
Centralized manual lubrication

Safety Features
Mechanical guards and emergency stop

Working Speed
Variable, hand-operated

Table Feed Mechanism
Manual hand feed

Longitudinal Travel
1100 mm

Cross Feed Travel
325 mm

Base Construction
Heavy cast iron for stability

MAS Czech BPV300/1 Vertical Surface Grinding Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
7 Days

About MAS Czech BPV300/1 Vertical Surface Grinding Machine

Make - MAS (Czech Republic)

Model - BPV-300/1

Magnet Size - 300 mm x 1000 mm

Segmented Wheel Cup Diameter - 315 mm

No. of Segments - 8 pcs.

Max. Height of Job - 400 mm

Spindle Motor - 15 kW

- Features like Automatic Depth Adjustment "Auto-Cut".

- Complete with Coolant Tank, Pump and Splash Guards.

- Machine is in excellent working condition.

Video of the Machine -

https://youtu.be/MK52O58kNvs

Precision Surface Grinding

The MAS Czech BPV300/1 excels in achieving high-precision grinding with accuracy levels between 0.05 to 0.1 mm. Its rigid construction and advanced components ensure consistent surface finishes, making it suitable for tool rooms and production facilities dealing with demanding tolerances.

Robust Build and Longevity

Constructed from high-grade Meehanite cast iron, the BPV300/1 boasts exceptional durability and vibration resistance. Its solid build promotes long operational life and reliable performance, even under intensive usage, maintaining stability and precision throughout its lifespan.

Flexible Operation and User-Friendly Features

This machine offers manual or hydraulic table feed, allowing operators flexibility based on task requirements. The manual control system ensures ease of use, while the electromagnetic chuck and coolant system optimize efficiency and safety during grinding operations.

FAQ's of MAS Czech BPV300/1 Vertical Surface Grinding Machine:

Q: How does the MAS Czech BPV300/1 ensure precision in surface grinding?

A: The MAS BPV300/1 is engineered with high-grade cast iron Meehanite construction, a vibration-resistant frame, and a magnetic chuck, securing workpieces firmly. Its grinding wheel and spindle provide stable rotation at 1400 RPM, allowing accuracy in the range of 0.05 to 0.1 mm.

Q: What types of workpieces can be processed on this grinding machine?

A: This machine is ideal for flat and rectangular components within the 300 mm x 1000 mm chuck size, making it suitable for machining steel, cast iron, and various non-ferrous materials needing precise surface finishes.

Q: When should the coolant and hydraulic systems be maintained?

A: Regular inspections of the coolant pump, tank, and hydraulic oil (40-liter capacity) should be conducted according to usage intensity, typically every 3 to 6 months, to ensure optimal machine cooling, lubrication, and overall performance.

Q: Where can the MAS BPV300/1 be installed effectively?

A: With a compact footprint of approximately 2.0 m x 2.2 m, the machine is well-suited for industrial workshops, manufacturing plants, and tool rooms requiring accuracy, stability, and semi-automatic operation in surface grinding tasks.

Q: How does the manual feed and control system benefit users?

A: Its conventional manual operation provides hands-on control for precise adjustments, giving skilled machinists the ability to fine-tune each grinding pass. The hydraulic table feed further simplifies movement for repetitive or heavy workpieces.

Q: What is the process for setting up a workpiece on the BPV300/1?

A: To set up, align the workpiece on the 300 mm electromagnetic chuck, engage the chuck to secure it, adjust the grinding wheel height and cross feed as needed, and select either manual or hydraulic table movement to suit the task.
