Optimum 2000 mm Lathe Machine

Price 12000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Optimum 2000 mm Lathe Machine Specification

Product Type
Manual Conventional Lathe

Material
Cast Iron body, hardened steel gears

Cutting Thickness
Up to 20 mm

Cutting Speed
35-2000 RPM

CNC Or Not
No, Manual Lathe

Automatic Grade
Semi-Automatic

Control System
Manual hand wheel control

Max. Swing Diameter
400 mm

Voltage
380V / 415V, 3 Phase

Weight (kg)
Approx. 1500 kg

Dimension (L*W*H)
3000 x 1000 x 1300 mm

Capacity
2000 mm between centers

Feature
High stiffness, precision ground bed, spindle bore, coolant system

Color
Machine Grey and Blue

Longitudinal Feed
0.04-2.25 mm/rev

Tailstock Quill Travel
170 mm

Power of Main Motor
3 kW

Distance Between Centers
2000 mm

Spindle Bore Diameter
52 mm

Coolant System
Available

Pitch Range (Metric)
0.25-6 mm

Cross Slide Travel
250 mm

Pitch Range (Inch)
2-24 TPI

Surface Finish
Ground and Hardened

Bed Width
250 mm

Tool Post Type
4-Way

Spindle Speed Range
Change Gear, 16 Steps

Chuck Size
250 mm

About Optimum 2000 mm Lathe Machine

Make - Optimum (Germany)

Model - D560

Center Height - 280 mm

Max. Length of Job - 2000 mm

Max. Job Diameter over Bed - 560 mm

Max. Job Diameter over Cross-Slide - 350 mm

4-Jaw Chuck Diameter - 400 mm

3-Jaw Chuck Diameter - 310 mm

Bed Width - 350 mm

Spindle Speeds - 25 rpm to 1600 rpm

Spindle Bore - 80 mm

- Machine is in excellent working condition.

Video link - https://youtu.be/KmckcgBpSbg

Precision Engineering for Demanding Applications

The Optimum 2000 mm Lathe Machine offers outstanding performance for various metalworking operations. Its ground and hardened bed ensures dimensional stability, while precision spindle bearings provide high accuracy even at higher speeds. With a robust 3 kW main motor and semi-automatic features, this lathe guarantees efficiency and consistent results whether used in production, maintenance, or educational settings.

Versatile Operations and Enhanced Usability

This lathe supports a broad range of turning applications thanks to its 16-step spindle speed options and comprehensive pitch range in both metric and inch units. The 4-way tool post, 250 mm cross slide travel, and efficient coolant system enable smooth operation and effective chip management, making it suitable for repeated use in demanding environments.

FAQs of Optimum 2000 mm Lathe Machine:

Q: How does the manual control system operate on the Optimum 2000 mm Lathe Machine?

A: The machine utilizes a manual hand wheel control system, providing precise adjustments for both longitudinal and cross feeds, enabling operators to maintain full control over every aspect of the turning process.

Q: What is the maximum workpiece size the lathe can accommodate between centers?

A: The Optimum 2000 mm Lathe Machine can support workpieces up to 2000 mm in length between centers, with a maximum swing diameter of 400 mm, allowing it to handle long and relatively large components.

Q: When should I use the different spindle speeds and gear settings?

A: You should select the appropriate spindle speedranging from 35 to 2000 RPM across 16 stepsbased on the material, cutting tool, and desired finish. Lower speeds are ideal for harder materials or larger diameters, while higher speeds suit softer materials or smaller diameters.

Q: Where is this lathe machine best suited for use?

A: This lathe is ideal for workshops, tool rooms, manufacturing units, and maintenance departments that require precise and reliable turning capabilities on medium to large metal components.

Q: What process does the coolant system facilitate?

A: The coolant system cools the cutting area, reduces heat and friction, prolongs tool life, and ensures a superior surface finish on your workpieces.

Q: What benefits does the ground and hardened bed offer?

A: The ground and hardened bed provides increased stiffness, precise alignment, wear resistance, and vibration damping, thereby ensuring consistent accuracy and durability during prolonged operation.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

More Products in Lathe Machine Category

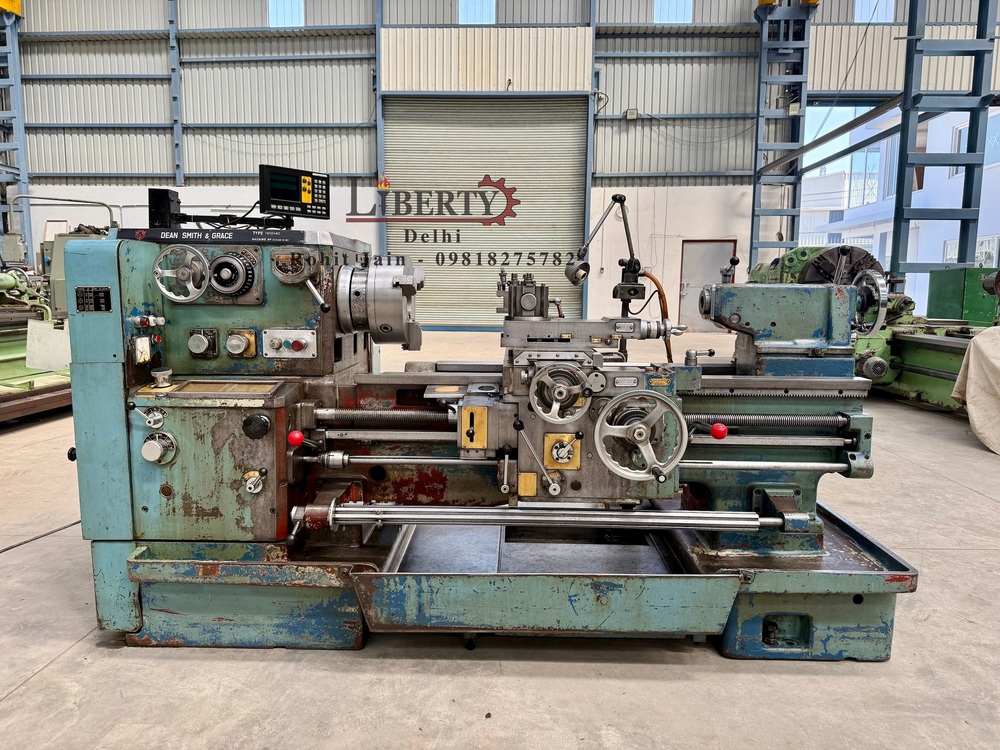

Dean Smith & Grace Type 1609 Heavy Duty Lathe Machine
