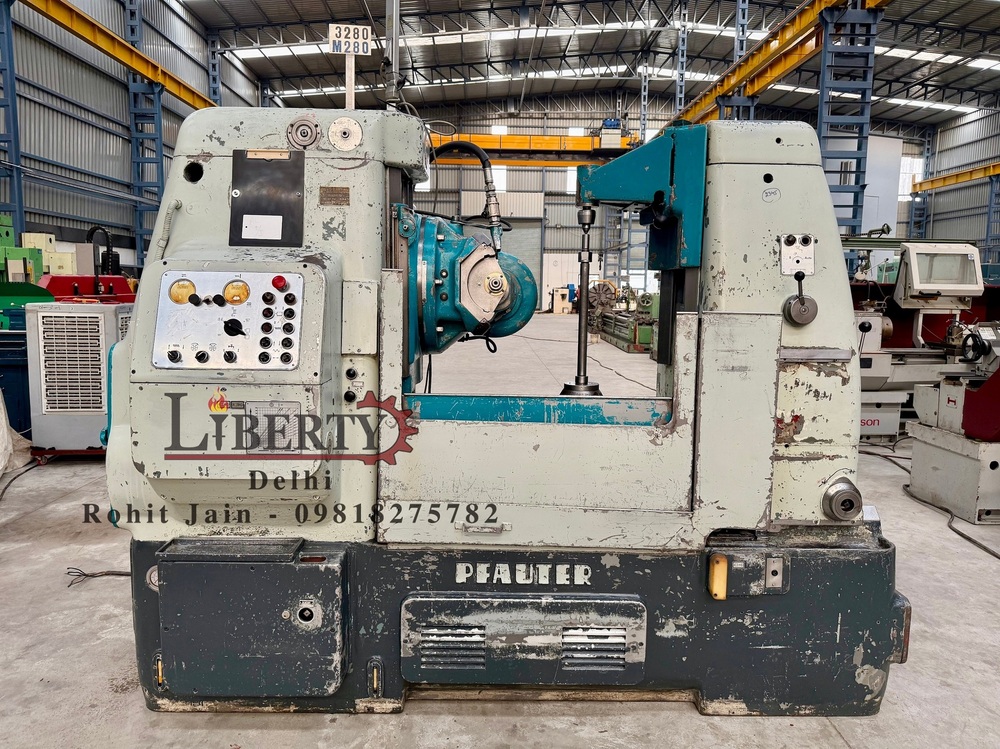

Pfauter P630 Hydraulic Gear Hobbing Machine

Send Inquiry

Request To Call Back

Pfauter P630 Hydraulic Gear Hobbing Machine

Name: Pfauter P630 Hydraulic Gear Hobbing Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Pfauter P630 Hydraulic Gear Hobbing Machine Specification

Dimension (L*W*H)
3500 mm x 2100 mm x 2000 mm

Used For
Gear cutting and hobbing operations

Color
Standard industrial green

Weight
Approx. 7500 kg

Feature
High precision; Hydraulic control; Robust construction

Power
11 kW

Capacity
Maximum gear diameter 630 mm

Output
Hobs gears up to 8 module

Condition
Used

Voltage
380/415 V

Machine Type
Hydraulic Gear Hobbing Machine

Number of Teeth Range
6 to 400

Spindle Speed
40 to 250 rpm

Operator Panel
Analog/Manual controls

Coolant System
Fitted

Maximum Centre Distance Between Table and Hob
550 mm

Max Module
8 mm

Hydraulic System
Integrated for smooth operation

Floor Space Requirement
Approx 7.5 sq meters

Table Speed
3 to 30 rpm

Minimum Module
1 mm

Accuracy
0.05 mm

Maximum Hob Slide Movement
350 mm

Table Bore Diameter
180 mm

Max Gear Width
230 mm

Pfauter P630 Hydraulic Gear Hobbing Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Pfauter P630 Hydraulic Gear Hobbing Machine

Make - Pfauter (Germany)

Model - P630

Max. Module - 10 module

Max. Diameter of the Gear - 630 mm

Max. Vertical Travel of Hob-Slide - 430 mm

Table Diameter - 550 mm

Max. Hob Cutter Size - Diameter 192 mm x 220 mm Length

Max. Hob Shifting - 175 mm

Table Bore Diameter - 110 mm

Hob Cutter Speeds - 62 rpm to 390 rpm

Max. Height between Table Top to Center - 750 mm

Weight of Machine - 8.3 Tons (Approximately)

- Complete with Change Gears, Arbours, Mandrels, etc.

- Complete with Chip Conveyor, Covers, & many other accessories.

- Operating Manual of the machine is available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/0wsfHJopeow

High-Performance Gear Hobbing for Diverse Applications

The Pfauter P630 stands out for its versatility and precision. Its integrated hydraulic system delivers steady, controlled movements for quality gear production, capable of handling various sizes and modules. Whether for automotive, industrial, or custom gear manufacturing, its robust 7,500 kg construction ensures stability and longevity in operation.

Precision Engineering with Robust Design

Achieving accuracy up to 0.05 mm, the P630 integrates manual analog controls for hands-on adjustments, ensuring high production standards. The supplied coolant system promotes efficient heat dissipation, maintaining dimensional stability even during extended use.

Adaptable Floor-Ready Solution

With a footprint of approximately 7.5 square meters and dimensions of 3500 x 2100 x 2000 mm, this machine is suitable for various workshop setups. Its user-friendly layout and high output capacity make it a valuable addition for exporters, importers, suppliers, and manufacturers.

FAQs of Pfauter P630 Hydraulic Gear Hobbing Machine:

Q: How does the hydraulic system improve the gear hobbing process in the Pfauter P630?

A: The integrated hydraulic system ensures smooth and consistent movement of the hob slide and table, minimizing manual effort and improving precision in gear cutting. This optimizes production quality and extends the machines lifespan.

Q: What types of gears can the Pfauter P630 Hydraulic Gear Hobbing Machine produce?

A: The machine can produce gears with a module range from 1 mm to 8 mm, tooth counts from 6 to 400, and a maximum gear diameter of 630 mm, making it suitable for a diverse array of industrial and automotive applications.

Q: When should you consider using a used Pfauter P630 for your gear manufacturing needs?

A: Opting for a used Pfauter P630 is ideal when seeking dependable production capacity and precision for medium to large gear sizes, especially if you require robust performance with cost savings compared to new equipment.

Q: Where is the Pfauter P630 typically used, and by whom?

A: This machine is widely used in gear manufacturing workshops, automotive and machinery plants, and export-oriented factories by exporters, importers, suppliers, traders, and manufacturers requiring high-precision gear cutting solutions.

Q: What is the process for changing the hob or gear blank on this machine?

A: Operators manually adjust the table, secure the gear blank, and install the selected hob. The machines analog controls and hydraulic clamping system facilitate safe, efficient setup changes with minimal downtime.

Q: How does the P630 ensure high accuracy during gear cutting?

A: With its robust construction, precision engineering, and stable hydraulic movement, the P630 consistently achieves a gear cutting accuracy of up to 0.05 mm, aided by the integrated coolant and manual fine-tuning controls.

Q: What benefits does the Pfauter P630 provide for manufacturers and exporters?

A: Users gain from its high capacity (up to 630 mm diameter gears), versatility in module range, reliability due to its industrial build quality, and cost-effectiveness when purchased in used condition, streamlining medium to high volume gear production.
