Prvomajska Yugoslavia G-301 Vertical Turret Milling Machine

Send Inquiry

Request To Call Back

Prvomajska Yugoslavia G-301 Vertical Turret Milling Machine

Name: Prvomajska Yugoslavia G-301 Vertical Turret Milling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 35000.0 INR
Availability: InStock

Price 35000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Prvomajska Yugoslavia G-301 Vertical Turret Milling Machine Specification

General Use

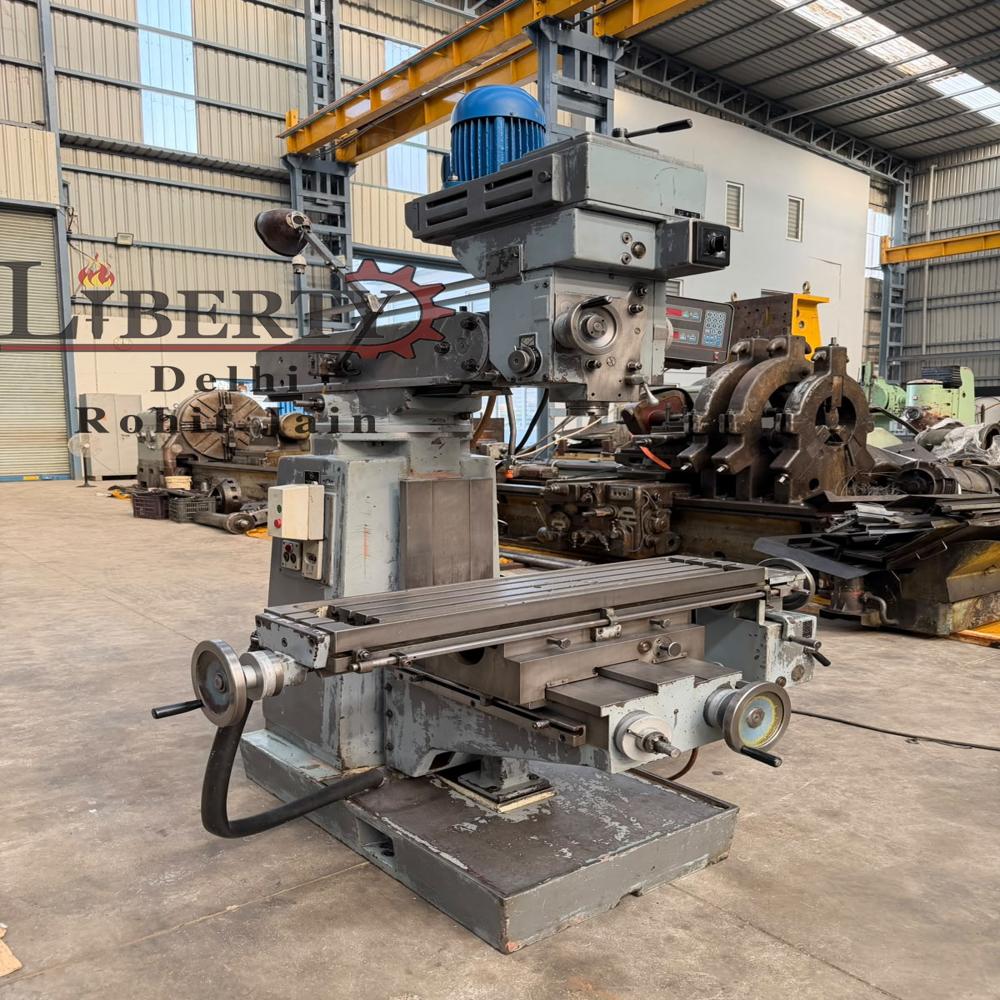

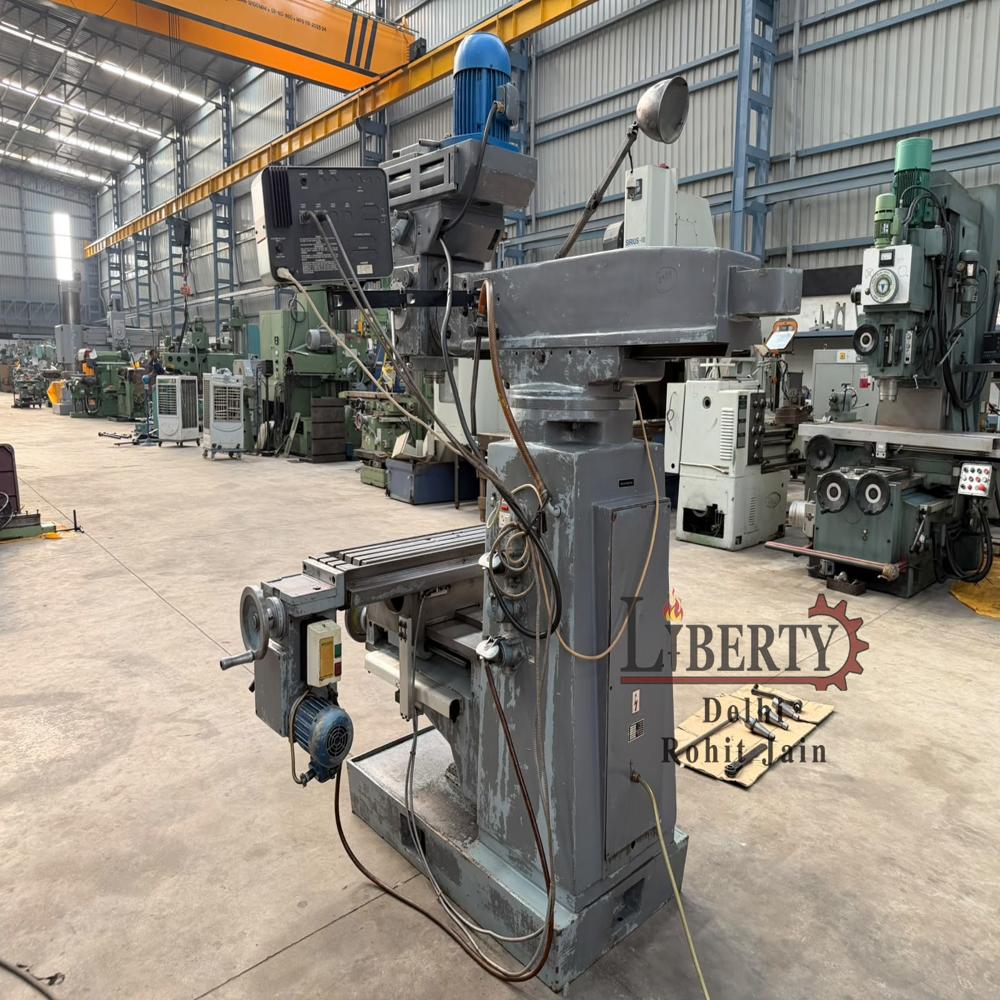

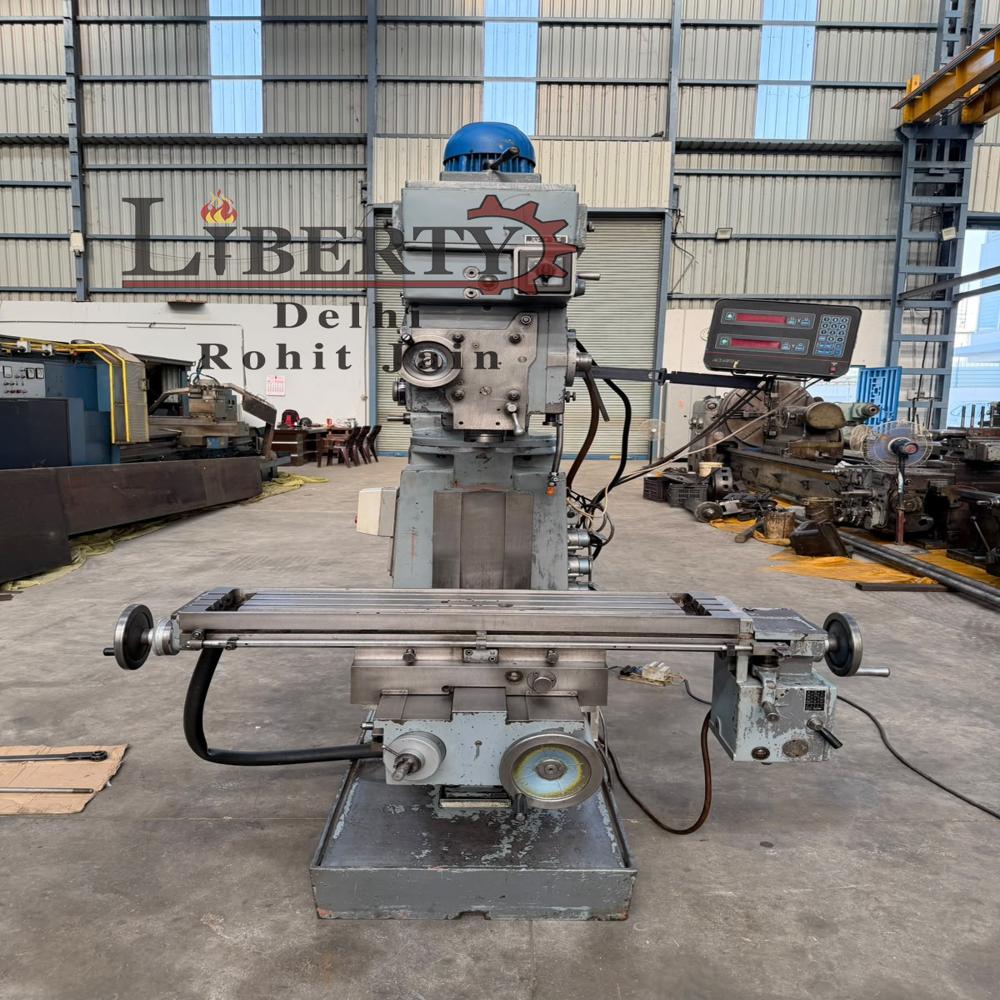

Vertical Turret Milling Machine manufactured by Prvomajska (Yugoslavia), Model G-301, available in excellent working condition. It is a versatile Vertical Turret Milling Machine equipped with an ISO-40 spindle, Powered Longitudinal Table Feed, and Automatic Spindle Down Feed, making it suitable for Milling, Drilling, Boring, and other general machining operations. The machine is equipped with a 2-Axis DRO and is complete with Tool Holders and other accessories. The technical details are as follows -

About Prvomajska Yugoslavia G-301 Vertical Turret Milling Machine

Make - Prvomajska (Yugoslavia)

Model - G-301

Table Size - 1100 mm x 255 mm

XYZ Travels - 680 mm x 355 mm x 450 mm

Spindle Taper - ISO-40

Spindle Speed Range - 70 to 2300 RPM

Spindle Travel - 130 mm

Spindle Diameter - 85 mm

Longitudinal Table Feed Rate - 14 mm/min to 230 mm/min

- Vertical Milling Head can be Rotated and Tilted.

- Equipped with Automatic Longitudinal Table Feed.

- Equipped with a 2-Axis DRO.

- Complete with Tool Holders and other accessories.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/k3_pF7DgFVE

High-Precision Machining for Diverse Applications

The G-301 Vertical Turret Milling Machine is engineered for precision and versatility. Equipped with a 2-axis digital readout and automatic spindle down feed, it enables users to achieve accurate and repeatable results across a range of operations including milling, drilling, and boring. Its powered longitudinal table feed ensures smooth and consistent material handling.

Robust Construction and Lasting Performance

Constructed in Yugoslavia by Prvomajska, the G-301 is built for durability and efficiency. The ISO-40 spindle and comprehensive accessory set help support demanding workloads, while the solid build quality ensures longevity and dependable service for exporters, manufacturers, suppliers, and tradespeople alike.

FAQ's of Prvomajska Yugoslavia G-301 Vertical Turret Milling Machine:

Q: How does the powered longitudinal table feed improve machining operations on the G-301?

A: The powered longitudinal table feed allows for smooth and consistent movement of the workpiece, reducing operator effort and supporting uniform milling or drilling. This leads to improved accuracy and productivity, especially during extended machining cycles.

Q: What processes can be performed using the Prvomajska G-301 Vertical Turret Milling Machine?

A: The G-301 is capable of performing milling, drilling, boring, and various general machining operations. Its versatile features accommodate diverse workshop requirements, making it suitable for fabricating components of varying complexity.

Q: When is it beneficial to use the automatic spindle down feed on this mill?

A: Automatic spindle down feed is particularly useful during repetitive drilling or boring operations, as it ensures a steady and controlled feed rate. This promotes consistency and operator safety, while also minimizing tool wear.

Q: Where can the G-301 Vertical Turret Milling Machine be used?

A: This milling machine is suitable for use in workshops, manufacturing units, maintenance facilities, educational institutions, and any environment requiring precise metalworking capability with reliable performance.

Q: What accessories are included with the Prvomajska G-301?

A: The G-301 comes complete with a set of tool holders, a 2-axis digital readout (DRO), and other essential accessories to support a wide range of milling and drilling tasks.

Q: How does the 2-axis DRO benefit the operator during machining?

A: The 2-axis digital readout provides real-time position feedback, significantly increasing measurement accuracy and reducing the risk of errors. This ensures precise material removal and more consistent finished parts.
