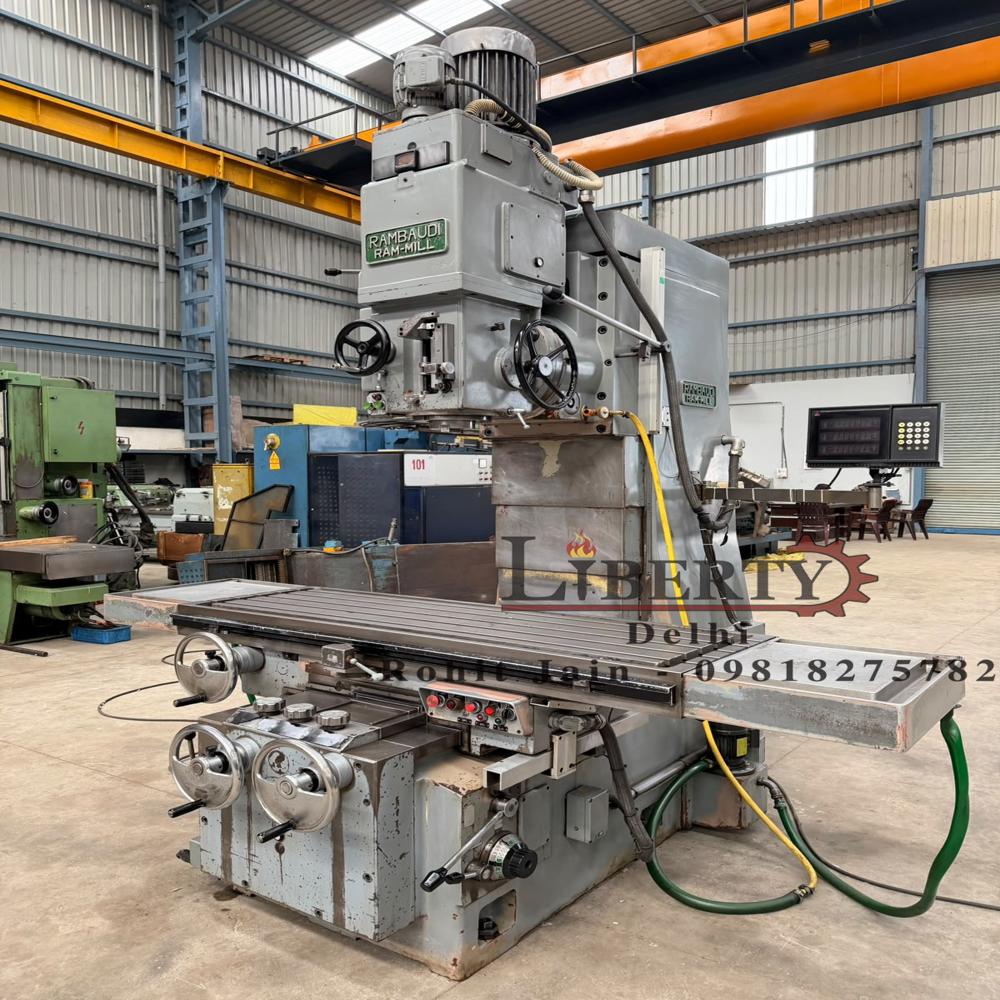

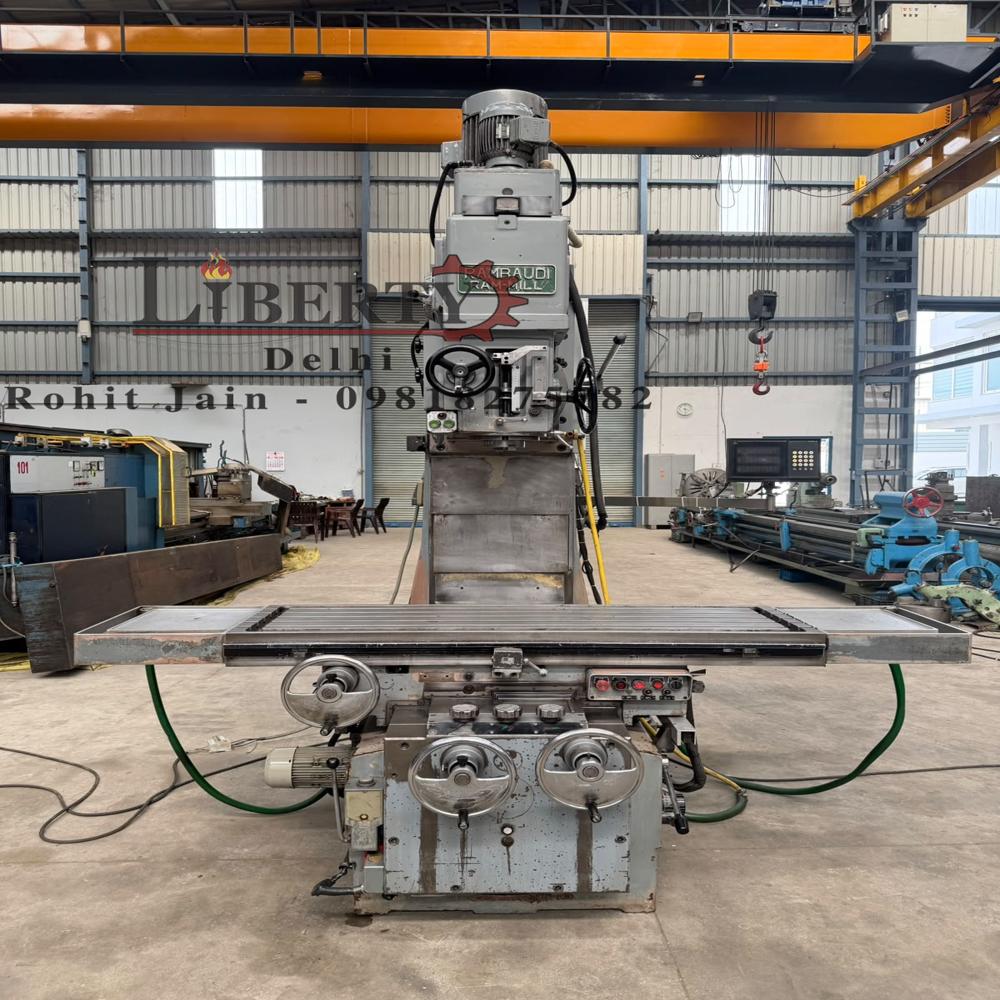

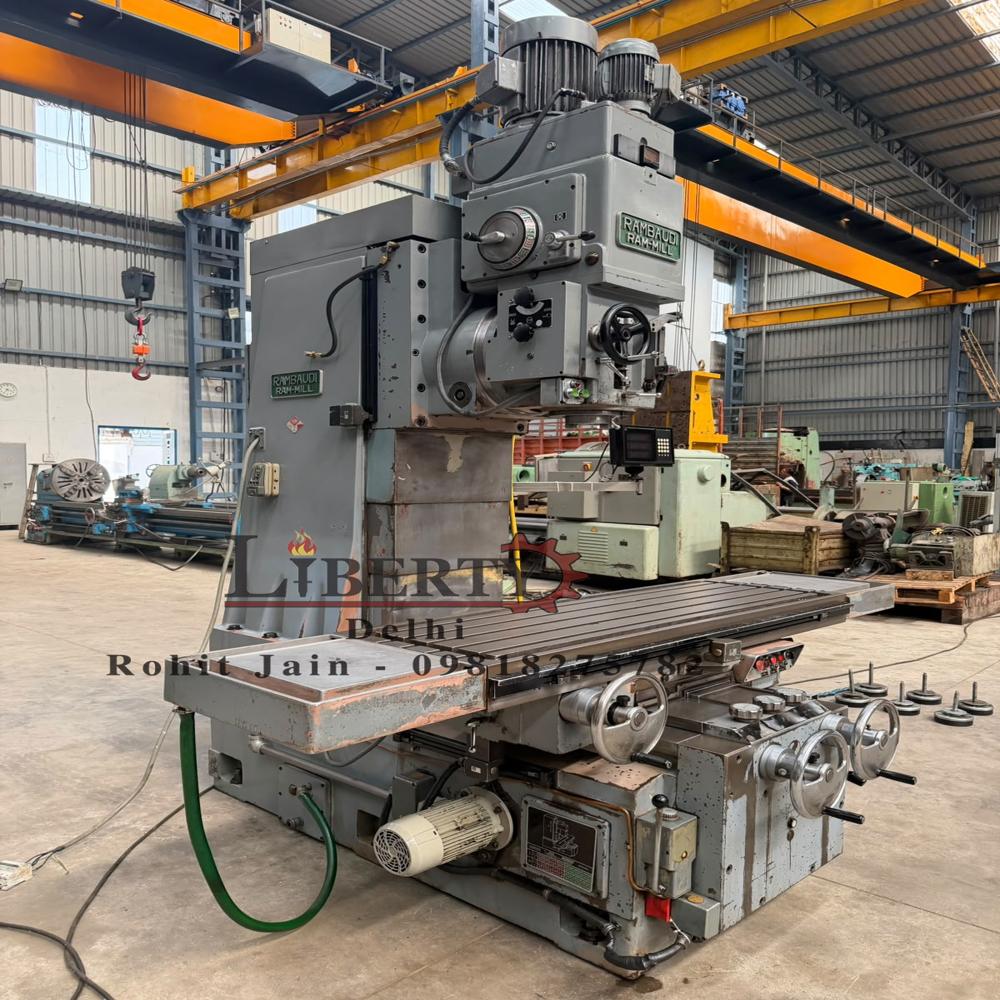

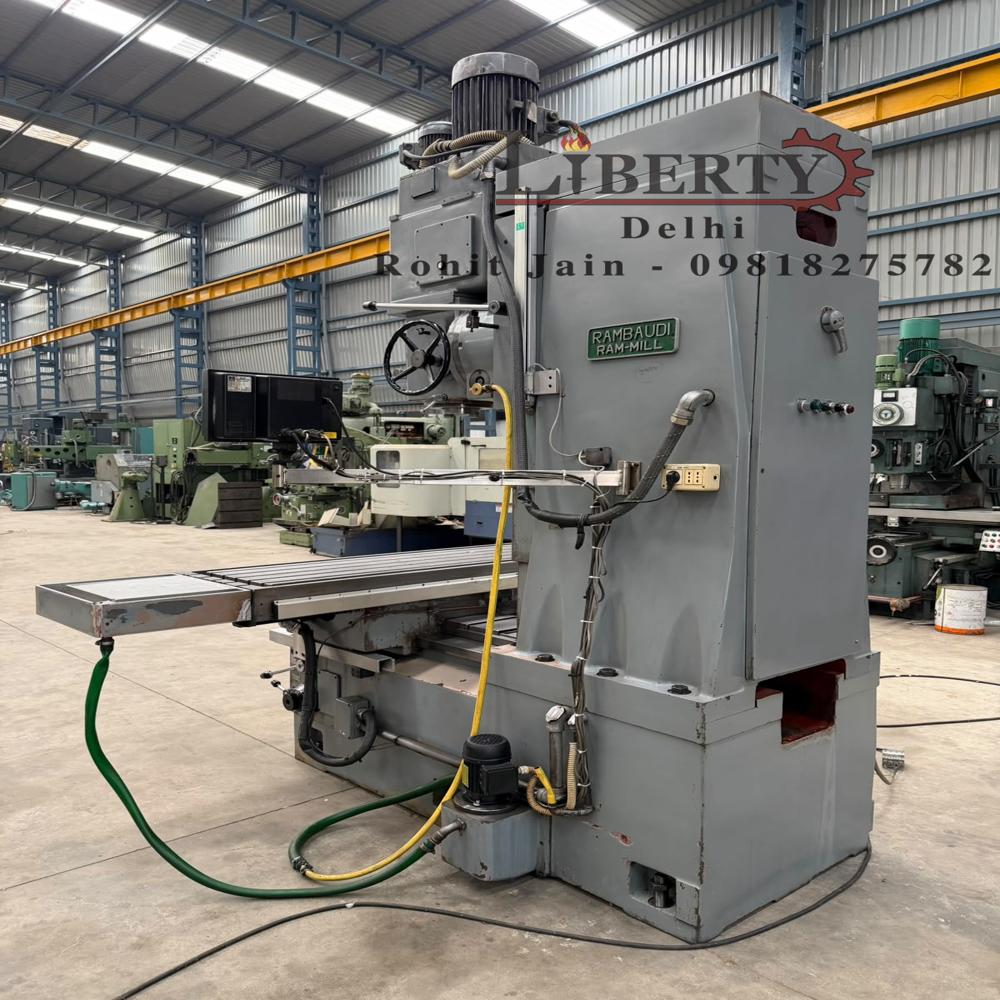

Rambaudi Italy RAM-MILL Vertical Bed Milling Machine

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Rambaudi Italy RAM-MILL Vertical Bed Milling Machine Specification

General Use
Vertical Bed Milling Machine manufactured by Rambaudi (Italy), Model RAM-MILL, available in excellent working condition. This is a heavy-duty Bed-Type Milling Machine equipped with automatic spindle feed for vertical milling, boring, and drilling applications. The machine is also equipped with a 3-Axis DRO. The technical details are as follows -

Rambaudi Italy RAM-MILL Vertical Bed Milling Machine About

Make - Rambaudi (Italy)

Model - RAM-MILL

Table Size - 1610 mm 510 mm

XYZ Travels - 1200 mm 500 mm 550 mm

Spindle Speed Range - 50 to 3000 RPM

Spindle Taper - ISO-50

Spindle Feed Travel - 150 mm

Maximum Height between Table and Spindle - 675 mm

Travel Feed Rates - 8 mm/min to 1000 mm/min

Machine Weight - Approx. 4.90 Tons

- Equipped with a 3-Axis DRO.

- Heavy-duty Bed-Type Milling Machine suitable for vertical milling, boring, and drilling applications.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/Lox87R8A3wc

Precision Engineering for Demanding Tasks

Featuring an automatic spindle feed coupled with a 3-Axis DRO, the Rambaudi RAM-MILL delivers high precision in milling, boring, and drilling applications. Its bed-type structure enhances machine rigidity, enabling the handling of heavy workpieces without loss of accuracy during prolonged operation. The Italian engineering ensures longevity and reliable performance for a wide range of industrial uses.

Versatile Applications Across Industries

This vertical bed milling machine supports various machining tasks, including vertical milling, boring, and drilling. Its heavy-duty build and precise controls make it suitable for metal fabrication, component manufacturing, and assembly line processes. With multi-industry compatibility, it addresses the needs of exporters, importers, manufacturers, suppliers, and traders alike.

FAQ's of Rambaudi Italy RAM-MILL Vertical Bed Milling Machine:

Q: How does the automatic spindle feed benefit the milling process?

A: The automatic spindle feed on the RAM-MILL enhances consistency and efficiency during vertical milling, boring, and drilling tasks. It allows for uniform material removal and greater precision, reducing manual intervention and operator fatigue.

Q: What is the purpose of the 3-Axis DRO on this machine?

A: The 3-Axis Digital Readout (DRO) provides real-time position feedback for the machine's X, Y, and Z axes, ensuring accurate measurements and repeatability in machining operations, which significantly improves the quality of the finished product.

Q: When should this vertical bed milling machine be used over other milling machines?

A: This bed-type milling machine is ideal when you need enhanced stability and can handle heavier workpieces for operations such as vertical milling, boring, or drilling. It is especially suitable for tasks that require high accuracy and reliability over extended periods.

Q: Where can the Rambaudi RAM-MILL be effectively integrated?

A: The RAM-MILL can be integrated into machine shops, manufacturing plants, metalworking facilities, and production lines. It serves the needs of a diverse clientele including exporters, importers, manufacturers, suppliers, and traders seeking robust and versatile milling equipment.

Q: What is the process for operating the Rambaudi RAM-MILL?

A: Operating the RAM-MILL typically involves securing the workpiece on the bed, setting the required tool, utilizing the 3-Axis DRO to preset measurements, and activating the automatic spindle feed for consistent vertical movement according to the chosen operation.

Q: What usage areas are best suited for this vertical bed milling machine?

A: Best suited for metal fabrication, assembly component manufacturing, and heavy-duty material processing, the RAM-MILL excels where robust, accurate milling, boring, or drilling is required routinely and at scale.

Q: What are the main benefits of choosing this model over others?

A: Key benefits include Italian engineering reliability, excellent operating condition, high-precision DRO integration, an automatic spindle feed for user convenience, and the ability to handle demanding heavy-duty applications with stability and accuracy.
