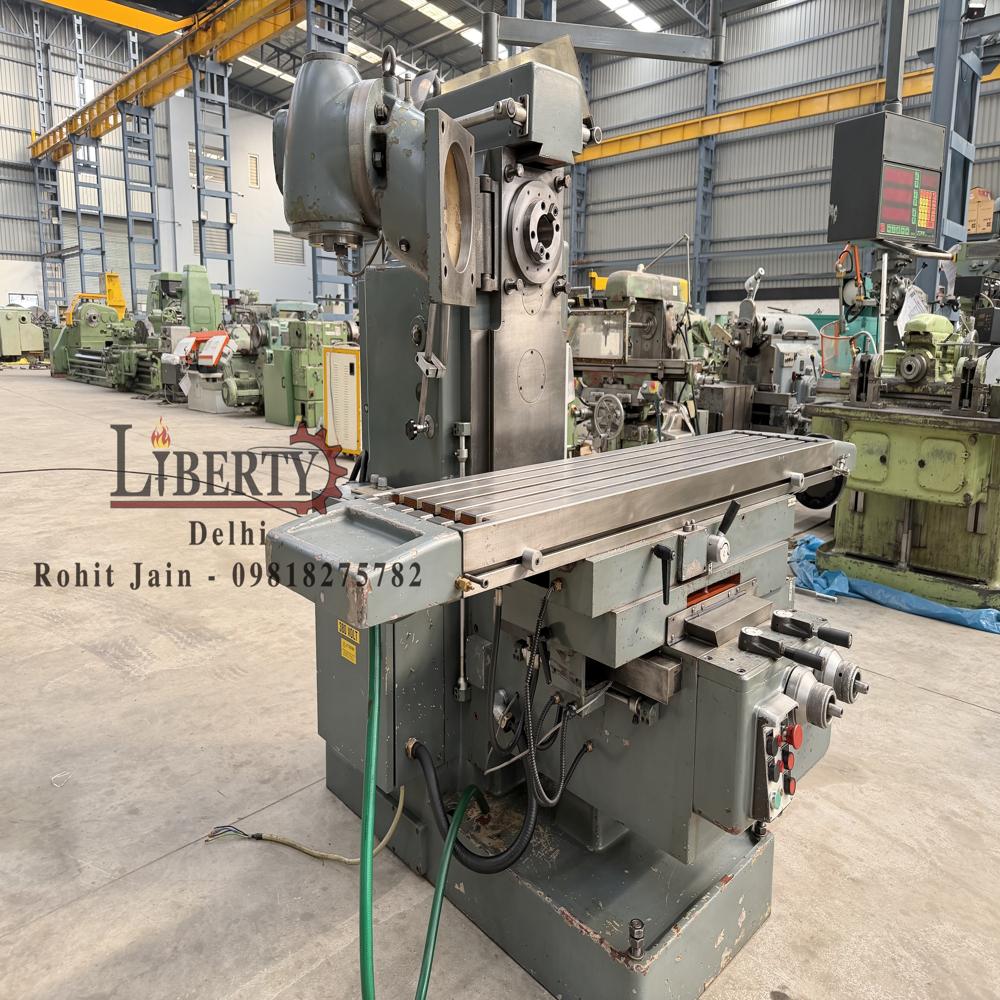

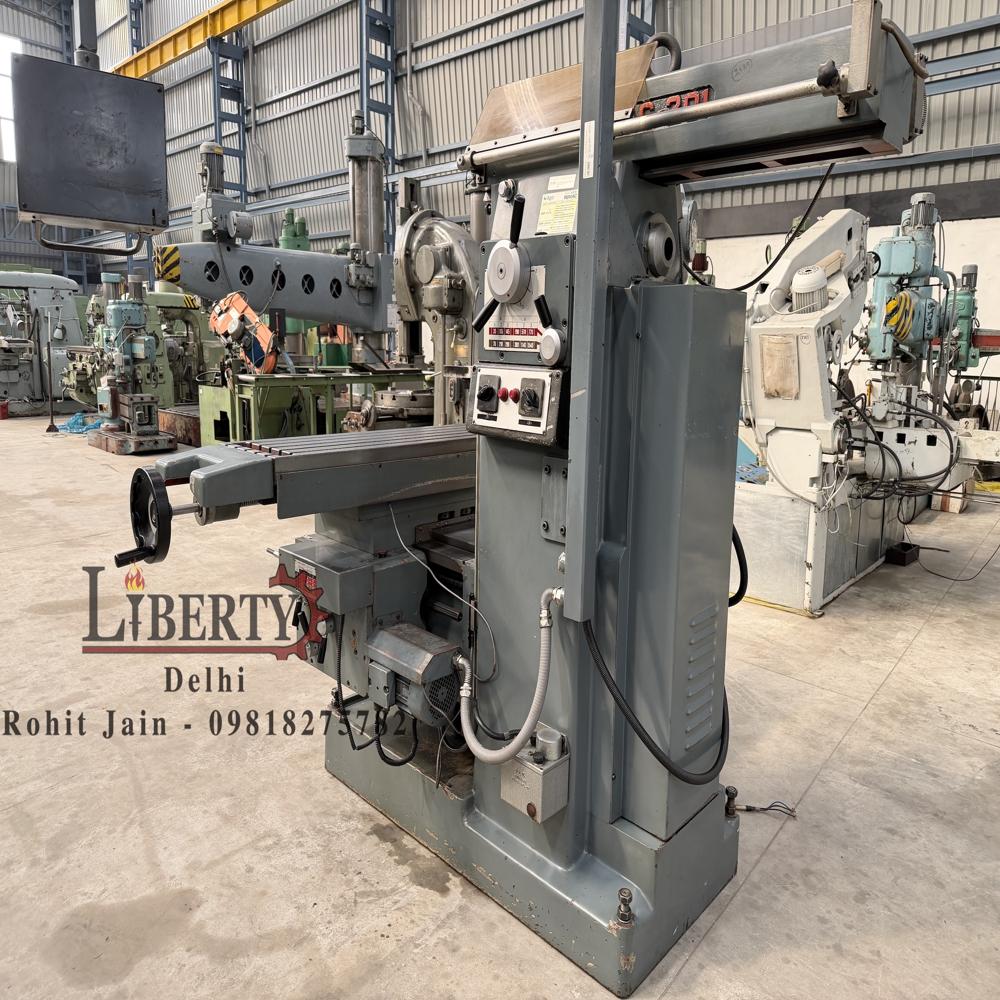

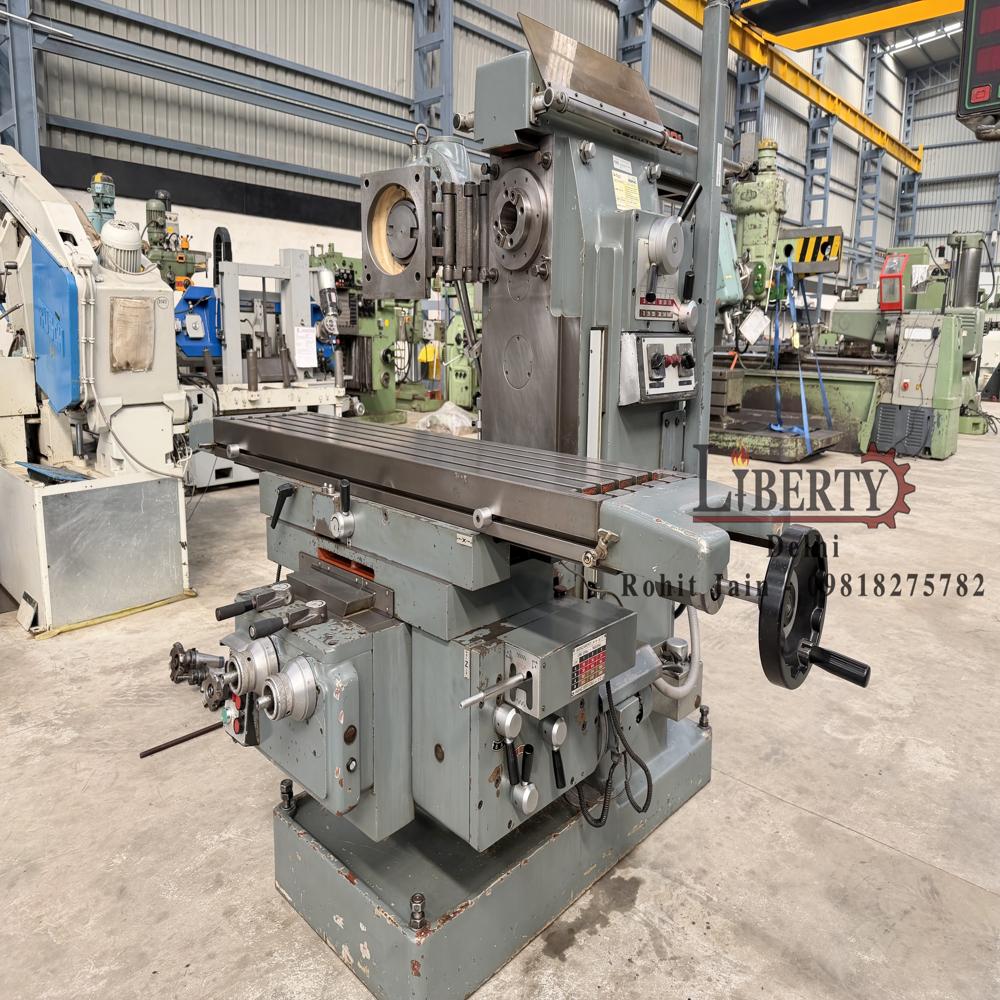

Remac Italy 1500 mm x 340 mm Universal Milling Machine

Name: Remac Italy 1500 mm x 340 mm Universal Milling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Remac Italy 1500 mm x 340 mm Universal Milling Machine Specification

Rotation
Both clockwise and counterclockwise

Model
Remac Italy Universal 1500 x 340

Product Type
Universal Milling Machine

General Use
Remac (Italy) make Universal Milling Machine in excellent working condition. The model of the machine is 201 and the Table Size of the machine is 1500 mm x 340 mm. The machine has a Parking-type Vertical Milling Head and it is suitable for both Vertical and Horizontal Milling Operations. The technical details are as follows -

Material
Cast Iron and Steel

Type
Horizontal / Vertical

Capacity
Heavy Duty

Weight (kg)
Approx. 2200 kg

Computerized
No

Automatic
Manual Operation

CNC Or Not
Not CNC (Manual Operation)

Control System
Hand operated

Table Size
1500 mm x 340 mm

Table Slide Way
Box type

Floor Space
Approx. 2200 mm x 2000 mm

Spindle Speed
60 - 1800 RPM (variable)

Power
4 kW (approx.)

Voltage
415 V, 3 Phase

Dimension (L*W*H)
Approx. 2200 x 2000 x 1800 mm

Feature
Universal head, high rigidity, wide table

Color
Standard Machine Grey

Ram Travel
500 mm

Cross Table Travel
320 mm

Quill Diameter
85 mm

Spindle Taper
ISO 40

Lubrication
Centralized manual

Vertical Table Travel
450 mm

Longitudinal Table Travel
1000 mm

No. of T-Slots
3

Main Motor Power
4 kW (approx.)

Coolant System
Provided

Max. Distance Spindle to Table
500 mm

T-Slot Size
16 mm

About Remac Italy 1500 mm x 340 mm Universal Milling Machine

Make - Remac (Italy)

Model - 201

Table Size - 1500 mm x 340 mm

XYZ Travels - 1050 mm x 320 mm x 500 mm

Spindle Taper - ISO-50

Spindle Speeds - 35 rpm to 1540 rpm

Table Feed Travel Rates - 10 mm/min to 595 mm/min

- Equipped with a 3-Axis DRO.

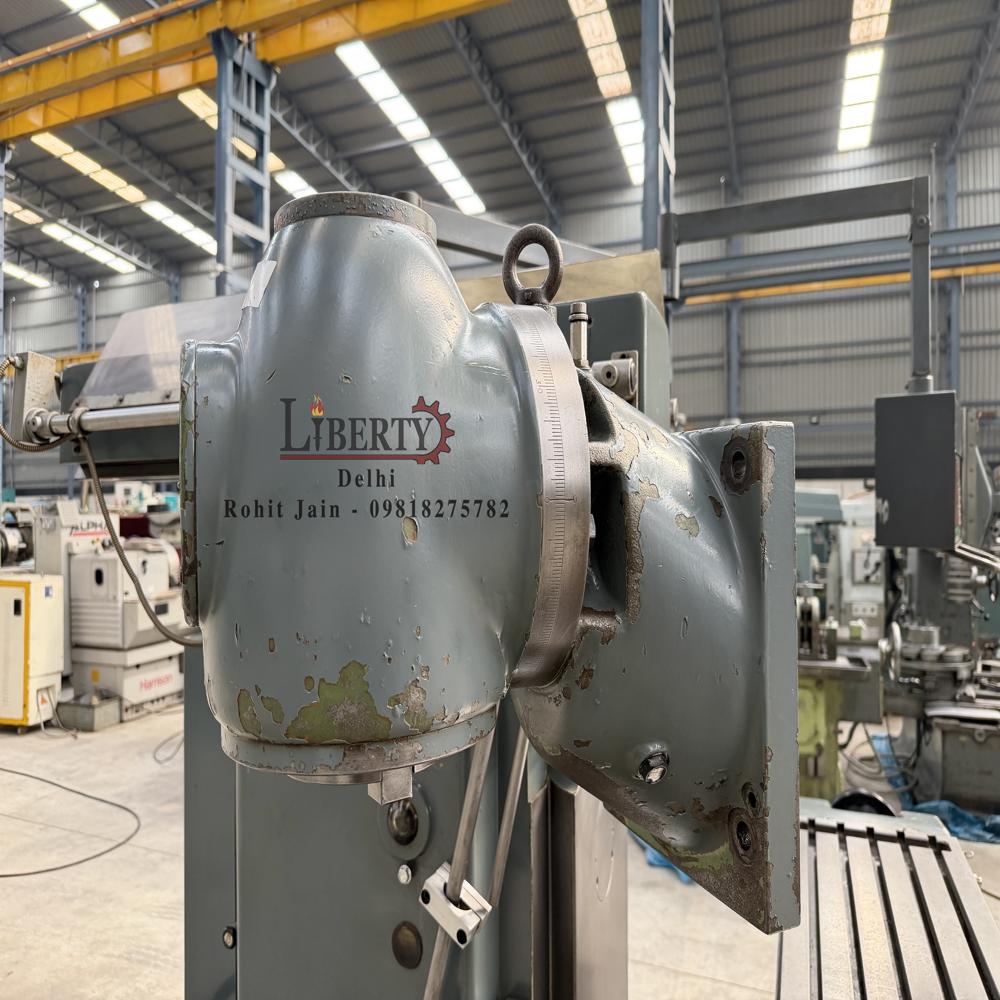

- Equipped with a Parking type Vertical Milling Head.

- Universal type Rotating Table.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/u_eNNKFMS20

Universal Versatility and Performance

With high rigidity and a universal head, this Remac milling machine adeptly handles both horizontal and vertical operations. Its wide table and substantial travel dimensions provide versatility for various machining requirements, while the box-type table slide way ensures dependable stability during heavy-duty cutting processes.

Robust and User-Friendly Design

Constructed from durable cast iron and steel, the machine guarantees mechanical strength and long service life. Manual operation via hand controls and a centralized manual lubrication system enable precise workpiece control and consistent maintenance, making it ideal for skilled machinists.

Heavy-Duty Capacity for Demanding Tasks

Designed for capacity, the Remac Italy Universal Milling Machine accommodates large workpieces up to 1500 mm in length with ease. Its powerful 4 kW motor, 2200 kg weight, and stable parking-type head enable rigorous continuous use, making it a fitting choice for manufacturers, exporters, and suppliers.

FAQ's of Remac Italy 1500 mm x 340 mm Universal Milling Machine:

Q: How is the Remac Italy Universal Milling Machine operated?

A: This milling machine is manually operated with hand controls, providing excellent tactile feedback and precision for both horizontal and vertical machining applications. It is not CNC-controlled.

Q: What materials can be processed using this milling machine?

A: Thanks to its powerful 4 kW drive and rigid cast iron frame, the machine is suitable for machining various materials including steel, cast iron, and non-ferrous metals. Its design supports general industrial and workshop use.

Q: When should I use the vertical milling head versus the horizontal axis?

A: The vertical head is ideal for tasks such as slotting, drilling, and face milling, while the horizontal axis excels at cutting gears, keyways, and heavy-duty shaping. The universal head offers flexibility to handle a broad range of projects.

Q: Where is this milling machine commonly utilized?

A: This machine is frequently used in industrial manufacturing plants, fabrication workshops, and job shops for component machining, toolmaking, and heavy-duty fabrication, especially where manual control and adaptability are required.

Q: What are the benefits of the centralized manual lubrication system?

A: The centralized manual lubrication system simplifies maintenance, ensuring critical components stay well-lubricated for optimal performance and extended machine life without complex automated systems.

Q: How do the technical specifications contribute to machining efficiency?

A: Large table size and extensive travel ranges (1000 mm longitudinal, 320 mm cross, 450 mm vertical) allow for processing sizable workpieces and complex machining tasks, increasing productivity and reducing the need for frequent repositioning.
