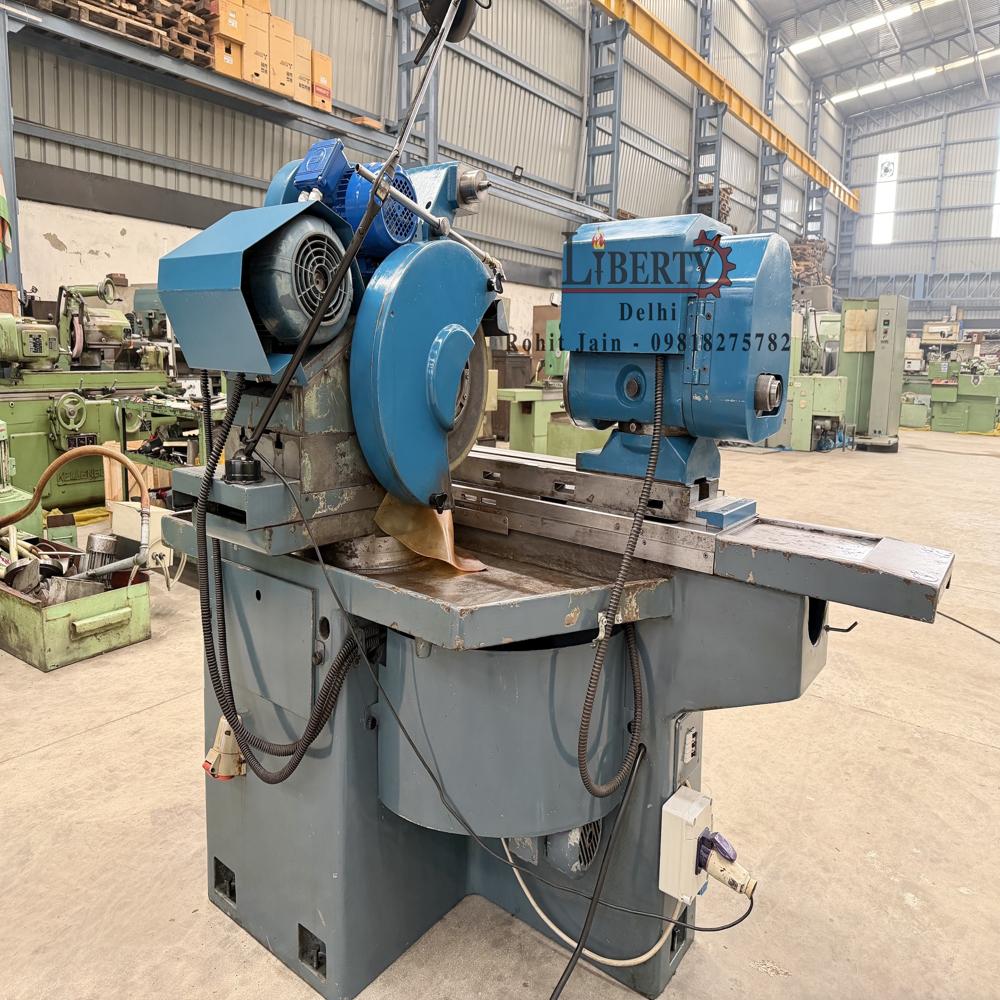

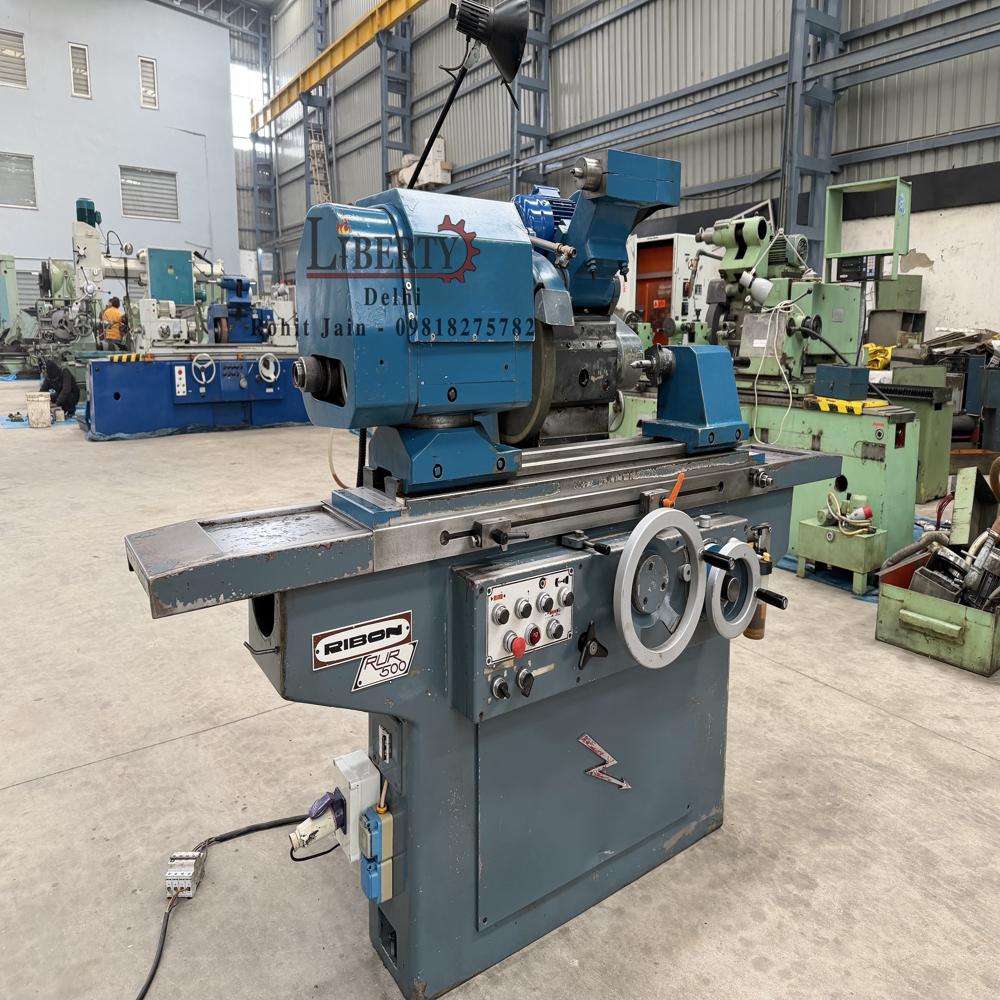

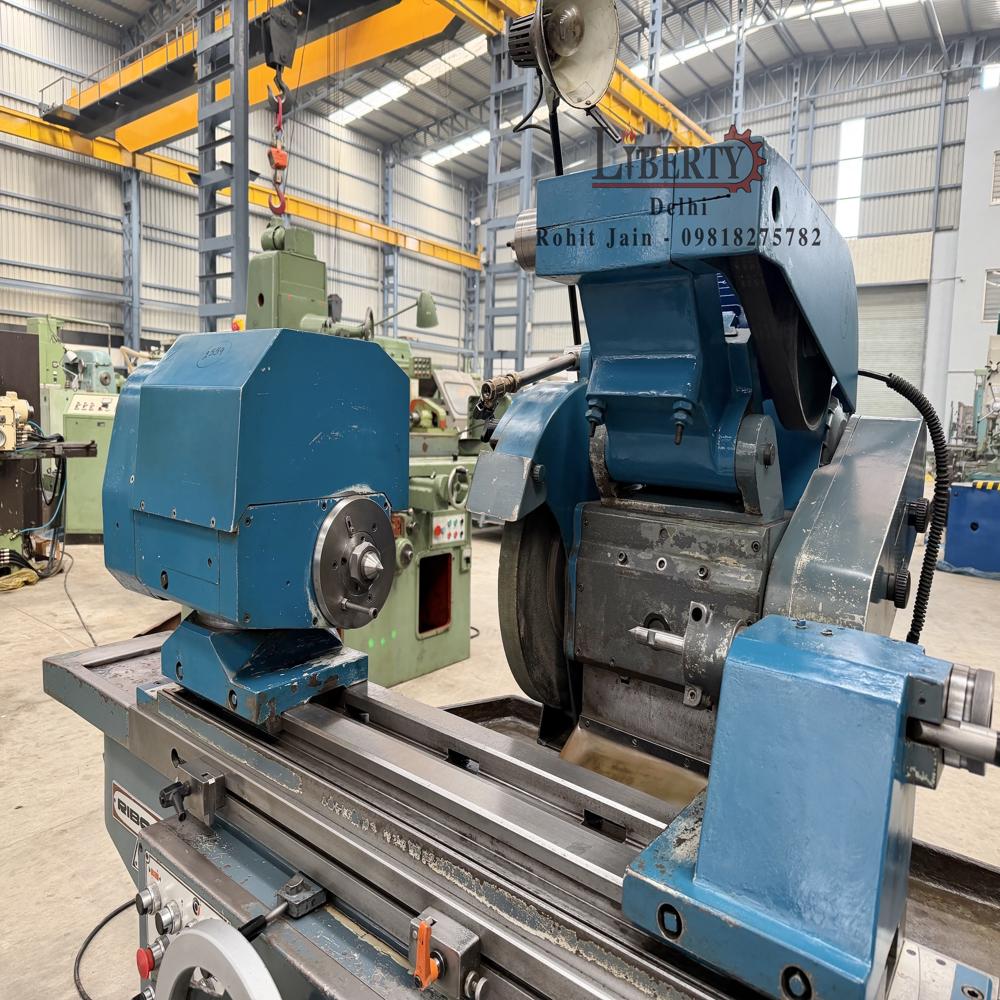

Ribon Italy RUR-500 Universal Cylindrical Grinder Machine

Name: Ribon Italy RUR-500 Universal Cylindrical Grinder Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Ribon Italy RUR-500 Universal Cylindrical Grinder Machine Specification

Product Type
Ribon (Italy) make Universal Cylindrical Grinding Machine in excellent working condition. The model of the machine is RUR-500 and the Max. Length of Job is 500 mm. The machine is equipped with its Internal Grinding Attachment and is complete with many accessories. It is a Motorised-Mechanical type Cylindrical Grinder with a Least Count of 2 Microns (0.002 mm). The technical details are as follows -

General Use
Precision cylindrical external and internal grinding operations

Material
Cast Iron / Steel (industrial machine construction)

Type
Universal Cylindrical Grinder

Capacity
500 mm (Max. Length of Job)

Weight (kg)
Approx. 2000 kg (estimated)

Computerized
No

Automatic
Semi-automatic / Manual

Control System
Conventional mechanical controls

Drive Type
Motorised-Mechanical

Grinding Diameter
200 mm (Max. Swing over Table)

Grinding Length
500 mm

Spindle Speed
Variable, up to 1800 RPM (estimated)

Grinding Wheel Size
350 mm OD x 127 mm Width (approx.)

Voltage
415 V, 3 Phase, 50 Hz

Dimension (L*W*H)
2100 mm x 1700 mm x 1300 mm (approx.)

Feature
Internal Grinding Attachment included, Least Count 2 Microns (0.002 mm), many accessories included

Color
Grey/Green (standard Italian machine finish)

Table Swivel Range
±7 degrees

Condition
Excellent working condition

Headstock
Swiveling type for angular grinding

Lubrication
Automatic lubrication system

Wheelhead
Manual & automatic traverse options

Coolant System
Equipped with coolant tank & pump

Taper Capability
Yes (table can swivel for taper grinding)

Chuck Type
3-jaw and centers available

Max. Internal Grinding Diameter
50 mm (with internal grinding attachment)

Max. External Grinding Diameter
200 mm

Least Count
2 microns (0.002 mm)

Model
RUR-500

Accessories Included
Steady rest, internal grinding spindle, coolant system, set of wheels & flanges

About Ribon Italy RUR-500 Universal Cylindrical Grinder Machine

Make - Ribon (Italy)

Model - RUR 500

Center Height - 160 mm

Max. Length of Job - 500 mm

Max. Diameter of Job - 320 mm

Grinding Wheel Size - Diameter 400 mm x 40 mm Width

Least Count of Wheel-Head - 2 Microns (0.002 mm)

Table Swivel Angle - +6 degree to -6 degree

Type - Motorised Mechanical.

- Equipped with Internal Grinding Attachment.

- Complete with Chuck, Steady, spare Centers, Job Carriers etc.

- Complete with spare Wheel Flange, and many other accessories.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/q2cHLFoi7Ow

Exceptional Precision and Versatility

The RUR-500 stands out for its high-precision performance with a remarkable least count of 2 microns, allowing for ultra-fine tolerances in both internal and external grinding applications. Its universal design, combined with table and headstock swiveling capabilities, enables accurate taper, angular, and cylindrical grinding for various industrial needs.

Robust Construction and Flexible Operation

Manufactured using cast iron and steel, the RUR-500 grinder is built to last in rigorous environments. It accommodates both manual and semi-automatic control, equipped with mechanical drive systems and variable spindle speeds up to 1800 RPM. These features ensure powerful, consistent results for a wide range of parts and materials.

Comprehensive Accessory Kit Included

Supplied with a variety of accessories-including a steady rest, internal grinding spindle, coolant tank and pump, and an assortment of grinding wheels and flanges-the RUR-500 is ready for immediate industrial deployment. This comprehensive kit reduces setup time and improves workflow efficiency.

FAQ's of Ribon Italy RUR-500 Universal Cylindrical Grinder Machine:

Q: How does the RUR-500 handle both external and internal grinding operations?

A: The machine is designed for universal use, allowing external cylindrical grinding up to 200 mm diameter and internal grinding up to 50 mm using the included internal grinding attachment. Switching between modes is straightforward, thanks to accessories and a flexible spindle design.

Q: What materials can be processed using the RUR-500 Universal Cylindrical Grinder?

A: The RUR-500 is adept at grinding a range of industrial materials, primarily cast iron and steel. Its sturdy construction and precision capabilities make it suitable for processing various metal components in manufacturing and repair applications.

Q: When is it appropriate to use the table swivel and headstock swivel features?

A: The table can be swiveled 7 degrees for precise taper grinding, while the swiveling headstock enables angular grinding operations. These adjustments are particularly beneficial when producing complex geometries or matching specific engineering requirements.

Q: Where can the RUR-500 be installed and used most effectively?

A: Ideal for industrial workshops, tool rooms, and production environments, the RUR-500 requires a three-phase, 415V supply and sufficient floor space for its footprint (2100 x 1700 x 1300 mm). Its robust design is tailored for heavy-duty and high-precision settings.

Q: What is the process for maintaining optimal machine performance?

A: Routine maintenance involves ensuring the automatic lubrication system is functional, keeping the coolant system clean and full, and regularly inspecting grinding wheels and accessories. Following scheduled maintenance extends the machine's performance and accuracy.

Q: How does the semi-automatic/manual operation benefit users?

A: Operators can choose between manual control for intricate setups or semi-automatic modes for repetitive tasks, enhancing both operational flexibility and efficiency. This dual-mode functionality caters to a wide variety of grinding requirements.

Q: What are the key included accessories and how do they assist in usage?

A: The RUR-500 comes equipped with a steady rest, internal grinding spindle, assortment of grinding wheels and flanges, a coolant system, and both 3-jaw chuck and centers. These enhance machine versatility, support precision setups, and enable a smooth workflow upon installation.
