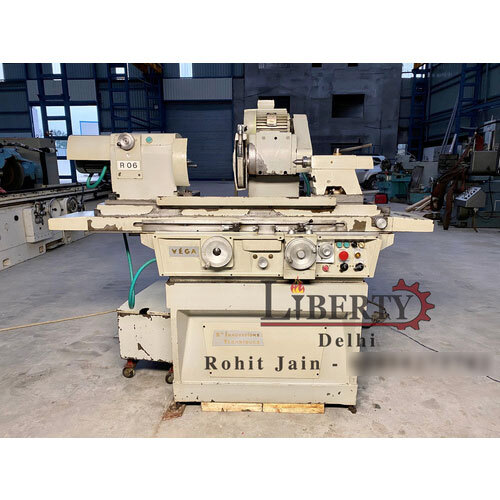

Send InquirySIT France 500 mm Length Cylindrical Grinder Machine
Price 100000 INR/ Piece
MOQ : 1 Piece
SIT France 500 mm Length Cylindrical Grinder Machine Specification
- Product Type
- Cylindrical Grinder Machine
- General Use
- Precision Metal Grinding
- Material
- Cast Iron, Steel Structure
- Type
- Automatic
- Capacity
- 500 mm Length
- Weight (kg)
- Approx. 1400 kg
- Computerized
- No
- Automatic
- Yes
- Control System
- Panel Operated
- Drive Type
- Electric
- Grinding Diameter
- Max. 200 mm
- Grinding Length
- 500 mm
- Spindle Speed
- 1800 RPM
- Grinding Wheel Size
- 350 x 38 x 127 mm
- Voltage
- 415 V, 3 Phase
- Dimension (L*W*H)
- 2200 x 1700 x 1500 mm
- Feature
- High Precision, Rigid Construction, Low Vibration
- Color
- Grey & Blue
- Tailstock Quill Travel
- 40 mm
- Surface Finish
- Up to 0.5 m
- Work Head Swivel
- 45
- Table Swivel
- 8
- Chuck Size
- 200 mm
- Coolant System
- Yes
- Max. Workpiece Weight (with Center)
- 70 kg
- Main Motor Power
- 2.2 kW
- Lubrication System
- Centralized
- Infeed Handwheel Graduation
- 0.002 mm per division
SIT France 500 mm Length Cylindrical Grinder Machine Trade Information
- Minimum Order Quantity
- 1 Piece
- Main Domestic Market
- All India
SIT France 500 mm Length Cylindrical Grinder Machine About
Make - SIT (France)
Model - Vega 5 SO
Center Height - 165 mm
Max. Length of Job - 500 mm
Max. Grinding Diameter of Job - 200 mm
Max. Swing Diameter - 320 mm / 360 mm / 410 mm
Grinding Wheel Size - Diameter 250 mm x 25 mm Thickness
Work-Head Speeds - 60 rpm to 520 rpm
Table Rotation - +10 degree to -6 degree
- Features like Auto-Cut, Delay, Auto-Compensation etc.
- Machine can work in a complete Auto-Cycle Mode.
- Complete with Coolant Tank & Pump.
- Machine is in excellent working condition.
Video of The Machine -
Exceptional Grinding Precision and Capacity
Designed for tasks requiring immaculate accuracy, this cylindrical grinder delivers a surface finish of up to 0.5 m, meeting the demands of high-quality metalworking industries. With a 500 mm grinding length and 200 mm diameter capacity, the machine handles diverse workpieces with ease while maintaining consistent performance.
Robust Construction with Automated Operation
Constructed from cast iron and steel, the grinder boasts high rigidity, reducing vibration for smooth operation. Automated functionality paired with a user-friendly panel-operated control system optimizes throughput and minimizes manual intervention, making it an excellent solution for continuous production environments.
Advanced Cooling and Lubrication
A centralized lubrication system and integrated coolant ensure temperature stability and component longevity. This sophisticated infrastructure supports reliable operation and reduces downtime, aligning with the standards required by manufacturers and exporters in demanding sectors.
FAQ's of SIT France 500 mm Length Cylindrical Grinder Machine:
Q: How does the SIT France 500 mm Cylindrical Grinder maintain high precision during operation?
A: The grinder utilizes a rigid cast iron and steel structure combined with low vibration engineering and a centralized lubrication system to prevent deflection and ensure consistent, precise grinding. Graduated handwheels allow for accurate infeed adjustments as fine as 0.002 mm per division.Q: What materials can be processed with this cylindrical grinding machine?
A: It is specifically designed for precision grinding of cast iron and steel components, but can also be used with other machinable metals as allowed by its maximum weight and size capacities.Q: When is coolant required during the grinding process, and how is it implemented?
A: Coolant is necessary during all standard grinding operations to dissipate heat, reduce tool wear, and prevent thermal damage to the workpiece. The built-in coolant system operates automatically when the machine is running, efficiently managing temperature throughout the process.Q: Where can this machine be effectively utilized?
A: This grinder is ideal for use in manufacturing plants, machine shops, and workshops requiring high accuracy in cylindrical component finishing. It is particularly suited for exporters, importers, suppliers, and traders needing dependable precision for metal parts.Q: What is the process for setting up and operating the machine?
A: Begin by securely mounting the workpiece between centers or using the 200 mm chuck. Adjust the work head and table swivel to the required angles. Use the intuitive panel-operated controls to program the automated cycle, set the infeed, and monitor the grinding process. Centralized lubrication and cooling systems activate automatically.Q: How does the automatic system benefit daily production?
A: Automation ensures consistent grinding, reduces operator fatigue, and enables higher production rates with less manual oversight. This maximizes throughput while sustaining the superior finish quality the machine is designed to deliver.Q: What are the key advantages of this cylindrical grinder over manual alternatives?
A: Key benefits include improved surface finish accuracy, stable operation thanks to its rigid construction and advanced cooling, reduced vibration, simplified control with an automatic, panel-based system, and increased efficiency for medium to large-scale production assignments.
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Cylindrical Grinder Category
TOS Hostivar 2Ud P2 Universal Cylindrical Grinder Machine
Price 80.0 INR / Piece
Minimum Order Quantity : 1 Piece
Voltage : 400 V, 3 Phase
Type : Other, Horizontal
Capacity : 320 mm (Grinding Diameter)
Product Type : Universal Cylindrical Grinder Machine
Schaudt Germany 1500 mm Heavy Duty Cylindrical Grinder
Price 100000.0 INR / Piece
Minimum Order Quantity : 1 Piece
Voltage : 415 V / 3 Phase / 50 Hz
Type : Other, Heavy Duty Cylindrical Grinder
Capacity : Max. Length of Job: 1500 mm
Product Type : Schaudt (Germany) make HeavyDuty Cylindrical Grinding Machine in excellent working condition. The model of the machine is AR1500 and the Center Height is 180 mm and the Max. Length of Job is 1500 mm. The machine has features of AutoCut, Plunge Grinding, Delay, AutoCompensation, Hydraulic TailStock etc. The technical details are as follows

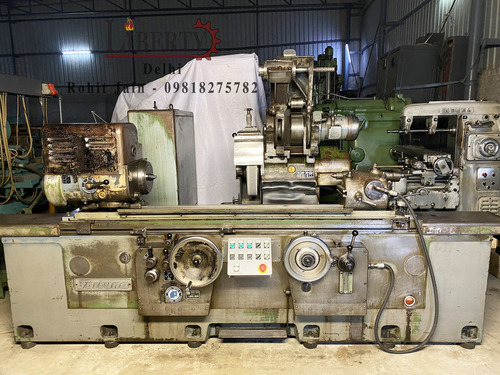

Fortuna Germany Angular Cylindrical Grinder
