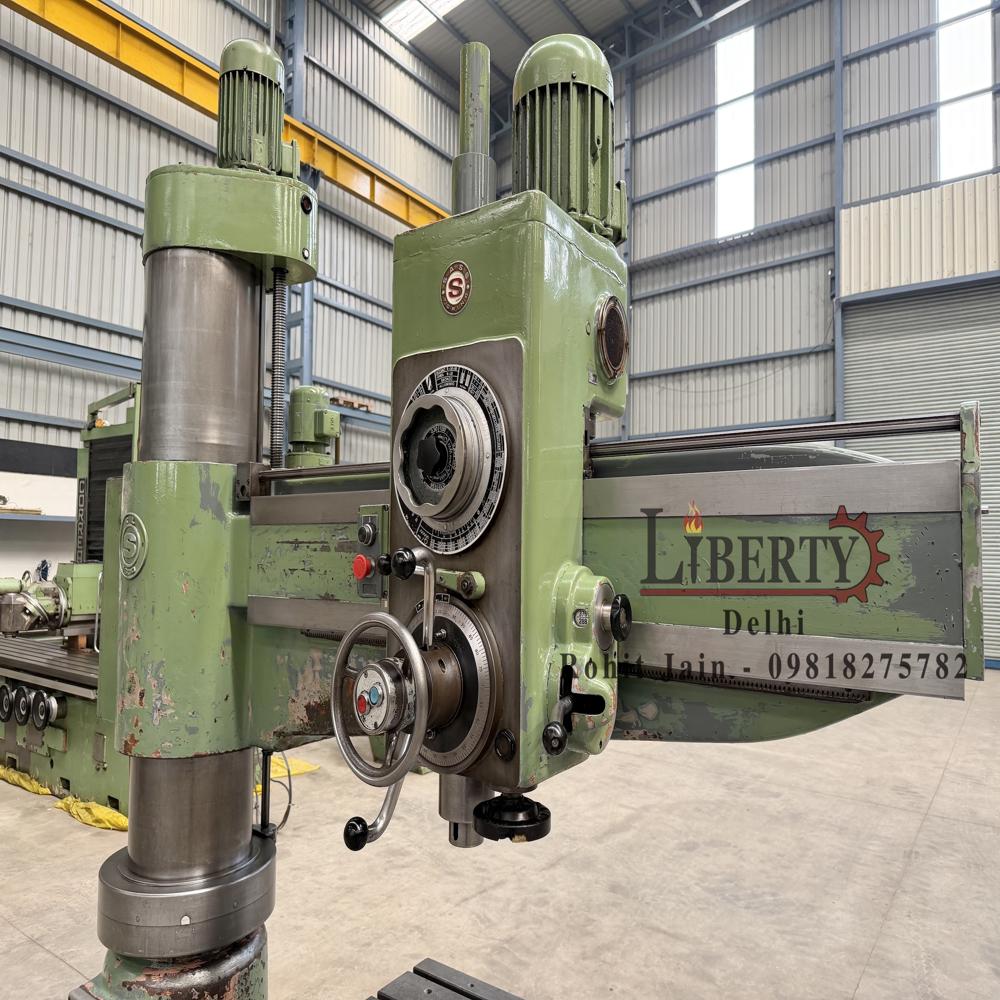

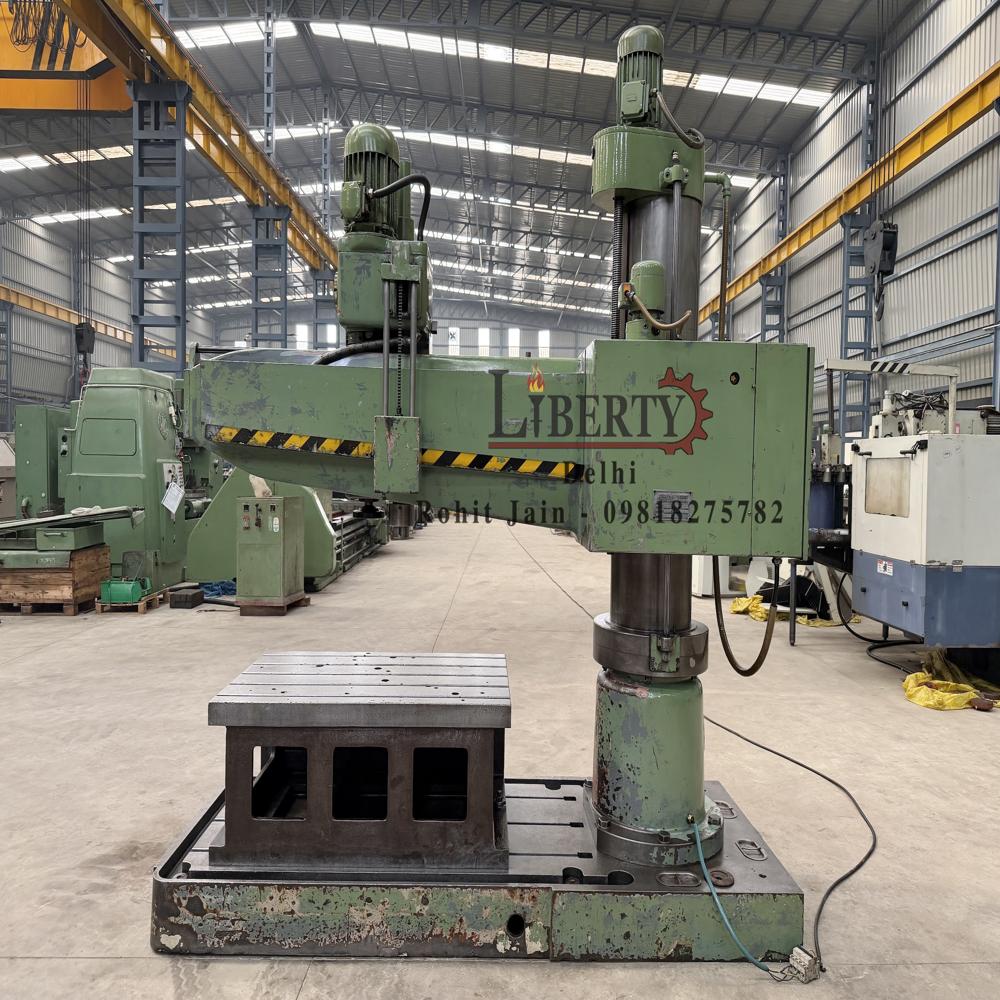

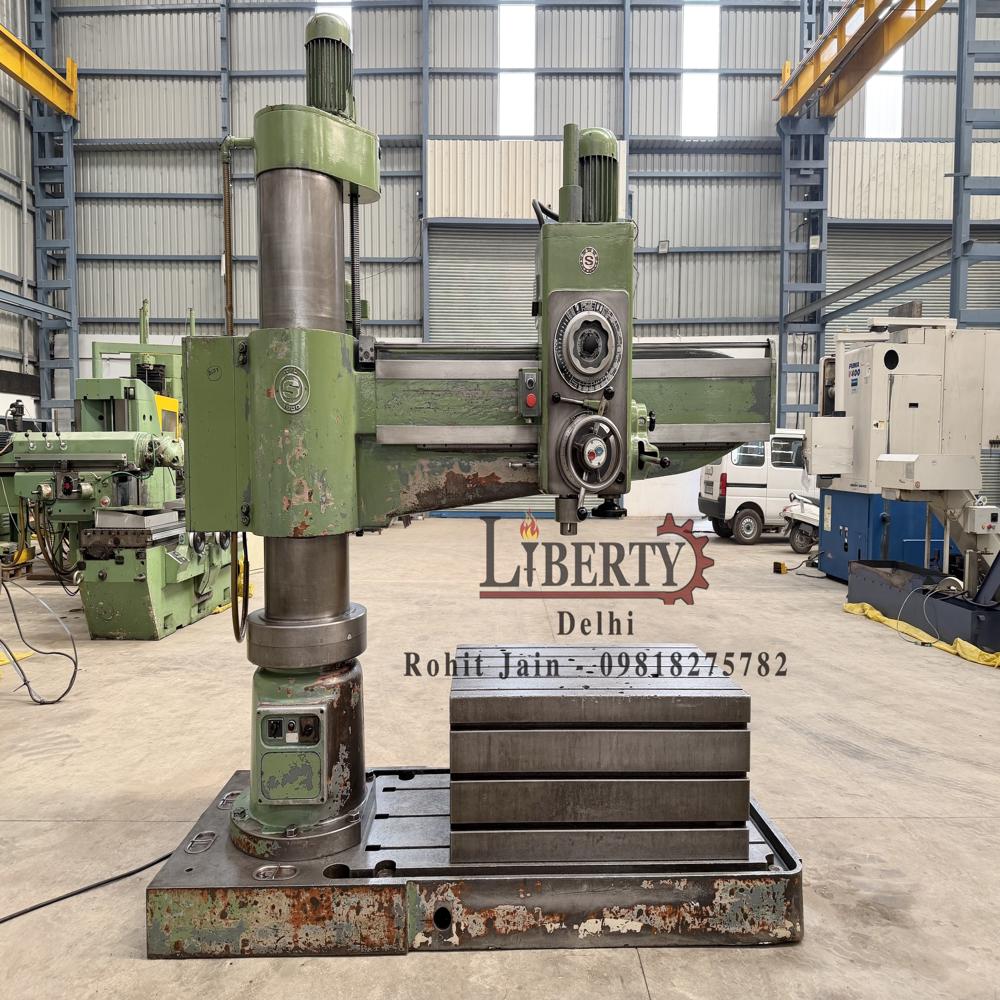

SASS Italy TL-1600 Heavy Duty Radial Drilling Machine

Name: SASS Italy TL-1600 Heavy Duty Radial Drilling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SASS Italy TL-1600 Heavy Duty Radial Drilling Machine Specification

Cutting Area
Up to 1600 mm radial reach

Machine Type
Radial Drilling Machine

Table Size
800mm x 630mm (approx.)

Frequency
50 Hz

Noise Level
Low

Condition
Excellent

Features
Heavy duty, robust construction, adjustable arm length, precision spindle, tilting and swiveling table, outstanding stability

Dimension (L*W*H)
2650mm x 1060mm x 2925mm

Motor Power
5 HP

Spindle Speed
16 Steps, 32 1600 rpm

Diameter
Maximum drilling diameter 60 mm in steel

Product Type
SASS (Italy) make Heavy Duty Radial Drilling Machine in excellent working condition. The model of the machine is TL-1600 and the Drilling Capacity (in Steel) of the Machine is 60 mm and the Arm Length is 1740 mm. The technical details are as follows -

Material
High-grade Cast Iron and Steel

Computerized
No

Automatic Grade
Semi-Automatic

CNC Or Not
No

Control System
Manual Control

Voltage
415 V

Power
5 HP (approx. 3.7 kW)

Power Source
Electric

Weight (kg)
Approx. 3500 kg

Capacity
Drilling: 60 mm in Steel

Color
Standard Machine Grey with Black and Red Accents

Usage & Applications
Industrial drilling, tapping, and boring operations on metals

Feed Range
Automatic, 0.04 3.2 mm/rev

Rotary Table
Optional Accessory

Model
TL-1600

Drill Head Traverse
1400 mm

Coolant System
Fitted

Maximum Distance Spindle to Base
1600 mm

Column Diameter
350 mm

Base Size
1800 mm x 1150 mm

Vertical Travel of Arm
850 mm

Spindle Taper
Morse Taper No. 5

Number of Spindle Speeds
16

Quill Travel
315 mm

Arm Length
1740 mm

Minimum Distance Spindle to Base
480 mm

About SASS Italy TL-1600 Heavy Duty Radial Drilling Machine

Make - SASS (Italy)

Model - TL-1600

Drilling Capacity (in Steel) - 60 mm

Drilling Capacity (in CI) - 70 mm

Spindle Diameter - 85 mm

Arm Length - 1740 mm

Spindle Speeds - 32 rpm to 1945 rpm

Spindle Taper - MT-5

Spindle Feed Travel - 400 mm

Spindle Feed Rate of Travel - 0.09 mm/rev to 1.50 mm/rev

Vertical Travel of Arm - 700 mm

Max. Height between Spindle to Top of Base - 1425 mm

Cube Table Size - 1200 mm x 750 mm

Weight of the Machine - 4.70 Tons

Clamping Type - Hydraulic

- Machine is in excellent working condition.

Video of the Machine -

https://youtu.be/Vgbodt_DP7g

Heavy-Duty Performance for Demanding Applications

Built with high-grade cast iron and steel, the SASS Italy TL-1600 delivers steadfast stability and longevity for industrial operations. With a 60 mm drilling capacity in steel and an impressive 1600 mm maximum spindle reach, it effectively handles large, heavy-duty workpieces across demanding manufacturing and fabrication environments.

Precision Controls and Versatility

The TL-1600 offers a manual, semi-automatic control system with 16 spindle speed steps and automatic feed, allowing users to fine-tune performance for various drilling tasks. The adjustable arm, optional rotary table, and quill travel of 315 mm make it adaptable for both repetitive and specialized applications.

Enhanced Usability and Maintenance

Equipped with a fitted coolant system and designed for low noise levels, this machine promotes operator comfort and extended lifespan. Its robust construction minimizes maintenance needs while ensuring precise performance, making it a cost-effective choice for workshops and production floors.

FAQ's of SASS Italy TL-1600 Heavy Duty Radial Drilling Machine:

Q: How does the adjustable arm on the SASS Italy TL-1600 improve productivity?

A: The adjustable arm, with a radial reach of up to 1600 mm, allows the operator to position the drill head precisely over varying sizes of workpieces without moving the piece itself. This capability results in quicker setups, increased flexibility for large components, and improved productivity during repetitive or complex drilling operations.

Q: What are the main usage scenarios for the TL-1600 radial drilling machine?

A: The TL-1600 is primarily designed for industrial applications such as drilling, tapping, and boring operations on metals. Its heavy-duty construction and large working area make it suitable for metal fabrication, machinery manufacturing, and large-scale component processing workplaces.

Q: When is the optional rotary table recommended for use with the TL-1600?

A: The optional rotary table is ideal when operations require precise angular or circular drilling and tapping. This accessory enhances versatility, allowing for more complex machining tasks, multi-angle drilling, and increased overall functionality when dealing with intricate workpieces.

Q: What is the process for setting different spindle speeds on this machine?

A: The TL-1600 provides 16 selectable spindle speed steps, ranging from 32 to 1600 rpm. To adjust the speed, users manually change the gear settings according to the material and drill bit used, ensuring optimal feed rate and cutting precision for each task.

Q: How is operator safety and comfort addressed with this drilling machine?

A: Safety and comfort are prioritized through the machine's low noise operation, robust construction, and integrated coolant system. The manual controls are user-friendly, enabling safer and more controlled spindle movement, while the stable base and structure minimize vibration during heavy-duty use.

Q: Where should the TL-1600 be installed for optimal performance?

A: It is recommended to install the TL-1600 on a solid, level factory or workshop floor with sufficient clearance around its footprint (2650mm x 1060mm) and height (2925mm) to accommodate arm movements and large workpieces. Access to a 415 V electric power supply is required for operation.
