Schaudt Germany 1500 mm Heavy Duty Cylindrical Grinder Machine

Name: Schaudt Germany 1500 mm Heavy Duty Cylindrical Grinder Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Schaudt Germany 1500 mm Heavy Duty Cylindrical Grinder Machine Specification

Product Type

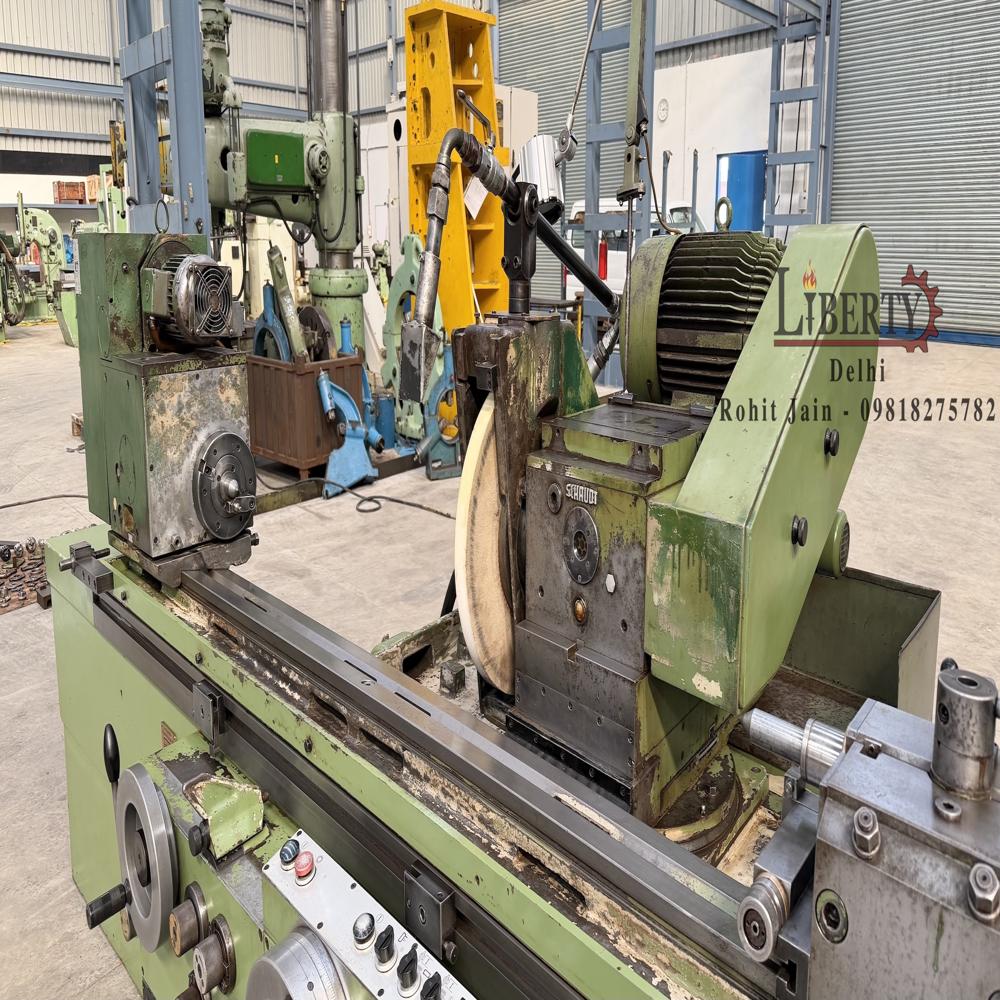

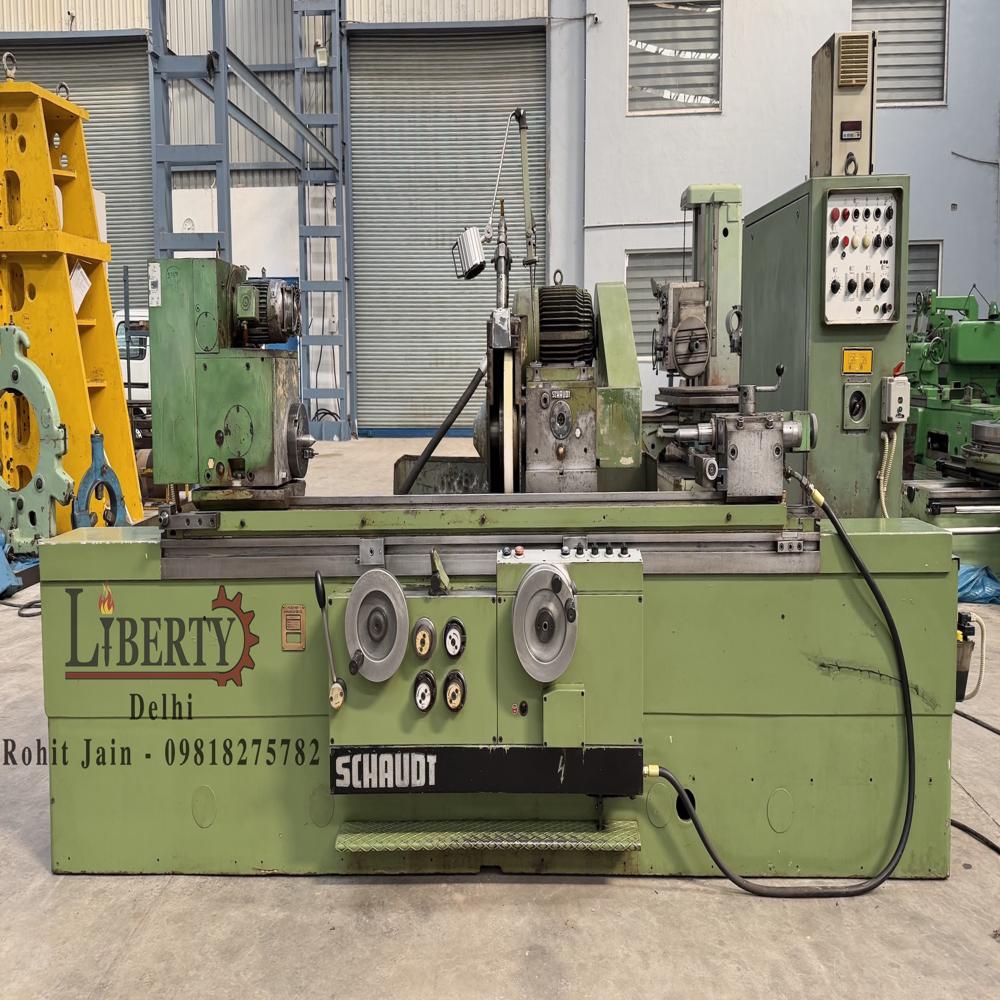

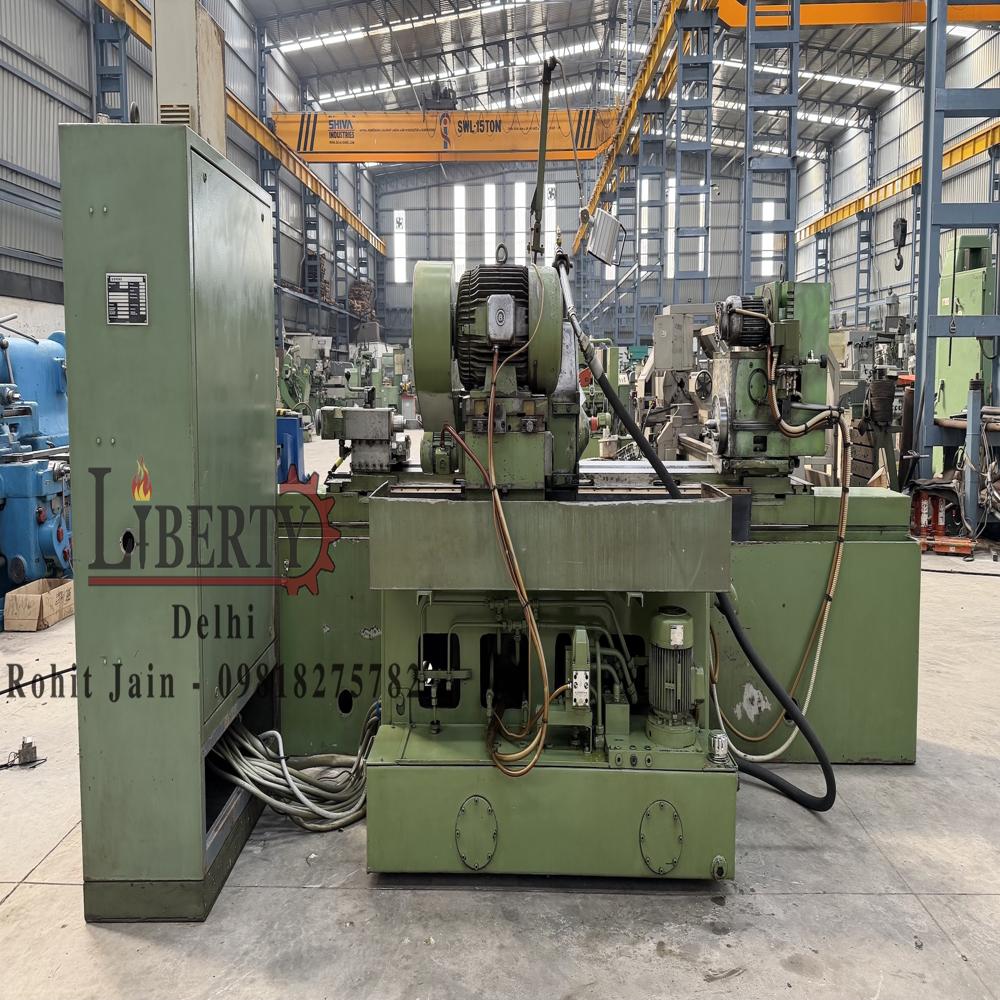

Heavy Duty Cylindrical Grinding Machine made by Schaudt (Germany) in excellent working condition. The model of this machine is A401 N1500 and the Maximum Length of Job is 1500 mm. It is a complete Auto-Cycle machine having features of Automatic Depth Adjustment, Auto-Compensation, Automatic Plunge Cycles etc. The machine is complete with spare Wheel Flanges, many Centers, Wheel Balancing Shaft, Wheel Dresser, Job Carriers, Coolant Tank, Coolant Pump etc. All types of technical documentation - Operating Manual, Electrical Drawings etc are also available. The technical details are as follows -

General Use
For precision external and internal cylindrical grinding operations

Material
Cast Iron, Steel

Type
Cylindrical Grinder

Capacity
1500 mm (Grinding length)

Weight (kg)
Approx. 4000-5000 kg

Computerized
No

Automatic
Semi-Automatic

Control System
Manual with electrical controls

Drive Type
Belt Drive

Grinding Diameter
Approx. 300 mm

Grinding Length
1500 mm

Spindle Speed
Variable (typically 20-800 RPM depending on attachment)

Grinding Wheel Size
400 mm (standard)

Voltage
415 V, 3 Phase

Dimension (L*W*H)
3500 mm x 1800 mm x 1750 mm (approximate)

Feature
Heavy Duty construction, High precision, Rigid bed design

Color
Green

Wheel Head
Manual/Automatic Traverse

Chuck Type
Three Jaw Chuck and Centers

Condition
Used - Excellent Working Condition

Work Headstock
Swivel Type

Max. Job Load
Up to 500 kg

Coolant System
Integrated Coolant Pump and Tank

Tailstock
Manual with Fine Adjustment

Table Traverse
Hydraulic / Manual

Accessories Included
Steady Rests, Balancing Stand, Wheel Flanges

Lubrication
Centralized Lubrication System

Main Motor Power
5-7.5 HP

About Schaudt Germany 1500 mm Heavy Duty Cylindrical Grinder Machine

Make - Schaudt (Germany)

Model - A401 N1500

Center Height - 150 mm

Max. Diameter of Job - 300 mm

Max. Grinding Length of Job - 1500 mm

Max. Clamping Length of Job - 1650 mm

Grinding Wheel Size - Diameter 500 mm x 80 mm Width

Least Count of the Machine - 2 Microns (0.002 mm)

Table Rotation - +5 degree to -7 degree

- Machine can work in complete Auto-Cycle Mode.

- Features like Delay, Hydraulic Tail-Stock, Manual Hydraulic Travel of Wheel-Head etc.

- Features like Auto-Cut, Auto-Compensation, Plunge Grinding, Spark-Out etc.

- With Wheel Dresser, Wheel Flanges, Centers, Job Carriers, Wheel Balancing Shaft etc.

- Complete with Coolant Tank, Coolant Pump, Splash Guards etc.

- Operating Manual, Electrical Drawings, and other documentation are available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/3AuzzUAJiFA

Precision Engineering for Demanding Applications

Built with heavy-duty construction and rigid bed design, the Schaudt Cylindrical Grinder ensures unparalleled stability and accuracy. Its centralized lubrication, integrated coolant system, and accessible electrical controls make it ideal for sustained industrial use. Engineered with flexibility in mind, its 1500 mm capacity and variable spindle speeds suit diverse grinding tasks in high-precision environments.

Versatile and Adaptable Operations

From external to internal cylindrical grinding, this machine adapts seamlessly to deliver optimal results. Adjustable tailstock and multiple steady rest positions allow users to handle a wide range of workpiece sizes and shapes. The swiveling wheel head further enhances grinding precision and flexibility, supporting a multitude of tasks commonly required in automotive and engineering sectors.

FAQ's of Schaudt Germany 1500 mm Heavy Duty Cylindrical Grinder Machine:

Q: How does the Schaudt 1500 mm Cylindrical Grinder achieve high accuracy in grinding?

A: The machine's rigid bed design, swiveling wheel head, and centralized lubrication system minimize vibrations and thermal fluctuations, which helps achieve up to 0.002 mm precision when suitable process parameters and setups are employed.

Q: What types of materials and workpieces can be processed on this grinder?

A: This cylindrical grinder is suitable for cast iron and steel workpieces up to 300 kg and 1500 mm in length, handling components typical in automobile, engineering, tool room, and heavy fabrication industries.

Q: When is it necessary to use multiple steady rest positions?

A: Multiple steady rest positions are required during grinding long or heavy workpieces to ensure optimal support, reduce deflection, and maintain dimensional accuracy throughout the operation.

Q: Where should the electrical controls and cabinet be accessed on this machine?

A: The electrical cabinet is mounted directly onto the machine with an accessible front panel, allowing operators to easily monitor, adjust, and maintain the machine's electrical and operational functions.

Q: What is the benefit of an integrated coolant system in this grinder?

A: The fitted coolant system provides consistent temperature control, reducing thermal expansion of both the grinding wheel and workpiece, which enhances surface finish and prolongs tool life.

Q: How is the spindle speed adjusted on this cylindrical grinder?

A: Spindle speed can be varied between approximately 20 and 800 RPM depending on the selected attachments and process requirements, allowing precise adaptation for different grinding applications.
