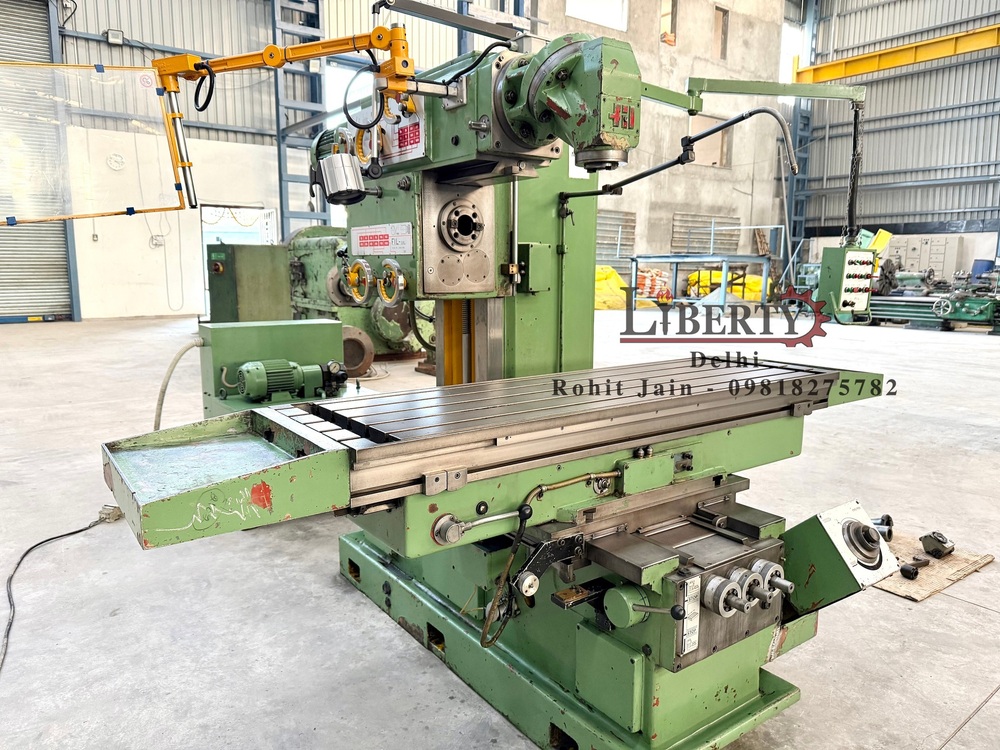

SIA Italy Vertical Bed Type Milling Machine

Name: SIA Italy Vertical Bed Type Milling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SIA Italy Vertical Bed Type Milling Machine Specification

Rotation
Universal Swivel Head

Model
SIA Italy BA 1200

Product Type
Vertical Bed Type Milling Machine

General Use
Industrial Metal Milling

Material
Cast Iron

Type
Vertical Milling

Capacity
Heavy Duty

Weight (kg)
3800 kg

Computerized
No

Automatic
No

CNC Or Not
Not CNC

Control System
Manual

Table Size
400 x 1200 mm

Table Slide Way
Hardened & Ground

Magnetic Chuck Size
400 x 1200 mm

Grinding Wheel Size
400 mm

Grinding Wheel Speed
1400 RPM

Grinding Length
1200 mm

Floor Space
2500 x 2200 mm

Fuel Tank Capacity
60 Liters

Spindle Speed
50 - 3600 RPM

Power
7.5 kW

Voltage
380 V

Dimension (L*W*H)
2500 x 2200 x 2300 mm

Feature
High Precision, Sturdy Structure, Easy Operation

Color
Standard Grey

Lubrication System
Centralized

Max Distance Between Table & Spindle
700 mm

Spindle Taper
ISO 50

Working Speed
Adjustable

Application
Precision Machining, Toolroom Works

Longitudinal Travel (X-Axis)
1000 mm

Coolant System
Included

Table Load Capacity
1350 kg

Transverse Travel (Y-Axis)
450 mm

Vertical Travel (Z-Axis)
500 mm

SIA Italy Vertical Bed Type Milling Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About SIA Italy Vertical Bed Type Milling Machine

Make - SIA (Italy)

Model - 486

Table Size - 2200 mm x 500 mm

XYZ Travel of Table - 1500 mm x 600 mm x 700 mm

Spindle Taper - ISO 50

Spindle Speeds - 35 rpm to 1250 rpm

Feed Rate of Table Travels - 0 mm/min to 1200 mm/min

Feed Rate of Vertical Head Travels - 0.05 mm/rev to 0.20 mm/rev

Max. Height between Table Top to Vertical Spindle - 800 mm

Spindle Motor - 11 kW

Weight of the Machine - 6.5 tons

- Equipped with a 3-Axis DRO.

- Machine suitable for Vertical Milling & Boring Operations.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/GWthHgFCWo0

Reliable Heavy-Duty Milling Performance

The SIA Italy BA 1200 delivers optimal milling and grinding with its sturdy cast iron body, large worktable (400 x 1200 mm), and strong table load capacity. Its universal swivel head enhances versatility for complex operations, and hardened, ground slideways ensure precise and smooth movement. The machine's robust build and high-capacity features make it suitable for continuous use in industrial and toolroom settings.

Advanced Features for Efficient Machining

Equipped with a centralized lubrication system, built-in coolant, and adjustable spindle speeds (50 - 3600 RPM), the BA 1200 offers superior temperature control and low maintenance operation. The ISO 50 spindle taper and magnetic chuck enhance tooling compatibility and workpiece security. With a 7.5 kW motor and 60-liter fuel tank, it supports energy-efficient, prolonged sessions for diverse metal milling and grinding requirements.

FAQ's of SIA Italy Vertical Bed Type Milling Machine:

Q: How does the SIA Italy BA 1200 ensure machining precision for industrial applications?

A: The machine is designed with hardened and ground slide ways, a universal swivel head, and a stable cast iron structure. This combination minimizes vibration, maintains accuracy, and allows for precision in demanding toolroom and metalworking tasks.

Q: What materials and workpiece sizes can the table accommodate?

A: The heavy-duty worktable (400 x 1200 mm) with a load capacity of 1350 kg can support large and heavy metal pieces, making it ideal for various ferrous and non-ferrous materials consistently used in industrial environments.

Q: Where can the BA 1200 be used effectively?

A: It is suitable for precision machining, toolroom work, and general industrial metal milling in workshops, factories, and manufacturing plants. Its rugged design and advanced features support both small batch jobs and continuous production.

Q: What is the process for operating this milling machine?

A: The BA 1200 operates manually with a straightforward control system, allowing for adjustable spindle and table speeds. Operators can select appropriate settings for specific tasks, aided by a centralized lubrication system and integrated coolant for smooth, safe milling and grinding.

Q: How does the built-in coolant and lubrication system benefit users?

A: The built-in systems ensure the machine operates at optimal temperatures, reduce wear, and extend component life. This leads to improved machining accuracy, reduced maintenance needs, and longer operation periods between servicing.

Q: When is it appropriate to use the grinding functions of this machine?

A: The grinding attributes, including a 400 mm wheel and 1200 mm grinding length, are best utilized during finishing stages, surface preparation, or where high surface quality is required on metal workpieces, complementing the machine's milling capabilities.
