TOS 300 mm x 1500 mm Vertical Surface Grinder

Name: TOS 300 mm x 1500 mm Vertical Surface Grinder
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS 300 mm x 1500 mm Vertical Surface Grinder Specification

Model
TOS 300 x 1500

Rotation
Clockwise/Counter Clockwise

Product Type
Vertical Surface Grinder

General Use
Precision Surface Grinding

Material
Cast Iron, Hardened Steel

Type
Surface Grinding Machine

Capacity
Heavy Duty

Weight (kg)
Approx. 4500 kg

Computerized
No

Automatic
No

CNC Or Not
Not CNC

Control System
Manual

Table Size
300 mm x 1500 mm

Table Slide Way
Box Type

Magnetic Chuck Size
300 mm x 1500 mm

Grinding Wheel Size
approx. 350 mm x 63 mm x 127 mm

Grinding Wheel Speed
1450 RPM

Grinding Length
1500 mm

Floor Space
2500 mm x 2200 mm

Fuel Tank Capacity
40 Liters

Spindle Speed
1450 RPM

Power
5 HP

Voltage
415 V

Dimension (L*W*H)
2500 mm x 2200 mm x 2200 mm

Feature
Vertical Spindle, Sturdy Construction

Color
Standard Industrial

Hydraulic Oil Capacity
Approx. 60 Liters

Vertical Feed Graduation
0.001 mm

Max. Table Load
700 kg

Chuck Type
Electromagnetic

Vibration Level
Minimum

Max Grinding Height
400 mm

After Sales Support
Yes

Installation Service
Available

Lubrication System
Centralized

Coolant System
Yes, Fitted

Table Movement
Longitudinal, Hydraulic

Surface Finish
0.002 mm

Noise Level
Low

Wheel Head Motor
5 HP

TOS 300 mm x 1500 mm Vertical Surface Grinder Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

TOS 300 mm x 1500 mm Vertical Surface Grinder About

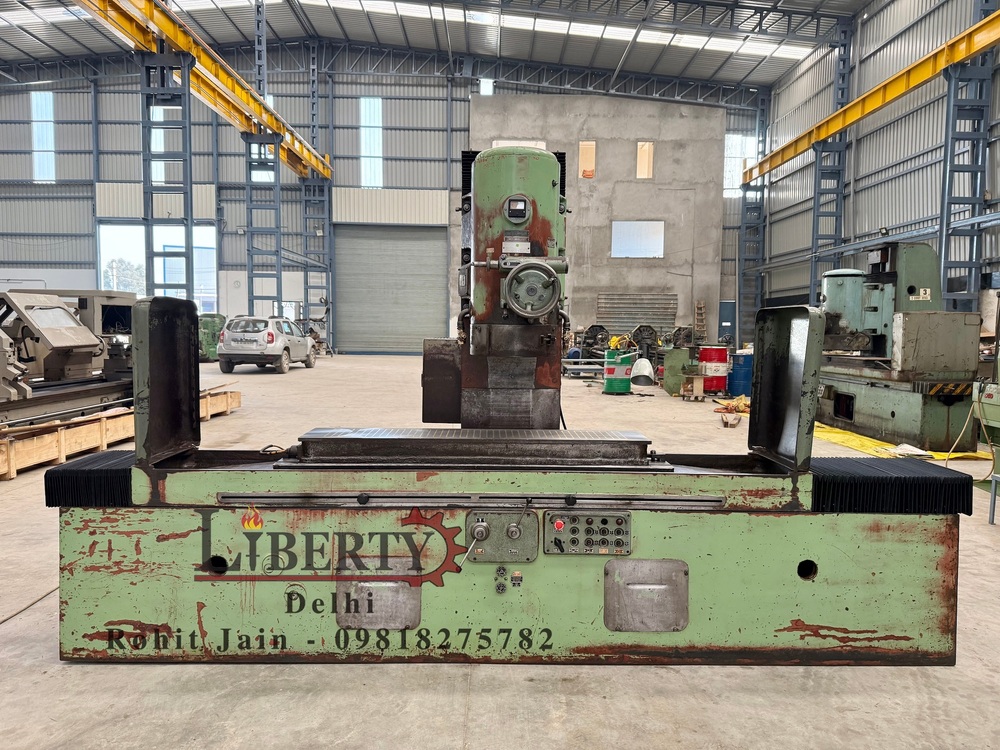

Make - TOS (Czech Republic)

Model - BPV 300

Magnet Size - 300 mm x 1500 mm

Segmented Wheel Cup Diameter - 315 mm

No. of Segments in Wheel - 8 pcs.

Max. Height of Job - 400 mm

- With Automatic Depth Adjustment "Auto-Cut".

- Complete with Coolant tank and pump.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/Xos2lajxSIQ

Precision Performance and Capacity

The TOS 300 mm x 1500 mm Vertical Surface Grinder offers exceptional accuracy, supporting large workpieces up to 700 kg and providing a finely adjustable vertical feed for intricate surface finishing. Its heavy-duty table size and robust build make it the preferred choice for industrial applications demanding precision and reliability.

Advanced Hydraulic and Lubrication Systems

Fitted with a sophisticated hydraulic system for table movement and a centralized lubrication unit, this grinder ensures smooth, consistent operation and minimizes wear on critical components. The coolant system preserves workpiece integrity and extends machine lifespan.

Ease of Use and Reliable Support

Despite its heavy-duty capabilities, the grinder is designed for straightforward manual operation, with ergonomic controls and clear graduations. Customers benefit from professional installation services, comprehensive after-sales support, and guidance from an experienced manufacturer and exporter, ensuring operational efficiency from day one.

FAQs of TOS 300 mm x 1500 mm Vertical Surface Grinder:

Q: How does the hydraulic table movement improve grinding precision?

A: The hydraulic-driven longitudinal table movement delivers consistent and smooth travel, reducing manual errors and ensuring precise, repeatable grinding across the entire table length. This enhances surface finish quality and dimensional accuracy, especially on larger or heavier workpieces.

Q: What materials can be processed using the TOS 300 mm x 1500 mm Surface Grinder?

A: This machine is engineered to grind a wide range of materials, including cast iron and hardened steel. Its sturdy construction and electromagnetic chuck ensure secure handling and effective machining of both standard and heavy-duty industrial components.

Q: When is after-sales support available for this surface grinder?

A: After-sales support is provided following installation, covering technical assistance, guidance in operation, and supply of spare parts. Support is available throughout the products lifecycle to maintain consistent performance and address any operational concerns.

Q: Where can the TOS 300 mm x 1500 mm Vertical Surface Grinder be installed?

A: Due to its substantial dimensions and weight (approx. 4500 kg), the grinder is suitable for spacious industrial workshops or manufacturing plants equipped with appropriate floor space and a stable foundation measuring at least 2500 mm x 2200 mm.

Q: How is the lubrication of moving parts managed?

A: A centralized lubrication system automatically delivers the appropriate amount of lubricant to critical machine components, reducing manual maintenance, prolonging lifespan, and ensuring uninterrupted smooth operation.

Q: What process steps are involved in operating this surface grinder?

A: Operation involves mounting the workpiece on the electromagnetic chuck, setting grinding parameters, activating the manual control system, and engaging the hydraulic movement for the table. The built-in coolant system and centralized lubrication work continuously during grinding for optimal performance.

Q: What are the primary benefits of using this vertical surface grinding machine?

A: Key benefits include high-precision surface finishing, ability to handle large and heavy workpieces, minimal vibration and noise, reliable hydraulic and lubrication systems, and the availability of professional installation and after-sales support, ensuring both high productivity and operational reliability.
