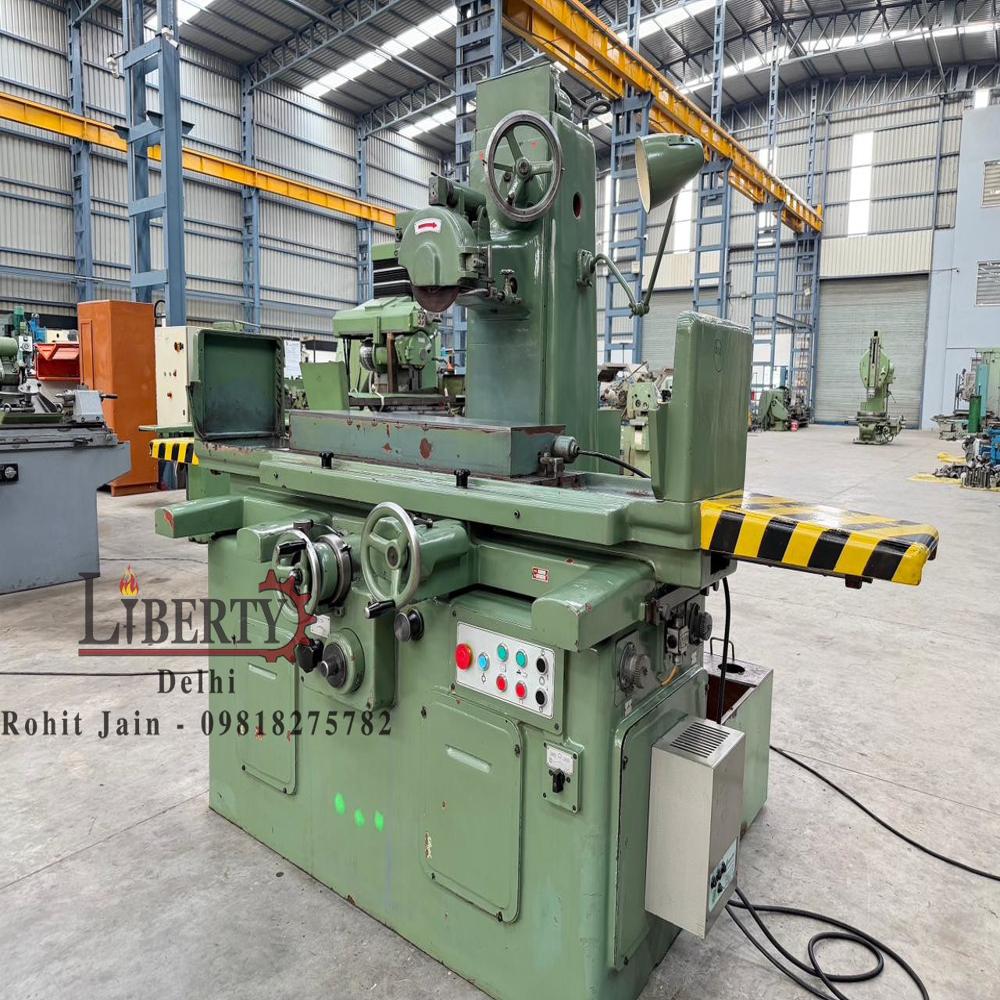

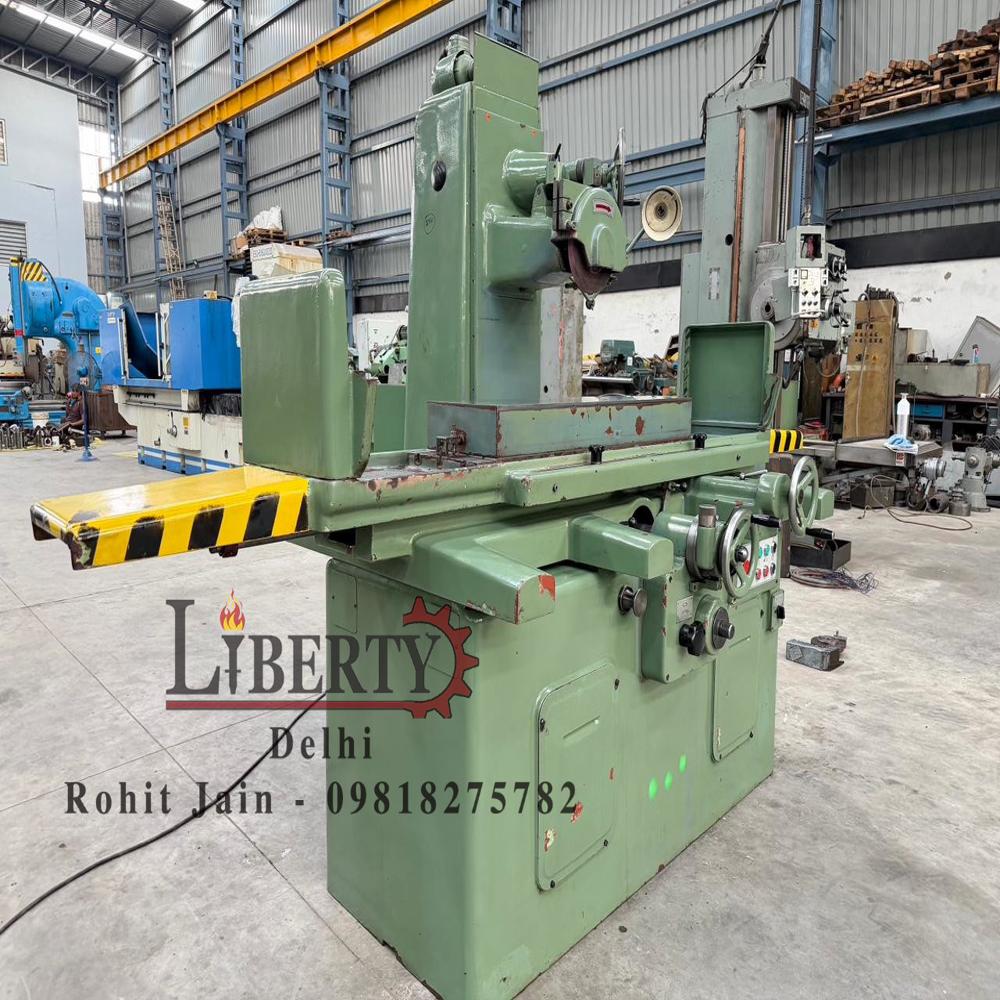

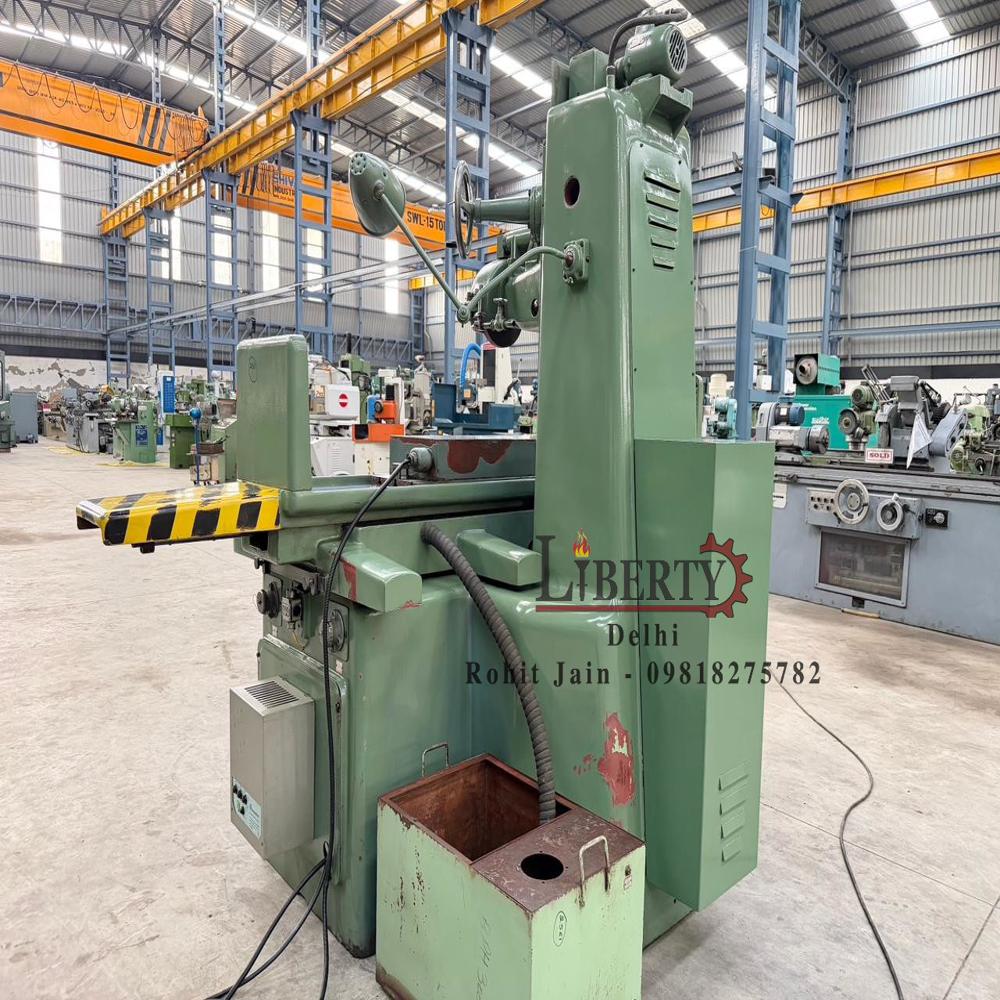

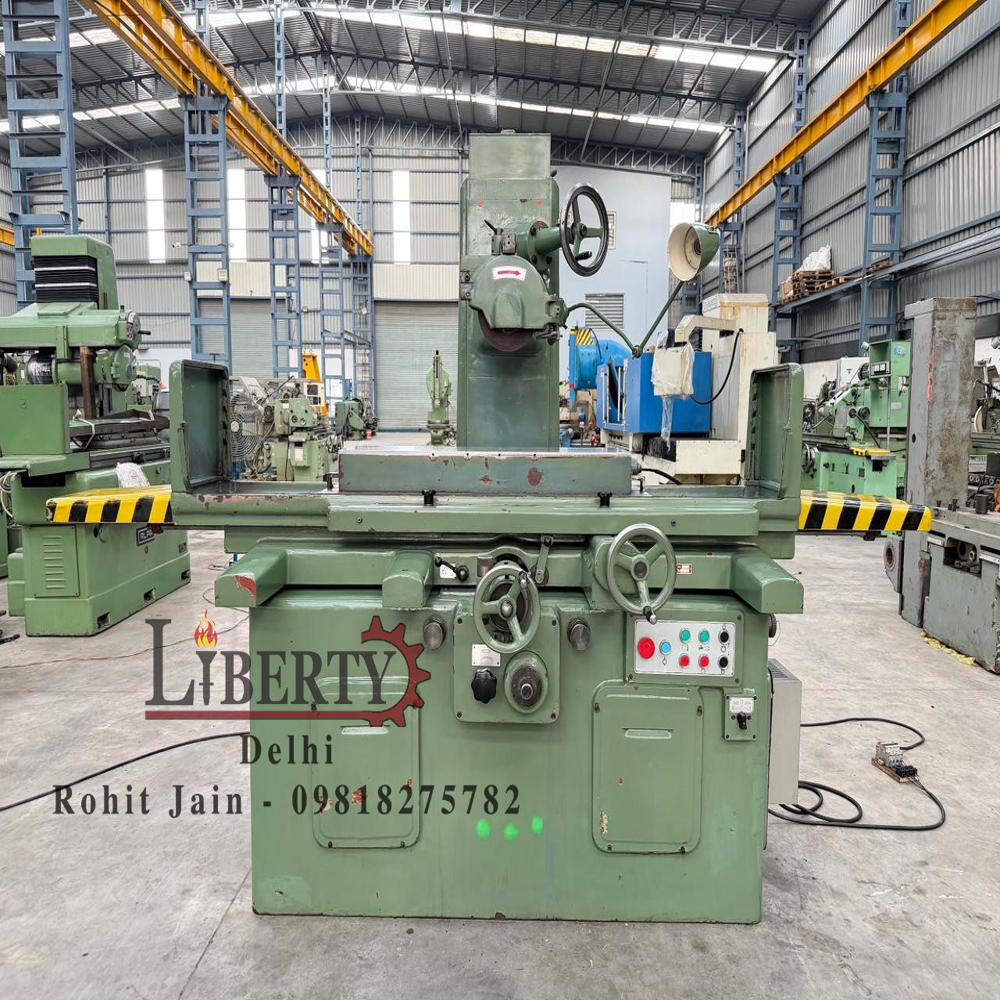

TOS Czech BPH-300 Surface Grinding Machine

Name: TOS Czech BPH-300 Surface Grinding Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS Czech BPH-300 Surface Grinding Machine Specification

Rotation
Rotary grinding wheel, fixed bed

Model
BPH-300

Product Type
Surface Grinding Machine

General Use
Hydraulic Surface Grinding Machine made by TOS Hostivar (Czech Republic) in excellent working condition. The model of the machine is BPH-300 and the Job Grinding Capacity is 300 mm x 1000 mm. The technical details are as follows -

Material
Cast Iron, Steel Components

Type
Hydraulic Surface Grinder

Capacity
300 mm x 1000 mm job size

Weight (kg)
~2600 kg

Computerized
No

Automatic
No (Semi-Automatic/Manual)

CNC Or Not
Not CNC (Conventional)

Control System
Manual Hand Wheel & Button Panel

Table Size
300 mm x 1000 mm

Table Slide Way
V and Flat guideways

Magnetic Chuck Size
300 mm x 1000 mm (approx.)

Grinding Wheel Size
Diameter 300 mm (approx.)

Grinding Wheel Speed
1450 rpm

Grinding Length
1000 mm

Floor Space
About 2700 mm x 2100 mm

Fuel Tank Capacity
35-50 litres (Hydraulic tank, approx.)

Spindle Speed
1450 rpm

Power
7.5 HP - 10 HP

Voltage
380V/415V, 3 Phase

Dimension (L*W*H)
Approx. 2700 x 2100 x 2100 mm

Feature
Heavy-duty, reliable, precision grinding

Color
Industrial Green

Working Speed
Variable, By Operator Control

Cross Traverse Travel
325 mm (approx)

Grinding Accuracy
High Precision (0.01 mm)

Condition
Used / Good Condition

Max Table Load
250 kg (approx)

Make
TOS

Table Longitudinal Travel
1050 mm (approx)

Coolant System
Fitted

Lubrication System
Centralized Manual System

Max Distance from Table to Spindle Center
400 mm

Hand Wheel Graduation
0.01/0.02 mm

TOS Czech BPH-300 Surface Grinding Machine Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About TOS Czech BPH-300 Surface Grinding Machine

Make - TOS (Czech Republic)

Model - BPH-300

Magnet Size - 300 mm x 1000 mm

Cross Travel - 340 mm

Longitudinal Travel - 1070 mm

Max. Grinding Wheel Diameter - 250 mm

Max. Grinding Wheel Width - 25 mm

Max. Height between Magnet Top to Wheel-Center - 370 mm

Least Count of Vertical Travel - 5 Microns (0.005 mm)

- Equipped with a Wheel-top Mounted Wheel Dresser.

- Micro-Feed Travels on the Cross-Travels.

- Complete with Coolant Tank, spare Wheel Flange, Wheel Dresser etc.

- Operating Manual & Electrical Drawings are available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/1CszC3HApbc

Exceptional Surface Finish and Capacity

Engineered with a large grinding capacity of 300 mm x 1000 mm and a precision surface finish capability of up to 2 microns, the TOS Czech BPH-300 delivers exceptional results for demanding industrial tasks. Its robust design and integrated systems ensure consistent and high-quality performance.

Advanced Hydraulic and Manual Controls

The BPH-300 features hydraulically powered longitudinal table movement and manual cross and vertical adjustments for total operator control. Centralized automatic lubrication maintains optimal performance and extends machine life, while the integrated coolant system keeps operations smooth and efficient.

Versatile and Reliable Construction

Constructed from durable cast iron and steel, the BPH-300 suits a wide variety of surface grinding requirements. Its electromagnetic chuck securely holds workpieces, and the robust hydraulic pump ensures stable, reliable movement for heavy-duty applications.

FAQ's of TOS Czech BPH-300 Surface Grinding Machine:

Q: How do you operate the TOS Czech BPH-300 Surface Grinding Machine?

A: This surface grinding machine can be operated using a combination of manual hand wheels and a button panel. The longitudinal table movement is hydraulically controlled, while cross movements and vertical feed adjustments are performed manually for precise control.

Q: What workpiece sizes and materials can the BPH-300 handle?

A: With a job grinding capacity of 300 mm x 1000 mm and an electromagnetic chuck, the BPH-300 can handle workpieces up to those dimensions. It is suitable for grinding materials like cast iron and steel components.

Q: When should the lubrication and coolant systems be maintained?

A: The centralized automatic lubrication system is designed for consistent ongoing lubrication. However, periodic checks and maintenance as per the supplier or manufacturer's guidelines are recommended. For the coolant system, regularly monitor fluid levels and clean trays to ensure optimal cooling performance.

Q: Where is the BPH-300 typically used?

A: The TOS BPH-300 Surface Grinder is commonly found in precision engineering workshops, tool rooms, and production facilities requiring accurate surface grinding of metal components. Its heavy-duty construction makes it ideal for industrial environments.

Q: What is the process for adjusting the vertical feed on this machine?

A: Vertical feed adjustment is performed manually using a precise adjustment hand wheel. This allows fine-tuning of the grinding head's position to achieve the desired depth and surface finish on the workpiece.

Q: What are the benefits of the integrated coolant and lubrication systems?

A: The integrated coolant pump and tray help maintain consistent temperatures and prevent overheating during operation, enhancing grinding accuracy and prolonging tool life. The automatic centralized lubrication minimizes wear, ensuring long-term machine reliability.
