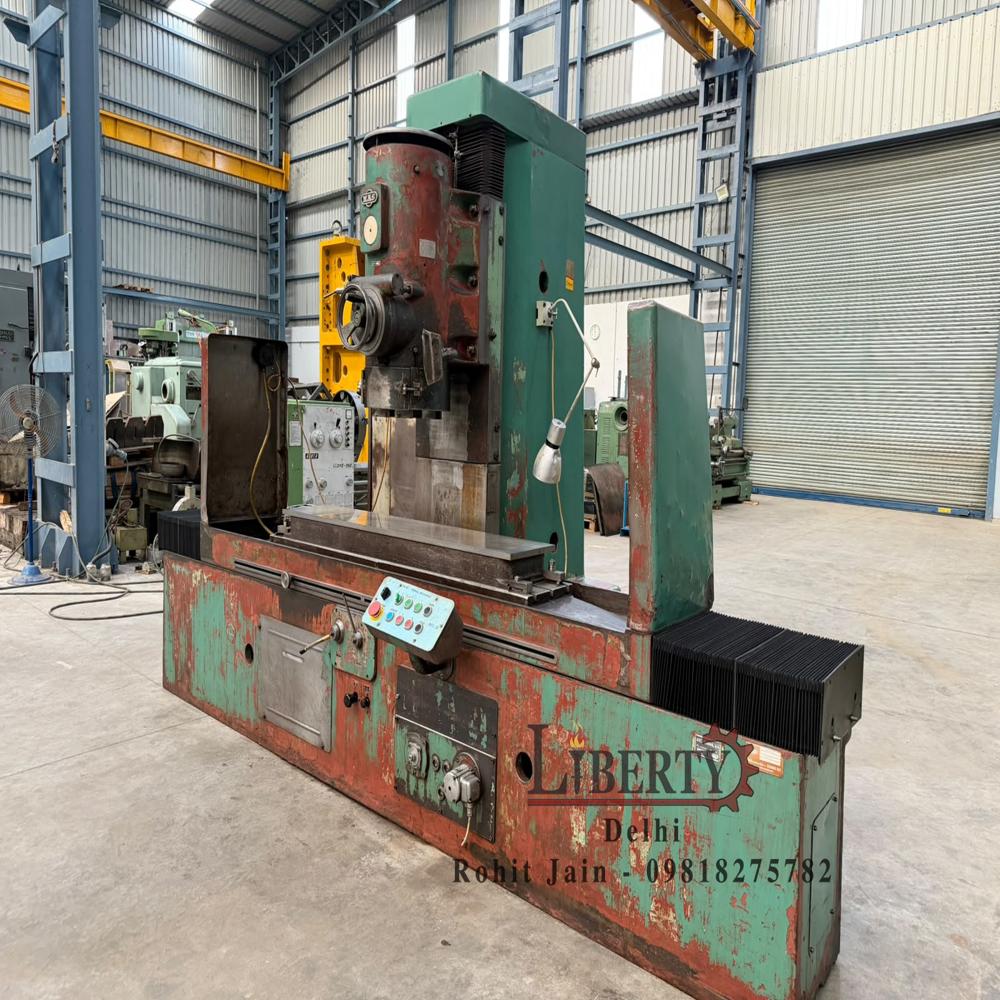

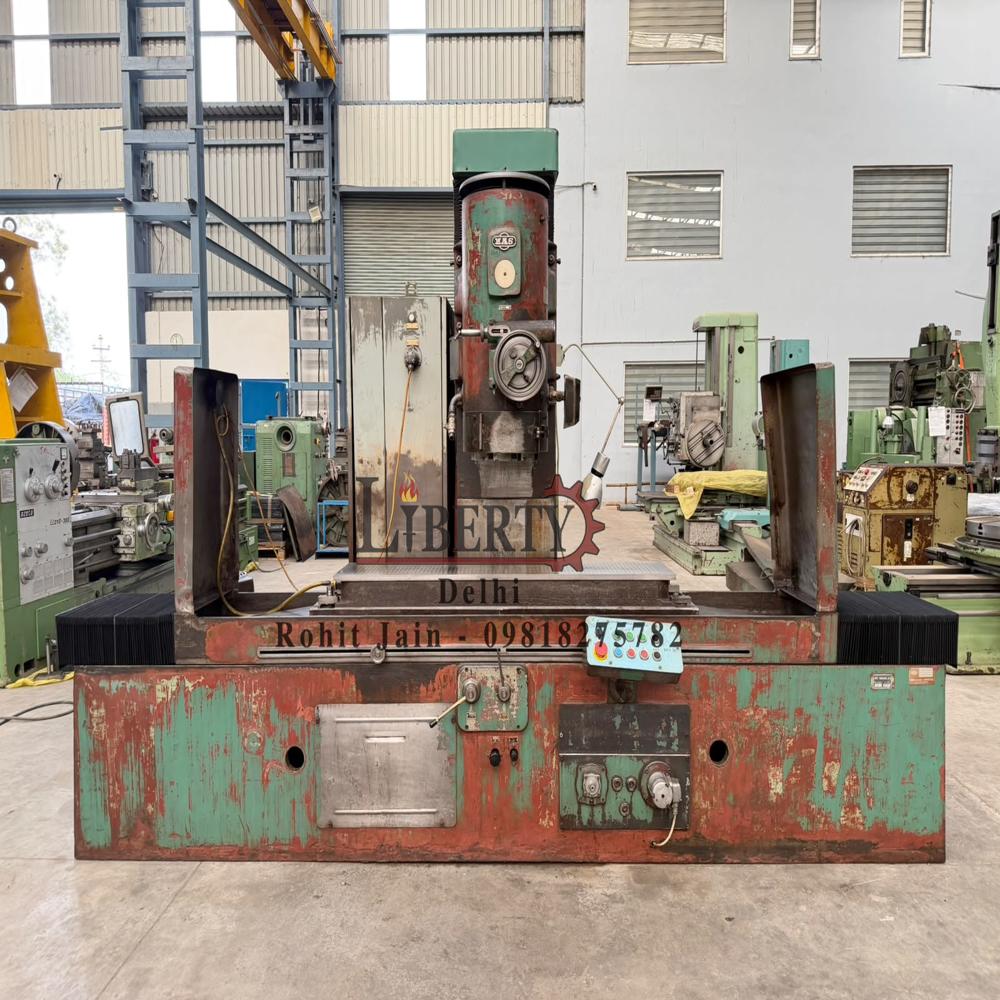

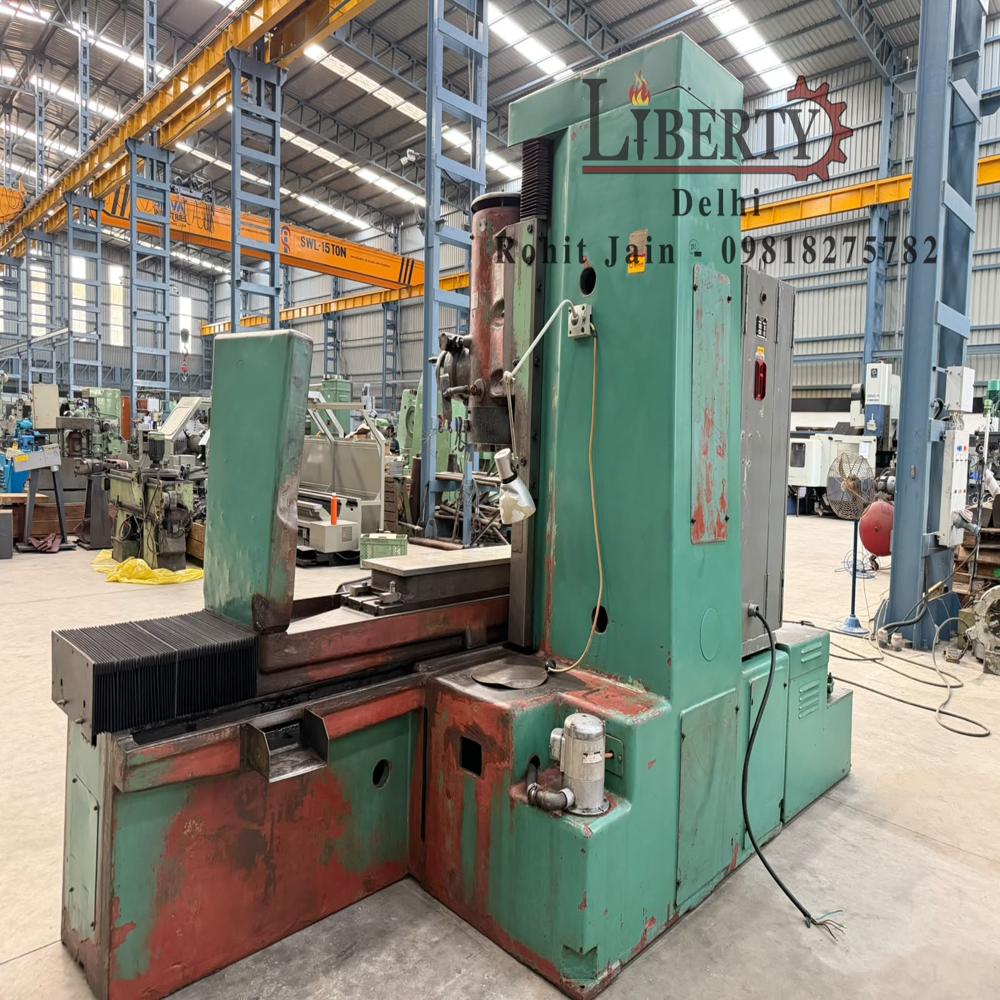

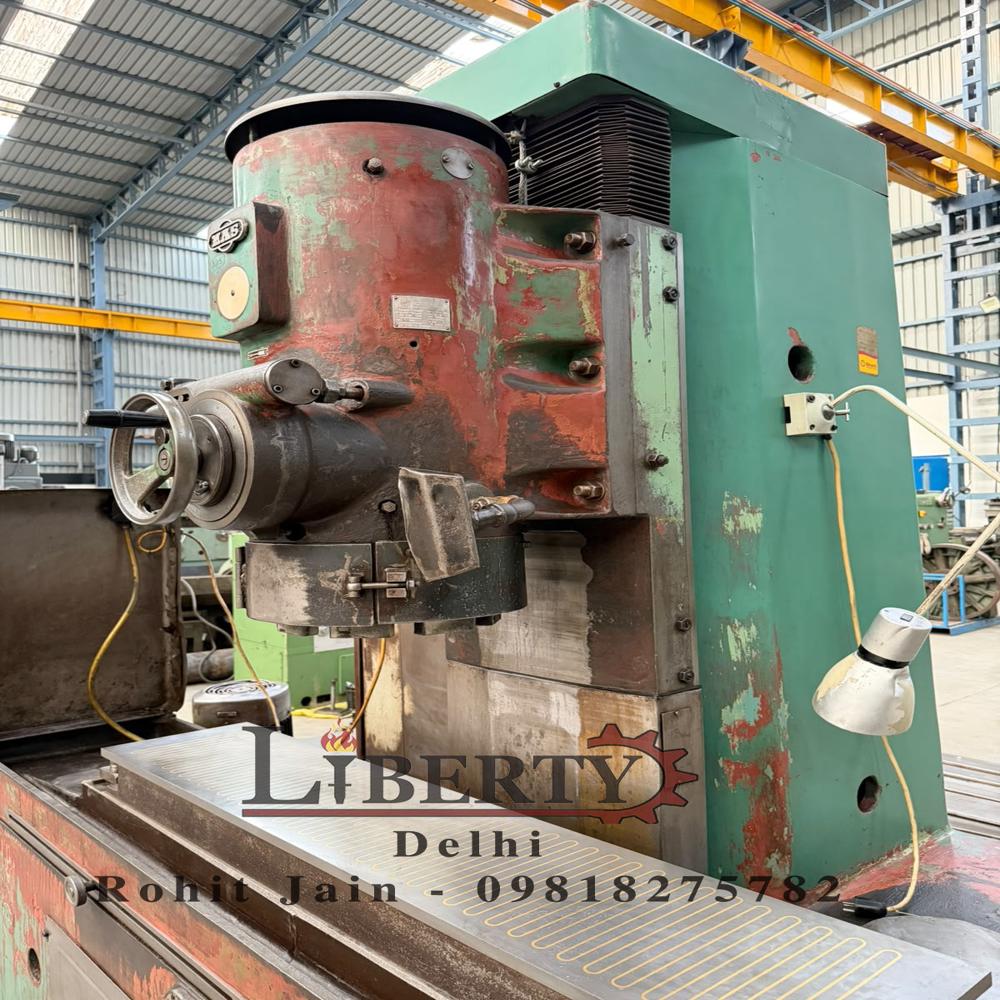

MAS Czech BRV 30/1.5 Vertical Spindle Surface Grinder

Name: MAS Czech BRV 30/1.5 Vertical Spindle Surface Grinder
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MAS Czech BRV 30/1.5 Vertical Spindle Surface Grinder Specification

Model
BRV 30/1.5

Rotation
Vertical Spindle

Product Type
Vertical Spindle Surface Grinder

General Use
Heavy Duty Vertical Spindle Surface Grinding Machine made by MAS (Czech Republic), Model BRV 30/1.5, available in excellent working condition. The machine is equipped with a 300 mm 1500 mm Magnetic Chuck and a Segmented Cup Wheel Head, making it suitable for heavy-duty surface grinding applications. The technical details are as follows -

Material
Cast Iron & Steel

Type
Vertical Spindle

Capacity
Heavy duty grinding

Weight (kg)
Approx. 4500 kg

Computerized
No

Automatic
No

CNC Or Not
No (Conventional)

Control System
Manual

Table Size
320 x 1200 mm

Table Slide Way
Vee & Flat

Magnetic Chuck Size
300 x 1000 mm

Grinding Wheel Size
350 mm diameter

Grinding Wheel Speed
1400 rpm

Grinding Length
1000 mm

Floor Space
2800 x 1900 mm

Spindle Speed
1400 rpm

Power
Approx. 10 HP

Voltage
415 V, 3 Phase

Dimension (L*W*H)
Approx. 2800 x 1900 x 2600 mm

Feature
High Stability, Rigid Structure, Heavy Duty

Color
Green (original), with patina

Condition
Second Hand/Used

Working Speed
Manual feed

Max. Distance Center of Spindle to Table
Approx. 425 mm

Table Movement
Longitudinal Reciprocating

Coolant System
Fitted

Surface Finish Quality
Up to 2m Ra (depending on workpiece)

Lubrication Type
Centralized Manual

Application Industries
Tool Rooms, Mould Shops, Machine Shops

About MAS Czech BRV 30/1.5 Vertical Spindle Surface Grinder

Make - MAS (Czech Republic)

Model - BRV 30/1.5

Magnet Size - 300 mm x 1500 mm

Segmented Wheel Cup Diameter - 315 mm

No. of Segments in Wheel-Head - 8 pcs.

Max. Job Height - 425 mm

Spindle Motor - 22 kW

- Features Automatic Depth Adjustment "Auto-Cut".

- Complete with Coolant Pump & Splash Guards.

- Machine is in excellent working condition.

Robust Performance for Demanding Applications

Equipped for heavy-duty usage, the MAS BRV 30/1.5 surface grinder delivers superior performance in industrial environments that require precision. Its vertical spindle and large magnetic chuck accommodate substantial workpieces, allowing efficient handling of various materials for tool and mould making.

High Precision & Excellent Surface Finish

This machine achieves impressive surface finish quality-up to 2m Ra-depending on the workpiece material. Its reciprocating table movement and rigid structure help maintain precision, making it a valuable asset for jobs that demand consistent accuracy.

Reliable Manual Operation

The BRV 30/1.5 features manual feed for optimal operator control, while its centralized manual lubrication system ensures essential components stay protected. Maintenance and usage are straightforward, and the system's design is robust for extended, trouble-free service life.

FAQ's of MAS Czech BRV 30/1.5 Vertical Spindle Surface Grinder:

Q: How does the MAS BRV 30/1.5 maintain surface finish quality?

A: Thanks to its heavy-duty construction, vertical spindle, segmented cup wheel head, and effective coolant system, the grinder achieves surface finishes up to 2m Ra. Its reciprocating table movement and stable build contribute to high-precision results.

Q: What industries typically use this vertical spindle surface grinder?

A: This model is widely used in tool rooms, mould shops, and machine shops due to its capability to handle heavy-duty grinding tasks with reliable accuracy and stability.

Q: When is the MAS BRV 30/1.5 most beneficial for production?

A: The machine is most beneficial when high-precision surface grinding of large or heavy workpieces is required. Its manual operation also suits workplaces valuing operator control over the grinding process.

Q: Where can I place the grinder, considering its size and weight?

A: Given its floor space requirement of 2800 x 1900 mm and approximate weight of 4500 kg, the grinder should be installed in well-ventilated, reinforced industrial spaces with adequate electrical supply (415 V, 3 phase).

Q: What is the process for operating the MAS BRV 30/1.5?

A: The operator manually feeds the workpiece under the grinding spindle, adjusts via the control panel, and ensures proper cooling and lubrication. The table reciprocates longitudinally, while the magnetic chuck secures the workpiece.

Q: How does the lubrication system work on this grinder?

A: It features a centralized manual lubrication system, enabling the operator to easily lubricate all critical sliding and moving parts, supporting long-term reliability and smooth machine operation.

Q: What are the main benefits of choosing a used MAS BRV 30/1.5 grinder?

A: Opting for a used MAS BRV 30/1.5 model combines the established build quality and performance of the original Czech manufacturing with cost savings, quick availability, and proven operational reliability.
