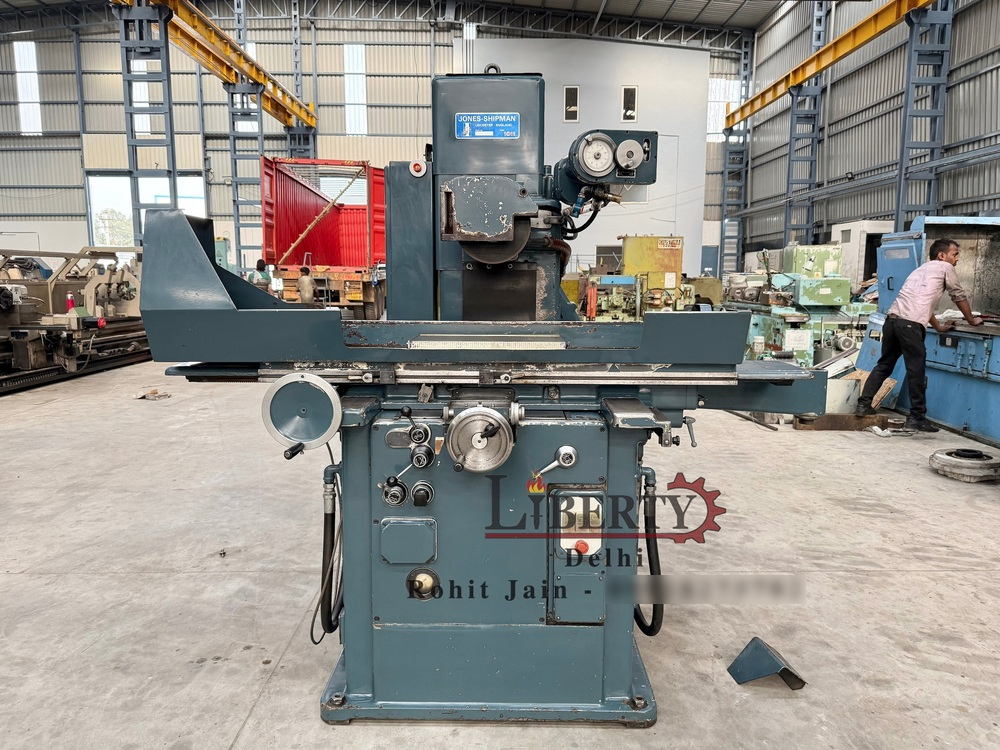

Jones & Shipman 1011 Precision Surface Grinder Machine

Name: Jones & Shipman 1011 Precision Surface Grinder Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Jones & Shipman 1011 Precision Surface Grinder Machine Specification

Rotation
Clockwise (Standard Grinding Direction)

Model
Jones & Shipman 1011

Product Type
Surface Grinder Machine

General Use
Precision Surface Grinding

Material
Cast Iron Body, Hardened Steel Components

Type
Precision Surface Grinder

Capacity
Max 250 mm x 100 mm job

Weight (kg)
Approx. 700 - 800 kg

Computerized
No

Automatic
No, Manual Operation

CNC Or Not
Not CNC (Manual Operations)

Control System
Hand Operated

Table Size
460 mm x 150 mm

Table Slide Way
Precision V and Flat

Magnetic Chuck Size
250 mm x 100 mm

Grinding Wheel Size
180 mm x 13 mm x 31.75 mm

Grinding Wheel Speed
2850 RPM

Grinding Length
270 mm

Floor Space
1160 mm x 1000 mm

Fuel Tank Capacity
12 Litres

Spindle Speed
2850 RPM

Power
1 HP

Voltage
415 V, 3 Phase

Dimension (L*W*H)
Approximately 1160 x 1000 x 1650 mm

Feature
High Precision, Sturdy Construction, Accurate Grinding

Color
Grey/Blue (as per manufacturer standard)

Job Clamping Type
Magnetic Chuck

Accessories Included
Wheel Flange, Coolant Tray, Standard Tools Set

Wheel Motor
0.75 kW

Hydraulic System
No (Manual Only)

Maximum Work-piece Height
225 mm

Coolant System
Provided

Handwheels
Precision Ground with Accurate Graduations

Cross Feed Graduation
0.02 mm

Wheel Dressing Attachment
Included

Vertical Feed Graduation
0.002 mm

Max Distance from Table to Spindle Centre
320 mm

Table Longitudinal Travel
470 mm

Lubrication System
Centralized Manual Lubrication

Jones & Shipman 1011 Precision Surface Grinder Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Jones & Shipman 1011 Precision Surface Grinder Machine

Make - Jones & Shipman (England)

Model - 1011

Max. Grinding Capacity - 305 mm x 686 mm

Grinding Wheel Size - Diameter 254 mm x 50 mm Width

Max. Height between Table Top to Wheel Center - 430 mm

Max. Longitudinal Travels - 735 mm

Max. Cross Travels - 285 mm

Current Magnet Size - 250 mm x 500 mm

Least Count of Vertical Travel - 2.5 Microns (0.0001")

Least Count of Cross Travel - 2.5 Microns (0.0001")

Graduations on Dials - Imperial (in inches)

- With Motorised Vertical Travel of the Wheel-Head.

- Rapid & Feed Movements on Cross Travels.

- Micro-Feed Adjustments on Cross Travels.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/EfKE1f7GyQw

Robust Construction for Long-Term Precision

Built from high-grade cast iron and incorporating hardened steel components, the Jones & Shipman 1011 is designed for durability. Its robust build minimizes vibrations, ensuring consistently accurate grinding performance over extended periods. The machine is well-suited for demanding environments where reliability and precision are essential.

Manual Control for Greater Versatility

This model boasts fully manual operation with precision-ground handwheels, offering fine graduations and tactile control for skilled machinists. Without computerized or hydraulic systems, the machine keeps operation straightforward and maintenance costs low, making it ideal for workshops preferring traditional hand-operated surface grinders.

Comprehensive Accessories and Simple Maintenance

Included with the grinder are essential accessories such as a magnetic chuck, wheel dressing attachment, coolant tray, and standard tool set. The centralized manual lubrication system simplifies regular upkeep, while the open design and manual controls facilitate easy cleaning and routine maintenance.

FAQ's of Jones & Shipman 1011 Precision Surface Grinder Machine:

Q: How is job clamping achieved on the Jones & Shipman 1011 surface grinder?

A: Job clamping is managed through a magnetic chuck measuring 250 mm x 100 mm, which securely holds metal workpieces during precise grinding processes.

Q: What are the benefits of using manual operation rather than CNC or hydraulics on this grinder?

A: Manual operation enables operators to make fine adjustments with precision-ground handwheels, granting full control for detailed work. This also reduces machine complexity, thereby lowering maintenance requirements.

Q: When should the centralized manual lubrication system be used?

A: Lubrication should be performed prior to daily use or after several hours of operation, ensuring optimal movement of slides and minimizing wear on critical components.

Q: Where is this surface grinder best utilized?

A: The Jones & Shipman 1011 is ideally suited for tool rooms, repair workshops, manufacturing plants, and precision engineering firms requiring high-accuracy manual grinding applications.

Q: What is the process for wheel dressing on this machine?

A: Wheel dressing is accomplished using the included attachment, which allows operators to maintain wheel sharpness and alignment, thereby ensuring superior surface finishes on workpieces.

Q: How does the provided coolant system enhance machine usage?

A: The coolant system helps dissipate heat generated during grinding, prevents thermal damage to parts, and extends tool life, all of which contribute to improved surface finish and workpiece accuracy.
