Kapp FS-502 Vertical Surface Grinder Machine

Send Inquiry

Request To Call Back

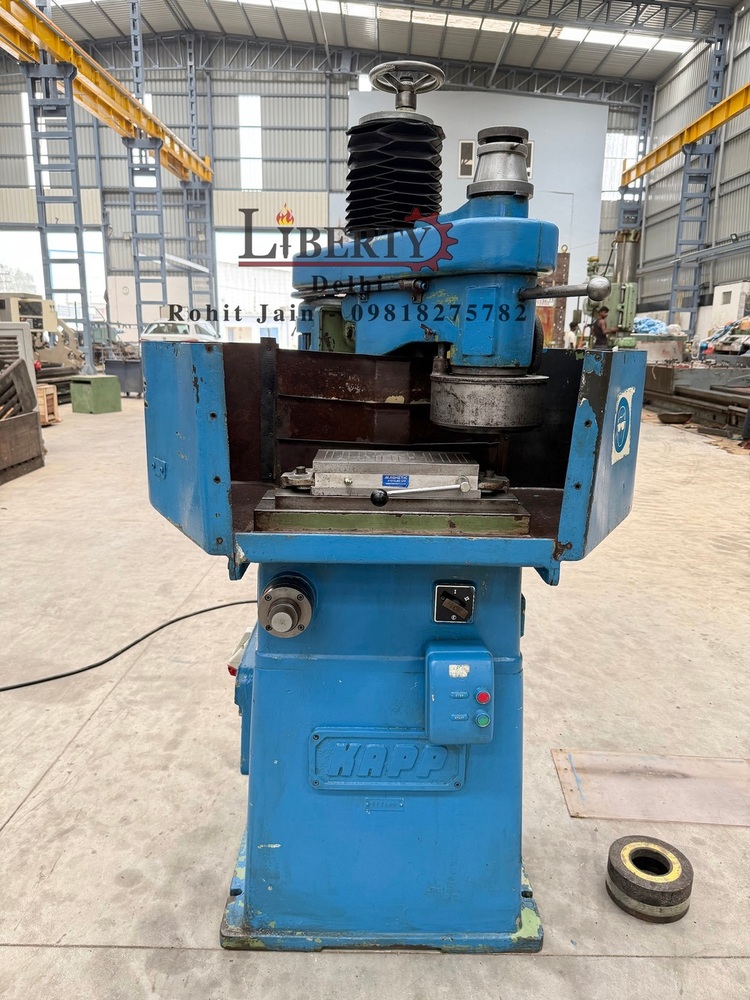

Kapp FS-502 Vertical Surface Grinder Machine

Name: Kapp FS-502 Vertical Surface Grinder Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Kapp FS-502 Vertical Surface Grinder Machine Specification

Rotation
Grinding wheel rotation

Model
FS-502

Product Type
Vertical Surface Grinder

General Use
Precision vertical surface grinding

Material
Cast Iron & Steel

Type
Vertical

Capacity
520 mm

Weight (kg)
2700 kg

Computerized
No

Automatic
No

CNC Or Not
Not CNC

Control System
Manual

Table Size
500 mm x 200 mm

Table Slide Way
Double V

Magnetic Chuck Size
500 mm x 200 mm

Grinding Wheel Size
350 mm x 100 mm x 127 mm

Grinding Wheel Speed
1500 RPM

Grinding Length
520 mm

Floor Space
1800 mm x 1400 mm x 1850 mm

Fuel Tank Capacity
65 Litres

Spindle Speed
1500 RPM

Power
5.5 kW

Voltage
415 V

Dimension (L*W*H)
1800 mm x 1400 mm x 1850 mm

Feature
High precision & rigid construction

Color
Machine Grey

Table Feed Type
Hydraulic & Manual

Grinding Wheel Motor
5.5 kW

Max Longitudinal Travel
600 mm

Hydraulic Pump Motor
0.75 kW

Max Table Load
230 kg

Noise Level
<75 dB

Coolant Pump Capacity
0.09 kW

Distance Spindle to Table
480 mm

Max Vertical Travel
420 mm

Electrical Cabinet
Integrated

Installation
Foundation required

Max Cross Travel
220 mm

Lubrication System
Automatic centralized

Ambient Condition
10°C - 45°C

Grinding Accuracy
± 0.01 mm

Surface Finish Achievable
0.2 µm Ra

Kapp FS-502 Vertical Surface Grinder Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Kapp FS-502 Vertical Surface Grinder Machine

Make - Kapp (Germany)

Model - FS-502

Magnet - 305 mm x 150 mm

Grinding Wheel Diameter - 180 mm

Max. Height of the Job - 225 mm

Least Count (Vernier Scale) - 1 Micron (0.001 mm)

- Machine is in excellent working condition.

Video of the Machine -

https://youtu.be/1VC5Rfh8QTY

Reliable Precision Engineering

The Kapp FS-502 Vertical Surface Grinder emphasizes high accuracy, featuring grinding precision of 0.01 mm and surface finish capabilities down to 0.2 m Ra. Its double V table slide way and robust cast iron construction ensure rigidity and minimal vibration during machining, favoring precise and consistent results for demanding applications.

Efficient Operation and Maintenance

With an automatic centralized lubrication system, integrated electrical cabinet, and dual-feed options, the FS-502 machine optimizes both functionality and maintenance, thus minimizing downtime. The coolant pump facilitates efficient heat management and debris removal, sustaining the longevity and quality of the grinding processes.

User-Centric Features

Designed for manual control, the FS-502 offers maximum user oversight via hydraulic and manual table feeds, ensuring flexibility for operators. Its ergonomic layout, quiet operation (noise <75 dB), and sizeable working area make it suitable for precision grinding in various workshop environments.

FAQ's of Kapp FS-502 Vertical Surface Grinder Machine:

Q: How does the Kapp FS-502 Vertical Surface Grinder achieve precise surface finish?

A: The FS-502 utilizes a rigid cast iron and steel structure, double V slideways, and an automatically lubricated system to minimize vibration and ensure stable movements. Combined with high-precision hydraulic or manual table feeds and a powerful grinding wheel motor, the machine achieves consistent surfaces with finishes as fine as 0.2 m Ra.

Q: What materials can be processed with the FS-502?

A: The machine is designed for precision grinding operations on a variety of metal materials, particularly cast iron and steel. Its robust build and adjustable table feeds make it suitable for handling medium- to large-sized workpieces within its 230 kg table load capacity.

Q: When is foundation installation necessary for the FS-502?

A: Because of its substantial weight (2700 kg) and requirement for stable operation, the FS-502 must be installed on a proper foundation. This ensures accurate performance and reduces vibrations, supporting its high-precision grinding tasks.

Q: Where is the FS-502 commonly used for grinding operations?

A: It is primarily utilized in industrial settings such as manufacturing plants, tool rooms, and engineering workshops that require high-precision vertical surface grinding, particularly in sectors demanding tight tolerance and superior surface finish.

Q: What is the process for operating the FS-502 machine?

A: Operators load the workpiece onto the magnetic chuck, set required grinding parameters, and use manual controls for table and spindle operations. Hydraulic and manual table feeds are available, and safety checks (including coolant, lubrication, and electrical systems) should be completed before starting the grinding process.

Q: How does the machine benefit users in surface grinding applications?

A: The FS-502 delivers exceptional accuracy, reliable finishing, and flexible operation modes. Its automatic lubrication reduces maintenance needs, while the integrated coolant and control systems sustain continuous operation and superior grinding results across a wide temperature range.
