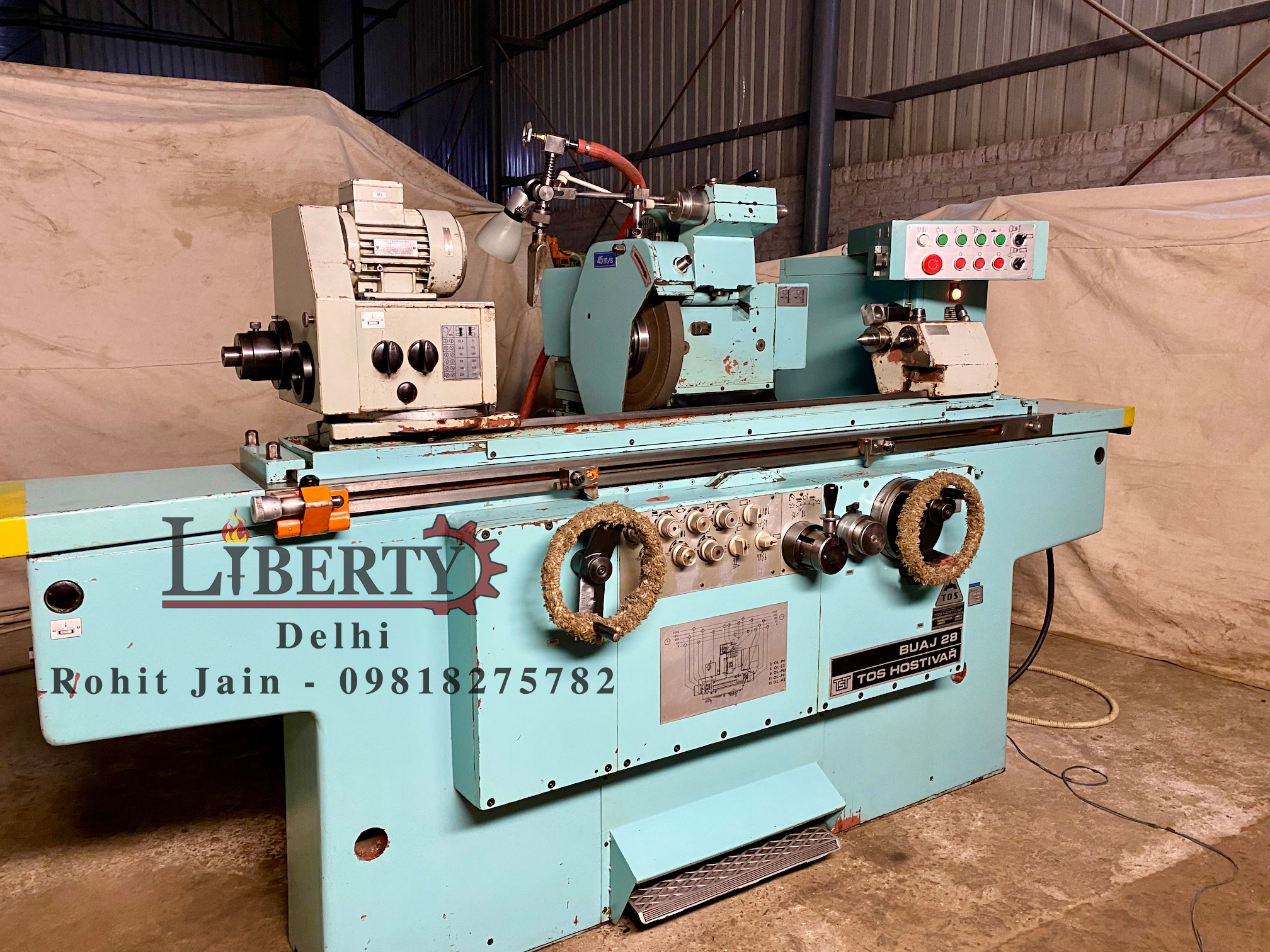

TOS BUAJ 28 1000 Universal Cylindrical Grinder

Name: TOS BUAJ 28 1000 Universal Cylindrical Grinder
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS BUAJ 28 1000 Universal Cylindrical Grinder Specification

Product Type
Universal Cylindrical Grinder

General Use
Precision external and internal grinding of cylindrical and conical surfaces

Material
Cast Iron (Base and Main Structure)

Type
Manual/Universal

Capacity
Between Centers 1000 mm

Weight (kg)
2800 kg

Computerized
No

Automatic
No

Control System
Conventional

Drive Type
Mechanical Belt Drive

Grinding Diameter
280 mm

Grinding Length
1000 mm

Spindle Speed
30350 rpm (workhead)

Grinding Wheel Size
400 x 50 x 203 mm

Voltage
400 V/50 Hz

Dimension (L*W*H)
2900 x 1600 x 1400 mm

Feature
Universal application, sturdy construction, high accuracy

Color
Industrial Grey/Green

Workhead Spindle Taper
Morse 4

Optional Accessories
Internal grinding attachment, face grinding device

Distance Between Centers
1000 mm

Tailstock Quill Stroke
40 mm

Maximum Workpiece Weight Between Centers
130 kg

Grinding Accuracy (Roundness)
0.002 mm

Coolant System
Provided

Lubrication
Centralized

Table Swivel Range
+/- 9

Center Height Over Table
180 mm

Wheelhead Motor Power
4 kW

Standard Accessories
Grinding wheel, wheel flange, balancing arbor, centers, tools

Internal Grinding Attachment
Available

TOS BUAJ 28 1000 Universal Cylindrical Grinder Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

TOS BUAJ 28 1000 Universal Cylindrical Grinder About

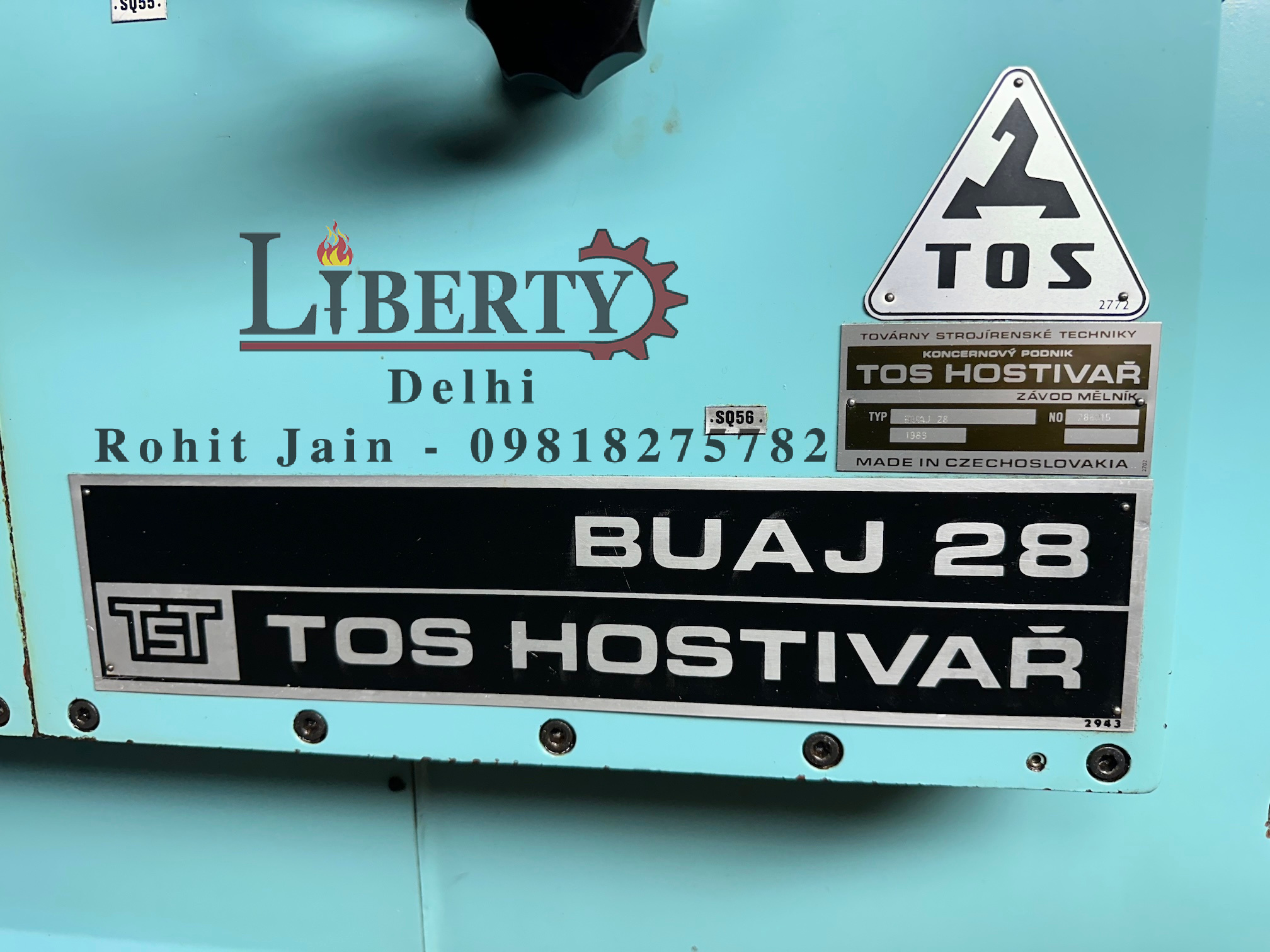

Make - TOS-Hostivar (Czech Republic)

Model - BUAJ 28

Center Height - 145 mm

Max. Diameter of Job - 280 mm

Max. Length of Job - 1000 mm

Grinding Wheel Size - 400 mm Diameter x 50 mm Width

Least Count of the Machine - 1 Micron

Work-Head Speeds - 22.4 rpm to 710 rpm

Wheel-Head Speeds - 2040 rpm / 2560 rpm

- Equipped with Internal Grinding Attachment.

- Complete with 2-point Steady, 3-point Steady, Job Support etc.

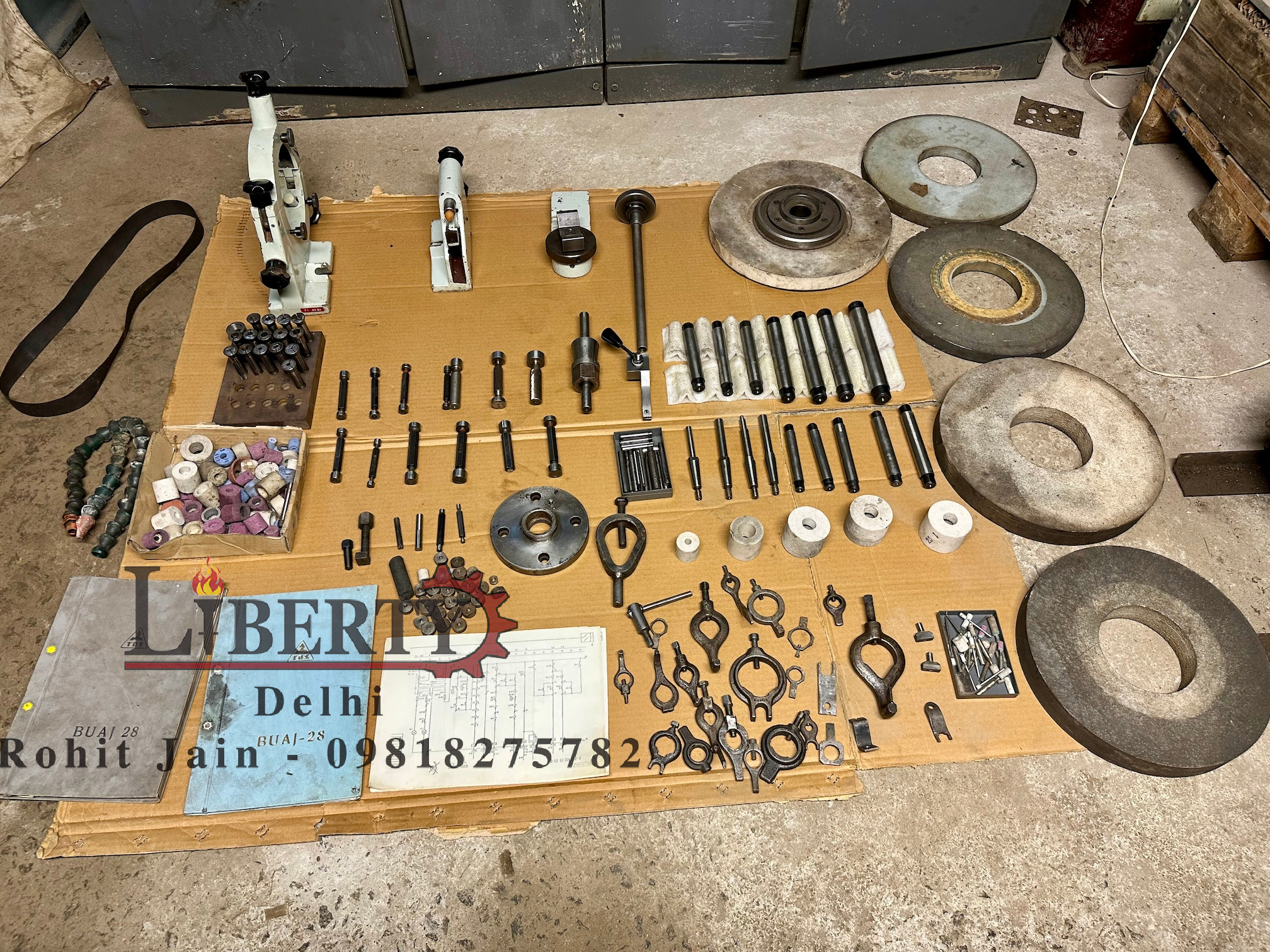

- Lots of Accessories like Wheel Flange, Spare Wheels, Mandrels, Gauges etc.

- Complete with Magnetic Coolant Filtration Unit, Coolant Tank & Pump.

- Features like Auto-Cut, Delay, Auto-Slow, Auto-Compensation etc.

- Features like Auto-Cycle, Plunge, Rapid Travel of Table, Hydraulic Tail-Stock etc.

- Machine is one of the latest conventional models made by the TOS company.

- Operating Manual and Electrical, Mechanical & Hydraulic Drawings are available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/ICcVhmHS35Y

Precision and Versatility in Grinding

The TOS BUAJ 28 1000 offers unrivaled precision for grinding cylindrical and conical workpieces, accommodating a length of up to 1000 mm and a diameter of up to 280 mm. Its universal design supports both external and internal grinding tasks, making it an indispensable tool for workshops requiring flexibility and consistent accuracy.

Sturdy Construction and Efficient Operation

Built with a cast iron base and main structure, this grinder ensures minimal vibration and maximum durability. The combination of a mechanical belt drive, centralized lubrication, and industrial-grade components provides smooth, reliable performance, while the included coolant system helps maintain optimal grinding conditions.

FAQ's of TOS BUAJ 28 1000 Universal Cylindrical Grinder:

Q: How does the TOS BUAJ 28 1000 ensure high grinding accuracy?

A: The TOS BUAJ 28 1000 achieves superior grinding precision with a roundness accuracy of 0.002 mm, robust cast iron construction, and centralized lubrication that reduces mechanical play. Its universal design and stable base also limit vibration, contributing to high-quality surface finishes.

Q: What types of workpieces can be processed on this cylindrical grinder?

A: This machine is suitable for precision external and internal grinding of cylindrical and conical surfaces, supporting workpieces up to 130 kg between centers, with a maximum length of 1000 mm and a diameter up to 280 mm. It is versatile for toolroom and industrial parts.

Q: When is the internal grinding attachment recommended for use?

A: The internal grinding attachment is ideal when you need to grind inner surfaces or bores in cylindrical or conical workpieces. It can be installed as an optional accessory to expand the machine's capability beyond standard external grinding tasks.

Q: Where is the TOS BUAJ 28 1000 typically installed and used?

A: This grinder is best suited for use in precision engineering workshops, toolrooms, manufacturing plants, and general industrial settings. Its robust design also makes it suitable for both medium and heavy-duty grinding applications.

Q: What is the process to change grinding wheels or accessories on this machine?

A: Swapping grinding wheels or accessories involves dismounting the current wheel using supplied tools, securing a new wheel flanged on the balancing arbor, and ensuring proper alignment before operation. Always follow the manufacturer's safety protocols during the process.

Q: How does the centralized lubrication benefit the grinder's performance?

A: Centralized lubrication ensures consistent oil distribution to all vital machine components, reducing friction, wear, and maintenance needs. This feature prolongs machine life and supports smoother, more precise operations.

Q: What are the benefits of choosing this manual, universal cylindrical grinder?

A: Investing in the TOS BUAJ 28 1000 provides reliable high-accuracy grinding, robust construction for longevity, and universal application for both internal and external surfaces. It is suitable for handling diverse materials and workpieces, enhancing productivity in industrial environments.
