TOS BUT63 3000 mm Heavy Duty Cylindrical Grinder

Name: TOS BUT63 3000 mm Heavy Duty Cylindrical Grinder
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS BUT63 3000 mm Heavy Duty Cylindrical Grinder Specification

Product Type
Heavy Duty Cylindrical Grinder

General Use
Industrial / Precision Grinding

Material
Cast Iron, High-Grade Alloy Steel

Type
External Cylindrical Grinder

Capacity
Max. Grinding Diameter: 630 mm

Weight (kg)
Approx. 14000 kg

Computerized
No

Automatic
Semi-Automatic

Control System
Manual / Hydraulic

Drive Type
Electric

Grinding Diameter
630 mm

Grinding Length
3000 mm

Spindle Speed
15 400 RPM (Variable)

Grinding Wheel Size
Max. 900 x 100 x 305 mm

Voltage
415 V / 3 Phase / 50 Hz

Dimension (L*W*H)
~7000 x 3000 x 2100 mm

Feature
Hardened bed ways, High Rigidity, Precision Machining

Color
Standard Grey/Green

Wheel Peripheral Speed
35 m/s

Main Motor Power
15 kW

Tailstock Quill Travel
250 mm

Chuck Type
3-Jaw / Face Plate Optional

Lubrication System
Centralized

Distance Between Centers
3000 mm

Table Swivel Range
+7 / -3

Max. Workpiece Weight (with centers)
3000 kg

Coolant System
Included

Center Height Above Bed
315 mm

TOS BUT63 3000 mm Heavy Duty Cylindrical Grinder Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

TOS BUT63 3000 mm Heavy Duty Cylindrical Grinder About

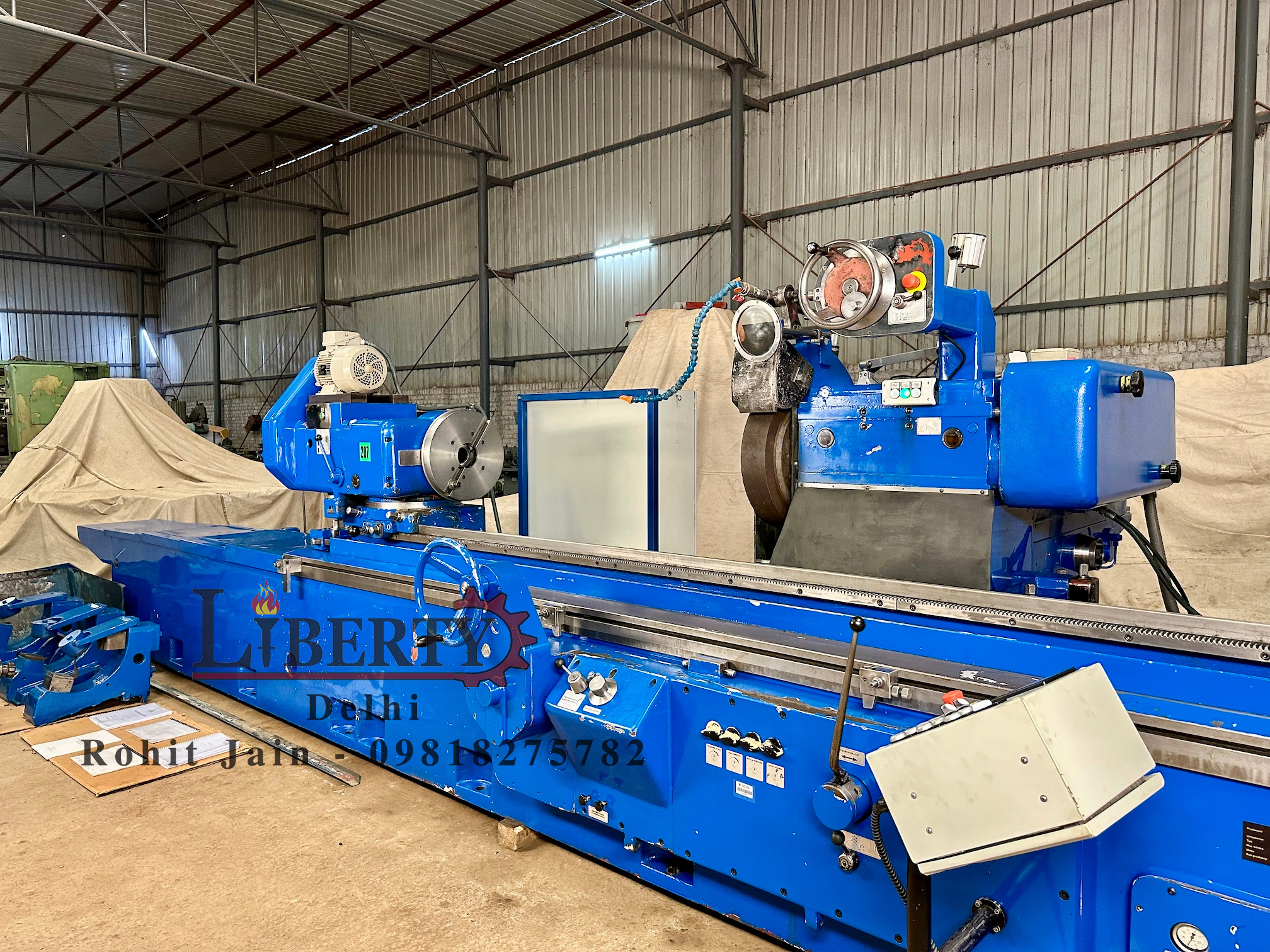

Make - TOS (Czech Republic)

Model - BUT 63 / 3000

Center Height - 325 mm

Max. Job Diameter - 630 mm

Max. Length of Job - 3000 mm

Grinding Wheel Size - Diameter 750 mm x 100 mm Width

Work-Head Speeds - 9 rpm to 156 rpm

- Features like Auto-Slow, Delay, Auto-Cut, Auto-Compensation etc.

- Features like Plunge, Rapid Table Travel, Hydraulic Tail-Stock etc.

- Motorised Travel of Wheel-Head for setting purposes.

- Rotation possible in Wheel-Head, Work-Head and in Table.

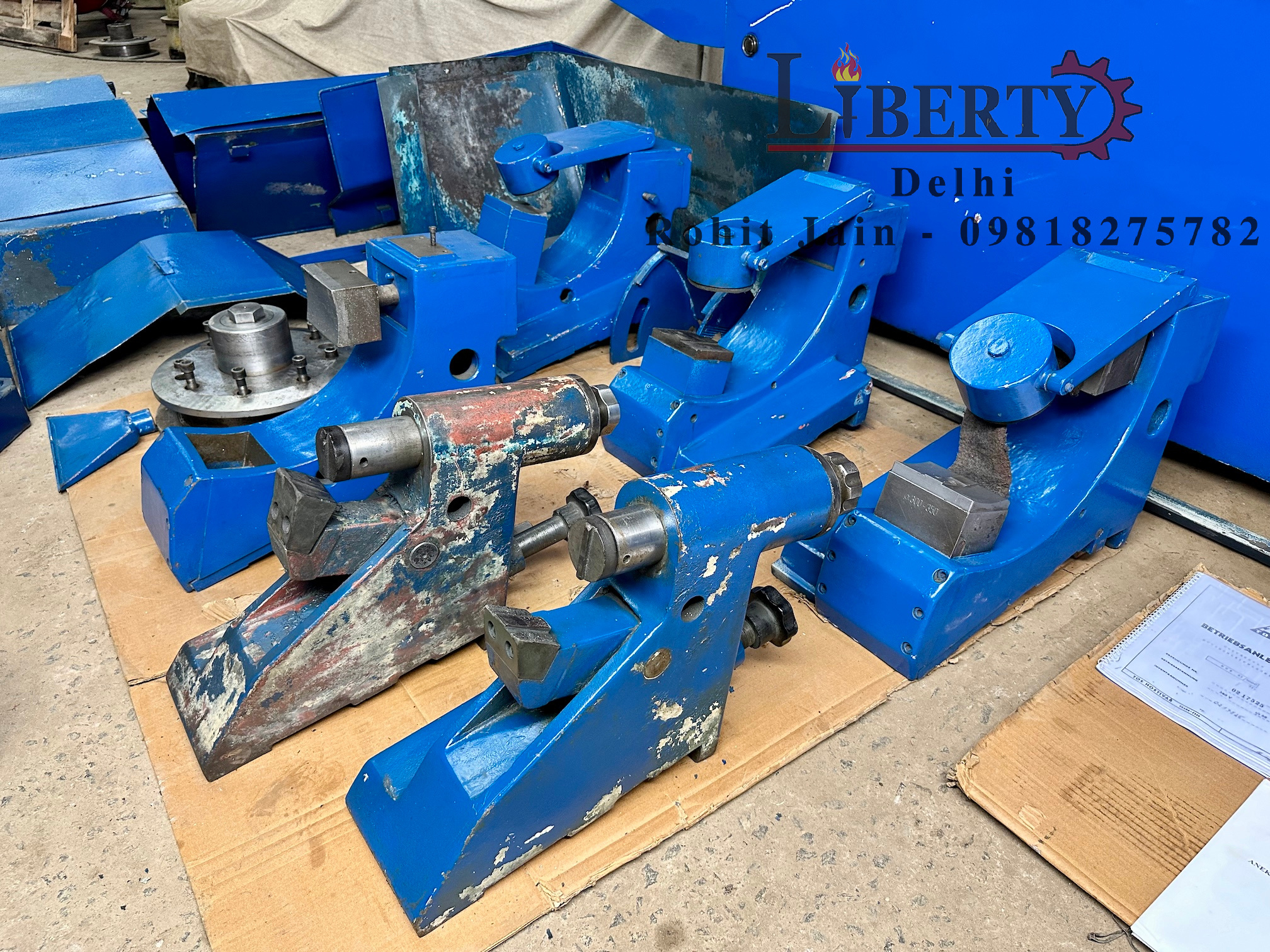

- Complete with 6 x Job Steady, Wheel Dresser, Wheel Flange etc.

- Complete with Coolant Filtration Unit, Covers etc.

- Micro-Feed Travels (of 2 Microns/stroke) in the Wheel-Head Movement.

- Electrical Drawings, Ladder Logic of PLC, & Operating Manual is available.

- Slides are completely scratch-less; in excellent condition.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/vB1FnpA80fE

Heavy-Duty Precision Grinding

Tailored for rigorous industrial use, this cylindrical grinder ensures exceptional precision and reliabilityeven with large, heavy workpieces. The hardened bed ways and robust material construction allow for consistent accuracy and longevity, making it ideal for demanding production environments.

Versatile and Efficient Operation

With a sizable 3,000 mm distance between centers, variable spindle speed, and semi-automatic/manual hydraulic controls, this grinder supports diverse grinding requirements. It fits a wide range of applications thanks to its adjustable table angle, large grinding wheel capacity, and optional chuck configurations.

Streamlined Maintenance and Safety

Equipped with a centralized lubrication system and an integrated coolant solution, the TOS BUT63 simplifies maintenance procedures and minimizes downtime. All controls are user-friendly, supporting both manual and semi-automatic operations for optimal safety and productivity.

FAQs of TOS BUT63 3000 mm Heavy Duty Cylindrical Grinder:

Q: How is the TOS BUT63 3000 mm Cylindrical Grinder typically used in industrial settings?

A: This grinder is commonly utilized for precision external cylindrical grinding of heavy and large components, such as shafts, rollers, and machine parts. Its high load capacity and extended center distance make it especially suitable for industries like manufacturing, power generation, and metalworking.

Q: What is the process for mounting workpieces and adjusting grinding parameters?

A: Workpieces are typically loaded between centers or secured using a 3-jaw chuck or face plate. Grinding parameters, including spindle speed and table swivel, are adjusted manually or hydraulically to match the material and desired finish. The user-friendly control system supports flexible operation.

Q: What are the main benefits of the centralized lubrication and coolant systems included?

A: The centralized lubrication system automatically distributes oil to critical machine parts, reducing maintenance needs and ensuring smooth operation. The coolant system maintains optimal grinding temperatures, minimizing thermal deformation and enhancing finished surface quality.

Q: When should operators choose manual versus hydraulic control on this machine?

A: Manual control is ideal for straightforward operations or when fine adjustments are necessary, while the hydraulic system is best for repetitive, high-precision production tasks to ensure consistent pressure and motion with minimal operator fatigue.

Q: Where are TOS BUT63 cylindrical grinders commonly installed?

A: These grinders are widely installed in industrial workshops, large-scale manufacturing plants, tool rooms, and facilities involved in repair and overhaul of heavy machinery, particularly where high precision and heavy-duty grinding tasks are frequent.

Q: What materials can be processed using this cylindrical grinder?

A: The TOS BUT63 is suitable for grinding workpieces made from a variety of materials including cast iron, high-grade alloy steel, and similar heavy metals, delivering excellent results for both hard and soft materials.
